PREFACE

Thank you for selecting a Hero MotoCorp PLEASURE. We wish you many miles of

continued riding pleasure in the years ahead.

Let us make this world a safer, healthier and more environment friendly place.

This booklet is your guide to the basic operation and maintenance of your new

Hero MotoCorp PLEASURE. Please take time to read it carefully. As with any fine

machine, proper care and maintenance is essential for trouble-free operation and

optimum performance.

Your Scooter is conforming to latest (Bharat Stage-III norms) regulation for emission,

safety & noise levels. We are also using non asbestos brake shoes and engine gaskets

which are environment friendly in nature.

We, at Hero MotoCorp, are committed to demonstrate excellence in our environment

performance on a continual basis, as an intrinsic element of our corporate philosophy. To

achieve this we commit ourselves to continue product innovations to improve

environment compatibility, comply with all applicable legislation including

environment legislation and strengthen the green supply chain.

Your Authorised Hero MotoCorp dealer will be glad to provide further information or

assistance and is equipped to handle your future service needs.

NOTE

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,

SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S

MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION

AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE

ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR

GUARANTEED. Hero MotoCorp Ltd. RESERVES THE RIGHT TO MAKE

CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR

INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO

REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING

PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Ltd.

ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT.

IT IS OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS.

THIS COULD LEAD TO CHANGE IN PRODUCT SPECIFICATIONS

WITHOUT NOTICE. Hero MotoCorp ‘PLEASURE’ COMPLIES WITH THE

LATEST EMISSION NORMS.

Pg. No.

CONTENTS

Pg. No.

• FUEL 18

PRODUCT SPECIFICATION 2

• PROTECTIVE APPAREL 5

SCOOTER SAFETY 4

• STEERING LOCK 26

• ACCESSORIES AND MODIFICATIONS 9

DESCRIPTION 11

PARTS FUNCTION 14

• LOAD LIMITS AND GUIDELINES 7

SCOOTER IDENTIFICATION 1

• IMPORTANT SAFETY INFORMATION 4

TIPS FOR HEALTHY ENVIRONMENT 10

• INSTRUMENTS AND INDICATORS 14

• FUEL GAUGE 14

MAJOR COMPONENTS 15

• BRAKES (INTEGRATED BRAKING) 15

• TYRES (TUBELESS) 20

ESSENTIAL INDIVIDUAL COMPONENTS 24

• IGNITION SWITCH 24

• RIGHT HANDLE BAR CONTROLS 25

• LEFT HANDLE BAR CONTROLS 25

FEATURES 26

• SEAT LOCK 26

• CENTER COMPARTMENT 27

• LUGGAGE HOOK 28

• FRONT INNER BOX 28

• BOOT LAMP/BOOT LAMP SWITCH 29

• SIDE STAND INDICATOR/SIDE STAND

SWITCH 29

BODY PARTS REMOVAL 30

• CENTER COMPARTMENT 30

• BODY COVER 31

• CENTER COVER 32

• FRONT UPPER COVER 32

• MOBILE CHARGING SOCKET 28

• REAR VIEW MIRROR 33

• HEADLAMP CASE 33

• HEADLAMP FOCUS 34

• ENGINE OIL 53

• STORAGE 67

• REMOVAL FROM STORAGE/ AIR SUCTION VALVE 68

• IDLE SPEED / BRAKE SHOE WEAR 58

• BATTERY 59

• ENGINE OIL REPLACEMENT 54

• FUSE REPLACEMENT 61

• POLISHING 66

• CLEANING 65

• OIL STRAINER CLEANING 54

• WASHING 65

STORAGE GUIDE 67

• SIDE STAND 62

ROAD SIGNS 69

WARRANTY DETAILS

• BULB REPLACEMENT 63

• SPARK PLUG 56

• ANTI-THEFT TIPS / STEERING LOCK 44

• IMPORTANCE OF MAINTENANCE 45

• SAFETY PRECAUTIONS 47

OPERATIONS 35

• PRE-RIDE INSPECTION 35

• STARTING THE ENGINE 36

• RUNNING IN 37

• RIDING 38

• PARKING 43

TOOL KIT 44

FIRST AID KIT / MAINTENANCE 45

• MAINTENANCE SAFETY 46

• MAINTENANCE SCHEDULE 48

• AIR CLEANER 51

• SECONDARY AIR SUPPLY SYSTEM 52

• DRAIN TUBE 53

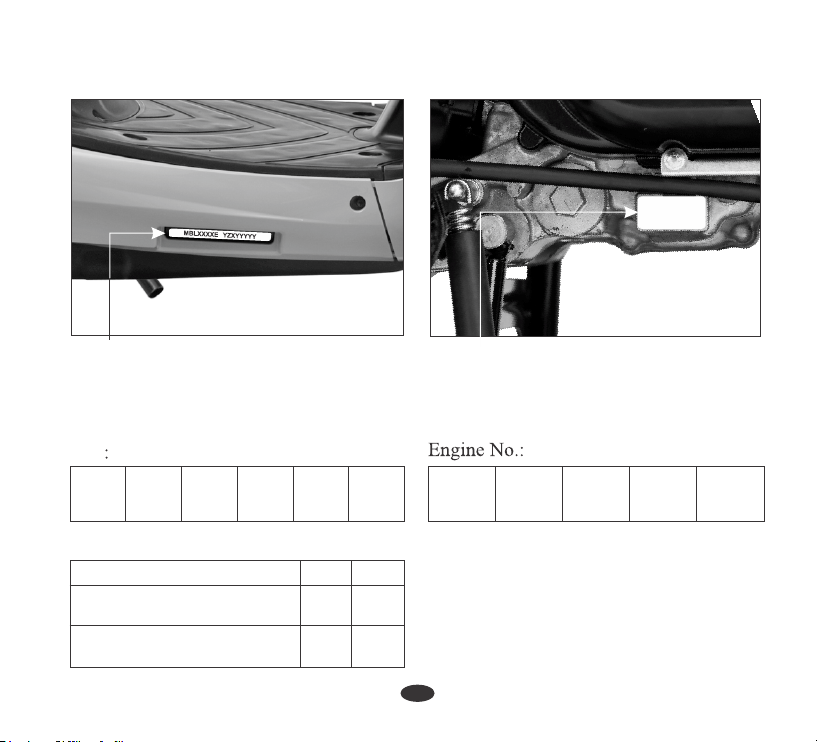

Vehicle Identification Number (VIN)

SCOOTER IDENTIFICATION

Model Code :

Model Engine

Pleasure - Sheet Metal Wheel /

Integrated Braking

VIN

EH EC

MBLXXXXEJYZXYYYYY

MBL

Manufacturer

Code

XXXXEJ

Vehicle

Description

Year of

Mfg.

Assembly

Plant

Month of

Mfg.

YYYYY

Serial

Number

XXXXEC

Engine

Description

Year of

Mfg.

Assembly

Plant

Month of

Mfg.

YYYYY

Serial

Number

XXXXECYZXYYYYY

XXXXECY

ZXYYYYY

Engine No.

Location: Stamped on the lower side of

the left crankcase.

Location: Stamped on the lower right side

of the frame, visible from the window

provided on right floor side cover.

VIN and Engine no. may be required:

1. During registration of the Scooter.

2. For dealing with Legal & Insurance

Department.

Pleasure - Cast Wheel /

Integrated Braking

EJ EC

VIN

103 kg

1750 mm

705 mm

1115 mm

1240 mm

760 mm

125 mm

Overall Length

Overall Width

Overall Height

Wheelbase

Saddle Height

Ground Clearance

5.03 kW @ 7000 r/min

7.85 N-m @ 5000 r/min

50.0 x 52.0 mm

9.0:1

102 cc

Champion - PRZ 9 HC (Federal Mogul)

0.7 - 0.8 mm

Intake : 0.14 mm / Exhaust : 0.14 mm

1700 ± 100 r/min

0.80 litre at disassembly

0.70 litre at draining

0.12 litre at disassembly

0.10 litre at draining

5.0 litres (Min)

DIMENSIONS

WEIGHT

Kerb Weight

CAPACITIES

Engine Oil

Transmission oil

Fuel Tank

ENGINE

Maximum Power

Maximum Torque

Bore and Stroke

Compression Ratio

Displacement

Spark Plug

Spark Plug Gap

Valve Clearance (Cold)

Idle Speed

PRODUCT SPECIFICATION

ITEM SPECIFICATIONS

Chassis Type High Rigidity Under bone

Front Suspension Bottom Link with Spring Loaded

Hydraulic Damper

Position lamp 12V 5W x 2 nos.

Starting system Kick / Electric Start

Fuse 2A, 10A

POWER TRANSMISSION

Tyre size, rear 90 / 100 x 10 - 53 J (Tubeless Tyre)

CHASIS AND SUSPENSION

Side stand indicator 12V 1.7W

Alternator 110 W

Rear Suspension Unit Swing with Spring Loaded

Hydraulic Damper

Caster 27 30'

Tyre size, front 90 / 100 x 10 - 53 J (Tubeless Tyre)

Primary Reduction Variomatic (2.51 - 0.85)

(Integrated braking)

Clutch System Dry, Automatic Centrifugal Clutch

ELECTRICAL

Front / Rear brake Drum Type Internal expanding shoe type (Dia. 130 mm)

Final Reduction 50/20 x 49/13 (9.423)

Battery 12V - 4Ah **MF Battery

Tail/Stop lamp 12V 5/21 W - MFR*

Turn signal lamp 12V 10W x 4 nos.(MFR*-Clear Lens-Amber bulb)

Headlamp (High / Low) 12V 35W/35W Halogen Bulb, MFR*

Meter illumination 12V 1.7Wx2 nos.

High beam indicator 12V 1.7W

Turn signal indicator 12V 3.0Wx2 nos.

* MFR stands for Multifocal Reflector Type ** MF stands for Maintenance Free

ITEM SPECIFICATIONS

IMPORTANT SAFETY

INFORMATION

There is much that you can do to protect

yourself when you ride. You will find

many helpful recommendations through

out this manual. Following are a few that

we consider most important.

It is a proven fact, Helmets significantly

reduces the number and severity of head

injuries. So always wear a helmet and

make sure your pillion rider does the same.

We also recommend that you wear eye

protection, sturdy boots, gloves and other

protective gear (page 5).

SCOOTER SAFETY

Your scooter can provide many years of

service and pleasure if you take

responsibility for your own safety and

understand the challenges you can meet on

the road.

Always wear a helmet

Make yourself easily visible

Some drivers do not see scooters because

they are not looking for them. To make

yourself more visible, wear bright

reflective clothing, position yourself so To make yourself more visible, wear

bright reflective clothing that fits well.

that others can see you, signal before

turning or changing lanes, and use horn

which will help others to notice you.

Ride within your limits

Pushing the limits is another major cause

of scooter accidents. Never ride beyond

your personal abilities or faster than

conditions demand. Remember that

alcohol, drugs, fatigue and inattention can

significantly reduce your ability to make

good judgements and ride safely.

Keep your scooter in safe condition

For safe riding, its important to inspect

your scooter before every ride and

perform all recommended maintenance.

Never exceed load limits, and use

accessories that have been recommended

by Hero MotoCorp for this vehicle. See

(pages 7 & 8) for more details.

NOTE

PROTECTIVE APPAREL

Following are suggestions to help you

choose proper riding gear.

For your safety, we strongly recommend

that you always wear an approved helmet

(ISI marked), eye protection, boots,

gloves, long pants and a long sleeve shirt

or jacket whenever you ride. Take care of

loose / hanging clothes while solo / pillion

riding. Although complete protection is

not possible, wearing proper gear can

reduce the chance of injury when you ride.

Helmets and eye protection

Your Helmet is your most important piece

of riding gear because it offers the best

protection against head injuries. A helmet

should fit your head comfortably and

securely. A bright coloured helmet can

make you more noticeable in traffic, as

can reflective strips.

An open-face helmet offers some

protection, but a full-face helmet offers

more. Always were face shield or goggles

to protect your eyes and help your vision.

Additional riding gear

In addition to a helmet and eye protection,

we also recommend:

Sturdy boots with non-slip soles to help

protect your feet and ankles.

Leather gloves to keep your hands

warm and help prevent blisters, cuts,

burns, and bruises.

A two wheeler riding suit or jacket for

comfort as well as protection. Bright

coloured reflective clothing can help

make you more noticeable in traffic. Be

sure to avoid loose clothes that could

get caught on any part of your scooter.

WARNING

Be sure you and your passenger

always wear a helmet, eye protection

and other protective apparel when

you ride.

Not wearing a helmet increases the

chance of serious injury or death in a

crash.

Always wear HELMET

Wear bright or reflective

clothing

Wear a face shield or goggles

Wear gloves

Shoes should be close fitting, low heels

and offer ankle protection

PROTECTIVE APPAREL

LOAD LIMITS AND

GUIDELINES

However exceeding the weight limit

or carrying an unbalanced load can

seriously affect your scooter's handling,

braking and stability. Non Hero

MotoCorp accessories, modifications,

and poor maintenance can reduce your

safety margin.

The following pages give more specific

information on loading, accessories and

modifications.

Your scooter has been designed to carry

you, one pillion and limited amount of

cargo. When you add cargo or carry a

passenger, you may feel some difference

during acceleration and braking. But so

long as you keep your scooter well

maintained, with good tyres and brakes,

you can safely carry loads within the

limits and guidelines.

How much weight you put on your scooter,

and how you load it, are important to your

safety. Anytime you ride with a pillion or

cargo you should be aware of the following

information.

WARNING

Follow all load limits and other

loading guidelines in this manual.

Overloading or improper loading can

cause a crash and you can be seriously

injured.

Autres manuels pour PLEASURE

Table des matières

Autres manuels HERO Moto

HERO

HERO SPLENDOR+ Manuel utilisateur

HERO

HERO HF-DAWN Manuel utilisateur

HERO

HERO Passion Xpro Manuel utilisateur

HERO

HERO HUNK Manuel utilisateur

HERO

HERO HUNK 150R Manuel utilisateur

HERO

HERO SPLENDOR iSMART PROGRAMMED FI Manuel utilisateur

HERO

HERO MAESTRO EDGE 125 PROGRAMMED FI Manuel utilisateur

HERO

HERO SPLENDOR NXG Manuel utilisateur

HERO

HERO MAESTRO EDGE Manuel utilisateur

HERO

HERO Achiever Manuel utilisateur

HERO

HERO Passion Pro Manuel utilisateur

HERO

HERO XPULSE 200T PROGRAMMED FI Manuel utilisateur

HERO

HERO PLEASURE+ PROGRAMMED FI Manuel utilisateur

HERO

HERO Passion Pro Manuel utilisateur

HERO

HERO GLAMOUR XTEC PROGRAMMED FI Manuel utilisateur

HERO

HERO Achiever Manuel utilisateur

HERO

HERO MAESTRO EDGE Manuel utilisateur

HERO

HERO SPLENDOR+ Manuel utilisateur

HERO

HERO MotoCorp XPULSE 200T Manuel utilisateur

HERO

HERO Splendor Plus Manuel utilisateur

HERO

HERO MAESTRO EDGE 125 PROGRAMMED FI Manuel utilisateur

HERO

HERO MotoCorp XPULSE 200 Manuel utilisateur

HERO

HERO IGNITOR TECHNO Manuel utilisateur

HERO

HERO SPLENDOR iSmart Manuel utilisateur

Manuels Moto populaires d'autres marques

OHVALE

OHVALE GP-0 Manuel de la liste des pièces

Yamaha

Yamaha Star XV19CTSZ 2009 Manuel utilisateur

KTM

KTM 350 XCF-W USA Manuel utilisateur

HYOSUNG

HYOSUNG ST7 Manuel utilisateur

Husqvarna

Husqvarna FC 250 2016 Manuel utilisateur

Ducati

Ducati SCRAMBLER 800 Manuel d'instructions

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Manuel utilisateur

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Manuel utilisateur

Yamaha

Yamaha 2006 YZF-R1V Manuel utilisateur

KTM

KTM Freeride E-XC 2021 Manuel utilisateur

Fantic

Fantic Enduro 125 Manuel utilisateur

Ducati

Ducati Supersport 750 desmodue Manuel utilisateur

MV Agusta

MV Agusta 2008 F4 312RR 1078 Manuel d'instructions

Yamaha

Yamaha XVS650A Manuel utilisateur

Yamaha

Yamaha YZF-R6T(C) Manuel

Ducati

Ducati 748 monoposto strada Manuel utilisateur

ATK

ATK 1988 250 Manuel utilisateur

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Manuel utilisateur
