HERO IGNITOR Manuel utilisateur
PREFACE
This booklet is your guide to the basic operation and maintenance of your new
Hero MotoCorp IGNITOR. Please take time to read it carefully. As with any fine machine,
proper care and maintenance are essential for trouble-free operation and optimum
performance.
Let us make this world a safer, healthier and more environment friendly place.
Your motorcycle is conforming to latest (Bharat stage-III norms) regulation for emission,
safety & noise levels. We are also using non asbestos brake shoes / pads and engine gaskets
which are environment friendly in nature.
Your Authorised Hero MotoCorp dealer will be glad to provide further information or
assistance and is equipped to handle your future service needs.
Thank you for selecting a Hero MotoCorp IGNITOR. We wish you many miles of continued
riding pleasure in the years ahead.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve environment
compatibility, comply with all applicable legislation including environment legislation and
strengthen the green supply chain.
NOTE
ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION
AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE
ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR
GUARANTEED. Hero MotoCorp Ltd. RESERVES THE RIGHT TO MAKE
CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR
INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO
REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING
PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Ltd.
36PARKING
25
25
26
27
32
33
34
35
36
24
AIR CLEANER DRAIN TUBE
37
11
11
12
15
18
17
17
CLUTCH SWITCH
13
LCD PANEL
7
8
19
21
SEAT LOCK
23
DOCUMENT COMPARTMENT
18
FUEL VALVE
23
HELMET HOLDER
44
45
46
47
50
51
52
43
56
59
61
66
67
65
FUSE REPLACEMENT
STOP LAMP SWITCH
HEADLAMP ADJUSTMENT
67
68
70
71
72
72
73
78
HERO GENUINE PARTS
40
39
37
ANTI THEFT TIPS
38
SAFETY PRECAUTION
XXXXAA
Engine
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXAAYZXYYYYY
XXXXAAY
ZXYYYYY
Engine No.
Location : Stamped on the lower side of the
left crankcase.
1. During registration of the motorcycle.
2. For dealing with Legal & Insurance
Departments.
VIN and Engine No. may be required:
MOTORCYCLE IDENTIFICATION
Model Code.:
Model Engine
IGNITOR Electric Start / Front Disc /
Rear Drum / Cast Wheel
VIN
AB AA
MBL
Manufacturer
Code
XXXXAB
Vehicle
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
MBLXXXXEEYZXYYYYY
Vehicle Identification Number (VIN)
Location : Stamped on the left side of the
steering head tube.
VIN: MBLXXXXABYZXYYYYY
IGNITOR Electric Start / Front Drum /
Rear Drum / Cast Wheel
AA AA
PRODUCT SPECIFICATIONS
129 kg
0.9 litres at draining
Overall Width 710 mm
Overall Height 1095 mm
Ground Clearance 175 mm
Wheelbase 1270 mm
Saddle Height 795 mm
Overall Length 2010 mm
ITEM
DIMENSIONS
WEIGHT
Kerb Weight
CAPACITIES
1.1 litres at disassembly
Engine Oil
9.0 litres (minimum)
Fuel Tank
1.4 litres (usable)
Fuel Reserve Capacity
146 ml
Front Fork Oil at Disassembly
DoT 3 or DoT 4
Hydraulic Brake Fluid
SPECIFICATIONS
Tyre size Rear 100 / 90 x 17 - M/C 55 P (Tubeless Tyre)
Front Suspension Telescopic Hydraulic Shock Absorbers
O
Caster 25
Rear Suspension Swingarm with Adjustable Hydraulic
Shock Absorber
Trail 89 mm
Tyre size Front 80 / 100 x 17 - M/C 46 P (Tubeless Tyre)
Rear Brake Drum Dia 130 mm (Non Asbestos Type)
Front brake Disc/ Drum type Dia 240 mm / Dia. 130 mm (Non Asbestos Type)
Bore and Stroke 52.4 x 57.8 mm
ENGINE
Maximum Power 8.20 kW (11.00 BHP) @ 8000 r/min
Maximum Torque 11 N-m @ 5000 r/min
Displacement 124.7 cc
Compression Ratio 9.2:1
Spark Plug NGK - CPR 7 EA 9
Spark Plug Gap 0.8 - 0.9 mm
Idle speed 1400 ± 100 r/min
Valve Clearance (cold condition) IN:0.08 mm Ex : 0.12 mm
3
ITEM SPECIFICATIONS
* MFR stands for Multi-Focal Reflector Type
** MF stands for Maintenance Free Battery
Position Lamp 12 V 5 W
Turn Signal Indicator L.E.D.
Battery 12 V - 3 Ah, **MF Battery
Turn Signal Lamp 12 V - 10 Wx 4 MFR*
Neutral Indicator 12 V 1.7 W
Starting System Electric Start
Meter Illumination L.E.D.
Tail / Stop Lamp 12 V - 5/21 W MFR*
Headlamp 12 V - 35/35 W Halogen Bulb, MFR*
Hi Beam Indicator L.E.D.
Alternator 125 W
10A, 15A, 20A
POWER TRANSMISSION
1.944 (35/18)
3.350 (67/20)
1.473 (28/19)
3.077 (40/13)
1.190 (24/22)
3.071 (43/14)
1.038 (27/26)
Primary reduction
Final reduction
4th
5th
3rd
Gear ratio, 1st
2nd
ELECTRICAL
FUSE
4
ITEM SPECIFICATIONS
2. Always wear a helmet (ISI marked)
with chinstrap securely fastened and
insist on a helmet for your pillion rider.
6. Respect road signs and obey traffic rules
for your own safety and that of others on
the road (ref. page no.78-80).
Do's:
1. Always conduct simple pre-ride
inspection (ref. page no 32).
4. Ride defensively and at a steady speed
(between 40-50 km/hr).
5. For stopping motorcycle, use both
brakes simultaneously, keeping throttle
in the close position.
3. While riding, sit in a comfortable posi-
tion with your legs close to fuel tank.
motorcycle.
SAFE RIDING TIPS
5
muffler.
8. Give way to others on the road and sig-
nal before you make a turn.
11. Get your motorcycle serviced regularly
by the Authorised Hero MotoCorp
workshop.
Do's:
7. During night time, dip headlamp of your
motorcycle for oncoming traffic, or
when following another vehicle.
9. To make yourself more visible, wear
bright reflective clothing that fits well.
10. Take care of loose / hanging clothes
while solo / pillion riding.
SAFE RIDING TIPS
6
Autres manuels pour IGNITOR
1
Table des matières
Autres manuels HERO Moto
HERO
HERO SPLENDOR+ PROGRAMMED FI Manuel utilisateur
HERO
HERO PASSION XTEC Manuel utilisateur
HERO
HERO SPLENDOR iSMART PROGRAMMED FI Manuel utilisateur
HERO
HERO Super Splendor Manuel utilisateur
HERO
HERO Passion Pro Manuel utilisateur
HERO
HERO GLAMOUR Manuel utilisateur
HERO
HERO GLAMOUR Manuel utilisateur
HERO
HERO XPULSE 200 PROGRAMMED FI Manuel utilisateur
HERO
HERO XTREME Manuel utilisateur
HERO
HERO GLAMOUR PROGRAMMED FI Manuel utilisateur
HERO
HERO GLAMOUR Manuel utilisateur
HERO
HERO MAESTRO EDGE 125 PROGRAMMED FI Manuel utilisateur
HERO
HERO Passion PRO TR Manuel utilisateur
HERO
HERO PLEASURE+ PROGRAMMED FI Manuel utilisateur
HERO
HERO HF-Deluxe Manuel utilisateur
HERO
HERO Super Splendor Manuel utilisateur
HERO
HERO PLEASURE Manuel utilisateur
HERO
HERO Splendor iSmart 110 Manuel utilisateur
HERO

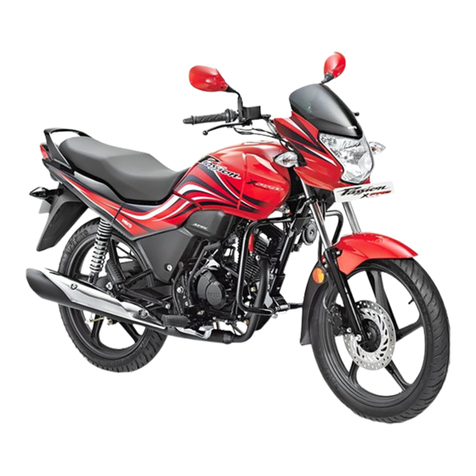

HERO Passion Xpro Manuel utilisateur
