HERO DESTINI 125 PROGRAMMED FI Manuel utilisateur

PREFACE

Thank you for selecting a Hero MotoCorp DESTINI 125 PROGRAMMED FI . We wish

you many miles of continued riding pleasure in the years ahead.

We at Hero MotoCorp, are committed to demonstrate excellence in our environment

performance on a continual basis, as an intrinsic element of our corporate philosophy. To

achieve this we commit ourselves to continue product innovations to improve environment

compatibility, comply with and all applicable legislation including environment legislation

strengthen the green supply chain.

Your is conforming to latest (Bharat stage- norms) regulation for emission, safety & vehicle VI

noise levels. We are also using non asbestos brake shoes/pads and engine gaskets which are

environment friendly in nature.

India) vide notification GSR 188 (E) dated 22nd February 2016. This feature helps in

the engine gets ON.

Your Authorised dealer will be glad to provide further information or Hero MotoCorp

assistance and is equipped to handle your future service needs.

This booklet is your guide to the basic operation and maintenance of your new

Hero MotoCorp DESTINI 125 PROGRAMMED FI. Please take time to read it carefully.

As with any fine machine, proper care and maintenance are essential for trouble-free

operation and optimum performance.

This vehicle is fitted with a lighting feature known as “Automatic Headlamp ON”. The feature

conspicuity for improving rider safety. The headlamp of this vehicle will always be lit ON when

Let us make this world a safer, healthier and more environment friendly place.

is mandated for all 2 Wheelers by Ministry of Road Transport & Highways (Government of

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,

SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S

MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE

AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR

CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED.

Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS

CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY

OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY

PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN

PERMISSION FROM Hero MotoCorp Ltd.

NOTE

ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT IS

OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS COULD

LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT NOTICE. Hero

MotoCorp Ltd ‘DESTINI 125 PROGRAMMED FI’ COMPLIES WITH THE LATEST

EMISSION NORMS.

As per Ministry of Road Transport & Highways (Government of India) vide

Notification G.S.R. 540(E), Hemostatic agent is excluded from first aid kit in

reduction from existing kit effective from 31st August 2020.

ADDENDUM

Pg. No.

CONTENTS

Pg. No.

VEHICLE IDENTIFICATION 1

VEHICLE SPECIFICATION 2

•Load limits and guidelines 7

•Side stand switch/Side stand/Pillion footrest 34

VEHICLE VIEWS 11

ESSENTIAL INDIVIDUAL COMPONENTS 25

•Ignition switch 25

•i3s (Idle Stop Start System) 26

•Keys 17

•Rear brake 19

•Helmet holder/Center compartment 30

•Instruments and indicators 14

•LCD panel 16

•Tyres (Tubeless) 22

PARTS FUNCTION 14

•Front inner box 33

MAJOR COMPONENTS 18

•Fuel 20

HANDLEBAR SWITCHES CONTROL 26

•Luggage hook 32

•Boot lamp/Boot lamp switch/USB charger 31

•Protective apparel 5

•Document compartment/First aid kit/

Tool kit holder 30

•Women pillion step 35

•Brakes (Integrated Braking) 18

•Accessories and modifications 8

TIPS FOR HEALTHY ENVIRONMENT 10

SAFE RIDING TIPS 9

BODY PARTS REMOVAL 35

FEATURES 26

VEHICLE SAFETY 4

•Important safety information 4

•Steering lock/Fuel filler cap/Lock/Seat lock 29

•Side stand indicator 33

•Headlamp focus adjustment 41

ANTI-THEFT TIPS 42

MAINTENANCE 53

SPARK PLUG 64

CLEANING OF VEHICLE 51

WASHING OF VEHICLE 51

STORAGE GUIDE 72

TOOL KIT/FIRST AID KIT 51

FUSE REPLACEMENT 67

STARTING THE ENGINE 43

SAFETY PRECAUTIONS 54

•Center compartment 35

AIR CLEANER ELEMENT 58

•Center cover/Body cover 36

MAINTENANCE SCHEDULE 55

AIR CLEANER DRAIN TUBE CLEANING 60

•Front upper cover assembly 39

RUNNING IN/RIDING 45

ENGINE OIL 61

FINAL DRIVE OIL REPLACEMENT 63

•Rear view mirror/Headlamp assembly 40

PRE-RIDE INSPECTION 41

PARKING 50

THROTTLE OPERATION 59

BRAKE SHOE WEAR 64

BATTERY 65

SUSPENSION 68

CATALYTIC CONVERTER 71

BULB REPLACEMENT 68

EVAPORATIVE EMISSION CONTROL SYSTEM 72

POLISHING OF VEHICLE 72

REMOVING ROAD SALT 72

BASIC TROUBLESHOOTING 74

HERO GENUINE PARTS

WARRANTY DETAILS

ZONAL/REGIONAL/AREA OFFICES

ROAD SIGNS 77

Vehicle Identification Number (VIN)

VEHICLE IDENTIFICATION

Engine No.

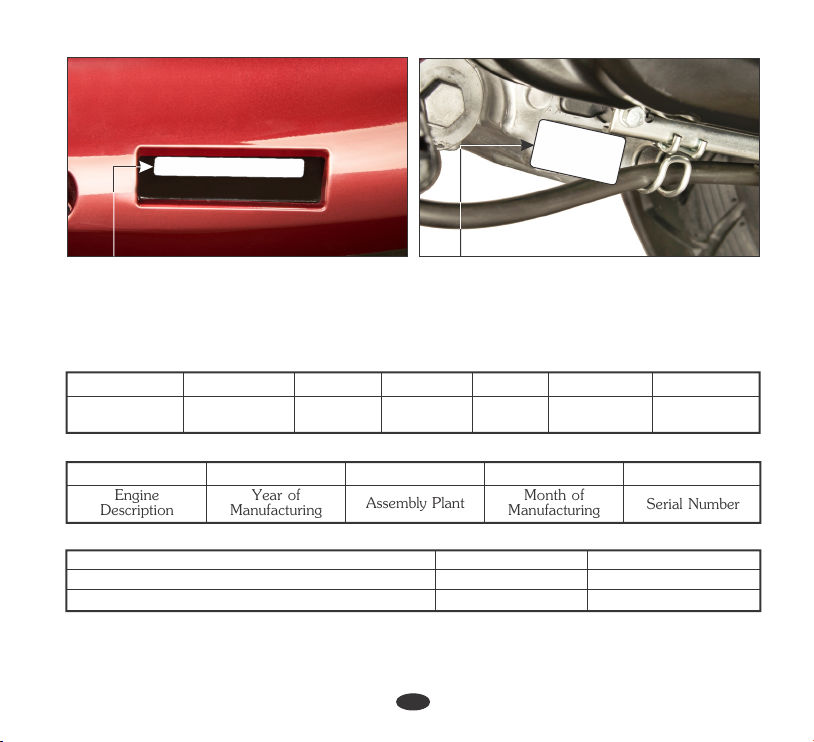

Location: Stamped on the lower side of

the left crankcase.

Location: Stamped on the lower right side of

the frame, visible from the window provided

on right floor side cover.

Model: DESTINI 125 PROGRAMMED FI

VIN Engine

Variants

Engine No.: JF17EL########

JF17EL # # # #####

Engine

Description Year of

Manufacturing Assembly Plant Month of

Manufacturing Serial Number

1. During registration of the vehicle.

VIN and Engine No. may be required:

2. For dealing with legal & insurance departments.

JFN07 JF17EL

Sheet metal wheel/Integrated braking (LX)

VIN: MBLJFW24#########

MBL JFW24 #

Manufacturer

code Vehicle

Description Model Year

Check

Digit

## #####

Plant

Code Month of

Manufacturing Production

Serial Number

JFW24 JF17EL

Cast wheel/Integrated braking (VX)

JF17EL#

#######

MBLJFW24#########

VEHICLE SPECIFICATION SPECIFICATIONSITEM

Dimensions

Overall length

Overall width

Overall height

Wheelbase

1809 mm

729 mm

1154 mm

1245 mm

Saddle height

Ground clearance 778 mm

155 mm

Weight

Engine oil

Transmission (Final drive) oil

Fuel tank

0.80 litre at disassembly and 0.70 litre at draining

0.12 litre at disassembly

0.10 litre at draining

5.0 litres

Capacities

VX model

LX model

113.5 kg

114.5 kg

Maximum power

Maximum torque

Bore and stroke

Compression ratio

Displacement

6 kW @ 700 .7 0 r/min

10. @ 5 00 4 N-m 5 r/min

52.4x57.8 mm

9.8:1

124.6 cc

Engine

Rear suspension Unit swing with spring loaded hydraulic damper

Champion-RG8YC (Federal Mogul)

Spark plug gap

Valve clearance

Idle speed

Front suspension

0.8-0.9 mm

0.14 mm

1 00± 00 5 1 r/min

Intake (cold)

Exhaust (cold)

Chassis and suspension

Spark plug

Frame type High rigidity under bone

Telescopic, hydraulic shock absorber

Kerb weight

SPECIFICATIONSITEM

Primary reduction

Final reduction Variomatic drive, (2.53-0.8)

50/20x49/14 (8.75)

Transmission

Rear brake drum type

Battery

Alternator 1 W @ 5000 25 r/min

Electricals

Starting system

Headlamp (High/Low)

Tail/Stop lamp

Turn signal lamp

Meter Illumination

Kick/Electric start

12V-35/35W Halogen bulb-**MFR

12V-5/21W

12V-10W x4 nos.(**MFR-Clear Lens-Amber bulb)

12V-105mW (White LED) x2 nos.

Turn signal indicator 12V-85mW x2nos. (Green LED)

Hi beam indicator

Licence plate

Side stand indicator

Boot lamp

12V-105mW (Blue LED)

12V-5W

12V-85mW (Red LED)

* MF stands for Maintenance Free

** MFR stands for Multi-Focal Reflector

Internal expanding shoe type (Dia. 130 mm)

Clutch system Dry, automatic centrifugal clutch

*MF battery 12V-4Ah/ETZ5

Position lamp 3W (LED)

Tyre size Front

Rear

90/100-10 53 J (Tubeless tyre)

VEHICLE SPECIFICATION

Caster angle 27.5°

i3s indicator 12V-105mW (Blue LED)

LCD Illumination 12V-105mW (Amber LED)

Front brake drum type

Internal expanding shoe type (Dia. 130 mm)

(Integrated braking system)

12V-30mW (LED)

Programmed FI malfunction indicator lamp (MIL) 12V-80mW (Amber LED)

Fuse Main fuses

Spare fuses 15A, 10A, 10A and 10A

15A and 10A

IMPORTANT SAFETY INFORMATION

There is much that you can do to protect

yourself when you ride. You will find many

helpful recommendations through out this

manual. Following are a few that we consider

most important.

VEHICLE SAFETY

It is a proven fact, Helmet significantly reduces

the number and severity of head injuries. So

always wear a helmet and make sure your

pillion rider does the same. We also

recommend that you wear eye protection,

sturdy boots, gloves and other protective gear

(page 6).

Even if you have ridden other vehicles,

practice riding in a safe area to become

familiar with how this vehicle works and

handles, and to become accustomed to the

vehicle's size and weight.

Your vehicle can provide many years of

service and pleasure if you take responsibility

for your own safety and understand the

challenges you can meet on the road.

Always wear a helmet

Before riding your vehicle

Make sure that you are physically fit, mentally

focused and free of alcohol and drugs. Check

that you and your pillion are both wearing an

approved vehicle helmet and protective

apparel. Instruct your pillion on holding onto

the grab rail or your waist, leaning with you in

turns, and keeping their feet on the footrest,

even when the vehicle is stopped.

Take time to learn & practice your

vehicle

Always pay due attention to other vehicles

around you, and do not assume that other

drivers see you. Be prepared to stop quickly or

perform an evasive maneuver.

Keep your vehicle in safe condition

Pushing the limits is another major cause of

vehicle accidents. Never ride beyond your

personal abilities or faster than conditions

demand. Remember that fatigue and

negligence can significantly reduce your ability

to make good judgements and ride safely.

Make yourself easily visible

Ride within your limits

Do not drink and ride

Riding under the influence of alcohol or drugs

is dangerous. Alcohol can reduce your ability

to respond to changing conditions and reduce

the reaction time. Do not drink and ride.

Ride efensivelyd

Some drivers do not see vehicles because they

are not looking for them. To make yourself

more visible, wear bright reflective clothing,

position yourself so that others can see you,

signal before turning or changing lanes, and

use horn which will help others to notice you.

For safe riding, its important to inspect your

vehicle before every ride and perform all

recommended maintenance. Never exceed

load limits, and use accessories that have been

recommended by Hero MotoCorp for this

vehicle. (page 7) See for more details.

Helmets and eye protection

Your helmet is your most important piece of

riding gear because it offers the best

protection against head injuries. A helmet

should fit your head comfortably and securely.

A bright coloured helmet can make you more

noticeable in traffic, as can reflective strips.

An open-face helmet offers some protection,

but a full-face helmet offers more. Always

wear face shield or goggles to protect your

eyes and help your vision.

Additional riding gear

In addition to a helmet and eye protection, we

also recommend:

•Sturdy boots with non-slip soles to help

protect your feet and ankles.

•Leather gloves to keep your hands warm

and help prevent blisters, cuts, burns, and

bruises.

•A two wheeler riding suit or jacket for

comfort as well as protection. Bright

coloured reflective clothing can help make

you more noticeable in traffic. Be sure to

avoid loose clothes that could get caught on

any part of your vehicle.

PROTECTIVE APPAREL

If you are involved in a crash

For your safety, we strongly recommend that

you always wear an approved helmet (ISI

marked), eye protection, boots, gloves, long

pants and a long sleeve shirt or jacket

whenever you ride. Take care of loose/

hanging clothes while solo/pillion riding.

Although complete protection is not possible,

wearing proper gear can reduce the chance of

injury when you ride.

Personal safety is your first priority. If you or

anyone else has been injured, take time to

assess the severity of the injuries and whether

it is safe to continue riding. Call for emergency

assistance if needed. Also follow applicable

laws and regulations if another person or

vehicle is involved in the crash.

If you decide to continue riding, first evaluate

the condition of your vehicle. If the engine is

still running, turn it off. Inspect for fluid leaks,

check the tightness of critical nuts and bolts,

and check the handlebar, brake levers, brakes,

and wheels. Ride slowly and cautiously. Your

vehicle may have suffered damage that is not

immediately apparent. Have your vehicle

thoroughly checked at a qualified service

facility as soon as possible.

Following are suggestions to help you choose

proper riding gear.

WARNING

•Be sure you and your pillion always wear a

helmet, eye protection and other protective

apparel when you ride.

•Not wearing a helmet increases the chance

of serious injury or death in a crash.

PROTECTIVE APPAREL

Shoes should be close fitting,

low heels and offer ankle protection

Always wear HELMET

Wear bright or

reflective clothing

Wear a face shield or goggles

Wear gloves

Table des matières

Autres manuels HERO Moto

HERO

HERO SPLENDOR+ Manuel utilisateur

HERO

HERO Achiever Manuel utilisateur

HERO

HERO MAESTRO EDGE PROGRAMMED FI Manuel utilisateur

HERO

HERO GLAMOUR Manuel utilisateur

HERO

HERO XPULSE 200 PROGRAMMED FI Manuel utilisateur

HERO

HERO SPLENDOR PRO Manuel utilisateur

HERO

HERO PASSION PRO PROGRAMMED FI Manuel utilisateur

HERO

HERO DUET Manuel utilisateur

HERO

HERO GLAMOUR Manuel utilisateur

HERO

HERO PLEASURE Manuel utilisateur

HERO

HERO ECO DELUXE Manuel utilisateur

HERO

HERO Passion Xpro Manuel utilisateur

HERO

HERO MAESTRO EDGE 125 PROGRAMMED FI Manuel utilisateur

HERO

HERO ACHIEVER 150 Manuel utilisateur

HERO

HERO Passion Pro Manuel utilisateur

HERO

HERO HUNK Manuel utilisateur

HERO

HERO MAESTRO EDGE 125 PROGRAMMED FI Manuel utilisateur

HERO

HERO MAESTRO EDGE 125 PROGRAMMED FI Manuel utilisateur

HERO

HERO GLAMOUR PROGRAMMED FI Manuel utilisateur

HERO

HERO MAESTRO EDGE Manuel utilisateur

HERO

HERO MotoCorp XPULSE 200T Manuel utilisateur

HERO

HERO HF-Deluxe ECO Manuel utilisateur

HERO

HERO XTREME SPORTS Manuel utilisateur

HERO

HERO PLEASURE+ PROGRAMMED FI Manuel utilisateur

Manuels Moto populaires d'autres marques

OHVALE

OHVALE GP-0 Manuel de la liste des pièces

Yamaha

Yamaha Star XV19CTSZ 2009 Manuel utilisateur

KTM

KTM 350 XCF-W USA Manuel utilisateur

HYOSUNG

HYOSUNG ST7 Manuel utilisateur

Husqvarna

Husqvarna FC 250 2016 Manuel utilisateur

Ducati

Ducati SCRAMBLER 800 Manuel d'instructions

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Manuel utilisateur

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Manuel utilisateur

Yamaha

Yamaha 2006 YZF-R1V Manuel utilisateur

KTM

KTM Freeride E-XC 2021 Manuel utilisateur

Fantic

Fantic Enduro 125 Manuel utilisateur

Ducati

Ducati Supersport 750 desmodue Manuel utilisateur

MV Agusta

MV Agusta 2008 F4 312RR 1078 Manuel d'instructions

Yamaha

Yamaha XVS650A Manuel utilisateur

Yamaha

Yamaha YZF-R6T(C) Manuel

Ducati

Ducati 748 monoposto strada Manuel utilisateur

ATK

ATK 1988 250 Manuel utilisateur

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Manuel utilisateur
