INSTRUCTION MANUAL

Floor Lamp with Reading Light,

Brushed Nickel Finish with CFL Bulbs

Home Depot SKU 594-817

(UPC 798919750443)

Page 2

Thank you for purchasing this Hampton Bay interior

portable luminaire. This product has been manufactured

to the highest standards of safety and quality. The

durable finish and shade design provide for care-free

maintenance. Simply wipe with a clean towel to keep

looking new.

FEATURES:

1. Provides both an uplight and adjustable reading light.

2. Lamp holder may be fitted with a CFL equivalent

energy-saving bulb(s).

QUESTIONS, PROBLEMS, MISSING PARTS:

Before returning to your local Home Depot, please call

our Customer Service Team at 1-877-527-0313 or visit

www.homedepot.com. Please reference your SKU

594-817 (UPC 798919750443) Floor Lamp with

Reading Light, Brushed Nickel Finish with CFL Bulbs

when speaking to a Customer Service agent.

CAUTION:

1. Before starting to assemble your portable luminaire,

spread all parts out on a clean flat surface. Inspect each

part for defects that may have occurred during shipping.

Be careful when unpacking the lamp since the wires are

Page 3

connected. If the wires are pulled out of their connectors,

it may result in a bad connection.

Important: Inspect the wire insulation for any cuts,

abrasions or exposed copper that may have resulted

during shipping. If there is a defect in the wire, DO NOT

continue the assembly operation. Please call our

Customer Service Team at 1-877-527-0313.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU

HAVE ANY ELECTRICAL QUESTIONS.

3. Keep your receipt and these Instructions for Proof of

Purchase.

4. This portable lamp has a polarized plug (one blade is

wider than the other) as a safety feature to reduce the risk

of electric shock. This plug will fit in a polarized outlet

only one way. If the plug does not fit fully in the outlet,

reverse the plug. If it still does not fit, contact a qualified

electrician. Never use with an extension cord unless plug

can be fully inserted. Do not alter the plug. CAUTION:

TO PREVENT ELECTRIC SHOCK MATCH WIDE

BLADE OF PLUG TO WIDE SLOT AND FULLY

INSERT.

Page 4

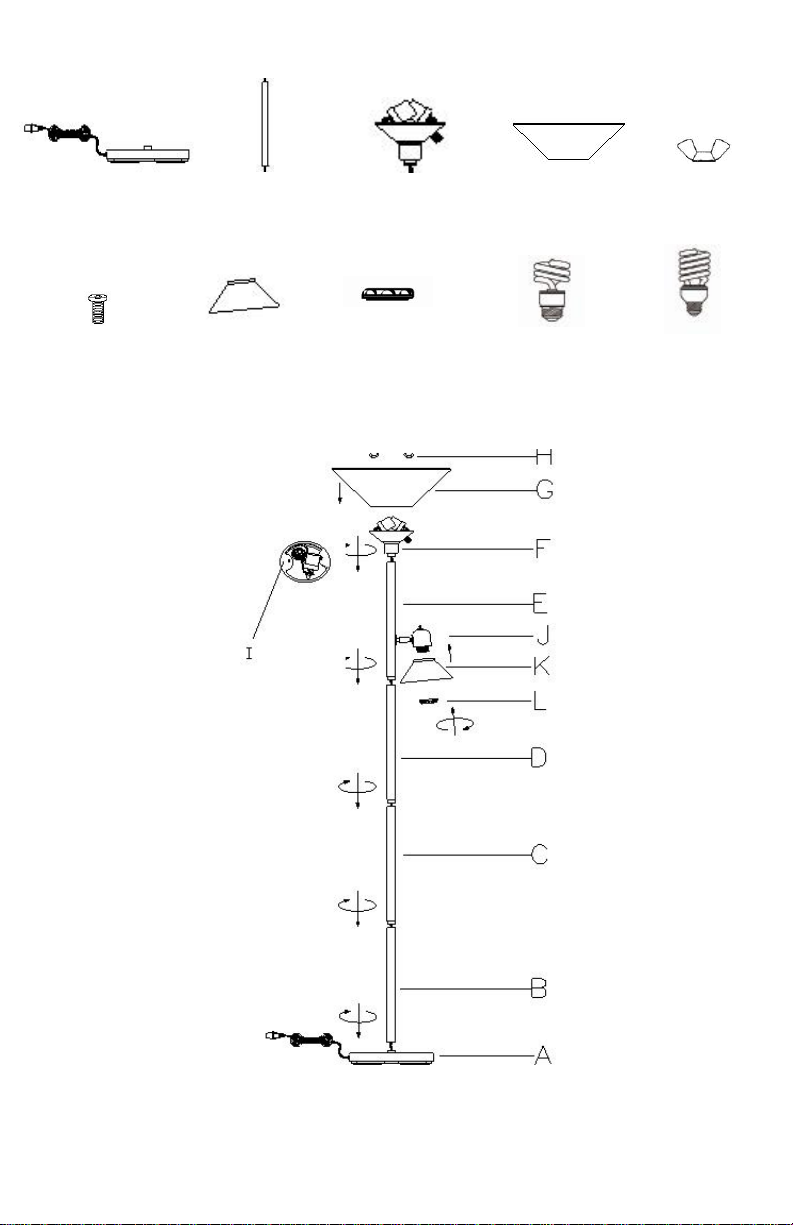

PARTS INCLUDED FOR ASSEMBLY (parts are not

to scale):

1 ea –Shade

(G)

1 ea –Metal

base (A)

4 ea –Poles

(B-E)

2 ea –Wing

Nuts (H)

1 ea -Shade

(K)

1 ea –Socket

(F)

2 ea -Screws

(I)

1 ea –13W

CFL Bulb

(M)

2 ea –26 W

CFL Bulb (N)

1 ea –Ring

(L)

Page 5

ASSEMBLY INSTRUCTIONS:

1. Begin assembly at the bottom of the lamp.

2. Insert lamp pole (B) into base (A) and turn clockwise to

tighten.

3. Insert lamp pole (C) into lamp pole (B) and turn

clockwise to tighten.

4. Repeat above step with poles D and E.

5. Insert the shade holder (F) into lamp pole (E) and turn

clockwise to tighten. You may need to pull any excess cord

gently through the poles so that these parts fit.

6. Unscrew the wing nut (H) from the screw (I), Place the

shade (G) onto shade holder (F) and matching the screw

(I), turn wing nut (H) onto screw (I) clockwise to tighten.

7. Unscrew the socket ring (L) counter-clockwise from the

socket (J).

8. Place the shade (K) to the socket (J) and turn the socket

ring (L) clockwise to tighten.

9. Install two 26W maximum type E26 Compact

Fluorescent bulbs (included N) on uplight (F) or use two

type A 150W maximum bulbs (not included). Install one

13W maximum type E26 CFL bulb (M included) in

reading light (J) or use one type A 60W maximum bulb

(not included).

Page 6

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean simply wipe with a soft dry cloth.

2. Do not use any cleaners with chemicals, solvents or

harsh abrasives.

Possible Cause

Corrective Action

Bulb will

not light.

1. Bulb is

burned out.

1. Replace light bulb.

2. Power is off.

2. Make sure power

supply is on.

3. Cord not

plugged in.

3. Make sure cord is

plugged into the outlet.

4. Circuit

breaker off.

4. Make sure circuit

breaker is to the „on‟

position.

Fuse blows

or circuit

breaker

trips when

light is

turned on.

1. Exposed

wire

1. Discontinue use.

Unplug unit from the

wall and contact a

qualified electrician or

call the Home Depot

Customer Service

Team at

1-877-527-0313.

Page 7

LIMITED WARRANTY

The manufacturer warrants this portable luminaire to be free

from defects in materials and workmanship for a period of

one (1) year from date of purchase. This warranty applies

only to the original consumer purchaser and only to products

used in normal use and service. If this product is found to be

defective, the manufacturer‟s only obligation, and your

exclusive remedy, is the repair or replacement of the product

at the manufacturer‟s discretion, provided that the product

has not been damaged through misuse, abuse, accident,

modifications, alterations, neglect or mishandling. This

warranty shall not apply to any product that is found to have

been improperly installed, setup, or used in any way not in

accordance with the instruction supplied with the product.

This warranty shall not apply to a failure of the product as a

result of an accident, misuse, abuse, negligence, alteration, or

faulty installation, or any other failure not relating to faulty

material or workmanship. This warranty shall not apply to

the finish on any portion of the product, such as surface

and/or weathering, as this is considered normal wear and tear.

The manufacturer does not warrant and specially

disclaims any warranty, whether express or implied, of

fitness for a particular purpose, other than the warranty

contained herein. The manufacturer specifically

disclaims any liability and shall not be liable for any

consequential or incidental loss or damage, including but

not limited to any labor / expense costs involved in the

replacement or repair of said product. Waranty does not

include light bulb(s).

Page 8

Page 9

MANUAL DE INSTRUCCION

Làmpara de Pie con Luz de Lectura,

Acabado en Niquel Satinado

con CFL Bombillos

Home Depot SKU 594-817

(UPC 798919750443)

Page 10

Gracias por comprar esta luminaria de interiores portátil

Hampton Bay. Este producto ha sido fabricado con los

estándares más altos de seguridad y calidad. El acabado

duradero y el diseño de la pantalla aseguran un

mantenimiento despreocupado.

CARACTERISTICAS:

1. Proporciona tanto la luz de arriba como la luz de

lectura ajustable.

2. El portalámparas puede ser encajado con un bombillo

CFL que ahorra energía (bombillo CFL incluido).

PREGUNTAS, PROBLEMAS, PARTES

FALTANTES:

Antes de devolver a su tienda local de Home Depot, por

favor llame a nuestro Equipo de Servicio al Cliente al 1-

877-527-0313 o visite www.homedepot.com. Cuando

hable con un agente de Servicio al Cliente por favor

refiérase a su SKU 594-817 (UPC 798919750443)

Làmpara de Pie con Luz de Lectura, Acabado en Niquel

Satinado con CFL Bombillos.

PRECAUCIÓN:

1. Antes de comenzar a ensamblar su luminaria portátil,

extienda todas las partes en una superficie plana y limpia.

Inspeccione cada parte para defectos que pueden haber
