Item #1001 027 171

Model #HD33677

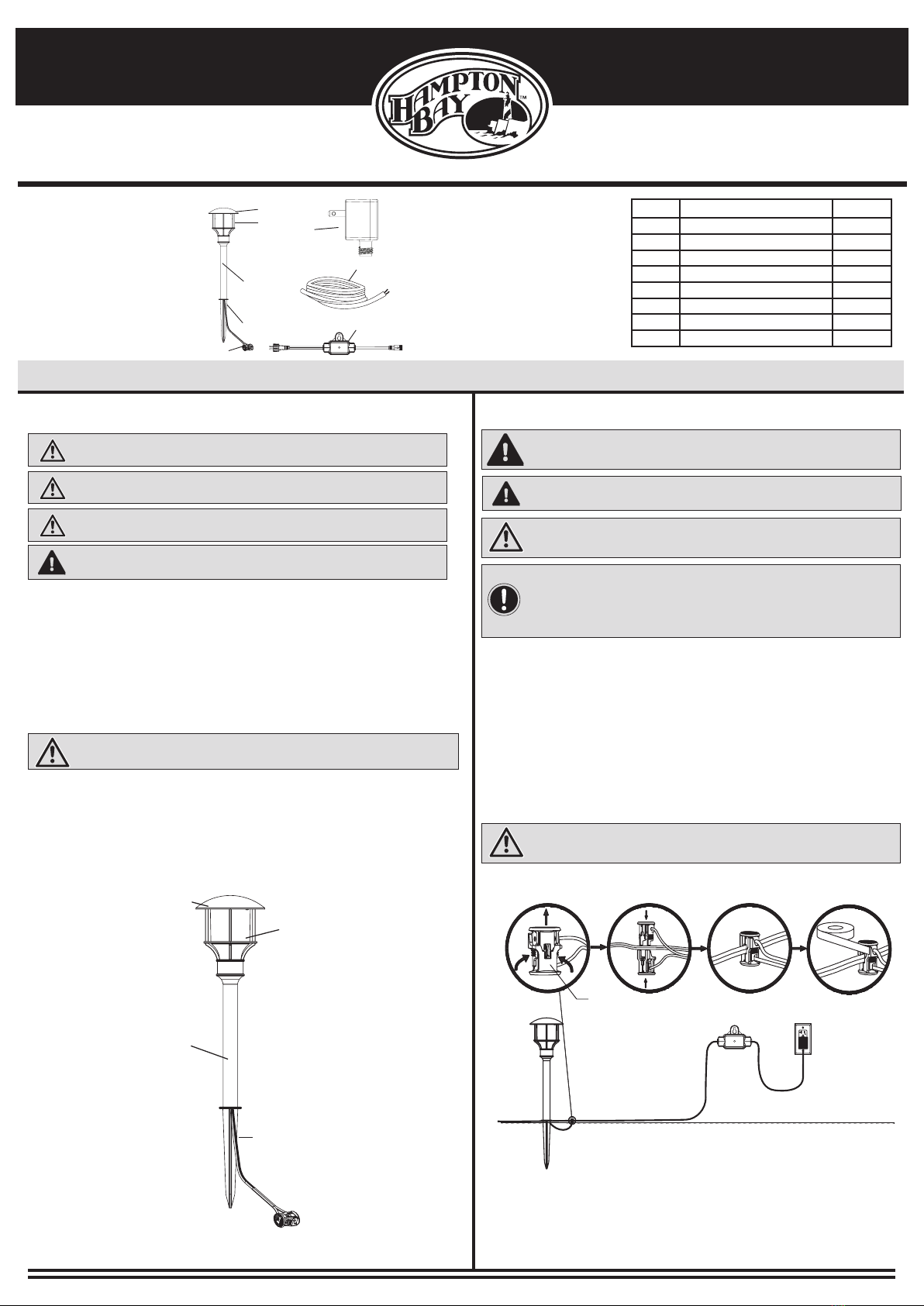

Use and Care Guide

LOW VOLTAGE PATHLIGHT KIT

Part Description Quantity

APathlight head 6

BPathlight lens 6

CPathlight post 6

DPathlight connector 6

EPathlight spike 6

F6W transformer 1

GCable 1

HControl box 1

PACKAGE CONTENTS

Assembly and Installation

1Attaching and installing the pathlight

WARNING: Never push the xture into the ground by the xture’s head (A) or use a

hammer to insert the spike (E) into the ground.

CAUTION: Safe for outdoor operation.

WARNING: To reduce the risk of FIRE OR INJURY TO PERSONS:

WARNING: Do not operate the luminaire tting with a missing or damaged lens

or bulb protector.

□Carefully remove the xture from its protective packaging.

□Attach the lens (B) to the post (C) and insert the spike (E) into the

post (C).

□Attach the cap (A) by screwing it on top of the lens (B)

WARNING: Install in accordance with all local codes and ordinances.

Only for use with low voltage power units with a maximum output rating of 15V,

300W per secondary.

FOR LANDSCAPE LIGHTING SYSTEMS ONLY. OUTDOOR USE ONLY. THE DEVICE IS

ACCEPTED AS A COMPONENT OF A LANDSCAPE LIGHTING SYSTEM WHERE THE

SUITABILITY OF THE COMBINATION SHALL BE DETERMINED BY CSA OR LOCAL

INSPECTION AUTHORITIES HAVING JURISDICTIO

PATHLIGHT ETL LISTED UNDER MODEL # U000-1923

Please read and save these instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

IMPORTANT SAFETY INSTRUCTIONS

Lighted lamp is HOT!

2Connecting the wires

WARNING: The wire connector (D) contacts have sharp edges for piercing the

main low voltage cable. To avoid injury, do not touch the metal contacts.

CAUTION: The wire from the low voltage power unit shall be 12-18 AWG type

underground low Energy Circuit Cable or SPT2W.

IMPORTANT:

• Protectthewiringbyroutingitincloseproximitytothelighttting,ornexttoa

building structure such as a house or deck.

• Thelandscapewireandconnectorcanalsobehiddenunderstoneorburied

under grass at a maximum depth of 6 in. (15.24 cm).

• Donotsubmergethextureinwater.

WARNING: Risk of Electric Shock. Install all luminaires 10 ft. (3.05 m) or more

from a pool, spa or fountain.

□Place the wire connector (D) on opposite sides of the low

voltage cable (G) where the xture will be located.

□Align and t the main low voltage cable (G) vertically to the

slot of wire connector (D) as shown.

□Press the wire connector (D) together until fully seated and

locked around the cable (G). Pre-set prongs will pierce the

cable insulation and establish contact. Turn on the power unit.

If the light xture does not turn on, repeat previous steps.

□Once the clip-on connector (D) is in place, wrap it with

electrical tape for additional protection.

CAUTION: BE CAREFUL! THE WIRE STABS ARE VERY SHARP!

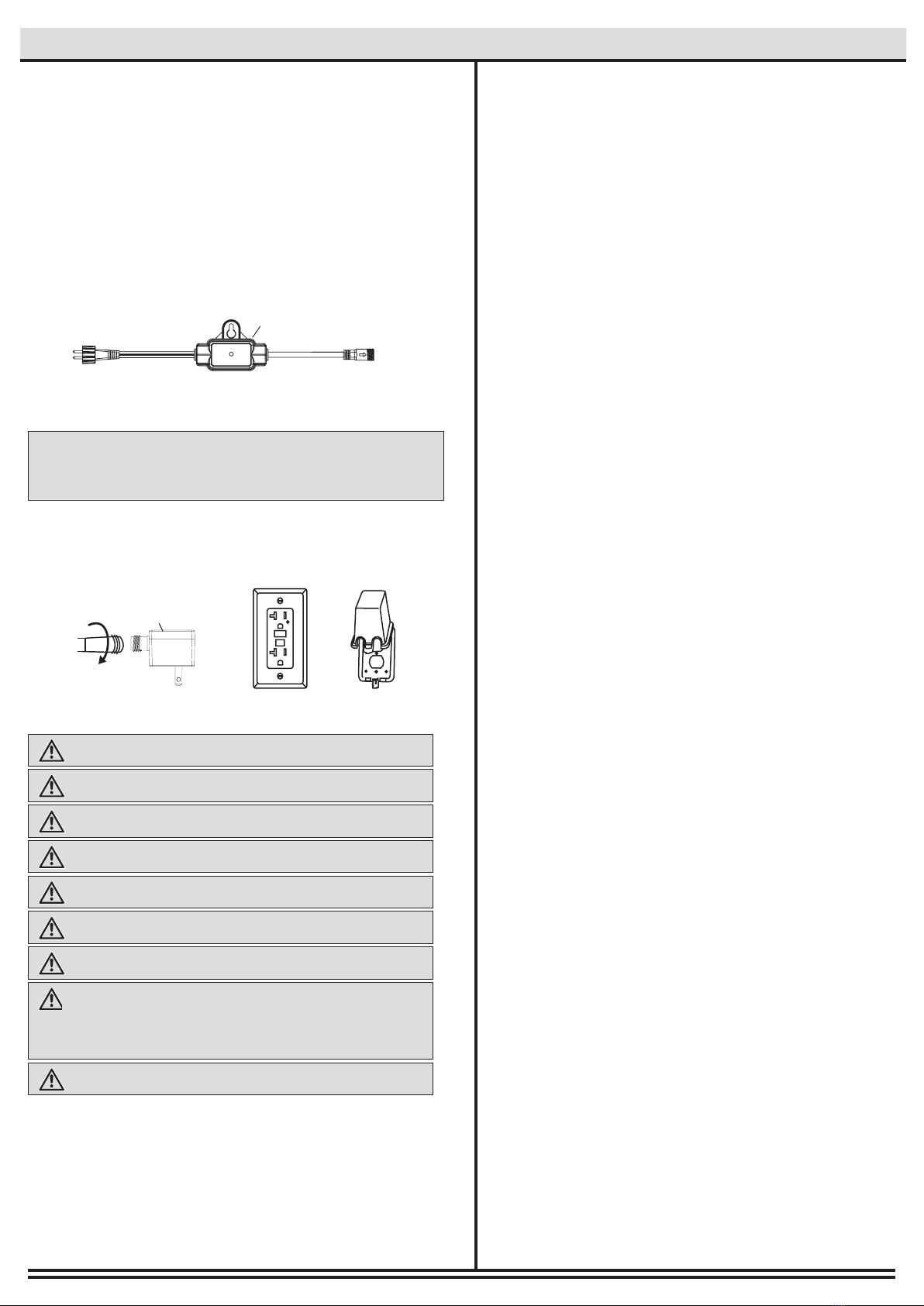

Assembly and Installation (Continued)

□This control box (H) is weatherproof and suitable for outdoor use.

□Do not install behind shrubs. It will affect the dusk-to-dawn

photocell.

□Photocell will not operate properly if installed too close to a

nighttime light source.

□MOUNT AT LEAST 12 in. (30 cm) ABOVE GROUND.

□Mount the controller with a screw (not included) on a wall within

1 ft. (30.5 cm) of the electrical outlet where the transformer will be

connected.

□The control box (H) goes between the transformer (F) and the

lights. Plug them together and secure them with screw caps.

3Installing the control box

4Connecting the cable to the transformer

WARNING: To reduce the risk of FIRE OR INJURY TO PERSONS:

WARNING: Do not install within 10 ft. (3 m) of a pool, spa or fountain.

WARNING: There are no serviceable parts inside the power supply unit. DO

NOT DISASSEMBLE.

WARNING: Do not submerge the transformer.

WARNING: Do not connect two or more transformers in parallel.

WARNING:

For use with 12 volt low voltage outdoor landscape lighting system

only. Not for use with submersible light or pool/spa equipment.

WARNING: Do not use with a dimmer.

CAUTION: Plug the power supply unit directly into a GFCI outlet that is marked

“wet location”.

The maximum output of this transformer is 6 watts. Do not overload

the transformer. Be sure that the total cumulative wattage of all 12 volt xtures

connected to the transformer is equal to or less than 6 watts. This garden light

system must be installed in accordance with all local codes and ordinances. If you

are experiencing problems, contact a qualied electrician.

WARNING: Do not use an extension cord.

□Connect the wire to the transformer (F).

□Screw the watertight connector by turning clockwise.

□Plug the transformer (F) into the GFCI receptacle.

g. 1 g. 2

Note: Prior to installing and powering the transformer, a safety approved GFCI receptacle

(g. 1) and GFCI watertight protective cover (g. 2)– (not supplied) must be installed by

a qualied electrician. GFCI receptacle and cover must be mounted a minimum of 12 in.

(0.3 m) above ground level. The transformer must be mounted at least 1 ft. (0.3 m) above

ground level.

Care and Cleaning

Troubleshooting

Warranty

Cable Selection

□Clean the xture with a soft, dry cloth.

□Do not use any cleaners with chemicals, solvents or harsh abrasives.

The xture will not

light.

Only some lights

work.

• Thereisnopower.

• Thereisadisconnectionorbreakin

the wire.

• Therearetoomanyxtures

connected to the transformer.

•Theproblemiswiththexture’s

connector or LED.

• Checkthatthepowerison.

• Checkifthereisalooseconnectionatthetransformerscrewterminal.

• Removesomextures.

•Checktheconnectortomakesurethewirestabshavepiercedthelandscape

wire.

Problem Possible cause Solution

WHAT IS COVERED

The manufacturer warrants this lighting xture to be free from defects in materials and workmanship for a period of two (2) years from the date of

purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is found to be

defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s discretion,

provided that the product has not been damaged through misuse, abuse, accident, modications, alterations, neglect or mishandling.

WHAT IS NOT COVERED

This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in any way not in accordance with the

instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence,

alteration or faulty installation, or any other failure not relating to faulty material or workmanship. This warranty shall not apply to the nish on any

portion of the product, such as surface and/or weathering, as this is considered normal wear and tear.

The manufacturer does not warrant and specially disclaims any warranty, whether express or implied, of tness for a particular purpose, other than

the warranty contained herein. The manufacturer specically disclaims any liability and shall not be liable for any consequential or incidental loss or

damage, including but not limited to any labor / expense costs involved in the replacement or repair of said product.

Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.homedepot.com.

Total Fixture Wattage

0-60 Watts

61-120 Watts

121-180 Watts

181-240 Watts

241-300 Watts

600W Transformer = (2X300) Watts

900W Transformer = (3X300) Watts

51-100 feet

Cable Length

101-150 feet

16 AWG 16 AWG 14 AWG

16 AWG 14 AWG 12 AWG

14 AWG 12 AWG NOT RECOMMENDED

12 AWG NOT RECOMMENDED NOT RECOMMENDED

0-50 feet

12 VOLT TAP

Total Fixture Wattage

0-60 Watts

61-120 Watts

121-180 Watts

181-240 Watts

241-300 Watts

600W Transformer = (2X300) Watts

900W Transformer = (3X300) Watts

51-100 feet

Cable Length

101-150 feet

16 AWG* 16 AWG 16 AWG

16 AWG* 16 AWG 12 AWG

14 AWG* 14 AWG 12 AWG

12 AWG* 12 AWG NOT RECOMMENDED

0-50 feet

15 VOLT TAP

This data is provided as a general guideline. Actual performance will depend on the installation layout, the xtures, and the

condition of the cable. NOTE: Most LED landscape lighting xtures can operate with full illumination from 9V down to as little as

6V. It is possible to have extended length runs with LED xtures that go beyond the specications shown in the guidelines above.

Additional landscape lighting cable can be purchased at your local Home Depot store.

* NOT RECOMMENDED FOR HALOGEN LANDSCAPE LIGHTS
