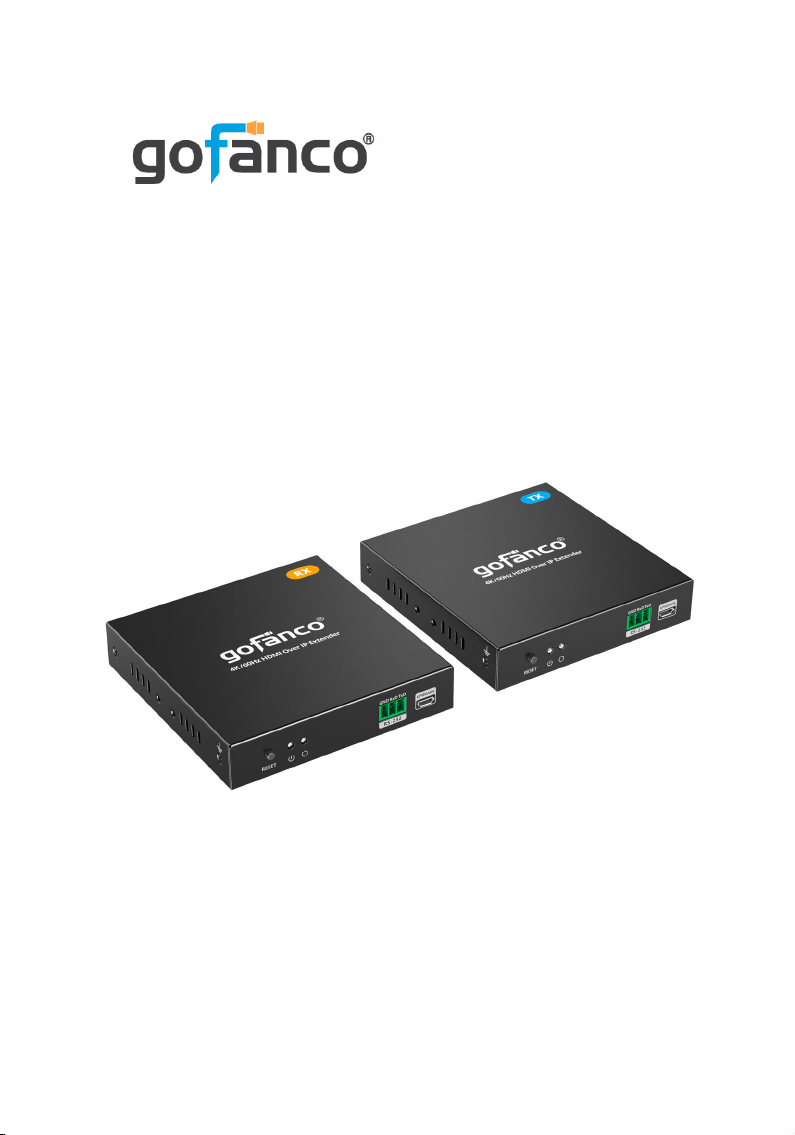

gofanco HD20Ext1xN Manuel utilisateur
HDMI Over IP Extender
4K60 - 100m
User's Guide
G4-0155A
P/N:
HD20Ext1xN (Kit)
HD20Ext1xN-RX (Receiver)
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
For drivers/manuals download, please go to
http://www.gofanco.com/downloads.
Important Safety Notices
Pleasereadsafetyinstructionscarefullybeforeinstallation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
• Do not plug the HDMI cables and IR cables
in/out when the device is in use to avoid cable
damage.Makesure they arepluggedinto the correct
ports
• Use the included power adapters only. Make sure
the specification matches if using 3rd-party DC
power adapters
3
Introduction
The HDMI Over IP Extender 4K60 - 100m extends 4K
HDMI signals over CAT6/7 cable up to 100m (328ft) with
IR support. It supports a direct 1-to1 connection or 1-to-
many over IP networks.
Features
• Supports UHD 4K @60Hz YUV 4:4:4, 18Gbps
bandwidth. Note: HDR is not supported
• HDCP 2.2/1.4 compliant
• Supports 2-channel Stereo audio
• HDMI loopout, IR extension, RS232 passthrough,
and firmware upgradable
• 4K to 1080p auto downscaling is supported on the
Receiver (RX). See EDID Management on page 11
for more information
• Direct 1-to-1 connection or 1-to-many over a
dedicated Gigabit Ethernet switch or cascading
switches.AdditionalReceivers(part# HD20Ext1xN-
RX) sold separately
• Low latency
• Lightning/Surge/ESD protection
4
PackageContents
• HDMI Over IP Extender 4K60- 100m Kit (1
Transmitter & 1 Receiver)
• 1 IR Blaster cable and 1 IR Receiver cable
• 2 Power adapters (5VDC/1A)
• 2 Terminal blocks (RS232)
• Surface mount accessories
• User's guide
Installation Requirements
1. HDMI source device (DVD player, set top box, PC,
etc.)
2. HDMI display
3. HDMI cables (not included)
4. UTP CAT6/6A/7 cable, following IEEE-T568B
wiring standard
CAT Cable Wiring
We suggest both RJ45 connectors be wired identically
using T568B wiring standard for the best performance
and compatibility.
5
Product Layout
Figure 1: Transmitter (TX) Front and Rear Panel Layout
1. Reset: Press to reset if the extender doesn't work
properly
2. Power LED: On when the Transmitter is powered
3. Status LED:
• Off: Connection NOT established between the TX
and RX
• Flashing Slowly: Connection established between
the TX and RX but there is NO signal transmission
(Gigabit Ethernet connection)
• Quick Flash: Connection established between the
TX and RX but there is NO signal transmission (1 to
1 connection)
• Solid On: Signal is transmitting
4. RS232: Connects to system for RS232 passthrough
5. Micro USB: Firmware update port
6
6. IR Out: Connect to the included IR Blaster cable to
control the HDMI source device from the remote
display location - See IR Application on page 10
7. HDMI In: Connect to your HDMI source with an
HDMI cable (cable not included)
8. HDMI Out: Connect to an HDMI display, with an
HDMI cable, for local monitoring of the remote
display (cable not included)
9. RJ45 Out: Link to the Receiver's RJ45 In using a
CAT6/7 cable
10. Power Jack: Connect the included power adapter
Figure 2: Receiver (RX) Front and Rear Panel Layout
1. Reset: Press to reset if extender doesn't work
properly
2. Power LED: On when the Receiver is powered
7
3. Status LED:
• Off: Connection NOT established between the TX
and RX
• Flashing Slowly:Connection established between
the TX and RX but there is NO signal transmission
(Gigabit Ethernet connection)
• Quick Flash: Connection established between the
TX and RX but there is NO signal transmission (1 to
1 connection)
• Solid On: Signal is transmitting
4. RS232: Connects to system for RS232 passthrough
5. Micro USB: Firmware update port
6. IR In: Connect to the included IR Receiver cable to
control the HDMI source device from the remote
display location - See IR Application on page 10
7. RJ45 In: Link to the Transmitter's RJ45 Out using a
CAT6/7 cable
8. HDMI Out: Connect to an HDMI display
9. Power Jack: Connect the included power adapter
Surface Mount
Install the surface mount ears onto the unit and secure it
in position. This step is optional and only needed for
setups requiring surface mounting.
n
Figure 3: Surface Mount
8
Hardware Installation
To achieve optimal performance, 100% copper CAT6/7
cable is recommended.
1. Power off all devices including your HDMI source
and HDMI display(s).
2. Connect your HDMI source to the Transmitter's
HDMI In connector.
3. Optional: Connect your HDMI display to the
Transmitter's HDMI Out connector with an HDMI
cable (HDMI cable not included) for local
monitoring of the HDMI signal.
4. Optional: Connect the IR cable to the Transmitter's
IR port. See IR Application on page 10 for proper
cable connection.
5. Connect a CAT6 cable between the Transmitter's
RJ45 Out and Receiver's RJ45 In. For 1-to-many
setups, connect the TX and all RX's to the Gigabit
switch.
6. ConnectyourHDMIdisplay to the Receiver'sHDMI
Outconnector with anHDMI cable (HDMI cablenot
included).
7. Optional: Connect the IR cable to the Receiver's IR
port. See IR Application on page 10 for proper cable
connection.
8. Plug the included power adapters into the
Transmitter's and Receiver's Power Jacks, then plug
both power adapters into reliable power outlets.
9. Power on your HDMI source device and HDMI
display(s). The extender is ready for use.
9
Connection Diagram
1. One-to-One: Extends HDMI signals up to 328ft
(100 m) over a single CAT6/7 cable.
2. One-to-Many: Extend and split using a dedicated
Gigabit switch or cascading switches.
- One Transmitter (TX) to several Receivers (RX).
- Additional Receivers, (part # HD20Ext1xN-RX),
sold separately.
- Supports up to 100 Receivers (RX).
10
3. Cascade: Flexible extension with dedicated Gigabit
switches. Supports up to 100 Receivers (RX).
IR Application
HDMI Source Device Control from RX Location
1. Connect the IR Blaster cable to the TX's IR Out port.
Face the eye towards your HDMI source device's IR
window.
2. Connect the IR Receiver cable to the RX's IR In port.
IR Pin Definition
