Gofanco HD14Ext-2P Manuel utilisateur

1x2 HDMI CAT Splitter/

Extender 4K30 - 70M

User's Guide

G4-0143A

P/N:HD14Ext-2P

Thank you for purchasing from gofanco. Our products

aim to meet all your connectivity needs wherever you

go. For optimum performance and safety, please read

the instructions carefully and keep this User's Guide for

future reference. If you need more information about

our products, please visit www.gofanco.com. For

technical support, email us at [email protected].

For drivers or manual download, please go to

www.gofanco.com/downloads.

Important Safety Notices

Pleasereadsafetyinstructionscarefullybeforeinstallation

and operation.

• Please pay close attention to all warnings and hints

for this device

• Do not expose this unit to rain, heavy moisture, or

liquid

• Do not put any items into the device or attempt to

modify its operation

• Do not repair the device or open the enclosure

without professional guidance to avoid electric

shocks. Doing so may void your warranty

• Keep the product in a well-ventilated location to

avoid damage from overheating

• Shut off power and make sure environment is safe

before installation

• Do not plug the HDMI cables and IR cables

in/out when the device is in use to avoid cable

damage.Makesure they arepluggedinto the correct

ports

• Use the included power adapters only. Make sure

the specification matches if using 3rd-party DC

power adapters

Introduction

The1x2 HDMI CAT Splitter/Extender distributes HDMI

signals from one source device to two CAT6/7 outputs

and one HDMI output (loopout).

Features

• Extends HDMI transmissions up to 70m (230ft)

@1080p & 131ft (40m) @4K30Hz

• HDCP 1.4 compliant

• Supports up to 4K @30Hz YUV 4:4:4

• Built-in EDID, bi-directional IR, and RS232 control

• Supports up to 2ch PCM audio and Stereo audio

extraction

• Near zero latency

• Lightning/Surge/ESD protection

Installation Requirements

• HDMI source devices (DVD player, set top box, PC,

etc.)

• HDMI displays (SDTV/Monitor, HDTV/Monitor,

projector, etc.)

• HDMI cables (not included)

• CAT cables (not included)

PackageContents

• 1x 1x2 HDMI CAT Transmitter

• 2x CAT6/7 Receivers

• 1x IR Emitter cable

• 2x IR Receiver cables

• 1x TX power adapter (5V/1A)

• 2x RX power adapters (5V/500mA)

• Surface mount accessories

• 1x Terminal block (RS232)

• User guide

Product Layout

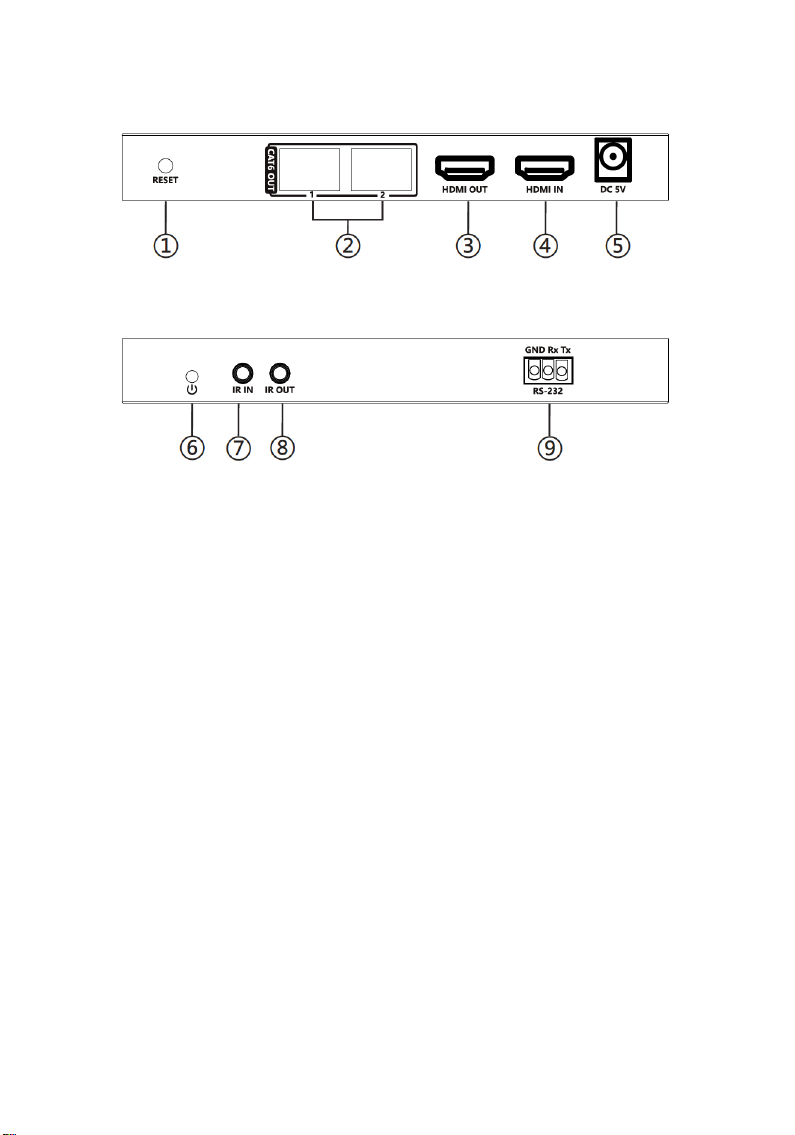

Figure 1: Transmitter Layout

1. Reset Button: Press to restart the Transmitter

2. CAT6/7 Out (x2): Connects to the CAT6/7 In of the

Receivers using CAT6/7 cables (CAT cables not

included)

3. HDMI Out: Connects to your HDMI display

4. HDMI In: Connects to your HDMI source device

5. Power Jack: Connects to the included 5V/1A power

adapter

6. Power/Signal LED: When the Transmitter is

powered on:

•LED is on when HDMI signal is transmitting

•LED flashes when no HDMI signal is transmitting

7. IR In: Connects to the IR Receiver cable

8. IR Out: Connects to the IR Emitter cable

9. RS232: Connects to your control PC's RS232 port

Figure 2: Receiver Front Panel Layout

Product Layout Continued

1. Reset Button: Press to restart the Receiver

2. CAT6/7 In: Connects to the CAT6/7 Out of the

Transmitter using CAT6/7 cables (CAT cables not

included)

3. IR In: Connect to the IR Receiver cable

4. IR Out: Connect to the IR Emitter cable

5. Power/Signal LED: When the Receiver is powered

on:

•LED is on when HDMI signal is transmitting

•LED flashes when no HDMI signal is transmitting

Product Layout Continued

Figure 3: Receiver Back Panel Layout

6. Power Jack: Connects to the included 5V/500mA

power adapter

7. 3.5mm Out: Connects to headphones or speakers

8. HDMI Out: Connects to your HDMI display

Hardware Installation

1. Power off all devices including your HDMI source

and HDMI display(s).

2. Connect your HDMI source device to the

Transmitter's HDMI In connector with an HDMI

cable (HDMI cable is not included).

3. Connect your CAT cables between the Transmitter

and CAT6/7 Receivers.

4. Optional: Connect an HDMI display to the HDMI

Out connector of the Transmitter using an HDMI

cable (HDMI cable not included). This connection

is needed only if you require local monitoring of

the HDMI signal.

5. Connect an HDMI display to each CAT6/7

Receiver's HDMI Out connector with an HDMI

cable (HDMI cables not included).

6. Optional: Connect the IR Receiver cables and the IR

Emitter cable to the IR interface ports. This

connection is needed only if you need to control

your HDMI devices from the remote location. See

IR Control, starting on page 10, for proper IR

connection.

7. Plug the included 5V/1A power adapter into the

Transmitter's Power Jack and 5V/500mA power

adapter into the Receiver's Power Jack, then plug

the power adapters into a reliable power outlet.

8. Power on your HDMI source device and HDMI

display(s). The Splitter/Extender is ready for use.

Application Diagram

The application diagram shows the most typical input

and output devices used with the Splitter/Extender.

Figure 4: Application Diagram

CAT Cable Wiring

We suggest both RJ-45 connectors be wired identically

using T568B wiring standard for the best performance

and compatibility.

IR Control

Provides IR control of the connected devices. The IR

feature is bi-directional so either the source device or the

display device(s) can be remotely controlled.

Controlling the Source Device

1. Connect an IR Emitter Cable to the IR Out port of the

Transmitter.

2. Point the IR Emitter Cable's IR eye in line with the

source device's IR window.

3. Connect an IR Receiver Cable to the IR In port on

each CAT6/7 Receiver.

Controlling the Display Device(s) using IR In

Allowsyou to remotelycontroleach display individually.

1. Connect an IR Receiver Cable to the IR In port of the

Transmitter.

2. Connect an IR Emitter Cable to the IR Out port on

each CAT6/7 Receiver.

3. Point the IR Emitter Cable's IR eye in line with the

display's IR window.

Note: The Transmitter's IR Out connector will output the

IR signals received from any of the CAT 6/7 Receivers,

so as to allow control of a source from any of the remote

CAT 6/7 Receivers.

IR Pin Definition
