gofanco HD20Ext4P-LT Manuel utilisateur
1x4 4K HDMI
Splitter/Extender - 60m
User's Guide
G4-0154A
P/N:HD20Ext4P-LT
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
For drivers or manual download, please go to
www.gofanco.com/downloads.
Important Safety Notices
Pleasereadsafetyinstructionscarefullybeforeinstallation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
• Do not plug the HDMI cables and IR cables
in/out when the device is in use to avoid cable
damage. Make sure they are plugged into the
correct ports
• Use the included power adapter only. Make sure
the specification matches if using 3rd-party DC
power adapters
3
Introduction
The 1x4 4K HDMI CAT Splitter/Extender distributes
HDMI signals from one input to four CAT6/7 outputs
and one HDMI output (loopout).
Features
• Extends HDMI transmissions up to 60m (197ft) over
CAT6/7
• HDCP 2.2/1.4 compliant
• Supports up to 4K @60Hz YUV 4:4:4, HDR, HLG
• Supports up to 5.1ch digital audio and audio
extraction to Toslink and Stereo
• 4K to 1080p auto downscale to support mixed 4K
and 1080p displays simultaneously
• EDID management, bi-directional IR, and firmware
upgradable
• TX powers the RX's over CAT cables
• Equipped with factory reset button
Installation Requirements
• HDMI source device (DVD player, set top box, PC,
etc.)
• HDMI displays (SDTV/Monitor, HDTV/Monitor,
projector, etc.)
• HDMI cables (not included)
• CAT cables (not included)
4
PackageContents
• 1x 1x4 4K HDMI Transmitter
• 4x CAT6/7 Receivers
• 5x IR Emitter cables
• 5x IR Receiver cables
• 1x TX power adapter (12V/2A)
• Surface mount accessories
• 1x USB cable
• User guide
5

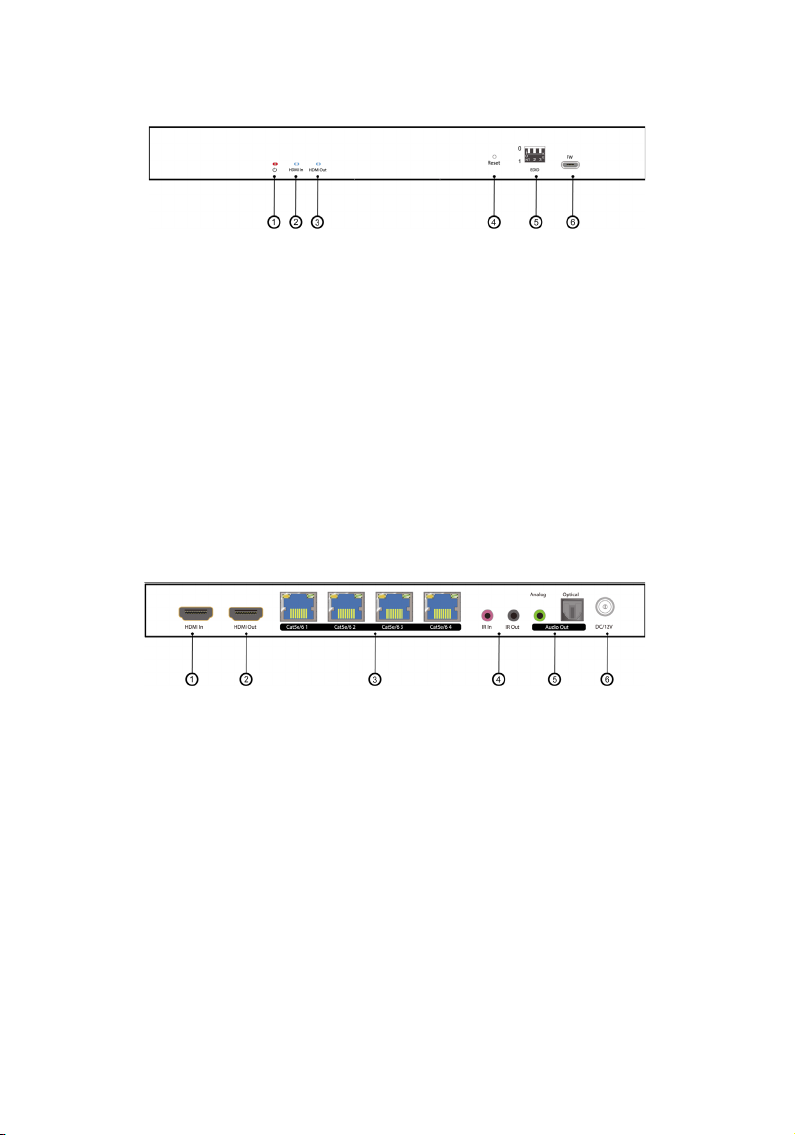

Product Layout
Figure 1: Transmitter Front Panel Layout
1. HDMI In: Connects to your HDMI source device
2. HDMI Loopout: Connects to an HDMI display
3. CAT6/7 Out (x4): Connects to the CAT6/7 In of the
Receivers using CAT6/7 cables (CAT cables not
included)
4. IR In and IR Out ports: Connects to the IR cables.
See IR Control, on page 9, for proper IR connection
5. Stereo and Optical Audio Out: Connects to your
speakers or AV receiver
6. PowerJack: Connects tothe included power adapter
1. Power LED: On when the Transmitter is powered
on
2. HDMI In LED: On when HDMI signal is detected
3. HDMI Loopout LED: On when a display is
connected to the HDMI Loopout port
4. Reset Button: Press to restart the Transmitter
5. EDID DIP Switch:See page 10for more information
6. FirmwareUpdatePort: Connects tocontrolPCusing
the included USB cable for firmware update
Figure 2: Transmitter Rear Panel Layout
6
Figure 3: Receiver Front and Rear Panel Layout
Product Layout Continued
1. HDMI Out: Connects to your HDMI display
2. Stereo and Optical Audio Out: Connects to your
speakers or AV receiver
3. FirmwareUpdatePort:Connectsto control PC using
the included USB cable for firmware update
4. Power Jack: Not required - the RXs are powered by
the TX over CAT cable
5. IR In and IR Out ports: Connects to the IR cables.
See IR Control, on page 9, for proper IR connection
6. CAT6/7 In: Connects to the CAT6/7 Out of the
Transmitter using CAT6/7 cables (CAT cables not
included)
7
Hardware Installation
1. Power off all devices including your HDMI source
and HDMI display(s).
2. Connect your HDMI source device to the
Transmitter's HDMI In connector with an HDMI
cable (HDMI cable is not included).
3. Connect your CAT cables between the Transmitter
and CAT6/7 Receivers.
4. Optional: Connect an HDMI display to the HDMI
Out connector of the Transmitter using an HDMI
cable (HDMI cable not included). This connection
is needed only if you require local monitoring of
the HDMI signal.
5. Connect an HDMI display to each CAT6/7
Receiver's HDMI Out connector with an HDMI
cable (HDMI cables not included).
6. Optional: Connect the IR Receiver cables and the IR
Emitter cables to the IR interface ports. The IR
feature is bi-directional so either the source device
or the display device(s) can be remotely controlled.
See IR Control, on page 9, for proper IR connection.
7. Plug the included 12V/2A power adapter into the
Transmitter's Power Jack, then plug the power
adapter into a reliable power outlet. Note: Only 1
power adapter, connected to the Transmitter, is
needed to power all Receivers over CAT cables.
8. Power on your HDMI source device and HDMI
display(s). The Splitter/Extender is ready for use.
8
Application Diagram
The application diagram shows the most typical input
and output devices used with the Splitter/Extender.
Figure 4: Application Diagram
CAT Cable Wiring
We suggest both RJ-45 connectors be wired identically
using T568B wiring standard for the best performance
and compatibility.
9
IR Control
Provides IR control of the connected devices. The IR
feature is bi-directional so either the source device or the
display device(s) can be remotely controlled.
Controlling the Source Device
1. Connect an IR Emitter Cable to the IR Out port of the
Transmitter.
2. Point the IR Emitter Cable's IR eye in line with the
source device's IR window.
3. Connect an IR Receiver Cable to the IR In port on
each CAT6/7 Receiver.
Controlling the Display Device(s) using IR In
Allowsyou to remotelycontrol each displayindividually.
1. Connect an IR Receiver Cable to the IR In port of the
Transmitter.
2. Connect an IR Emitter Cable to the IR Out port on
each CAT6/7 Receiver.
3. Point the IR Emitter Cable's IR eye in line with the
display's IR window.
Note:
The Transmitter's IR Out connector will output the IR
signals received from any of the CAT 6/7 Receivers, so
as to allow control of a source from any of the remote
CAT 6/7 Receivers.
10
EDID Management
EDID is used by the source device to match the video
resolution to the connected display(s). However, since
displays with different capabilities are often connected,
the EDID DIP switch can be used to set the EDID to a fixed
value to offer the best compatiblity accross all connected
displays.
DIP Switch
The splitter supports EDID management through a 3-pin
DIP switch.
Switch Up for "0"
Switch Down for "1"
Default Setting: 0, 0, 0
Notes:
• 4K is equivalent to 3840 x 2160 resolution
• With a computer as a source device, restart the
computer after making changes to the EDID setting
• Copy EDID option can only be used with displays
maxing out at 4K@60Hz. EDID copy of displays
with higher resolution than 4K@60Hz, such as 8K or
HDMI 2.1 devices, may result in blank screens
• Displays with 21:9 aspect ratio aren't supported
