Gofanco AudioCATExt Manuel utilisateur

Coaxial/Toslink CAT5e/6

Extender - 300m

User's Guide

G4-0079A

P/N: AudioCATExt

Thank you for purchasing from gofanco. Our

products aim to meet all your connectivity needs

wherever you go. For optimum performance

and safety, please read the instructions carefully

and keep this User’s Guide for future reference.

If you need more information about our

products, please visit www.gofanco.com. For

technical support, please email us at

[email protected]. For drivers/manuals

download, please go to www.gofanco.com/

download.

Important Safety Notices

Please read safety instructions carefully before

installation and operation.

• Please pay close attention to all warnings

and hints for this device

• Do not expose this unit to rain, heavy

moisture, or liquid

• Do not repair the device or open the

enclosure without professional guidance

to avoid electric shocks. Doing so may void

your warranty

• Keep the product in a well-ventilated

location to avoid damage from overheating

• Shut off power and make sure environment

is safe before installation

• Do not plug the Coaxial, Toslink, and CAT

cables in/out when the device is in use to

avoid cable damage. Make sure they are

plugged into the correct ports

• UsetheincludedDC5Vpoweradapteronly.

Makesurethe specification matches if using

3rd-party DC power adapters

Introduction

The Coaxial/Toslink CAT5e/6 Extender - 300m

extends digital audio signals up to 300 meters

using an economical CAT5e/6 cable.

Features

• Transmits Coaxial/Toslink digital audio

signals from source device to Coaxial/

Toslink audio output devices such as TVs,

AVRs, and speakers up to 300 meters using

economical CAT5e/6 cable

• Supports Digital Coax or Optical Toslink

signals

• Power over Cable (PoC) allows one power

adapter, connected to the Transmitter, to

power the Receiver over CAT cable

• High performance with no signal loss

PackageContents

• Coaxial/Toslink CAT5e/6 Extender - 300m

• Power adapter (1pc)

• User's Guide

Product Layout

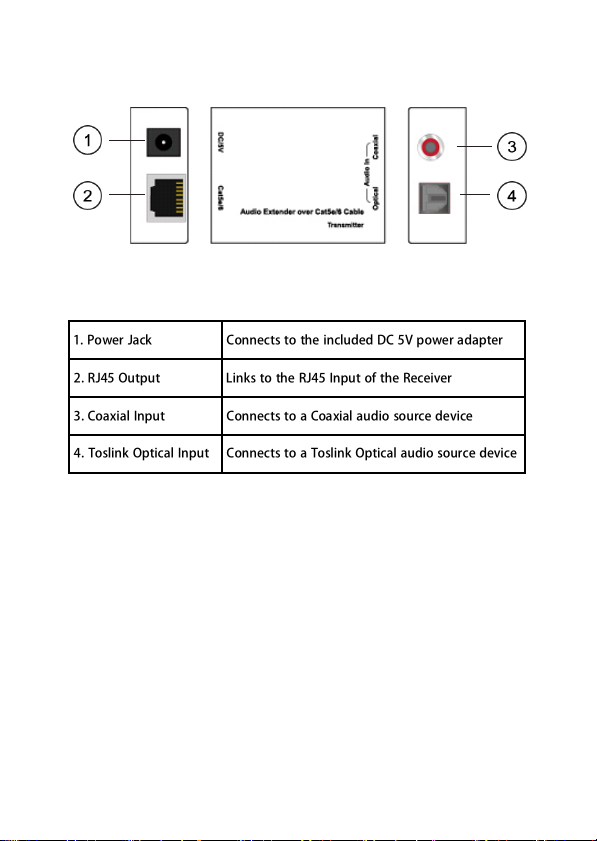

Figure 1: Transmitter (TX)

󳎲󳎯󳎡󳏑󳏰󳏸󳏦󳏳󳎡󳏋󳏢󳏤󳏬

󳏄󳏰󳏯󳏯󳏦󳏤󳏵󳏴󳎡󳏵󳏰󳎡󳏵󳏩󳏦󳎡󳏪󳏯󳏤󳏭󳏶󳏥󳏦󳏥󳎡󳏅󳏄󳎡󳎶󳏗󳎡󳏱󳏰󳏸󳏦󳏳󳎡󳏢󳏥󳏢󳏱󳏵󳏦󳏳

󳎳󳎯󳎡󳏓󳏋󳎵󳎶󳎡󳏐󳏶󳏵󳏱󳏶󳏵

󳏍󳏪󳏯󳏬󳏴󳎡󳏵󳏰󳎡󳏵󳏩󳏦󳎡󳏓󳏋󳎵󳎶󳎡󳏊󳏯󳏱󳏶󳏵󳎡󳏰󳏧󳎡󳏵󳏩󳏦󳎡󳏓󳏦󳏤󳏦󳏪󳏷󳏦󳏳

󳎴󳎯󳎡󳏄󳏰󳏢󳏹󳏪󳏢󳏭󳎡󳏊󳏯󳏱󳏶󳏵

󳏄󳏰󳏯󳏯󳏦󳏤󳏵󳏴󳎡󳏵󳏰󳎡󳏢󳎡󳏄󳏰󳏢󳏹󳏪󳏢󳏭󳎡󳏢󳏶󳏥󳏪󳏰󳎡󳏴󳏰󳏶󳏳󳏤󳏦󳎡󳏥󳏦󳏷󳏪󳏤󳏦

󳎵󳎯󳎡󳏕󳏰󳏴󳏭󳏪󳏯󳏬󳎡󳏐󳏱󳏵󳏪󳏤󳏢󳏭󳎡󳏊󳏯󳏱󳏶󳏵󳏄󳏰󳏯󳏯󳏦󳏤󳏵󳏴󳎡󳏵󳏰󳎡󳏢󳎡󳏕󳏰󳏴󳏭󳏪󳏯󳏬󳎡󳏐󳏱󳏵󳏪󳏤󳏢󳏭󳎡󳏢󳏶󳏥󳏪󳏰󳎡󳏴󳏰󳏶󳏳󳏤󳏦󳎡󳏥󳏦󳏷󳏪󳏤󳏦

Figure 2: Receiver (RX)

Hardware Installation

1. Power off all devices including your audio

source and audio output device.

2. Connect your audio source device to the

Transmitter's Coaxial or Toslink Input

connector with a Coaxial or Toslink cable

(cable not included). *Note: Only one input

connector can be used at any one time.

3. Connect a CAT5e/6 cable between the

Transmitter's RJ45 Output and Receiver's

RJ45 Input (cable not included).

󳎲󳎯󳎡󳏓󳏋󳎵󳎶󳎡󳏊󳏯󳏱󳏶󳏵

󳏍󳏪󳏯󳏬󳏴󳎡󳏵󳏰󳎡󳏵󳏩󳏦󳎡󳏓󳏋󳎵󳎶󳎡󳏐󳏶󳏵󳏱󳏶󳏵󳎡󳏰󳏧󳎡󳏵󳏩󳏦󳎡󳏕󳏳󳏢󳏯󳏴󳏮󳏪󳏵󳏵󳏦󳏳

󳎳󳎯󳎡󳏄󳏰󳏢󳏹󳏪󳏢󳏭󳎡󳏐󳏶󳏵󳏱󳏶󳏵

󳏄󳏰󳏯󳏯󳏦󳏤󳏵󳏴󳎡󳏵󳏰󳎡󳏢󳎡󳏄󳏰󳏢󳏹󳏪󳏢󳏭󳎡󳏢󳏶󳏥󳏪󳏰󳎡󳏰󳏶󳏵󳏱󳏶󳏵󳎡󳏥󳏦󳏷󳏪󳏤󳏦

󳎴󳎯󳎡󳏕󳏰󳏴󳏭󳏪󳏯󳏬󳎡󳏐󳏱󳏵󳏪󳏤󳏢󳏭󳎡󳏐󳏶󳏵󳏱󳏶󳏵󳏄󳏰󳏯󳏯󳏦󳏤󳏵󳏴󳎡󳏵󳏰󳎡󳏢󳎡󳏕󳏰󳏴󳏭󳏪󳏯󳏬󳎡󳏐󳏱󳏵󳏪󳏤󳏢󳏭󳎡󳏢󳏶󳏥󳏪󳏰󳎡󳏰󳏶󳏵󳏱󳏶󳏵󳎡󳏥󳏦󳏷󳏪󳏤󳏦

4. Connect your audio output device (TV,

AVR,speakers,etc.)totheReceiver'sCoaxial

and/or Toslink Output connector (cables

not included). Note: Both Coaxial and

Toslink Outputs can be connected and

produce sound simultaneously.

5. Plug the included power adapter into the

Transmitter's power jack, then plug the

power adapter into a reliable power source.

Power over Cable (PoC) technology allows

the power adapter connected to the

Transmitter to power the Receiver through

CAT cable.

6. Power on all connected devices.

7. The extender is ready for use.

Application

Coaxial Audio Source Device

Toslink Audio Source Device

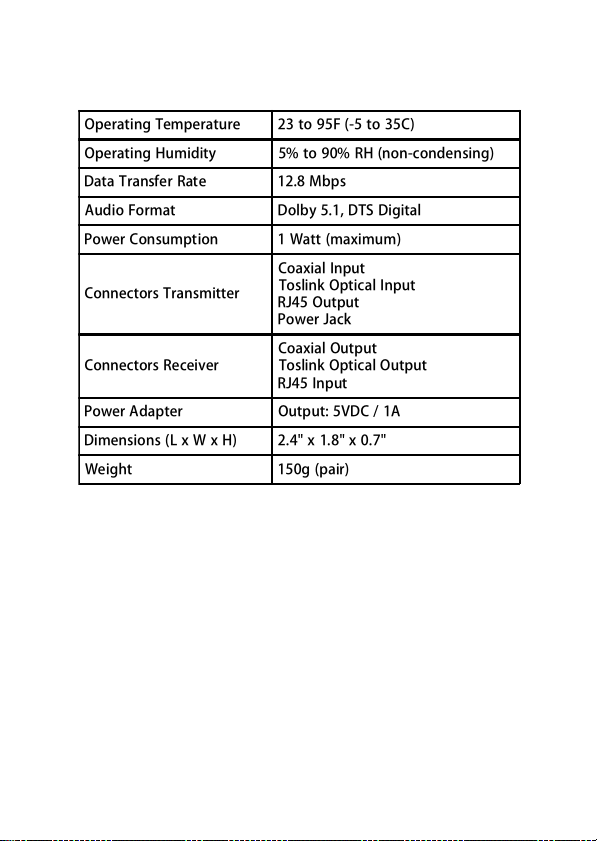

Specifications

󳏐󳏱󳏦󳏳󳏢󳏵󳏪󳏯󳏨󳎡󳏕󳏦󳏮󳏱󳏦󳏳󳏢󳏵󳏶󳏳󳏦

󳎳󳎴󳎡󳏵󳏰󳎡󳎺󳎶󳏇󳎡󳎩󳎮󳎶󳎡󳏵󳏰󳎡󳎴󳎶󳏄󳎪

󳏐󳏱󳏦󳏳󳏢󳏵󳏪󳏯󳏨󳎡󳏉󳏶󳏮󳏪󳏥󳏪󳏵󳏺

󳎶󳎦󳎡󳏵󳏰󳎡󳎺󳎱󳎦󳎡󳏓󳏉󳎡󳎩󳏯󳏰󳏯󳎮󳏤󳏰󳏯󳏥󳏦󳏯󳏴󳏪󳏯󳏨󳎪

󳏅󳏢󳏵󳏢󳎡󳏕󳏳󳏢󳏯󳏴󳏧󳏦󳏳󳎡󳏓󳏢󳏵󳏦

󳎲󳎳󳎯󳎹󳎡󳏎󳏣󳏱󳏴

󳏂󳏶󳏥󳏪󳏰󳎡󳏇󳏰󳏳󳏮󳏢󳏵

󳏅󳏰󳏭󳏣󳏺󳎡󳎶󳎯󳎲󳎭󳎡󳏅󳏕󳏔󳎡󳏅󳏪󳏨󳏪󳏵󳏢󳏭

󳏑󳏰󳏸󳏦󳏳󳎡󳏄󳏰󳏯󳏴󳏶󳏮󳏱󳏵󳏪󳏰󳏯

󳎲󳎡󳏘󳏢󳏵󳏵󳎡󳎩󳏮󳏢󳏹󳏪󳏮󳏶󳏮󳎪

󳏄󳏰󳏯󳏯󳏦󳏤󳏵󳏰󳏳󳏴󳎡󳏕󳏳󳏢󳏯󳏴󳏮󳏪󳏵󳏵󳏦󳏳

󳏄󳏰󳏢󳏹󳏪󳏢󳏭󳎡󳏊󳏯󳏱󳏶󳏵

󳏕󳏰󳏴󳏭󳏪󳏯󳏬󳎡󳏐󳏱󳏵󳏪󳏤󳏢󳏭󳎡󳏊󳏯󳏱󳏶󳏵

󳏓󳏋󳎵󳎶󳎡󳏐󳏶󳏵󳏱󳏶󳏵

󳏑󳏰󳏸󳏦󳏳󳎡󳏋󳏢󳏤󳏬

󳏄󳏰󳏯󳏯󳏦󳏤󳏵󳏰󳏳󳏴󳎡󳏓󳏦󳏤󳏦󳏪󳏷󳏦󳏳

󳏄󳏰󳏢󳏹󳏪󳏢󳏭󳎡󳏐󳏶󳏵󳏱󳏶󳏵

󳏕󳏰󳏴󳏭󳏪󳏯󳏬󳎡󳏐󳏱󳏵󳏪󳏤󳏢󳏭󳎡󳏐󳏶󳏵󳏱󳏶󳏵

󳏓󳏋󳎵󳎶󳎡󳏊󳏯󳏱󳏶󳏵

󳏑󳏰󳏸󳏦󳏳󳎡󳏂󳏥󳏢󳏱󳏵󳏦󳏳

󳏐󳏶󳏵󳏱󳏶󳏵󳎻󳎡󳎶󳏗󳏅󳏄󳎡󳎰󳎡󳎲󳏂

󳏅󳏪󳏮󳏦󳏯󳏴󳏪󳏰󳏯󳏴󳎡󳎩󳏍󳎡󳏹󳎡󳏘󳎡󳏹󳎡󳏉󳎪

󳎳󳎯󳎵󳎣󳎡󳏹󳎡󳎲󳎯󳎹󳎣󳎡󳏹󳎡󳎱󳎯󳎸󳎣

󳏘󳏦󳏪󳏨󳏩󳏵

󳎲󳎶󳎱󳏨󳎡󳎩󳏱󳏢󳏪󳏳󳎪

Blank Page
