To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

X570S UD

User's Manual

Rev. 1002

12ME-X57SUD-1002R

2 / 451 / 432 / 451 / 432 / 45

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

3 / 452 / 433 / 452 / 433 / 45

- 3 -

Table of Contents

X570S UD Motherboard Layout ......................................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 13

Chapter 2 BIOS Setup ..................................................................................................22

2-1 Startup Screen ............................................................................................... 22

2-2 The Main Menu .............................................................................................. 23

2-3 Smart Fan 6 .................................................................................................. 24

2-4 Favorites (F11) ............................................................................................... 25

2-5 Tweaker.......................................................................................................... 26

2-6 Settings .......................................................................................................... 29

2-7 System Info. ................................................................................................... 34

2-8 Boot................................................................................................................ 35

2-9 Save & Exit..................................................................................................... 38

Chapter 3 Appendix ......................................................................................................39

3-1 ConguringaRAIDSet.................................................................................. 39

3-2 Drivers Installation.......................................................................................... 41

RegulatoryNotices.................................................................................................... 42

Contact Us ................................................................................................................ 43

4 / 453 / 434 / 453 / 434 / 45

- 4 -

X570S UD Motherboard Layout

KB_MS_USB

U32

HDMI

U32G2C

U32G2

Socket AM4

ATX

AUDIO

ATX_12V_2X4

AMD X570

CLR_CMOS

M_BIOS

PCIEX1_1

PCIEX2

PCIEX16

PCIEX1_2

M2A_CPU

CODEC

X570S UD

F_PANEL

F_USB2

F_USB1

LED_C1

QFLASH_PLUS

QFLED

F_AUDIO

F_U32

TPM

SYS_FAN1

SYS_FAN2

CPU_FANCPU_OPT

iTE®

Super I/O

426080110

SATA3

420

531

BAT

Realtek®

2.5GbELAN

DDR4_A2

DDR4_B2

DDR4_A1

DDR4_B1

U32_LAN

LED_CPU

M2C_SB

426080110

M2B_SB

426080110

F_U32C

LED_C2

D_LED2

SYS_FAN4_PUMP

SYS_FAN3 Temperature

sensor

D_LED1

5 / 454 / 435 / 454 / 435 / 45

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Priorto installation,donot removeor breakmotherboard S/N (SerialNumber) stickeror

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

6 / 455 / 436 / 455 / 436 / 45

1-2 ProductSpecications

CPU AAMD Socket AM4, support for:

AMDRyzen™5000 Series Processors/

AMDRyzen™5000 G-Series Processors/

 AMDRyzen™4000 G-Series Processors/

AMDRyzen™3000 Series Processors/

AMDRyzen™3000 G-Series Processors/

AMDRyzen™2000 Series Processors/

AMDRyzen™2000 G-Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD X570

Memory AMD Ryzen™5000 Series/5000 G-Series/4000 G-Series/3000 Series Processors:

- SupportforDDR43200/2933/2667/2400/2133MHzmemorymodules

AMD Ryzen™3000 G-Series/2000 Series/2000 G-Series Processors:

- SupportforDDR42933/2667/2400/2133MHzmemorymodules

4xDDR4DIMMsocketssupportingupto128GB(32GBsingleDIMMcapacity)

of system memory

Dual channel memory architecture

SupportforECCUn-bufferedDIMM1Rx8/2Rx8memorymodules

Supportfornon-ECCUn-bufferedDIMM1Rx8/2Rx8/1Rx16memorymodules

SupportforExtremeMemoryProle(XMP)memorymodules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics (Note1)

Integrated Graphics Processor:

- 1xHDMIport,supportingamaximumresolutionof4096x2160@60Hz

* SupportforHDMI2.1version,HDCP2.3,andHDR.

Maximum shared memory of 16 GB

Audio Realtek®Audio CODEC

HighDenitionAudio

2/4/5.1/7.1-channel

LAN Realtek®2.5GbELANchip(2.5Gbps/1Gbps/100Mbps)

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™5000 Series/3000 Series Processors

support PCIe 4.0 x16 mode

- AMD Ryzen™5000 G-Series/4000 G-Series/2000 Series Processors

support PCIe 3.0 x16 mode

- AMD Ryzen™3000 G-Series/2000 G-Series Processors

support PCIe 3.0 x8 mode

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

- Supporting PCIe 4.0(Note2)/3.0 x2 mode

* The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5

connectors will become unavailable when a device is installed in the PCIEX2 slot.

2 x PCI Express x1 slots (PCIEX1_1/PCIEX1_2), integrated in the Chipset:

- Supporting PCIe 4.0(Note2)/3.0

(Note1) ForAMDRyzen™5000 G-Series/4000 G-Series/3000 G-Series/2000 G-Series Processors only.

(Note2) ForAMDRyzen™5000 Series/3000 Series Processors only.

- 6 -

7 / 456 / 437 / 456 / 437 / 45

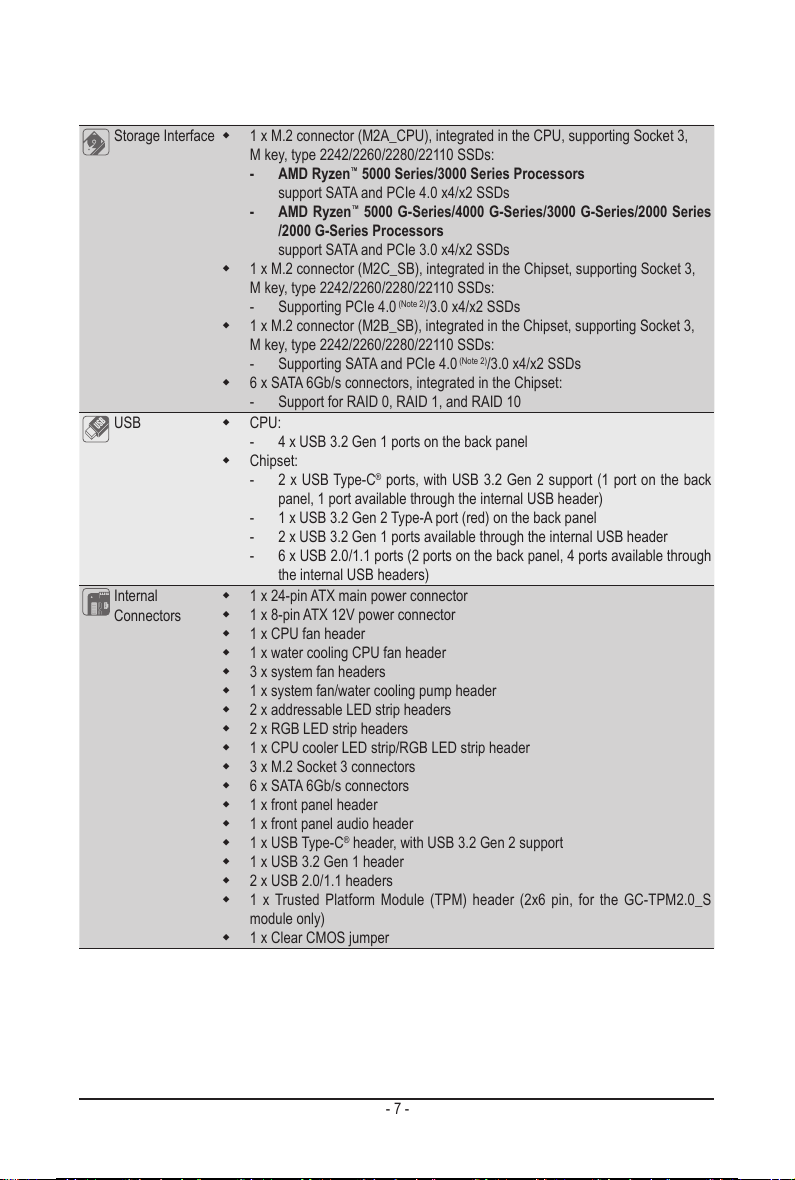

Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,

M key, type 2242/2260/2280/22110 SSDs:

- AMD Ryzen™5000 Series/3000 Series Processors

support SATA and PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™5000 G-Series/4000 G-Series/3000 G-Series/2000 Series

/2000 G-Series Processors

support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,

M key, type 2242/2260/2280/22110 SSDs:

- Supporting PCIe 4.0(Note2)/3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3,

M key, type 2242/2260/2280/22110 SSDs:

- Supporting SATA and PCIe 4.0(Note2)/3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated in the Chipset:

- SupportforRAID0,RAID1,andRAID10

USB CPU:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

- 2 x USB Type-C®ports, with USB 3.2 Gen 2 support (1 port on the back

panel, 1 port available through the internal USB header)

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2xRGBLEDstripheaders

1xCPUcoolerLEDstrip/RGBLEDstripheader

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C®header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1xClearCMOSjumper

- 7 -

8 / 457 / 438 / 457 / 438 / 45

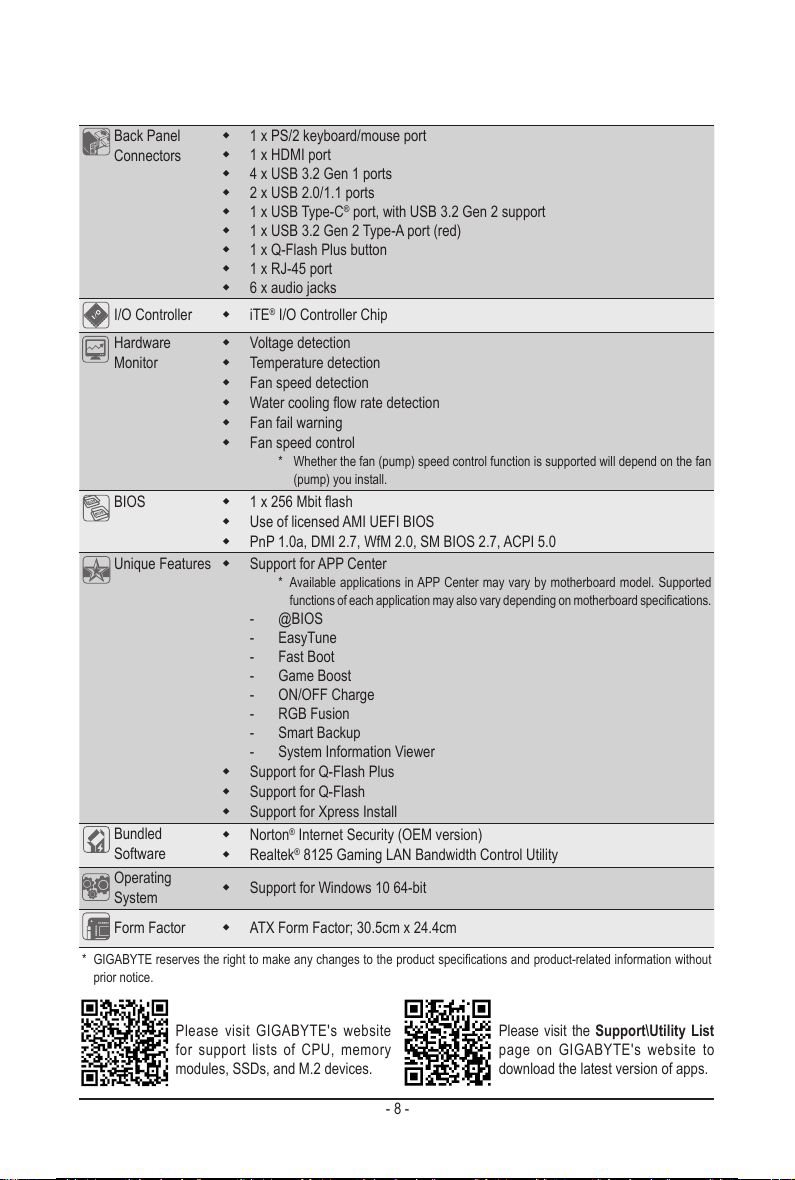

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x USB Type-C®port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

1 x Q-Flash Plus button

1xRJ-45port

6xaudiojacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Watercoolingowratedetection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan

(pump) you install.

BIOS 1x256Mbitash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFFCharge

- RGBFusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

Realtek®8125GamingLANBandwidthControlUtility

Operating

System Support for Windows 10 64-bit

Form Factor ATX Form Factor; 30.5cm x 24.4cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 8 -

9 / 458 / 439 / 458 / 439 / 45

Please visit GIGABYTE's website for details on hardware installation.

1-3 Installing the CPU

Installing the CPU

Completely lift up the CPU socket locking lever. Locate the pin one (denoted by a small triangle) of the CPU

socketandtheCPU.OncetheCPUispositionedintoitssocket,placeonengerdownonthemiddleofthe

CPU, lowering the locking lever and latching it into the fully locked position.

ReadthefollowingguidelinesbeforeyoubegintoinstalltheCPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

AM4 CPU Socket

A Small Triangle

Marking Denotes Pin

One of the Socket AM4 CPU

A Small Triangle

Marking Denotes CPU

Pin One

Completely lift up the CPU

socket locking lever

Do not force the CPU into the CPU socket before the CPU socket locking lever is lifted up, or

damage to the CPU and CPU socket may occur.

1-4 Installing the Memory

Readthefollowingguidelinesbeforeyoubegintoinstallthememory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. Amemory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

•Wheninstallingasinglememorymodule,werecommendthatyouinstallitintheDDR4_A2socket.

- 9 -

10 / 459 / 4310 / 459 / 4310 / 45

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-8EGXDR Manuel utilisateur

Gigabyte

Gigabyte GA-EX38-DS5 Manuel utilisateur

Gigabyte

Gigabyte GA-8AENXP-D Manuel utilisateur

Gigabyte

Gigabyte GA-Z97X-SOC Force Manuel utilisateur

Gigabyte

Gigabyte GA-EG41MF-S2H Manuel utilisateur

Gigabyte

Gigabyte X670E AORUS PRO X Manuel utilisateur

Gigabyte

Gigabyte H231-G20 Manuel utilisateur

Gigabyte

Gigabyte GA-E350N Manuel utilisateur

Gigabyte

Gigabyte GA-C847N-D Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-USB3V Manuel utilisateur

Gigabyte

Gigabyte Z690 AORUS MASTER Manuel utilisateur

Gigabyte

Gigabyte GA-EP45-UD3P Manuel utilisateur

Gigabyte

Gigabyte GA-Z87P-D3 Manuel utilisateur

Gigabyte

Gigabyte GA-H61TN Manuel utilisateur

Gigabyte

Gigabyte Z690 A ELITE STEALTH Manuel utilisateur

Gigabyte

Gigabyte GA-8I845PE Pro Manuel utilisateur

Gigabyte

Gigabyte GA-8PE800 Pro Manuel utilisateur

Gigabyte

Gigabyte B650 AERO G Manuel utilisateur

Gigabyte

Gigabyte 5SG100 Manuel utilisateur

Gigabyte

Gigabyte B760I AORUS PRO DDR4 Manuel utilisateur

Gigabyte

Gigabyte H410M HD3P Manuel utilisateur

Gigabyte

Gigabyte GA-8I945P-G-RH Manuel utilisateur

Gigabyte

Gigabyte GA-G31MX-S2 Manuel utilisateur

Gigabyte

Gigabyte GS-W42G-P08R Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
