Gigabyte Z690 AORUS MASTER Manuel utilisateur

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

Z690AORUSMASTER

User's Manual

Rev. 1002

12ME-Z69MSTR-1002R

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of

documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

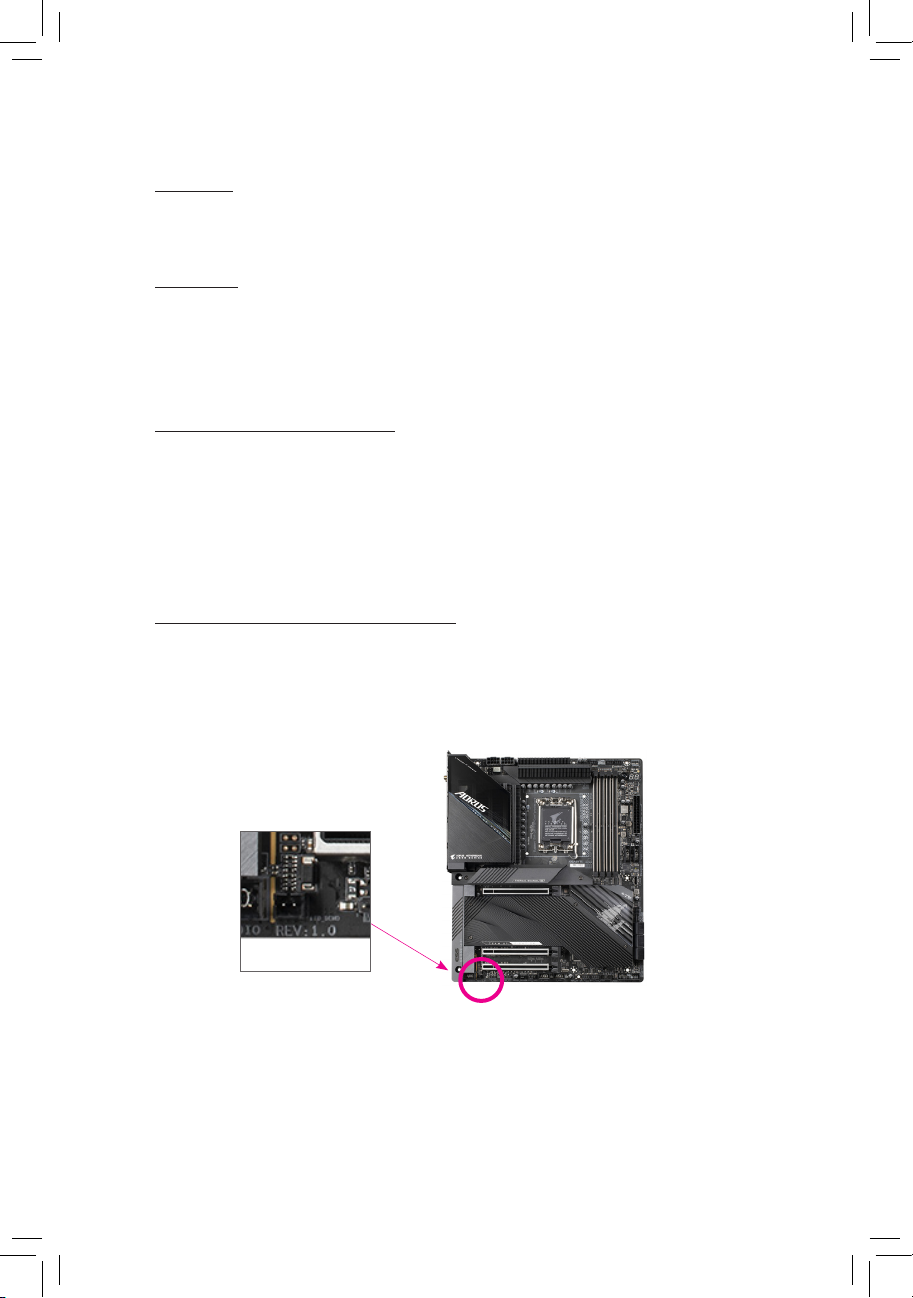

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Motherboard Block Diagram ............................................................................ 5

1-3 Box Contents.................................................................................................... 6

Chapter 2 Hardware Installation .....................................................................................7

2-1 Installation Precautions.................................................................................... 7

2-2 Product Specications...................................................................................... 8

2-3 Installing the CPU and CPU Cooler ............................................................... 12

2-4 Installing the Memory..................................................................................... 15

2-5 Installing an Expansion Card ......................................................................... 16

2-6 Back Panel Connectors.................................................................................. 17

2-7 Onboard Buttons and Voltage Measurement Points...................................... 19

2-8 Internal Connectors........................................................................................ 20

Chapter 3 BIOS Setup ..................................................................................................34

Chapter 4 Installing the Operating System and Drivers................................................36

4-1 Operating System Installation ........................................................................ 36

4-2 Drivers Installation.......................................................................................... 37

Chapter 5 Appendix ......................................................................................................38

5-1 Conguring a RAID Set.................................................................................. 38

5-2 Debug LED Codes ......................................................................................... 39

Regulatory Notices.................................................................................................... 43

Contact Us ................................................................................................................ 48

- 4 -

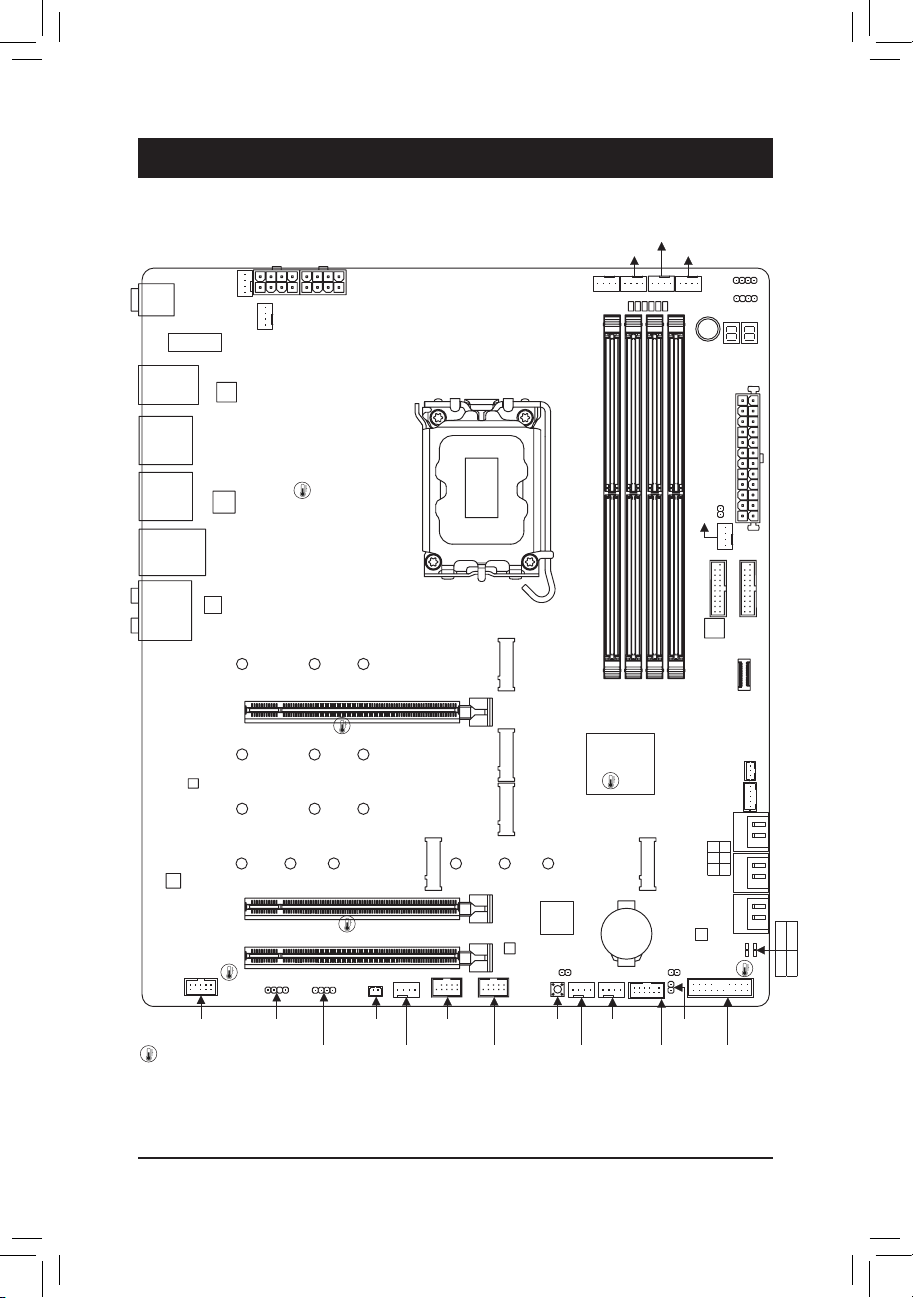

1-1 Motherboard Layout

(Note) For debug code information, please refer to Chapter 5.

M2_WIFI

U32G2_2

U3G2C

U32G2_1

U320G

U32G2_

LAN

LGA1700 ATX

AUDIO

BAT

Intel®Z690

CLR_CMOS

M_BIOS

THB_C1

THB_C2

CODEC

ESS ES9118 DAC

PCIEX16

PCIEX4_1

PCIEX4_2

F_U320G

F_U32_1

F_U32_2 SYS_FAN6_PUMP

DB_PORT (Note)

EC_TEMP2

EC_TEMP1

SYS_FAN1

SYS_FAN2

6080110

M2A_CPU

6080110

M2P_SB

6080110

M2Q_SB

426080

M2C_SB

426080

M2M_SB

Z690 AORUS MASTER

RST_SWF_USB2 RSTD_LED1 NOISE_

SENSOR

F_AUDIO

SYS_FAN3 F_USB1LED_C1 SYS_FAN4 SPI_TPM F_PANEL

CPU_FAN SYS_FAN8_PUMP

SYS_FAN7_PUMP

CPU_OPT

SYS_FAN5_

PUMP

iTE®

Super I/O

D_LED2

LED_C2

PW_SW

ATX_12V_2X4_2

ATX_12V_2X4_1

USB 2.0 Hub

USB 3.2 Gen 1 Hub

USB 3.2 Gen 2 Hub

USB 3.2

Gen 1 Hub

SATA3 3 5 7

2 4 6

VGA CPU

BOOT DRAM

REAR_BUTTON

U32

Temperature sensor

Marvell®AQtion AQC113C

10GbE LAN

Chapter 1 Product Introduction

DDR5_A1

DDR5_A2

DDR5_B1

DDR5_B2

- 5 -

USB 3.2

Gen 2 Hub

1-2 Motherboard Block Diagram

LGA1700 CPU

CPU CLK+/- (80~800 MHz)

DMI 4.0

LAN

RJ45

4 SATA 6Gb/s

(SATA3 4~7)

1 M.2 Socket 3

(M2M_SB)

1 M.2 Socket 3

(M2C_SB)

2 SATA 6Gb/s

(SATA3 2, 3)

eSPI

Bus

SPI

Bus

DDI

PCI Express 4.0 Bus

PCI Express 3.0 Bus

Center/Subwoofer

Speaker Out

Line Out

MIC

Line In

S/PDIF Out

Rear Speaker Out

CODEC

ESS ES9118 DAC

iTE®

Super I/O

8 USB 3.2 Gen 1

3 USB 3.2 Gen 2 Type-A

Intel®Z690

x4 x4 x2

DisplayPort

1 PCI Express x4

(PCIEX4_2)

1 PCI Express x4

(PCIEX4_1)

USB 3.2

Gen 1 Hub

4 USB 2.0/1.1

USB 2.0

Hub

BIOS

TPM

M.2 WIFI

PCI Express 5.0 Bus

2 M.2 Socket 3

(M2P_SB, M2Q_SB)

Marvell®AQtion

AQC113C

10GbE LAN

Switch

2 USB Type-C®,

with USB 3.2 Gen 2x2 support

2 USB 3.2 Gen 2 Type-A

x16

1 PCI Express x16

PCI Express 4.0 Bus

1 M.2 Socket 3

(M2A_CPU)

DDR5 4800/4000 MHz

1 USB Type-C®,

with USB 3.2 Gen 2 support

- 6 -

1-3 Box Contents

5Z690 AORUS MASTER motherboard

5User's Manual

5Quick Installation Guide

5One antenna

5Six SATA cables

5One RGB LED strip extension cable

5One noise detection cable

5Two thermistor cables

5M.2 screws

5One G Connector

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 7 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its

installation and/or grounding instructions.

Chapter 2 Hardware Installation

- 8 -

2-2 Product Specications

CPU LGA1700 socket: Support for 12th Generation Intel®Core™i9 processors/Intel®

Core™i7 processors/Intel®Core™i5 processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®Z690 Express Chipset

Memory Support for DDR5 4800/4000 MHz memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specications may vary depending on CPU support.)

Audio Realtek®ALC1220-VB CODEC

* The front panel line out jack supports DSD audio.

ESS ES9118 DAC chip

Support for DTS:X®Ultra

High Denition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN Marvell®AQtion AQC113C 10GbE LAN chip

(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Communication

Module

Intel®Wi-Fi 6E AX210

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.2

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 5.0 standard.)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

* The PCIEX4_1 slot shares bandwidth with the M2C_SB connector. The PCIEX4_1

slot becomes unavailable when a device is installed in the M2C_SB connector.

(The PCIEX4 slots conform to PCI Express 3.0 standard.)

Multi-Graphics

Technology Support for AMD Quad-GPU CrossFire™and 2-WayAMD CrossFire™technologies

- 9 -

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2

SSD support) (M2A_CPU)

Chipset:

- 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2

SSD support) (M2P_SB, M2Q_SB)

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x4/x2

SSD support) (M2C_SB)

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0

x4/x2 SSD support) (M2M_SB)

- 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "2-8 Internal Connectors," for the installation notices for the PCIEX4_1, M.2,

and SATA connectors.

Intel®Optane™Memory Ready

* System acceleration with Intel®Optane™Memory can only be enabled on the M.2

connectors supported by the Chipset.

USB Chipset:

- 2 x USB Type-C®ports, with USB 3.2 Gen 2x2 support (1 port on the back

panel, 1 port available through the internal USB header)

- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 2 Hub:

- 1 x USB Type-C®port on the back panel, with USB 3.2 Gen 2 support

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

4 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

5 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C®header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt™add-in card connectors

- 10 -

Internal

Connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x power button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

Voltage Measurement Points

Back Panel

Connectors

1 x Q-Flash Plus button

1 x Clear CMOS button

2 x SMA antenna connectors (2T2R)

1 x DisplayPort

1 x USB Type-C®port, with USB 3.2 Gen 2 support

1 x USB Type-C®port, with USB 3.2 Gen 2x2 support

5 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan

(pump) you install.

Noise detection

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Autres manuels pour Z690 AORUS MASTER

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-586T2 Manuel utilisateur

Gigabyte

Gigabyte GA-M68MT-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-7TEWH1 Manuel utilisateur

Gigabyte

Gigabyte GA-J1900N-D3V Manuel utilisateur

Gigabyte

Gigabyte GA-8IG1000MF Series Manuel utilisateur

Gigabyte

Gigabyte G1.ASSASSIN 2 Manuel utilisateur

Gigabyte

Gigabyte GA-8I915G-MFD Manuel utilisateur

Gigabyte

Gigabyte GA-34SGCM-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-F2A58M-H Manuel utilisateur

Gigabyte

Gigabyte GA-6OXM7 Manuel utilisateur

Gigabyte

Gigabyte GA-MA790XT-UD4P Manuel utilisateur

Gigabyte

Gigabyte GA-990FXA-UD7 Manuel utilisateur

Gigabyte

Gigabyte GA-7TESM Manuel utilisateur

Gigabyte

Gigabyte GA-P61-USB3-B3 Manuel utilisateur

Gigabyte

Gigabyte G1.Sniper Z170 Manuel utilisateur

Gigabyte

Gigabyte GA-K8NSNXP-939 Manuel utilisateur

Gigabyte

Gigabyte B760I AORUS PRO DDR4 Manuel utilisateur

Gigabyte

Gigabyte GA-A55M-DS2 Manuel utilisateur

Gigabyte

Gigabyte GA-6VMM Manuel utilisateur

Gigabyte

Gigabyte B365M H Manuel utilisateur

Gigabyte

Gigabyte X299 UD4 Pro Manuel utilisateur

Gigabyte

Gigabyte GA-E7AUM-DS2H Manuel utilisateur

Gigabyte

Gigabyte GA-8ITXE Manuel utilisateur

Gigabyte

Gigabyte GA-M52S-S3P Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
