Gigabyte GA-E350N Manuel utilisateur

GA-E350N

User's Manual

Rev. 1001

12ME-E350N-1001R

Motherboard

GA-E350N

Jun. 15, 2012

Motherboard

GA-E350N

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

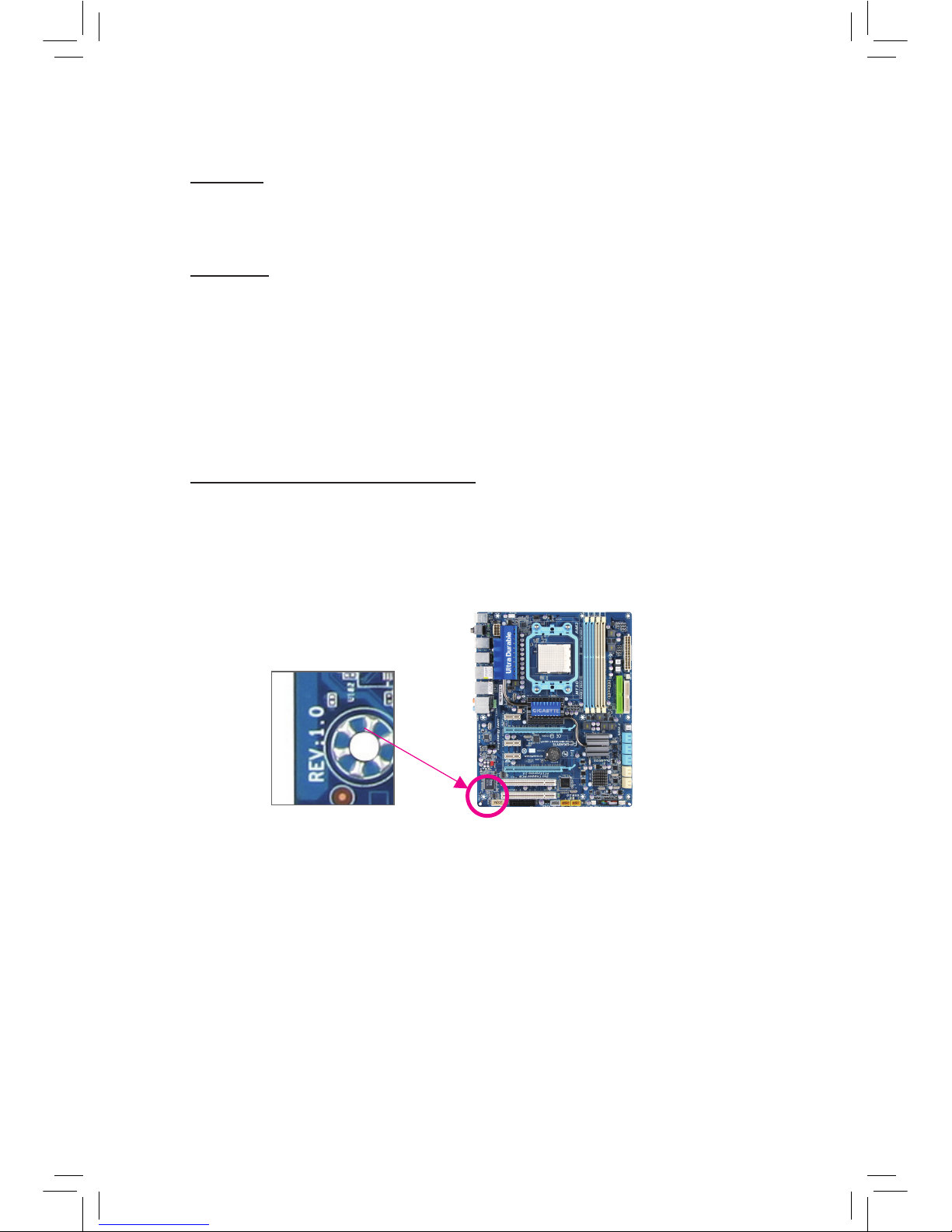

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

GA-E350N Motherboard Layout......................................................................................5

GA-E350N Motherboard Block Diagram .........................................................................6

Chapter 1 Hardware Installation .....................................................................................7

1-1 Installation Precautions.................................................................................... 7

1-2 ProductSpecications...................................................................................... 8

1-3 Installing the Memory..................................................................................... 10

1-4 Installing an Expansion Card ......................................................................... 10

1-5 Back Panel Connectors.................................................................................. 11

1-6 Internal Connectors........................................................................................ 13

Chapter 2 BIOS Setup ..................................................................................................21

2-1 Startup Screen ............................................................................................... 21

2-2 The Main Menu .............................................................................................. 22

2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 23

2-4 Standard CMOS Features.............................................................................. 26

2-5 Advanced BIOS Features .............................................................................. 27

2-6 Integrated Peripherals.................................................................................... 28

2-7 Power Management Setup............................................................................. 30

2-8 PC Health Status............................................................................................ 32

2-9 Load Fail-Safe Defaults.................................................................................. 33

2-10 Load Optimized Defaults................................................................................ 33

2-11 Set Supervisor/User Password ...................................................................... 34

2-12 Save & Exit Setup .......................................................................................... 34

2-13 Exit Without Saving........................................................................................ 35

Chapter 3 Drivers Installation........................................................................................35

3-1 Installing Chipset Drivers ............................................................................... 35

3-2 Regulatory Statements................................................................................... 36

- 5 -

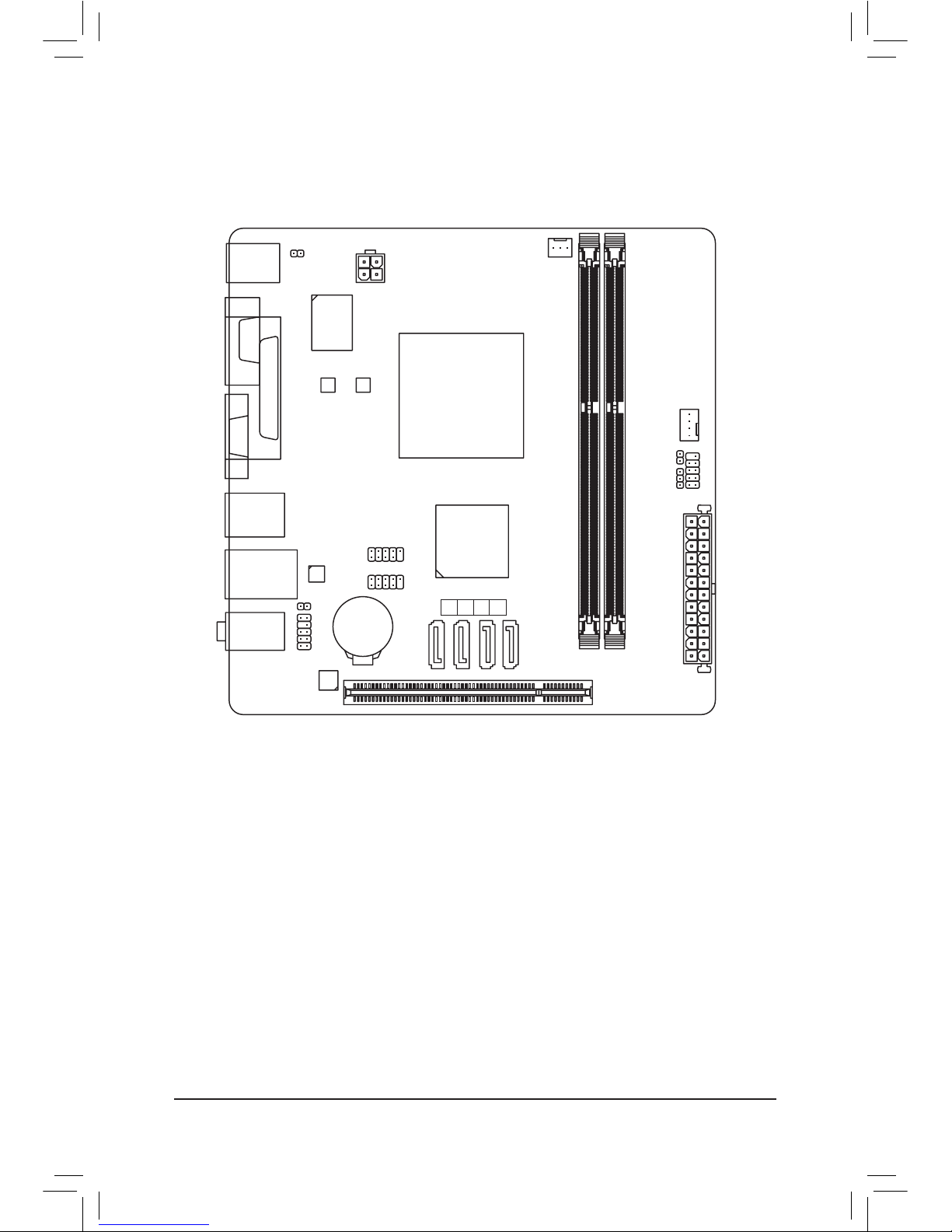

GA-E350N Motherboard Layout

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-E350N motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS

CPU_FAN

AMD E-350D APU

AMD A45 FCH

ATX

GA-E350N

F_AUDIO

AUDIO

B_BIOS

DDR3_0

DDR3_1

BAT

F_PANEL

ATX_12V

CODEC

CLR_CMOS

M_BIOS

VGA

USB_LAN

PCI

SPDIF_O

F_USB1

F_USB2

PWR_LED

COM

Realtek

GbE LAN

SATA2

USB_HDMI

iTE

Super I/O

SYS_FAN

LPT

- 6 -

GA-E350N Motherboard Block Diagram

Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."

UMI

AMD A45 FCH

CPU CLK+/- (100 MHz)

S/PDIF Out

AMD

E-350D APU DDR3 1333 (O.C.)/1066 MHz

Dual BIOS

LPC

Bus COM

8 USB 2.0/1.1

4 SATA 3Gb/s

PCI Express Bus

PCIe CLK

(100 MHz)

LAN

RJ45

Realtek

GbE LAN

D-Sub

HDMI

PCI Bus

1 PCI

PCI CLK

(33 MHz)

iTE

Super

I/O

PS/2 KB/Mouse

LPT

Single Channel

Line Out (Front Speaker Out)

MIC (Center/Subwoofer Speaker Out)

Line In (Rear Speaker Out)

CODEC

- 7 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

- 7 -

1-2 ProductSpecications

APU Built in with an AMD E-350D Dual-Core processor

Built in with an AMD Radeon™HD 6310 (DirectX 11) graphics core

Chipset AMD A45 FCH

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than 4 GB.

Single channel memory architecture

Support for DDR3 1333 (O.C.)/1066 MHz memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated in the APU:

- 1 x D-Sub port

- 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio Realtek HD audio codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule

and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI slot

Storage Interface Chipset:

- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB Chipset:

- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x chassis intrusion header

1 x power LED header

1 x Clear CMOS jumper

- 7 -

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x parallel port

1 x serial port

1 x D-Sub port

1 x HDMI port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller iTE I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the CPU/system fan speed control function is supported will depend on the

CPU/system cooler you install.

BIOS 2x32Mbitash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for Xpress Recovery2

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for Smart Recovery

Support for Auto Green

Support for ON/OFF Charge

Support for Q-Share

Bundled

Software Norton Internet Security (OEM version)

Operating

System Support for Microsoft®Windows 7/Vista/XP

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

* Please visit GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features"

and "Bundled Software" columns.

- 7 -

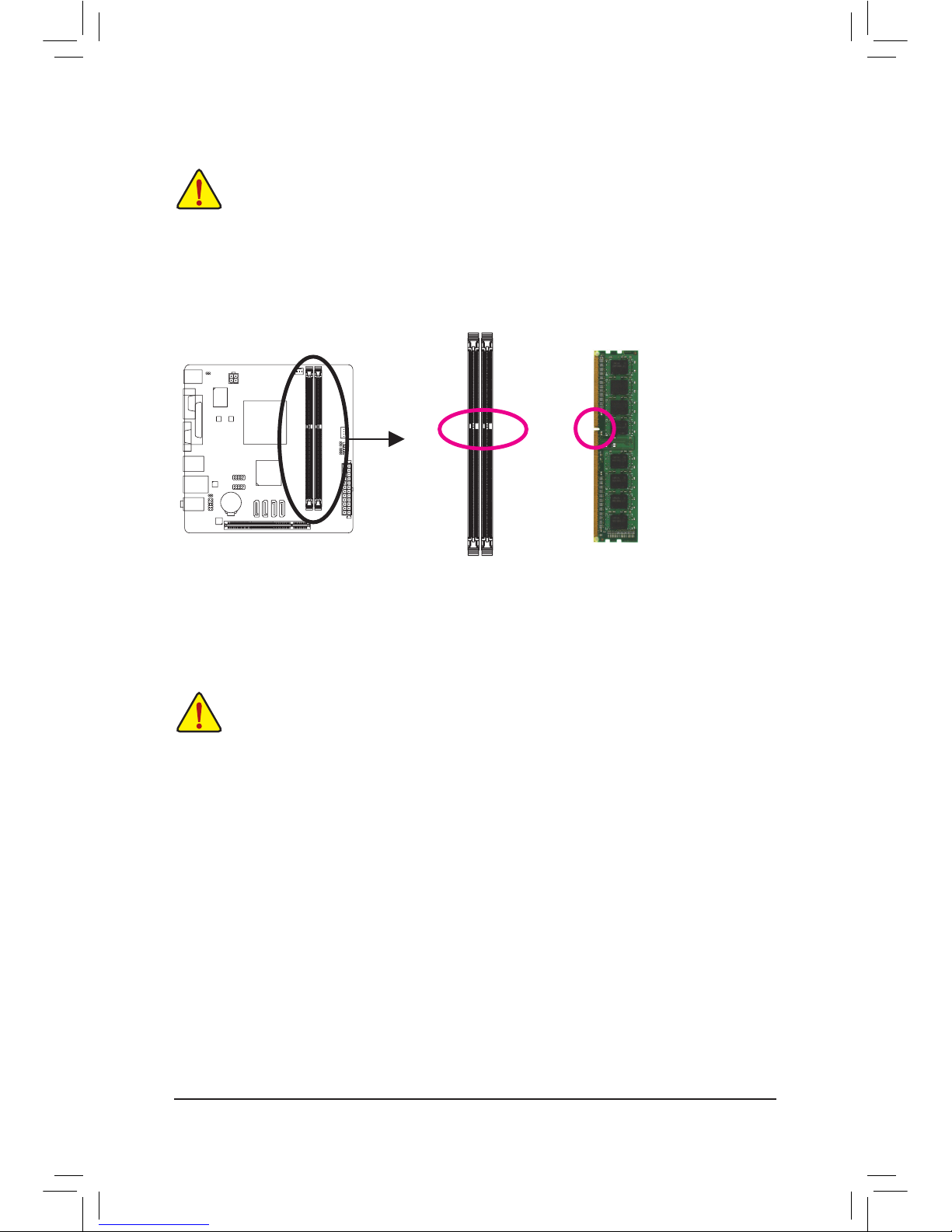

1-3 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

1-4 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

DDR3_0

DDR3_1

notch

DDR3 DIMM

Autres manuels pour GA-E350N

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-P67X-UD3-B3 Manuel utilisateur

Gigabyte

Gigabyte GA-8VT800 Manuel utilisateur

Gigabyte

Gigabyte GA-8I915P Duo Pro-A Manuel utilisateur

Gigabyte

Gigabyte GA-B85M-HD3 R4 Manuel utilisateur

Gigabyte

Gigabyte GA-990XA-UD3 Manuel utilisateur

Gigabyte

Gigabyte GA-8IPE1000 Pro-G Manuel utilisateur

Gigabyte

Gigabyte Z790 AORUS PRO X Manuel utilisateur

Gigabyte

Gigabyte GA-A320M-D2P Manuel utilisateur

Gigabyte

Gigabyte GA-P75-D3 Manuel utilisateur

Gigabyte

Gigabyte GA-Z97X-SLI Manuel utilisateur

Gigabyte

Gigabyte GA-E350N Manuel utilisateur

Gigabyte

Gigabyte 5AX Manuel utilisateur

Gigabyte

Gigabyte B450 AORUS ELITE V2 Manuel utilisateur

Gigabyte

Gigabyte GA-945GZM-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-H170M-D3H Manuel utilisateur

Gigabyte

Gigabyte IM-H410G Manuel utilisateur

Gigabyte

Gigabyte GA-B75M-HD3 Manuel utilisateur

Gigabyte

Gigabyte GA-G33M-S2H Manuel utilisateur

Gigabyte

Gigabyte GA-8VD667K Manuel utilisateur

Gigabyte

Gigabyte MU92-TU0 Manuel utilisateur

Gigabyte

Gigabyte GA-MA78LM-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-P67A-UD5 Manuel utilisateur

Gigabyte

Gigabyte X670E AORUS PRO X Manuel utilisateur

Gigabyte

Gigabyte GA-Z77N-WIFI Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
