Gigabyte GA-H61TN Manuel utilisateur
GA-H77TN
GA-B75TN
GA-H61TN
User's Manual
Rev. 1101
Motherboard
GA-H77TN
Jan. 31, 2013
Jan. 31, 2013
Motherboard
GA-H77TN
Motherboard
GA-B75TN
Jan. 31, 2013
Jan. 31, 2013
Motherboard
GA-B75TN
Motherboard
GA-H61TN
Feb. 08, 2013
Feb. 08, 2013
Motherboard
GA-H61TN
Copyright
©2013 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com
- 6 -
Table of Contents
Box Contents...................................................................................................................7
GA-H77TN/GA-B75TN/GA-H61TN Motherboard Layout ................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 ProductSpecications.................................................................................... 10
1-3 Installing the CPU and CPU Cooler ............................................................... 13
1-4 Installing the Memory/Expansion Card .......................................................... 13
1-5 Back Panel Connectors.................................................................................. 14
1-6 Internal Connectors........................................................................................ 16
Chapter 2 BIOS Setup ..................................................................................................28
2-1 The Main Menu .............................................................................................. 30
2-2 Advanced Menu ............................................................................................. 32
2-2-1 ACPI Settings .........................................................................................................33
2-2-2 CPUConguration..................................................................................................34
2-2-3 SATAConguration.................................................................................................36
2-2-4 Intel (R) Rapid Start Technology.............................................................................37
2-2-5 H/W Monitor............................................................................................................38
2-2-6 Intel(R) Smart Connect Technology........................................................................39
2-2-7 Network Stack ........................................................................................................40
2-2-8 CPUPPMConguration.........................................................................................41
2-2-9 Realtek PCIe GBE Family Controller......................................................................42
2-3 Chipset Menu................................................................................................. 43
2-4 Boot Menu...................................................................................................... 44
2-5 Security Menu ................................................................................................ 47
2-6 Exit Menu ....................................................................................................... 49
- 7 -
Box Contents
;GA-H77TN or GA-B75TN or GA-H61TN motherboard
;Motherboard driver disk
;User's Manual
;One SATA power cable
;I/O Shield
;Screws kit for expansion cards
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
- 8 -

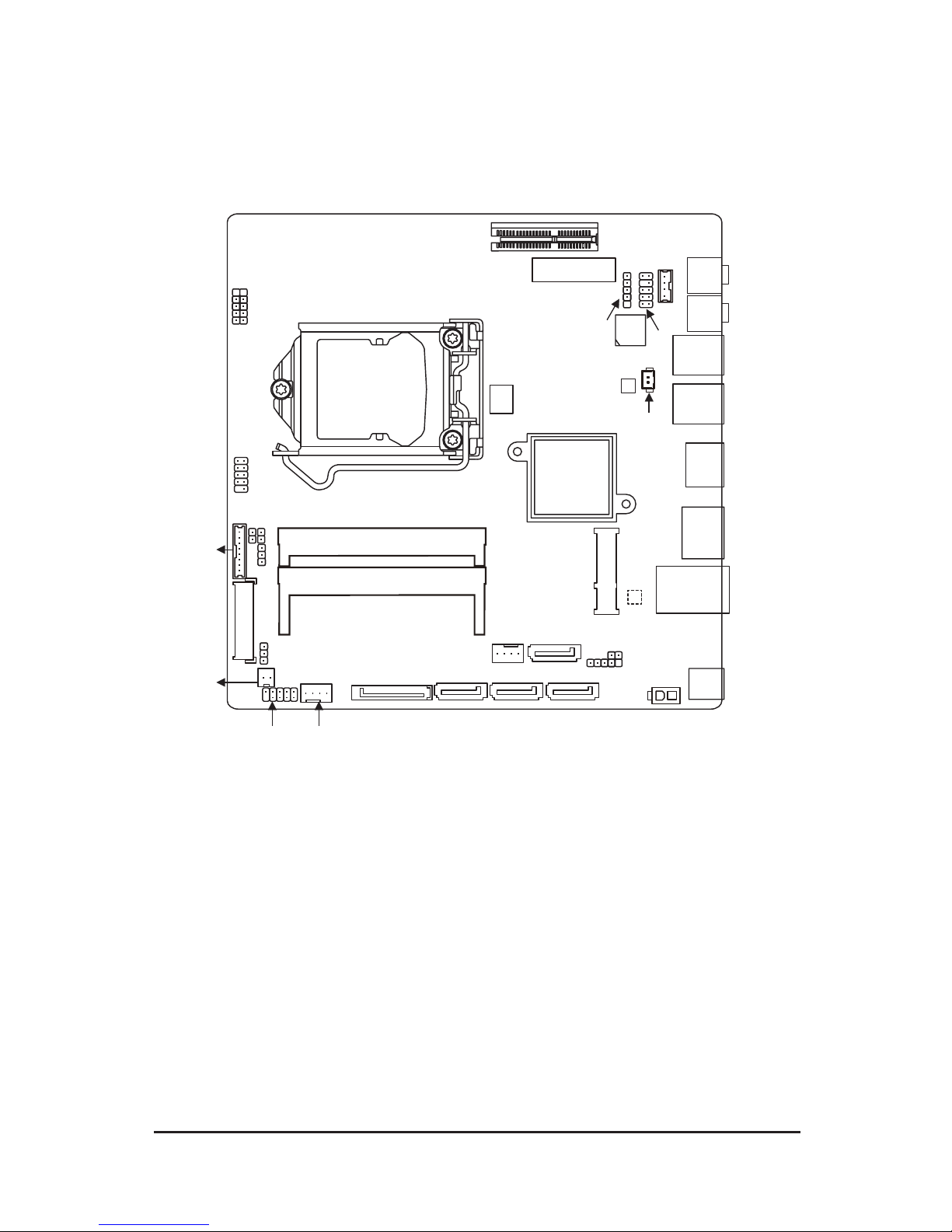

GA-H77TN/GA-B75TN/GA-H61TN Motherboard Layout
Socket 1155
PCIEX4
Intel®H77j/
B75k/H61l
CODEC
ATX_19V
F_USB2_3
F_USB2_2
FUSB2_1
SATA2
HDMI
SATA3jk
EXT_CON
DMIC_CON
FP_AUDIO
SPKR
MIC_IN
LINE_OUT
BATTERY
BIOS
USBX_2
USBX_1
DP
LAN
DC_IN
FUSB2_5
CLR_CMOS
SATA1
SATA0
SYS_FAN
SATA_PWR
MPCIE1X
SO_DIMM1
SO_DIMM2
WF_LED
BL_SW
DISPLAY_BRT
LVDS
FPD_PWR
SYS_PANEL
MON_SW
CPU_FAN
iTE Super
I/O
Realtek
GbE LAN
LCD_VCC
jOnly for GA-H77TN.
kOnly for GA-B75TN.
lOnly for GA-H61TN.
- 9 -
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist
strap,keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power
supply has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your
hardware components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to
system components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
Chapter 1 Hardware Installation
- 10 -
1-2 ProductSpecications
CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/
Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors
in the LGA1155 package (Supports up to 77W)
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel®H77 j/B75 k/H61 lExpress Chipset
Memory 2 x 1.5V DDR3 SO-DIMM sockets supporting up to 8 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of
physical memory is installed, the actual memory size displayed will be less than
the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333/1066/800 MHz memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and
memory modules.)
Onboard Graphics Integrated Graphics Processor:
- 1 x HDMI 1.3 port, supporting a maximum resolution of 1920x1200
- 1 x DisplayPort, supporting a maximum resolution of 2560x1600
- 1 x LVDS connector
Audio Realtek®ALC887 codec
HighDenitionAudio
2/4/5.1/7.1-channel
* Tocongure 5.1/7.1-channelaudio,you haveto useanHD frontpanelaudio
module and enable the multi-channel audio feature through the audio driver.
LAN 1 x Realtek®GbE LAN chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x4 slot (Supports 25W only)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
1 x Mini PCI Express x1 slot
Storage Interface Chipset:
GA-H77TN:
- 2 x SATA 6Gb/s connectors (SATA0/1) supporting up to 2 SATA6Gb/s devices
- 2 x SATA 3Gb/s connectors (SATA2/3) supporting up to 2 SATA3Gb/s devices
- 1 x mSATA connector
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
GA-B75TN:
- 1 x SATA 6Gb/s connector (SATA0) supporting up to 1 SATA 6Gb/s device
- 3 x SATA3Gb/s connectors (SATA1/2/3) supporting up to 3 SATA3Gb/s devices
- 1 x mSATA connector
GA-H61TN:
- 3 x SATA3Gb/s connectors (SATA0/1/2) supporting up to 3 SATA3Gb/s devices
- 1 x mSATA connector
jOnly for GA-H77TN.
kOnly for GA-B75TN.
lOnly for GA-H61TN.
