GA-945PL-S3G

LGA775 socket motherboard for Intel®CoreTM processor family/

Intel®Pentium®processor family/Intel®Celeron®processor family

User's Manual

Rev. 1001

12ME-945PLS3G-1001R

Sept. 21, 2007

Motherboard

GA-945PL-S3G

Motherboard

GA-945PL-S3G

Sept. 21, 2007

The trademarks mentioned in this manual are legally registered to their respective owners.

The logo is exclusively licensed to GIGABYTE UNITED INC. by GIGA-BYTE

TECHNOLOGY CO., LTD.

GIGABYTE UNITED INC. is designated by GIGA-BYTE TECHNOLOGY CO., LTD as the exclu-

sive global distributor of GIGABYTE branded motherboards.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE without prior

notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

Documentation Classifications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For instructions on how to use GIGABYTE's unique features, read or download the information

on/from the Support\Motherboard\Technology Guide page on our website.

For product-related information, check on our website at:

http://www.gigabyte.com.tw

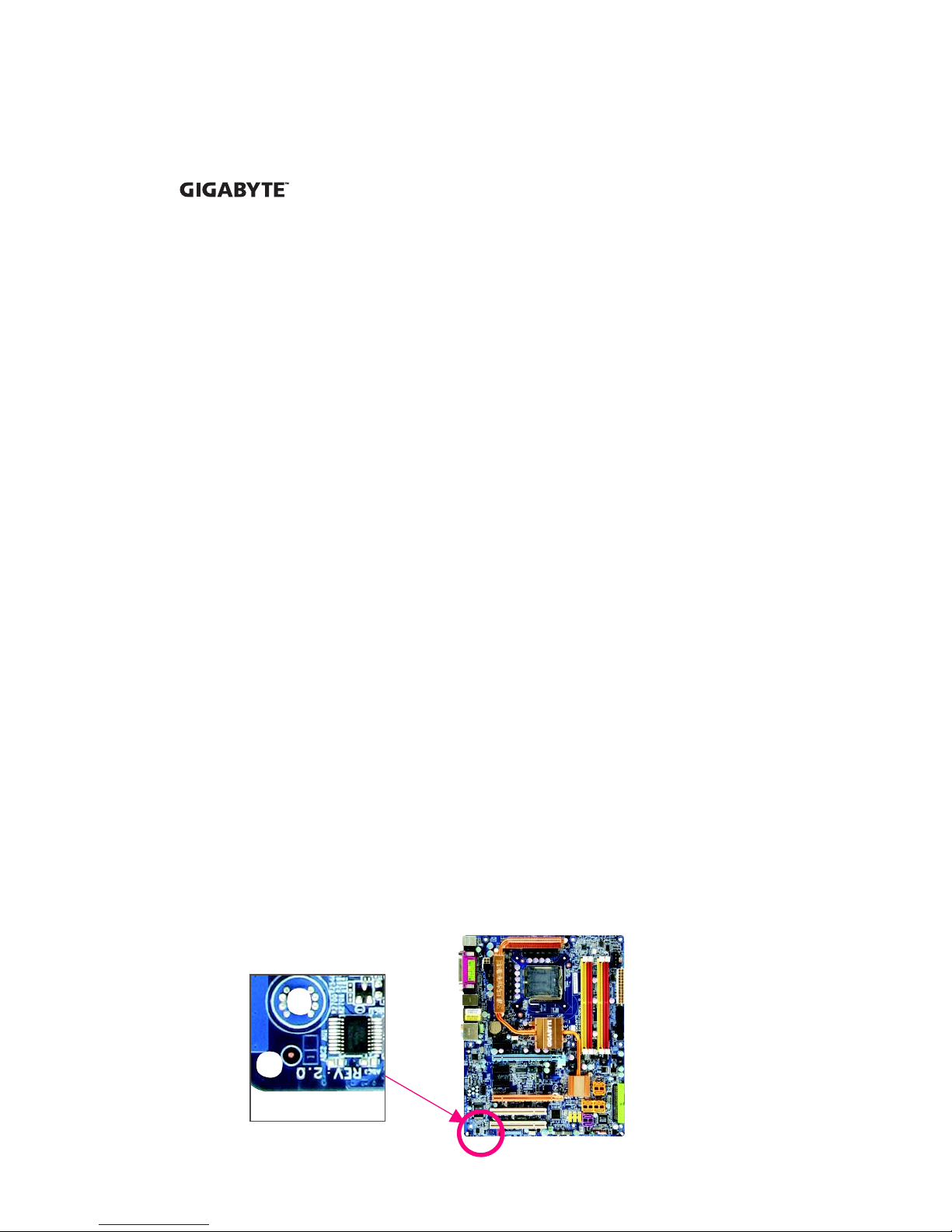

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents ................................................................................................................. 6

OptionalItems ................................................................................................................. 6

GA-945PL-S3G Motherboard Layout ............................................................................. 7

Block Diagram ................................................................................................................ 8

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Installation Precautions ..................................................................................... 9

1-2 Product Specifications .................................................................................... 10

1-3 Installing the CPU and CPU Cooler .............................................................. 13

1-3-1 Installing the CPU ................................................................................................ 13

1-3-2 Installing the CPU Cooler ................................................................................... 15

1-4 Installing the Memory ..................................................................................... 16

1-4-1 Dual Channel Memory Configuration ................................................................ 16

1-4-2 Installing a Memory ............................................................................................. 17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Back Panel Connectors ................................................................................. 19

1-7 Internal Connectors ........................................................................................ 20

Chapter 2 BIOS Setup................................................................................................. 29

2-1 Startup Screen ................................................................................................ 30

2-2 The Main Menu .............................................................................................. 31

2-3 Standard CMOS Features ............................................................................. 33

2-4 Advanced BIOS Features .............................................................................. 35

2-5 IntegratedPeripherals ..................................................................................... 37

2-6 Power Management Setup ............................................................................. 40

2-7 PnP/PCI Configurations ................................................................................. 42

2-8 PC Health Status ........................................................................................... 43

2-9 MB Intelligent Tweaker(M.I.T.) ....................................................................... 44

2-10 Load Fail-Safe Defaults ................................................................................... 47

2-11 Load Optimized Defaults ................................................................................. 47

2-12 Set Supervisor/User Password ..................................................................... 48

2-13 Save & Exit Setup ......................................................................................... 49

2-14 Exit Without Saving ....................................................................................... 49

- 5 -

Chapter 3 Drivers Installation ...................................................................................... 51

3-1 Installing Chipset Drivers ............................................................................... 51

3-2 SoftwareApplications ..................................................................................... 52

3-3 Driver CD Information .................................................................................... 52

3-4 Hardware Information ..................................................................................... 53

3-5 Contact Us ..................................................................................................... 53

Chapter 4 Unique Features ......................................................................................... 55

4-1 Xpress Recovery2 ......................................................................................... 55

4-2 BIOS Update Utilities ..................................................................................... 60

4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 60

4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 63

4-3 EasyTune 5 .................................................................................................... 65

4-4 Windows Vista ReadyBoost ........................................................................... 66

Chapter 5 Appendix .................................................................................................... 67

5-1 ConfiguringAudio Input and Output ................................................................. 67

5-1-1 Configuring 2/4/5.1-Channel Audio ................................................................... 67

5-1-2 Installing the S/PDIF Out Cable (Optional) ....................................................... 70

5-1-3 Configuring Microphone Recording ................................................................... 72

5-1-4 Using the Sound Recorder ................................................................................. 74

5-2 Troubleshooting ............................................................................................... 75

5-2-1 Frequently Asked Questions ............................................................................. 75

5-2-2 Troubleshooting Procedure ................................................................................ 76

Regulatory Statements ................................................................................................. 78

- 6 -

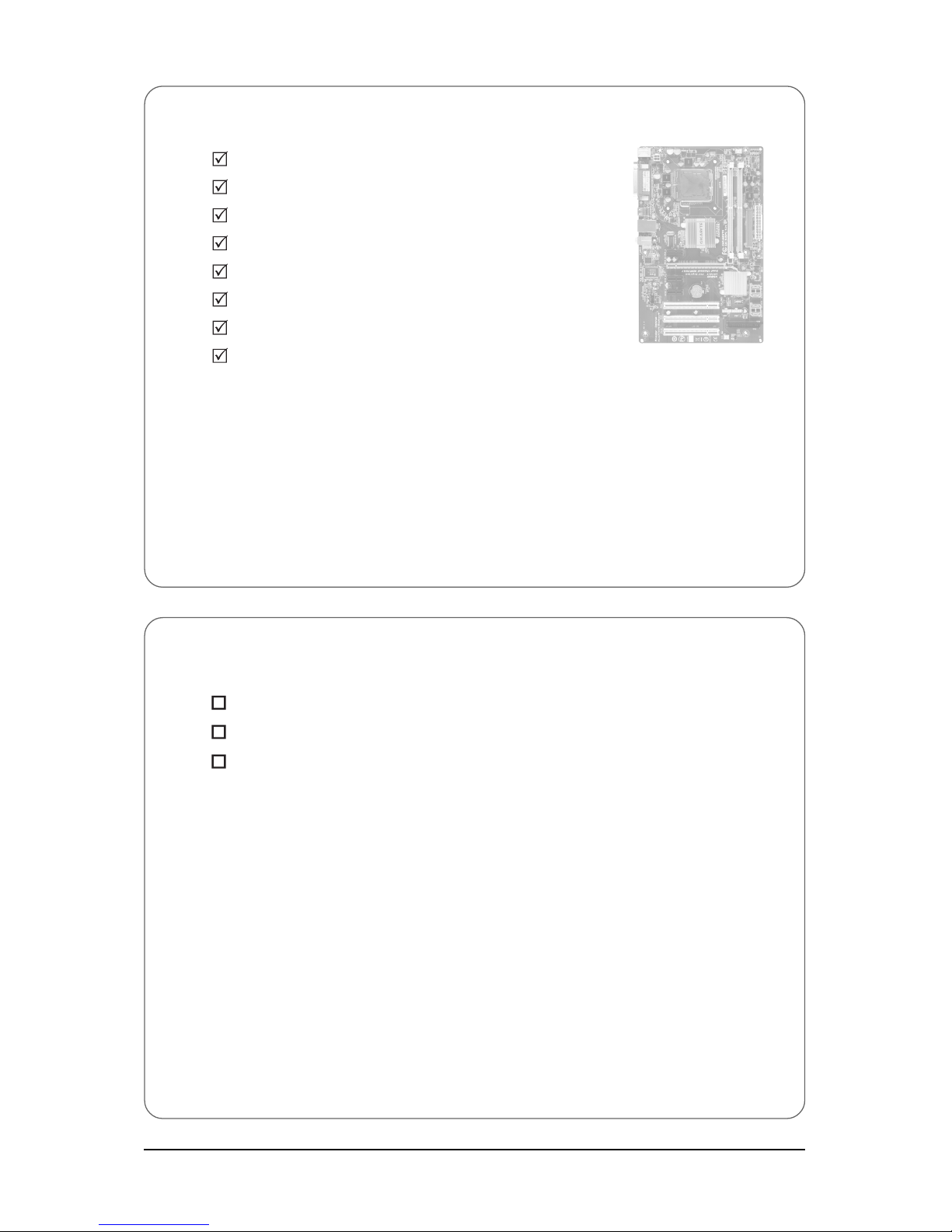

Box Contents

GA-945PL-S3G motherboard

Motherboard driver disk

User's Manual

Quick Installation Guide

Intel®LGA775 CPU Installation Guide

One IDE cable and one floppy disk drive cable

Two SATA 3Gb/s cables

I/O Shield

Optional Items

2-port USB 2.0 bracket (Part No. 12CR1-1UB030-51R)

2-port SATA power cable (Part No. 12CF1-2SERPW-01R)

S/PDIF out cable (Part No. 12CR1-1SPOUT-02R)

•The box contents above are for reference only and the actual items shall depend on product package you obtain.

The box contents are subject to change without notice.

•The motherboard image is for reference only.

- 7 -

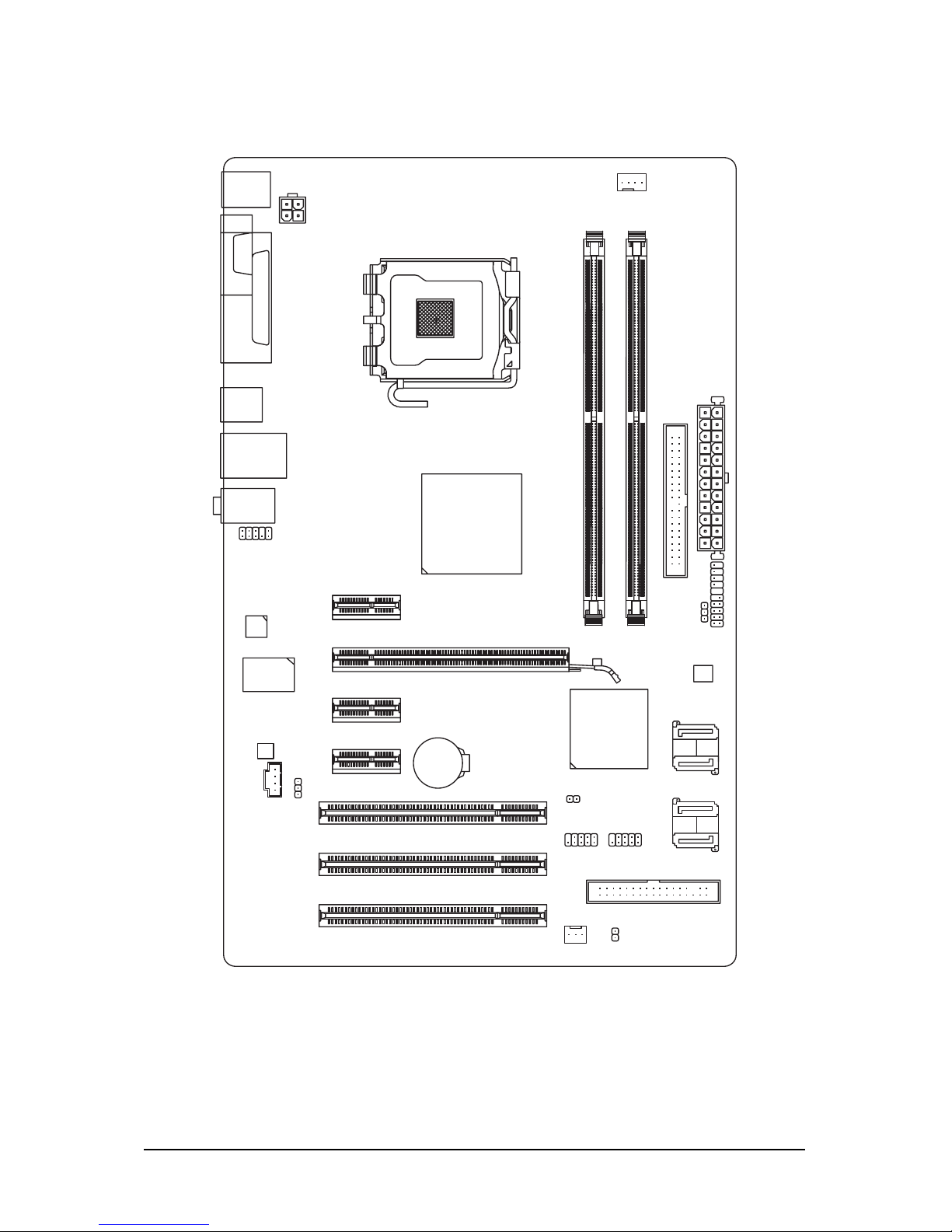

GA-945PL-S3G Motherboard Layout

KB_MS CPU_FAN

LGA775

ATX

GA-945PL-S3G

USB

LAN

CD_IN

F_AUDIO

AUDIO

MBIOS

PCIE_16

F_USB2

IDE

PCIE_1

DDRII1

DDRII2

BAT

F_PANEL

IT8718

SATAII0

ATX_12V

Intel®945

Intel®ICH7

PWR_LED

FDD

PCIE_2

PCI1

R_USB

CLR_CMOS

LPT

CODEC

RTL8111B

SYS_FAN

COMA

SPDIF_O

SATAII1

F_USB1

SATAII2

SATAII3

PCIE_3

PCI2

PCI3

- 8 -

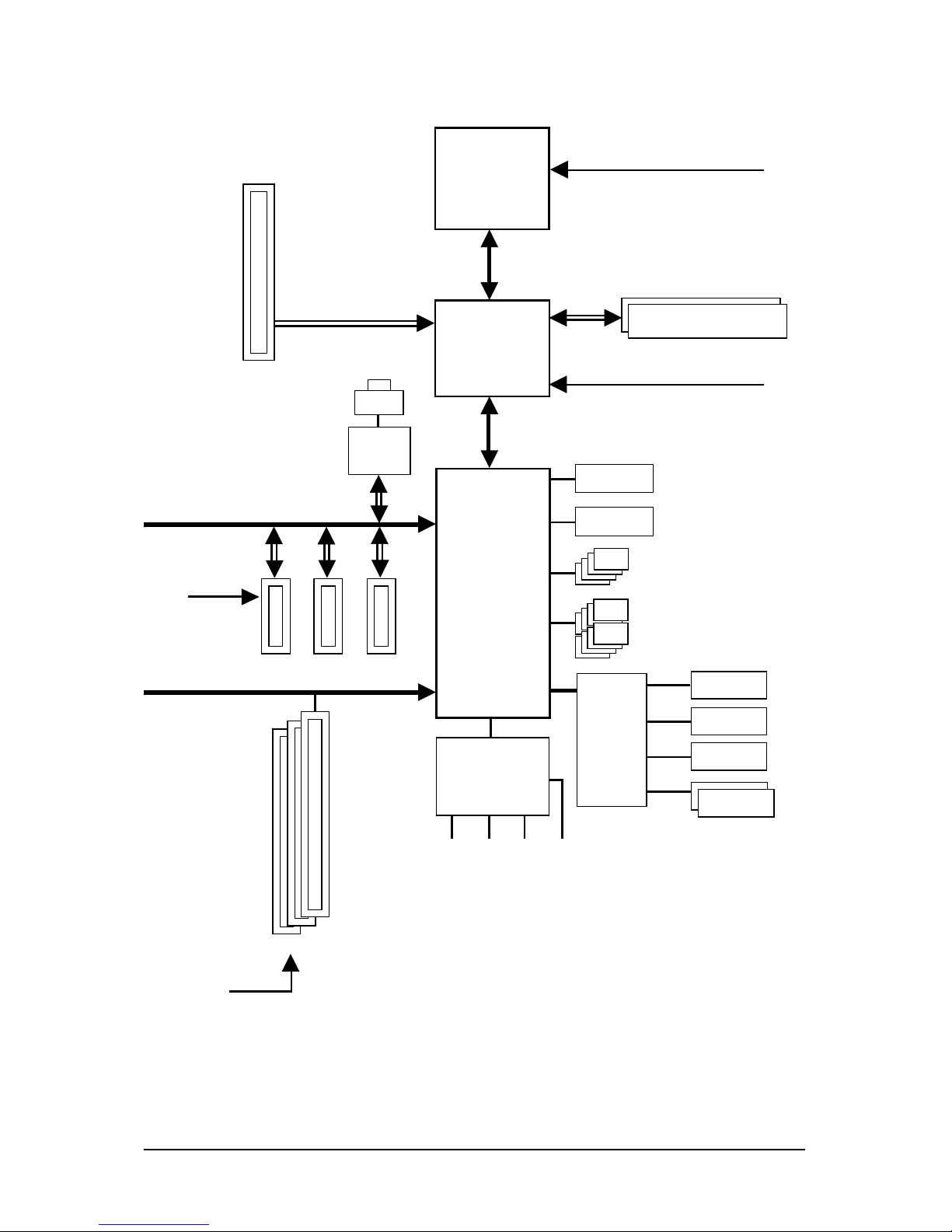

Block Diagram

8 USB Ports

LGA775

Processor

Host

Interface

Intel®945

MCH CLK

(333 (Note 1)/266/200/133 MHz)

DDR2 667 (Note 2)/533/400 MHz

Intel®ICH7

BIOS

3 PCI

PCI Bus

Dual Channel Memory

PCI CLK

(33 MHz)

PCIe CLK

(100 MHz)

PCI Express x16

IT8718

Floppy

PS/2 KB/Mouse

LPT Port

CPU CLK+/-

(333 (Note 1)/266/200/133 MHz)

Line-Out

(Front Speaker Out)

MIC

(Center/Subwoofer Speaker Out)

Line-In

(Rear Speaker Out)

SPDIF Out

CODEC

COM Port

3 PCI Express x1

PCI Express Bus

PCIe CLK

(100 MHz)

LAN

RJ45

RTL

8111B

4 SATA 3Gb/s

ATA-100/66/33

IDE Channel

(Note 1) By overclocking you must install the FSB 1333 MHz CoreTM 2 CPU with DDR2 533 MHz (or

above) memory module(s).

(Note 2) Use of an 800 MHz FSB (or above) CPU is required if you wish to install DDR2 667 MHz memory.

Hardware Installation- 9 -

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and first touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Chapter 1 Hardware Installation

GA-945PL-S3G Motherboard - 10 -

1-2 Product Specifications

CPU Support for an Intel®CoreTM 2 Extreme processor/

Intel®CoreTM 2 Duo processor/Intel®Pentium®D processor/

Intel®Pentium®4 processor/Intel®Celeron®processor

in the LGA 775 package

(Go to GIGABYTE's website for the latest CPU support list.)

Support for Intel®Hyper-Threading Technology

L2 cache varies with CPU

Front Side Bus 1333 (Note 1)/1066/800/533 MHz FSB

Chipset North Bridge: Intel®945 Express Chipset

South Bridge: Intel®ICH7

Memory 2 x 1.8V DDR2 DIMM sockets supporting up to 2 GB of system memory

Dual channel memory architecture

Support for DDR2 667 (Note 2)/533/400 MHz memory modules

(Go to GIGABYTE's website for the latest memory support list.)

Audio Realtek ALC662 codec

High Definition Audio

2/4/5.1-channel

Support for S/PDIF Out

Support for CD In

LAN RTL 8111B chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot

3 x PCI Express x1 slots

3 x PCI slots

Storage Interface South Bridge:

- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

iTE IT8718 chip:

- 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB Integrated in the South Bridge

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets

connected to the internal USB headers)

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte B460M DS3H AC Manuel utilisateur

Gigabyte

Gigabyte GA-B75M-S Manuel utilisateur

Gigabyte

Gigabyte GA-EG41M-S2 Manuel utilisateur

Gigabyte

Gigabyte Z790 AORUS Elite AX Manuel utilisateur

Gigabyte

Gigabyte GA-E7AUM-DS2H Manuel utilisateur

Gigabyte

Gigabyte X570S UD Manuel utilisateur

Gigabyte

Gigabyte GA-7ZM Manuel utilisateur

Gigabyte

Gigabyte GA-P43-ES3G Manuel utilisateur

Gigabyte

Gigabyte 686LX4 Manuel utilisateur

Gigabyte

Gigabyte GA-B85M-D3PH Manuel utilisateur

Gigabyte

Gigabyte Z590 UD AC Manuel utilisateur

Gigabyte

Gigabyte GA-8GEM667K Manuel utilisateur

Gigabyte

Gigabyte 5AA Manuel utilisateur

Gigabyte

Gigabyte GA-6VX7 Manuel utilisateur

Gigabyte

Gigabyte GA-8I865GM-775 Manuel utilisateur

Gigabyte

Gigabyte GA-7ZMM Manuel utilisateur

Gigabyte

Gigabyte GA-Z270M-D3P Manuel utilisateur

Gigabyte

Gigabyte GA-7PESVL Manuel utilisateur

Gigabyte

Gigabyte GA-G41MT-D3PT Manuel utilisateur

Gigabyte

Gigabyte GA-Q57M-S2H Manuel utilisateur

Gigabyte

Gigabyte GA-X99-UD3 Manuel utilisateur

Gigabyte

Gigabyte 6GXU Manuel utilisateur

Gigabyte

Gigabyte GA-P67A-UD5-B3 Manuel utilisateur

Gigabyte

Gigabyte 686LX3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
