Gigabyte B460M DS3H AC Manuel utilisateur

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

B460M DS3HB460M DS3H AC

B460M DS3H AC

B460M DS3H

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in

any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

B460M DS3H (AC) Motherboard Layout.........................................................................4

Chapter 1 Hardware Installation ....................................................................................5

1-1 Installation Precautions....................................................................................... 5

1-2 ProductSpecications ........................................................................................ 6

1-3 Installing the CPU ............................................................................................... 9

1-4 Installing the Memory.......................................................................................... 9

1-5 Installing an Expansion Card ............................................................................ 10

1-6 Back Panel Connectors .................................................................................... 10

1-7 Internal Connectors........................................................................................... 12

Chapter 2 BIOS Setup.................................................................................................20

2-1 Startup Screen.................................................................................................. 20

2-2 The Main Menu................................................................................................. 21

2-3 Favorites (F11).................................................................................................. 22

2-4 Tweaker ............................................................................................................ 23

2-5 Settings............................................................................................................. 28

2-6 System Info....................................................................................................... 33

2-7 Boot................................................................................................................... 34

2-8 Save & Exit ....................................................................................................... 37

Chapter 3 Appendix.....................................................................................................38

3-1 ConguringaRAIDSet..................................................................................... 38

3-2 Installing an Intel®Optane™Memory................................................................. 40

3-3 Drivers Installation ............................................................................................ 42

RegulatoryNotices...................................................................................................... 43

Contact Us .................................................................................................................. 46

- 4 -

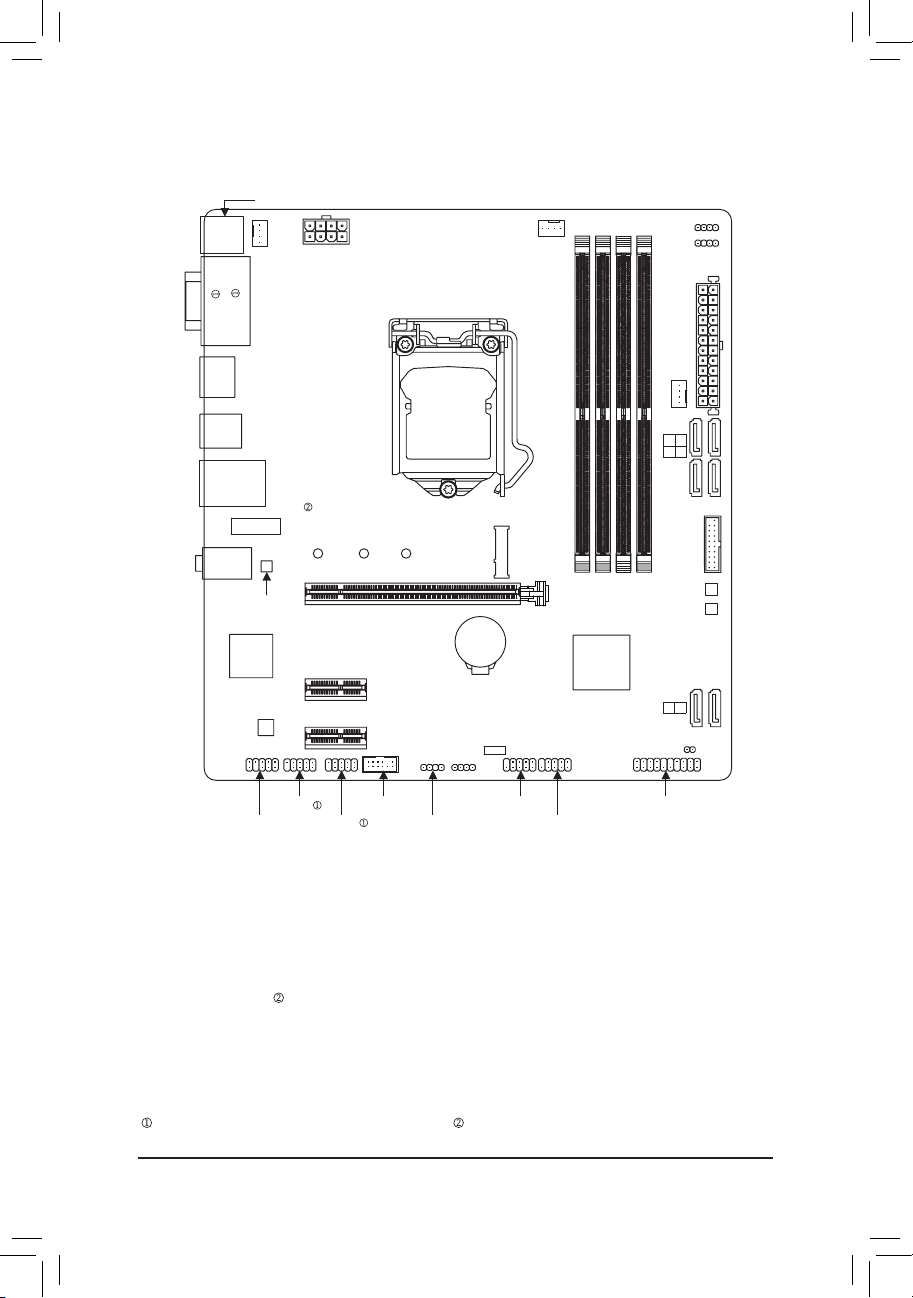

B460M DS3H (AC) Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5B460M DS3H AC or B460M DS3H motherboard

5Motherboard driver disc 5Two SATA cables

5User's Manual 5I/O Shield

5Two antennas

HDMI

U32_LAN

LGA1200

ATX

AUDIO

ATX_12V_2X4

Intel®B460

CLR_CMOS

M_BIOS

PCIEX1_2

PCIEX16

PCIEX1_1

F_U32

CODEC B460M DS3H (AC)

F_PANEL

F_USB1

LED_C1

F_AUDIO

SPI_TPM

SYS_FAN1

SYS_FAN2

CPU_FAN

iTE®

Super I/O

SATA3 0 1

2 3

BAT

Realtek®

GbELAN

U32

DDR4_B1

DDR4_B2

DDR4_A1

DDR4_A2

D_LED2

LED_C2

COMB D_LED1

M2M_SB

426080

F_USB2

B_BIOS

SATA3 4 5

USB 2.0 Hub

COMA

DVI

M2_WIFI

KB_MS_USB

VGA

Only for the B460M DS3H. Only for the B460M DS3H AC.

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Priortoinstallation,donotremoveorbreakmotherboard S/N(Serial Number)sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its

installation and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU Support for 10th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors/Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1200 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B460 Express Chipset

Memory Intel®Core™i9/i7 processors:

- SupportforDDR42933/2666/2400/2133MHz

Intel®Core™i5/i3/Pentium®/Celeron®processors:

- SupportforDDR42666/2400/2133MHz

4xDDR4DIMMsocketssupportingupto128GB(32GBsingleDIMMcapacity)

of system memory

Dual channel memory architecture

SupportforECCUn-buffered DIMM1Rx8/2Rx8 memorymodules(operatein

non-ECC mode)

Supportfornon-ECCUn-bufferedDIMM1Rx8/2Rx8/1Rx16memorymodules

SupportforExtremeMemoryProle(XMP)memorymodules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

 - 1xD-Subport,supportingamaximumresolutionof1920x1200@60Hz

 - 1xDVI-Dport,supportingamaximumresolutionof1920x1200@60Hz

* The DVI-D port does not support D-Sub connection by adapter.

 - 1xHDMIport,supportingamaximumresolutionof4096x2160@30Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Support for up to 3 displays at the same time

Maximum shared memory of 512 MB

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youneedtoopentheaudiosoftwareandselect

Deviceadvanced settings> PlaybackDevice tochange thedefaultsettingrst.

PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.

LAN Realtek®GbELANchip(1000 Mbit/100 Mbit)

Wireless

Communication

Module

Intel®Wi-Fi 3168

- Wi-Fi802.11a/b/g/n/ac,supporting2.4/5GHzDual-Band

- BLUETOOTH 4.2

Support for 11ac wireless standard and up to 433 Mbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

- 6 -

Only for the B460M DS3H. Only for the B460M DS3H AC.

Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/

x2 SSD support)

6 x SATA 6Gb/s connectors

SupportforRAID0,RAID1,RAID5,andRAID10

 * Referto"1-7InternalConnectors,"fortheinstallationnoticesfortheM.2andSATA

connectors.

Intel®Optane™MemoryReady

USB Chipset:

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

2xRGBLEDstripheaders

6 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

2 x serial port headers

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1xRJ-45port

2xSMAantennaconnectors(1T1R)

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

- 7 -

Only for the B460M DS3H. Only for the B460M DS3H AC.

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS 2x128Mbitash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFFCharge

- Ambient LED

- RGBFusion

- Smart Backup

- System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

Realtek®8118 Gaming LANBandwidth Control Utility

Operating

System Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List page on GIGABYTE's website to download the latest

version of apps.

B460M DS3HB460M DS3H AC

Only for the B460M DS3H. Only for the B460M DS3H AC.

- 8 -

1-3 Installing the CPU

ReadthefollowingguidelinesbeforeyoubegintoinstalltheCPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing

the CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

1-4 Installing the Memory

Readthefollowingguidelinesbeforeyoubegintoinstallthememory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing

the memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

Please visit GIGABYTE's website for details on hardware installation.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Triangle Pin One Marking on the CPU

Notch

LGA1200 CPU

Alignment

Key

Alignment

Key

LGA1200 CPU Socket

Pin One Corner of the CPU Socket

- 9 -

1-5 Installing an Expansion Card

Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing

an expansion card to prevent hardware damage.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that

memory of the same capacity, brand, speed, and chips be used.

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

ChannelA:DDR4_A1,DDR4_A2

ChannelB:DDR4_B1,DDR4_B2

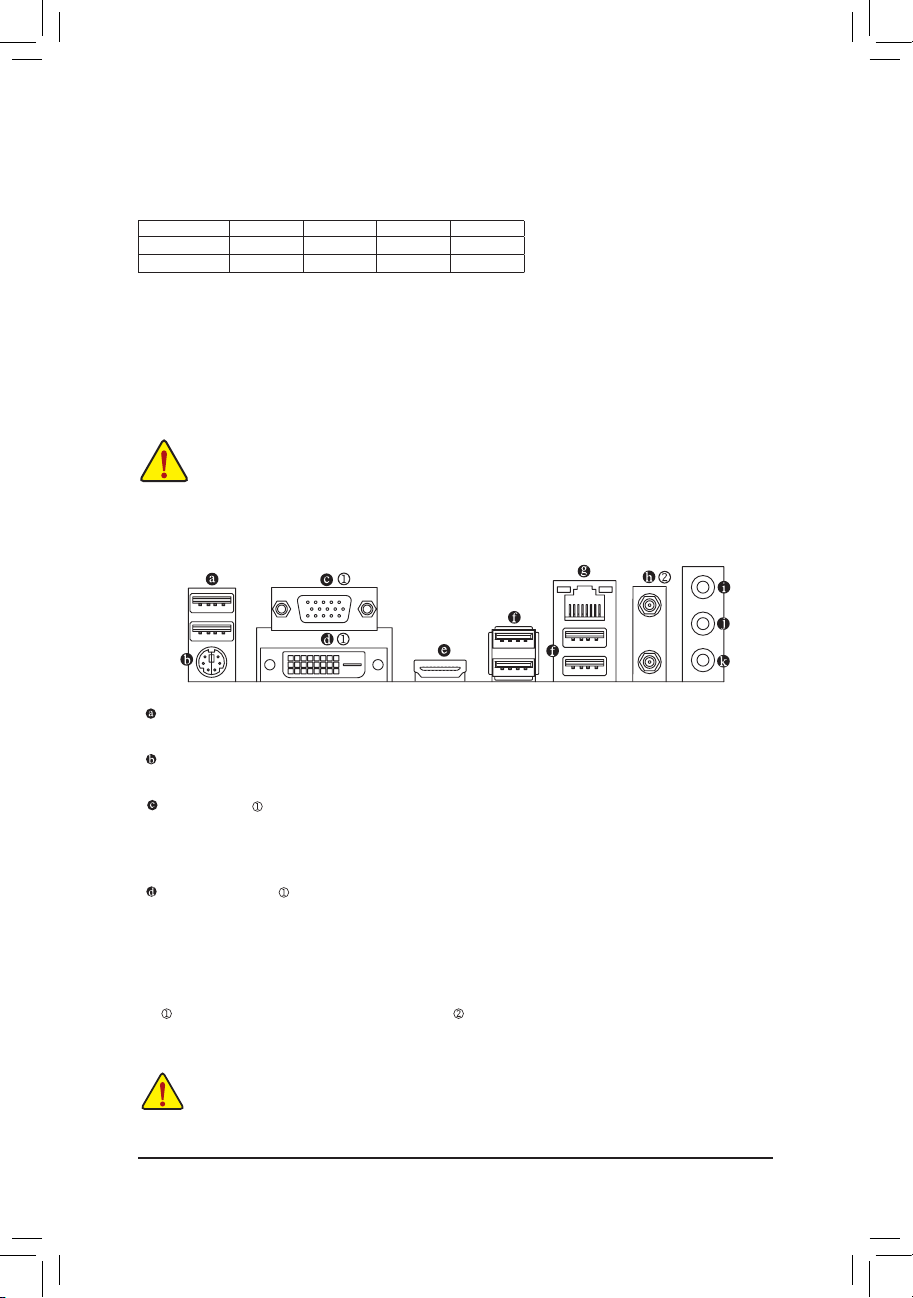

1-6 Back Panel Connectors

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

D-Sub Port

TheD -Subportsupportsa15-pinD -Subconnectorandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

DVI-D Port (Note)

TheDVI-Dpor tconformstotheDVI -Dspecicationandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

DVI-D connection to this port.

RecommandedDualChannelMemoryConguration:

DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

2 Modules - - DS/SS - - DS/SS

4 Modules DS/SS DS/SS DS/SS DS/SS

(SS=Single-Sided,DS=Double-Sided,"--"=NoMemory)

(Note) TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to

prevent an electrical short inside the cable connector.

- 10 -

Only for the B460M DS3H. Only for the B460M DS3H AC.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-H61M-D2P-B3 Manuel utilisateur

Gigabyte

Gigabyte B460 AORUS PRO AC Manuel utilisateur

Gigabyte

Gigabyte P4 Titan GA-8S650GXM-P-C Manuel utilisateur

Gigabyte

Gigabyte 686LX3 Manuel utilisateur

Gigabyte

Gigabyte GA-990XA-UD3 Manuel utilisateur

Gigabyte

Gigabyte GA-Q77M-D2H Manuel utilisateur

Gigabyte

Gigabyte GA-G41MT-S2PT Manuel utilisateur

Gigabyte

Gigabyte GA-Z170X-Designare Manuel utilisateur

Gigabyte

Gigabyte GA-6CXC Manuel utilisateur

Gigabyte

Gigabyte GA-P81-D3 Manuel utilisateur

Gigabyte

Gigabyte 12ME-97AD3PX-2102R Manuel utilisateur

Gigabyte

Gigabyte H81M-H M.2 Manuel utilisateur

Gigabyte

Gigabyte GA-Z77X-UP7 Manuel utilisateur

Gigabyte

Gigabyte GA-Q87M-MK Manuel utilisateur

Gigabyte

Gigabyte Z370 AORUS Gaming 7 Manuel utilisateur

Gigabyte

Gigabyte GA-P55-UD3R Manuel utilisateur

Gigabyte

Gigabyte GA-P85-Gaming 3 Manuel utilisateur

Gigabyte

Gigabyte G1.Sniper B6 Manuel utilisateur

Gigabyte

Gigabyte GA-870A-USB3 Manuel utilisateur

Gigabyte

Gigabyte GA-G41MT-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-8IPE1000 Pro-G Manuel utilisateur

Gigabyte

Gigabyte GA-X58A-UD3R Manuel utilisateur

Gigabyte

Gigabyte GA-7VTXE Manuel utilisateur

Gigabyte

Gigabyte GA-P43T-ES3G Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
