Gigabyte 6WXM Manuel utilisateur

R-13-01-090827

6WXM

USER'S MANUAL

1. System power on by PS/2 Mouse: First, enable this function

in CMOS Setup, then you can power on the system by

double clicking the right or left button of your PS/2 Mouse.

2. System power on by Keyboard: If your ATX power supply

supports larger than 300 mA 5V Stand-By current (depends

on the specification of keyboards), you can power on your

system by entering password from the Keyboard after

setting the “Keyboard power on”jumper and password in

CMOS Setup.

3. Support 3 steps ACPI LED selectable.

4. Support Modem Ring-On (Include internal Modem and

external modem on COM A and COM B).

5. Support Wake-up On LAN (Your ATX power supply must

support larger than 720 mA 5V Stand-By current).

Pentium



II / III / Celeron Processor MAINBOARD

REV. 1.3 First Edition

6WXM

The author assumes no responsibility for any errors or omissions that may

appear in this document nor does it make a commitment to update the

information contained herein.

Third-party brands and names are the property of their respective owners.

August 27, 1999 Taipei, Taiwan

Quick Installation Guide

I. Quick Installation Guide :

CPU SPEED SETUP

The system bus frequency can be switched between 66¡B100MHz and

by adjusting JP6 & JP28 (See Figure-1). The CPU Frequency is

control by BIOS.

The CPU speed must match with the frequency RATIO. It will cause

system hanging up if the frequency RATIO is higher than that of

CPU.

JP6 / JP28: System Bus Speed

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

JP6

CPU JP6 JP28

AUTO 1-2 1-2

66 2-3 2-3

100 NC 2-3

133 NC NC

JP28

Figure-1

Note: Please set the CPU host frequency in accordance with your

processor’s specifications. We don’t recommend you to set the

system bus frequency over the CPU’s specification because these

specific bus frequencies are not the standard specifications for

CPU, chipset and most of the peripherals. Whether your system can

run under these specific bus frequencies properly will depend on

your hardware configurations, including CPU, Chipsets, SDRAM,

Cards….etc.

Note: JP28 is only available when the motherboard use 82810E

Chipset.

6WXM

Quick Installation Guide

II. Jumper setting :

GN : Green Function Switch

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

PIN No. Function

Open

Normal Operation

Close Entering Green

Mode

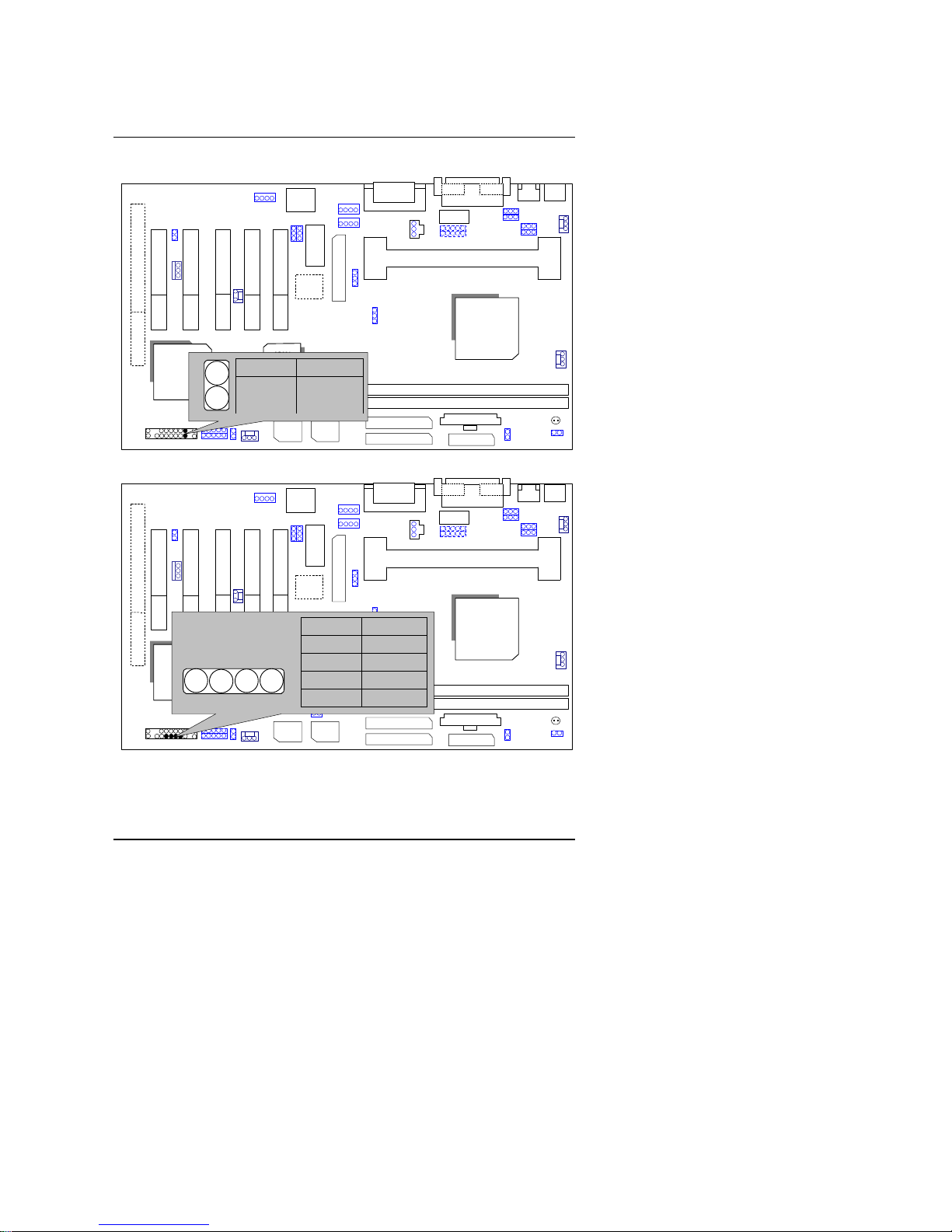

GD : Green Function LED

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

PIN No.

Function

1LED +

2LED −

−

6WXM

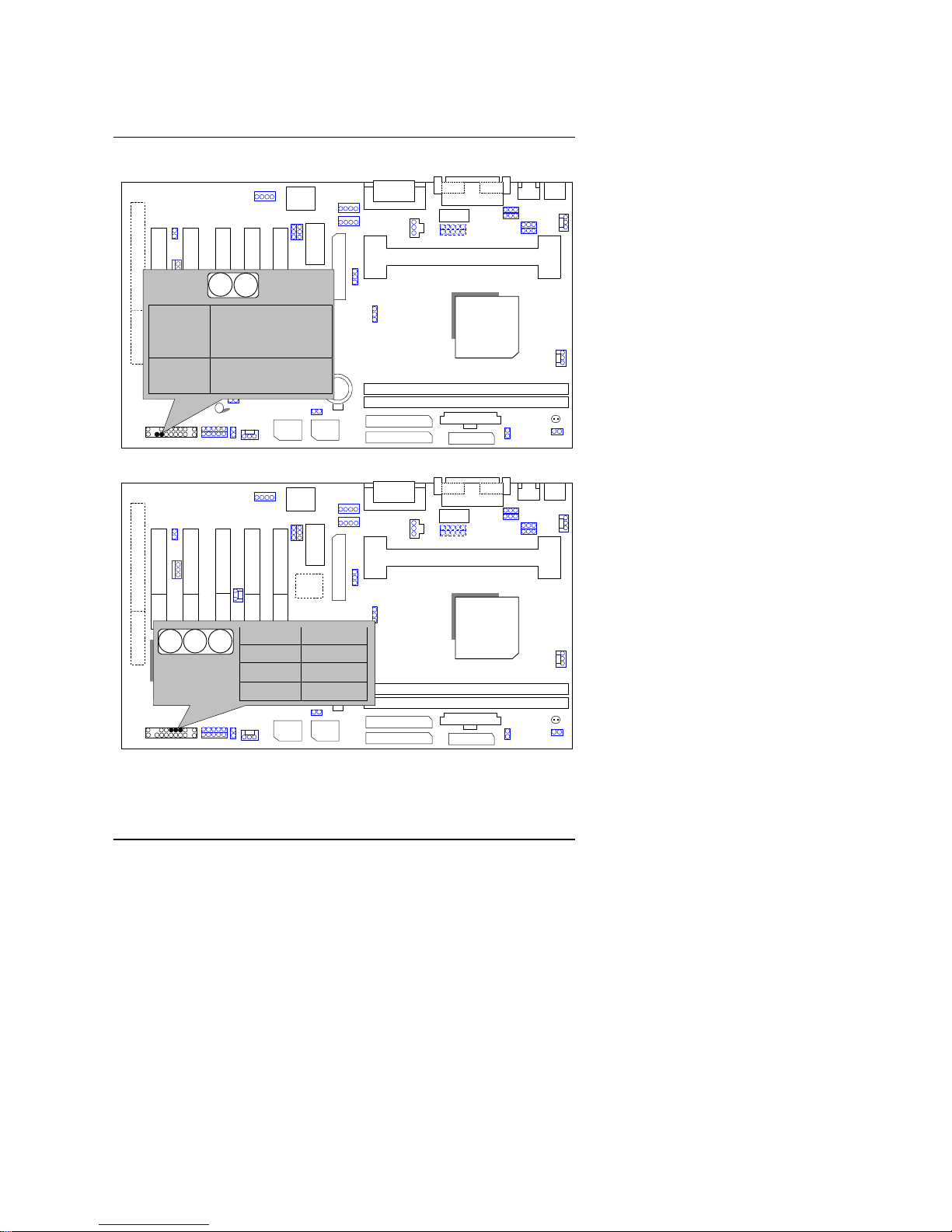

HD : IDE Hard Disk Active LED

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888 PIN No. Function

1LED +

2LED −

−

SPKR: External Speaker Connector

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

External Speaker

PIN No.

Function

1VCC

2NC

3NC

4Data

Quick Installation Guide

RES : Reset Switch

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

PIN No. Function

Open Normal

Operation

Short Reset Hardware

System

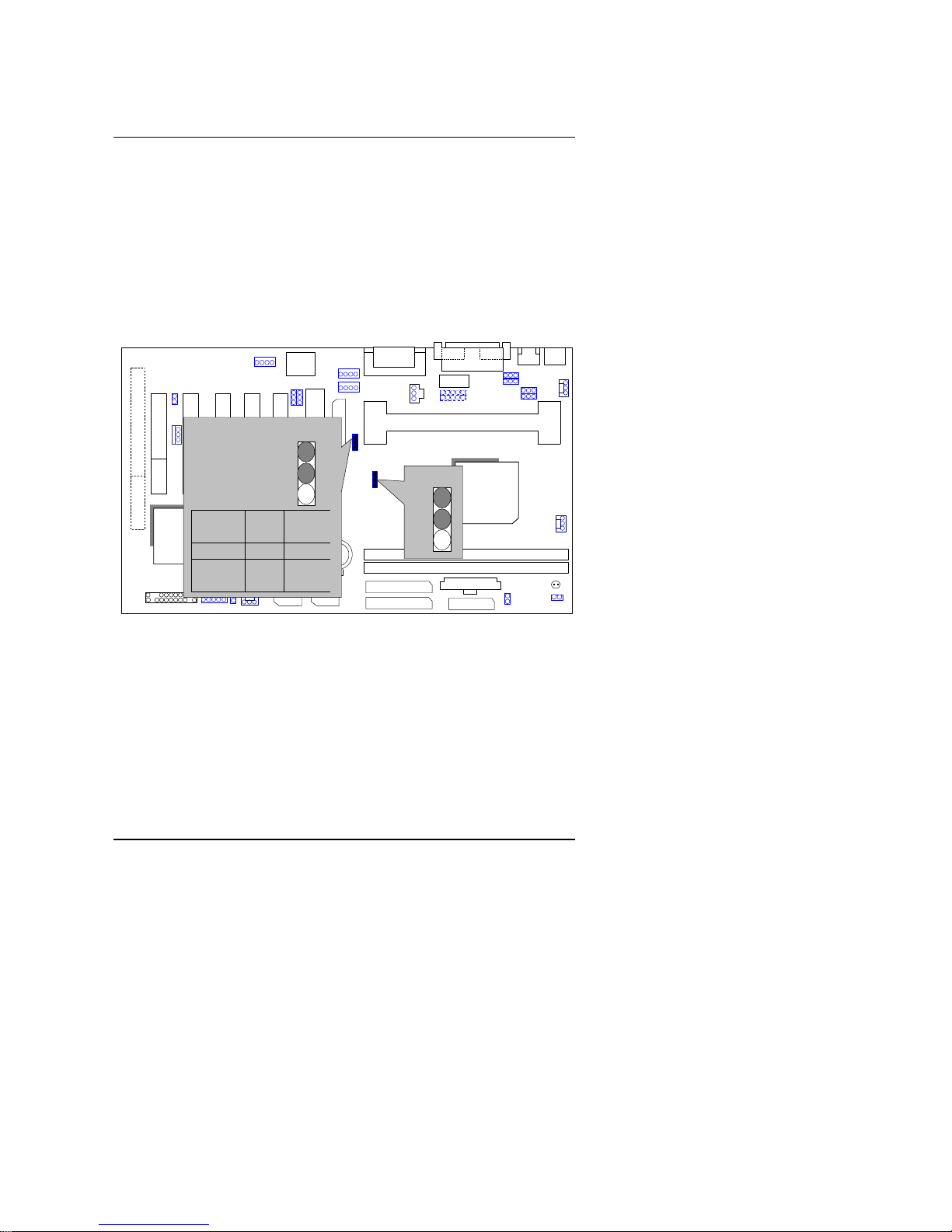

P+P−P−: Power LED Connector (as 3 steps ACPI LED)

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

PIN No.

Function

1LED +

2LED −

3LED −

−

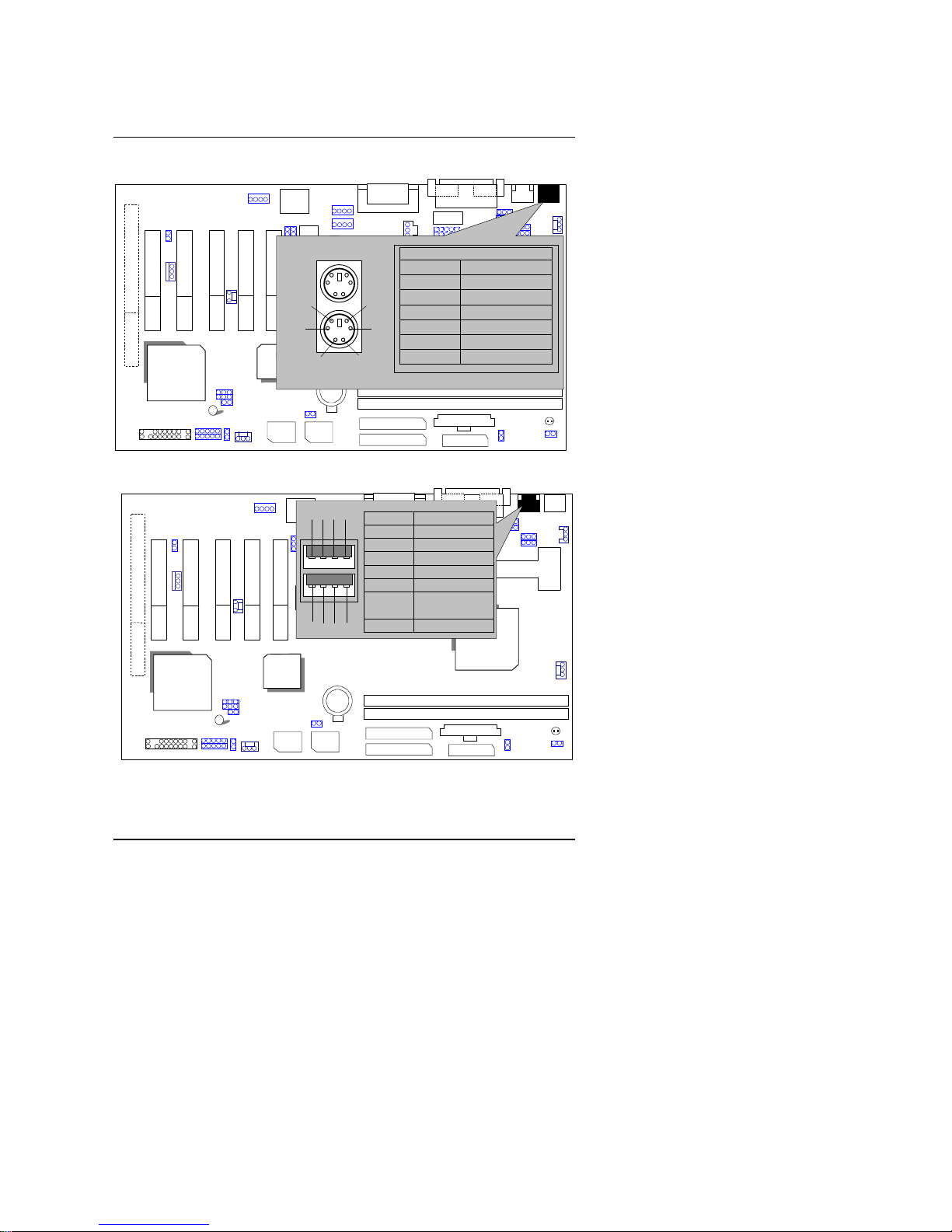

6WXM

PW: Soft Power Connector

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

PIN No.

Function

Open

Normal Operation

Close Power ON/OFF

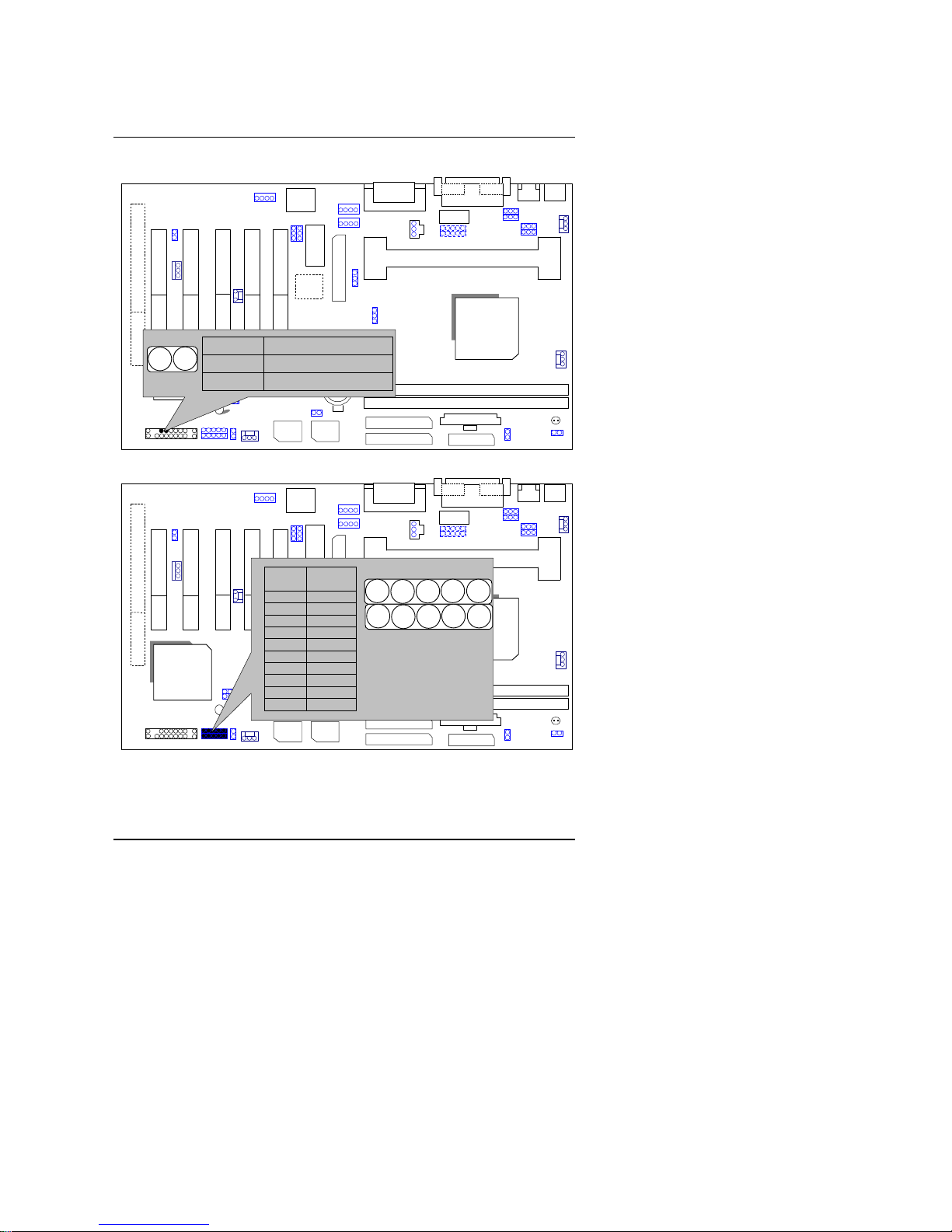

IR : Infrared Connector (IR / CIR)

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

No. Function

1VCC

2NC

3IRRX

4GND

5IRTX

6NC

7CIRRX

8VCC

9NC

10 CIRTX

10 1

789

Quick Installation Guide

PS/2 Mouse / Keyboard Connector

6WXM

ICH/

82801

GMCH-E/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

PS/2 Mouse/ Keyboard

Pin No. Function

1Data

2NC

3GND

4VCC(+5V)

5Clock

6NC

PS/2 Keyboard

PS/2 Mouse

USB : USB Port

6WXM

ICH/

82801

82810/

82810E

AC97

YMF

744

Main

BIOS

Backup

BIOS

IT8888

PIN No.

Function

1USB V0

2USB D0-

3USB D0+

4GND

5USB V1

6USB D1-

7USB D1+

8GND

1 2 3 4

5 6 7 8
