Gigabyte 6BNZ Manuel utilisateur

Table of Contents

TABLE OF CONTENTS

1. INTRODUCTION

1.1. PREFACE..........................................................................................................1-1

1.2. KEY FEATURES...............................................................................................1-1

1.3. PERFORMANCE LIST......................................................................................1-2

1.4. BLOCK DIAGRAM ...........................................................................................1-3

1.5. INTRODUCE THE PentiumII/III Processor ..................................................1-4

1.6. What is AGP?....................................................................................................1-5

2. SPECIFICATION

2.1. HARDWARE.....................................................................................................2-1

2.2. SOFTWARE......................................................................................................2-3

2.3. ENVIRONMENT................................................................................................2-3

3. HARDWARE INSTALLATION

3.1. UNPACKING.....................................................................................................3-1

3.2. MAINBOARD LAYOUT.....................................................................................3-2

3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS .............................3-2

3.4. CPU SPEED SETUP ........................................................................................3-7

3.5. DRAM INSTALLATION.....................................................................................3-8

3.6. CMOS RTC & ISA CFG CMOS SRAM.............................................................3-8

3.7. VGA Monitor INSTALLATION...........................................................................3-8

6BNZ

3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION....................3-8

3.9. POWER LED CONNECTOR INSTALLATION ................................................3-9

3.10. IDE & ATAPI DEVICE INSTALLATION..........................................................3-9

3.11. PERIPHERAL DEVICE INSTALLATION........................................................3-9

3.12. SPEAKER CONNECTOR .............................................................................3-9

3.13. KEYBOARD & PS/2 MOUSE INSTALLATION..............................................3-9

4. BIOS CONFIGURATION

4.1. ENTERING SETUP ..........................................................................................4-1

4.2. CONTROL KEYS..............................................................................................4-1

4.3. GETTING HELP................................................................................................4-2

4.3.1. Main Menu.............................................................................................4-2

4.3.2. Status Page Setup Menu / Option Page Setup Menu............................4-2

4.4. THE MAIN MENU..............................................................................................4-2

4.5. STANDARD CMOS SETUP MENU .................................................................4-4

4.6. BIOS FEATURES SETUP................................................................................4-8

4.7. CHIPSET FEATURES SETUP.........................................................................4-13

4.8. POWER MANAGEMENT SETUP....................................................................4-17

4.9. PNP/PCI CONFIGURATION...........................................................................4-21

4.10. LOAD BIOS DEFAULTS.................................................................................4-23

4.11. LOAD PERFORMANCE DEFAULTS.............................................................4-24

4.12. INTEGRATED PERIPHERALS......................................................................4-25

Table of Contents

4.13. SUPERVISOR / USER PASSWORD.............................................................4-30

4.14. IDE HDD AUTO DETECTION........................................................................4-31

4.15. SAVE & EXIT SETUP.....................................................................................4-32

4.16. EXIT WITHOUT SAVING...............................................................................4-33

APPENDIX A: ATi Rage Pro SPECIFICATION

A.1. KEY FEATURES..............................................................................................A-1

A.2. Resolutions and Color Palette Table.................................................................A-1

A.3. Installation Notes for Windows 95 Display Driver.............................................A-3

A.4. Installation Notes for Software MPEG for Windows 95....................................A-4

A.5. VESA Support..................................................................................................A-5

A.6. Installation Notes for Windows 3.1...................................................................A-5

A.7. Installation Notes for Software MPEG for Windows 3.1x .................................A-6

A.8. Installation Notes for AutoDesk products..........................................................A-7

A.9. Installation Notes for OS/2................................................................................A-9

A.10. Installation Notes for Windows NT 3.51 and 4.0............................................A-12

A.11. DMI support....................................................................................................A-13

A.12. Reporting Problems........................................................................................A-13

6BNZ

1-1

1. INTRODUCTION

1.1. PREFACE

Welcome to use the 6BNZ motherboard. It is a PentiumII / III / Celeron

Processor based PC /AT compatible system with AGP / PCI / ISA Bus, and

has been designed to be the fastest PC / AT system. There are some new

features allow you to operate the system with just the performance you want.

This manual also explains how to install the motherboard for operation, and

how to set up your CMOS CONFIGURATION with BIOS SETUP program.

1.2. KEY FEATURES

qIntel PentiumII / III / CeleronProcessor based PC / AT compatible

mainboard.

qSlot 1 supports PentiumII / III / Celeronprocessor running at 233-633

MHz.

qIntel 440BX chipset, Supports SDRAM / Ultra DMA/33 IDE / Keyboard and

PS/2 Mouse Power On / ACPI features.

qBuilt-in AGP ATi 3D RAGE PRO 3D graphics acceleration chip.

qBuilt-in YAMAHA 715E audio chip.

qBuilt-in INTEL SB82558B LAN chip.

qSupports 3xDIMMs using 3.3V SDRAM DIMM module.

qSupports 16 MB - 768 MB SDRAM memory on board.

qSupports ECC or Non-ECC type DRAM module.

q2xPCI Bus slots, 2xISA Bus slots.

qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.

qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.

qSupports 2xUSB ports, 1xPS/2 Mouse / Keyboard.

qLicensed AWARD BIOS, 2Mbits FLASH RAM.

q28.2 cm x 21.6 cm NLX SIZE form factor, 4 layers PCB.

Introduction

1-2

1.3. PERFORMANCE LIST

The following performance data list is the testing results of some popular

benchmark testing programs.

These data are just referred by users, and there is no responsibility for

different testing data values gotten by users. (The different Hardware &

Software configuration will result in different benchmark testing results.)

•CPU PentiumII processor

•DRAM (128 × 2) MB SDRAM (SEC KM48S8030BT-GH)

•CACHE SIZE 512 KB included in CPU

•DISPLAY ATi RAGE Pro AGP Display Onboard (4MB SGRAM)

•STORAGE Onboard IDE (IBM DHEA-36481)

•O.S. Windows® NT 4.0

•DRIVER Display Driver at 1024 x 768 x 256 colors x 75Hz.

Triones Bus Master IDE Driver 3.70

Intel PentiumII

Processor 266MHz (66×4) 350MHz (100×3.5)

Winbench98

CPU mark32 719 862

FPU Winmark 1380 1800

Business Disk 1840 1900

Hi-End Disk 4370 4620

Business Graphics 156 195

Hi-End Graphics 171 219

Winstone98

Business 29.4 34.1

6BNZ

1-3

Hi-End 32.8 37.4

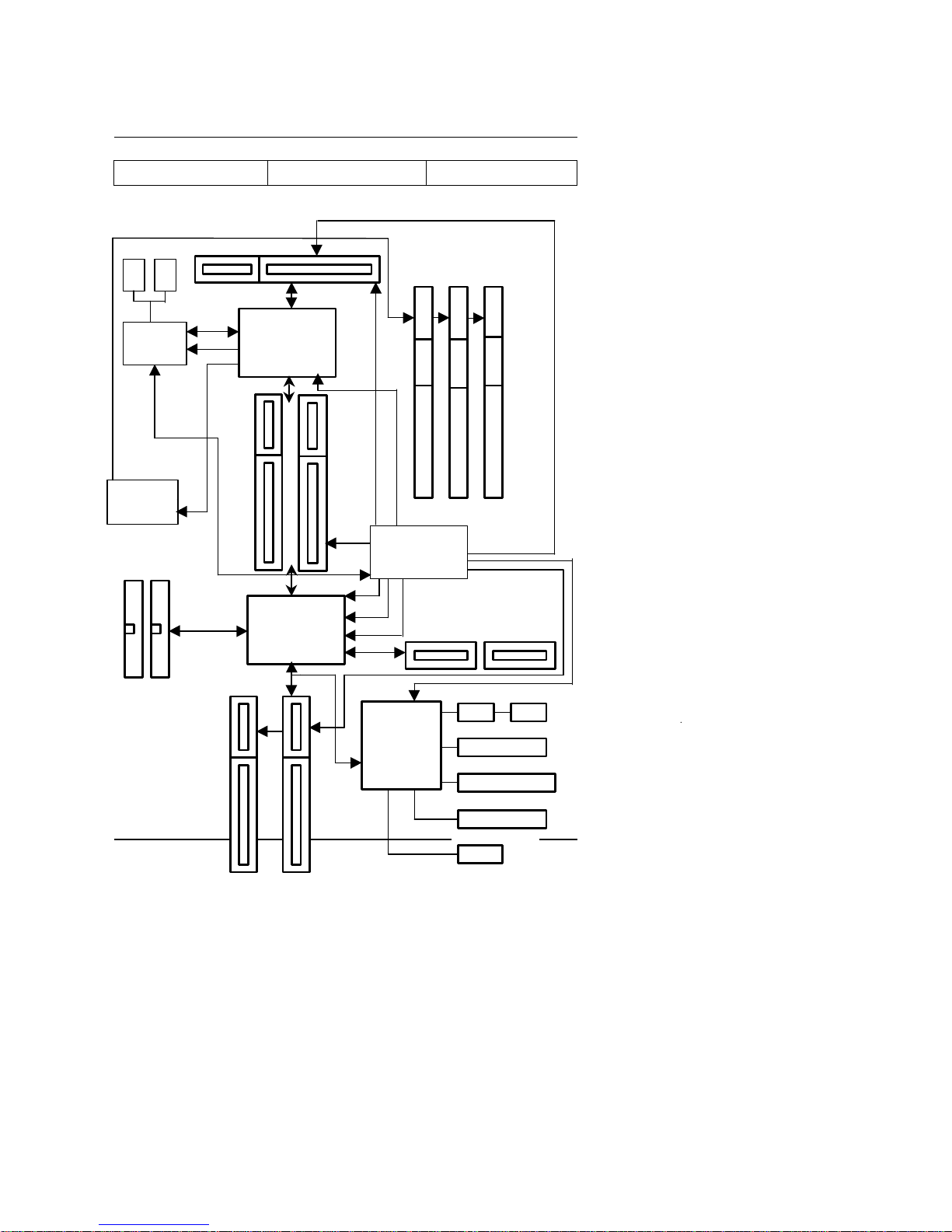

1.4. BLOCK DIAGRAM

48MHz

3.3V SDRAM

DIMM Sockets

14.318MHz

Ultra DMA/33

IDE Ports

IDE Bus

PCI Bus

ISA Bus

AGP Bus

LPT Port

Keyboard

Floppy Port

COM Ports

DRAM Bus

PS/2 Mouse

USB Bus

USB Ports

14.318MHz

48MHz

14.318MHz

I/O

CHIPSET

83977TF

SLOT1

Host Bus

INTEL

82443BX

CHIPSET

Clock Gen

Buffer

PIIX4

82371EB

CHIPSET

Clock Gen

66MHz 66/100

MHz

66/100

MHz

66/100MHz

33 MHz

66/100MHz

100MHz

ATi

RAGE PRO

SGRAM

14.318MHz

Introduction

1-4

1.5. INTRODUCE THE Pentium



II / III Processor

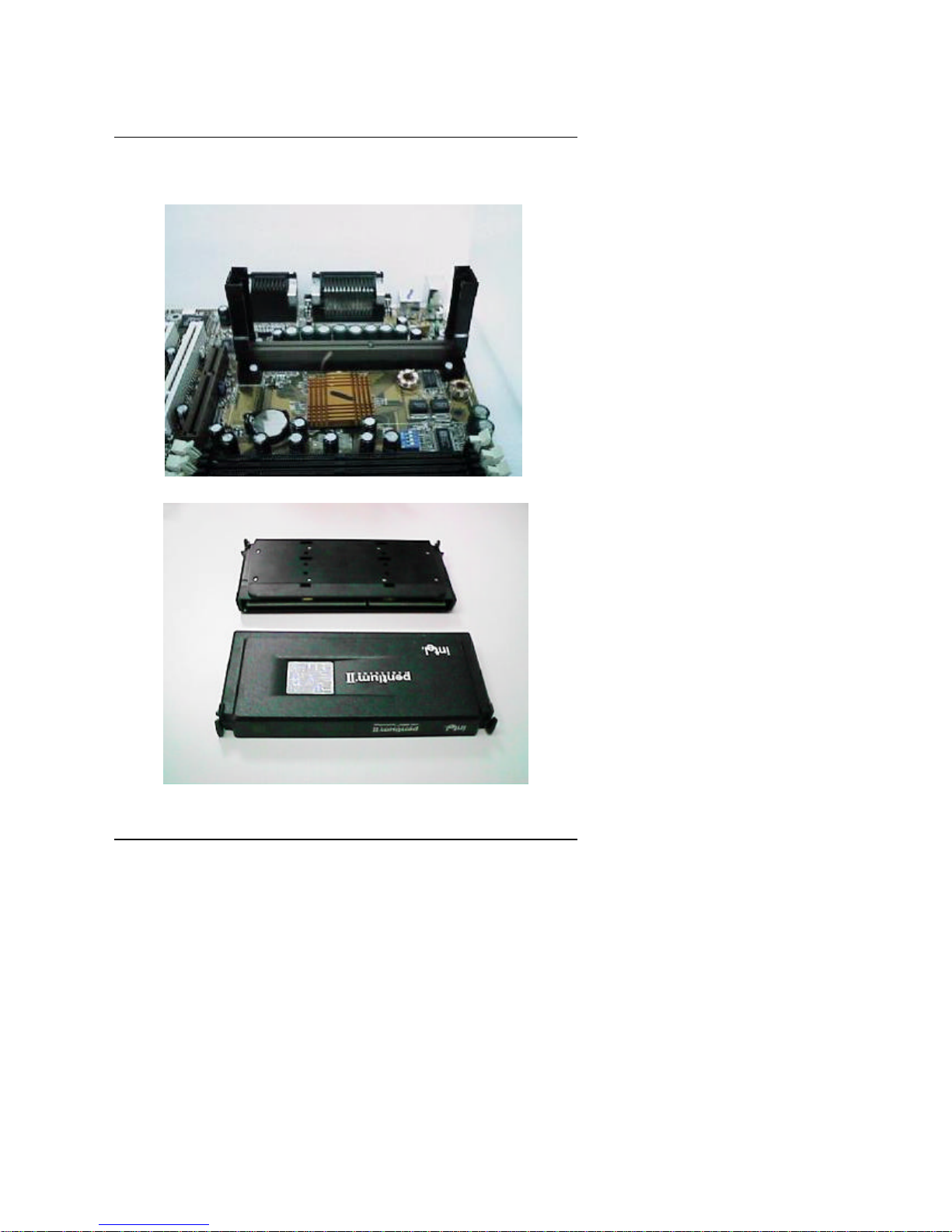

Figure 1: Universal Retention Mechanism & attach Mount

Figure 2:OEM PentiumII Processor

6BNZ

1-5

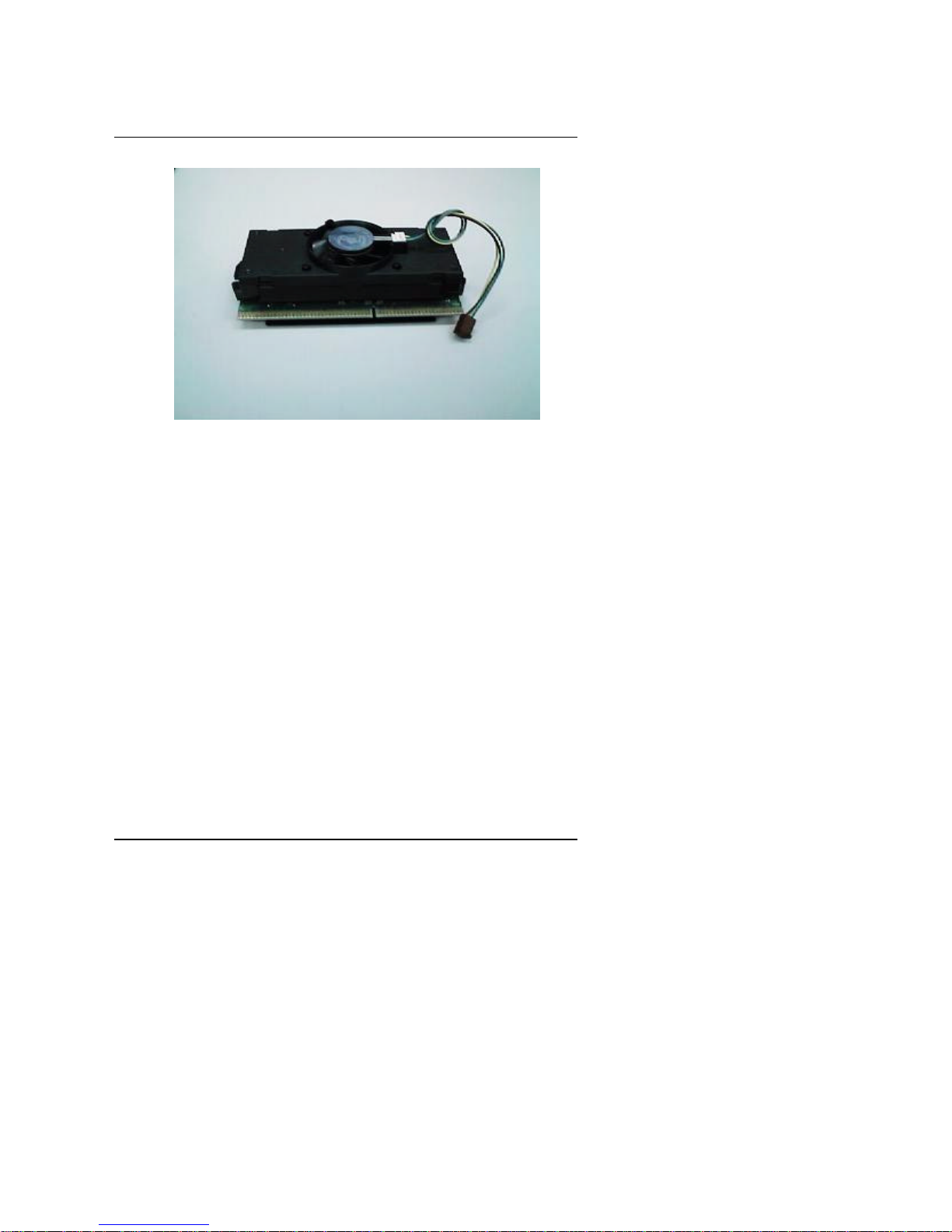

Figure 3: OEM PentiumIII Processor

1.6. What is AGP

The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI

bridge device that supports an AGP port. The main purpose of the AGP port

is to provide fast access to system memory.

The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-

bits at 33MHz) or as an AGP port which supports 2x data-rate, a read queue,

and side band addressing. When the 2x-data rate is used, the port can

transmit data at 533MB/sec (66.6*2*4). The read-queue can be used to

pipeline reads –removing the effects of the reads-latency. Side band

addressing can be used to transmit the data address on a separate line in

order to speed up the transaction.
