Gigabyte GA - 586S2 Manuel utilisateur

GA - 586S2

USER'S MANUAL

¯Auto detect CPU Voltage.

¯Support MMX CPU.

¯Switching mode Voltage regulator on Board.

¯Support Cyrix / IBM 6x86MX & AMD-K6 CPU.

Pentium



Processor PCI - ISA BUS MAINBOARD

REV. 1.0 Third Edition

Release Date 97.08.20

GA-586S2

I. Quick Installation Guide:

CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

1. Pentium



Processor 90 MHz ON OFF OFF OFF OFF OFF ON OFF

2. Pentium



Processor 100 MHz OFF OFF OFF OFF OFF OFF ON OFF

3. Pentium



Processor 120 MHz ON ON OFF OFF OFF OFF ON OFF

4. Pentium



Processor 133 MHz OFF ON OFF OFF OFF OFF ON OFF

5. Pentium



Processor 150 MHz ON ON ON OFF OFF OFF ON OFF

6. Pentium



Processor 166 MHz OFF ON ON OFF OFF OFF ON OFF

7. Pentium



Processor 180 MHz ON OFF ON OFF OFF OFF ON OFF

8. Pentium



Processor 200 MHz OFF OFF ON OFF OFF OFF ON OFF

9. Intel MMX-150MHz ON ON ON OFF OFF OFF ON OFF

10. Intel MMX-166MHz OFF ON ON OFF OFF OFF ON OFF

11. Intel MMX-200MHz OFF OFF ON OFF OFF OFF ON OFF

12. Intel MMX-233MHz OFF OFF OFF OFF OFF OFF ON OFF

13. P54CT-150 MHz ON ON ON OFF OFF OFF ON OFF

14. P54CT-166 MHz OFF ON ON OFF OFF OFF ON OFF

15. P54CTB-150 MHz ON ON ON OFF OFF OFF ON OFF

16. P54CTB-166 MHz OFF ON ON OFF OFF OFF ON OFF

17. P54CTB-180 MHz ON OFF ON OFF OFF OFF ON OFF

18. P54CTB-200 MHz OFF OFF ON OFF OFF OFF ON OFF

19. AMDK5-PR133 OFF ON OFF OFF OFF OFF ON OFF

Table of Contents

20. AMDK5-PR166 OFF ON ON OFF OFF OFF ON OFF

CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

21. AMD-K6/166 (2.9V) OFF ON ON OFF OFF ON ON OFF

22. AMD-K6/180 (2.9V) ON OFF ON OFF OFF ON ON OFF

23. .AMD-K6/200 (2.9V) OFF OFF ON OFF OFF ON ON OFF

24. AMD-K6/233 (3.2V) OFF OFF OFF ON OFF OFF ON OFF

25. Cyrix/ IBM 6x86-120 MHz-PR150+ ON ON OFF OFF OFF OFF ON OFF

26. Cyrix/ IBM 6x86-133 MHz-PR166+ OFF ON OFF OFF OFF OFF ON OFF

27. Cyrix/ IBM 6x86-150 MHz-PR200+ ∗OFF ON OFF OFF OFF OFF ON OFF

28. Cyrix/ IBM 6x86L- PR150+ (2.8V) ON ON OFF OFF OFF OFF ON OFF

29. Cyrix/ IBM 6x86L-PR166+ (2.8V) OFF ON OFF OFF OFF OFF ON OFF

30. Cyrix/ IBM 6x86L-PR200+ (2.8V) ∗OFF ON OFF OFF OFF OFF ON OFF

31. Cyrix/IBM 6x86MX-PR166

(60*2.5 2.9V) ON ON ON OFF OFF ON ON OFF

32. Cyrix/IBM 6x86MX-PR200

(66*2.5 2.9V) OFF ON ON OFF OFF ON ON OFF

33. Cyrix/IBM 6x86MX-PR200

(75*2 2.9V)∗OFF ON OFF OFF OFF ON ON OFF

34. Cyrix/IBM 6x86MX-PR233

(66*3 2.9V) OFF OFF ON OFF OFF ON ON OFF

35. Cyrix/IBM 6x86MX-PR233

(75*2.5 2.9V)∗OFF ON ON OFF OFF ON ON OFF

¬Note : If Cyrix 6x86 is being used, please check the CPU Date Code after 605.

¬Note :JP1 1-2 OFF ,

JP1 1-2 ON For use Cyrix/IBM 6x86-150MHz-PR200+ , Cyrix/IBM 6x86L-

PR200+ , Cyrix/IBM 6x86MX-PR200 (75*2) , Cyrix/IBM 6x86MX-

PR233 (75*2.5) CPUS .

GA-586S2

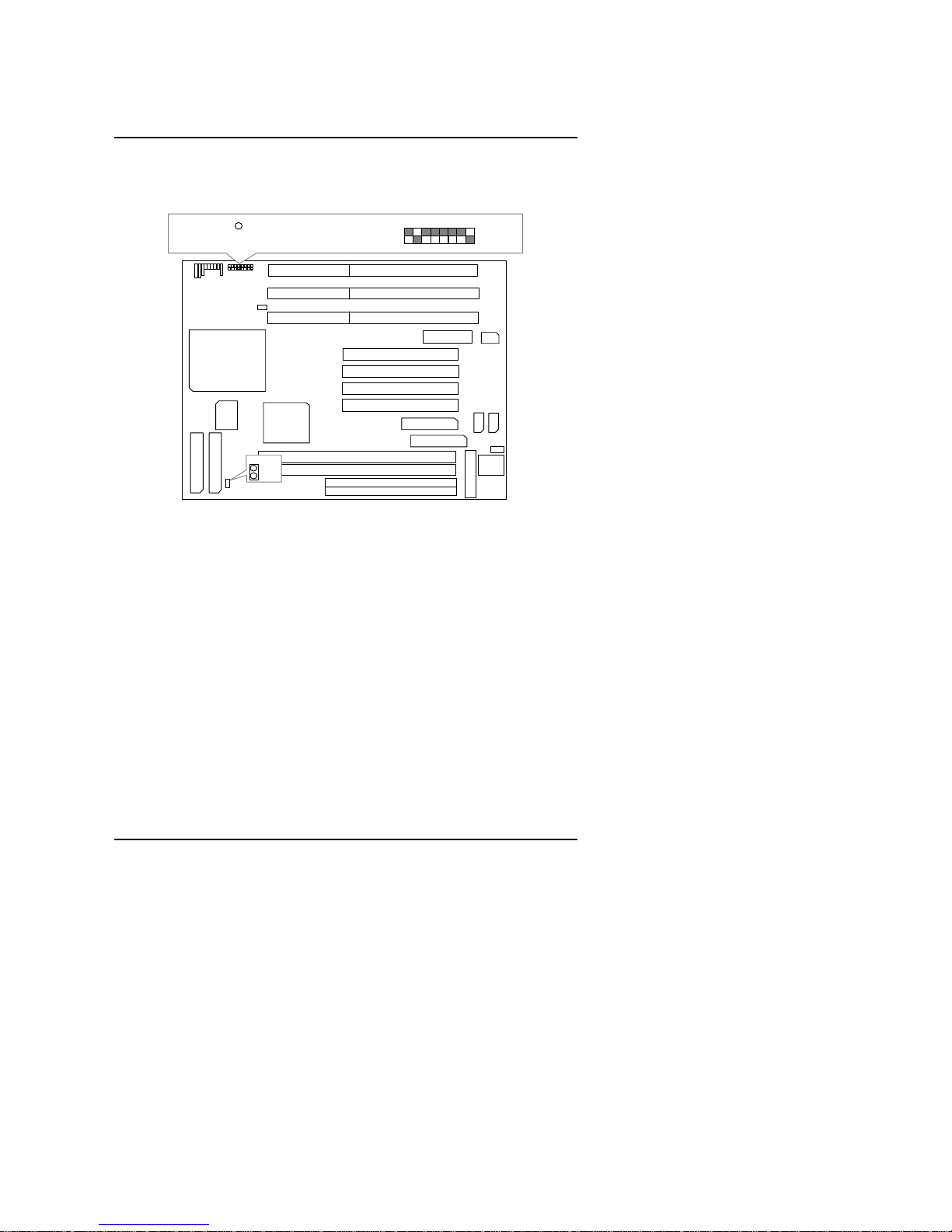

1. Pentium



Processor 90 MHz

++ +

CPU

JP1

Pentium Processor 90 MHz

R123

OFF

2. Pentium



Processor 100 MHz

Table of Contents

++ +

CPU

JP1

Pentium Processor 100 MHz

R123

OFF

3. Pentium



Processor 120 MHz

++ +

CPU

JP1

Pentium Processor 120 MHz

R123

OFF

4. Pentium



Processor 133 MHz

GA-586S2

++ +

CPU

JP1

Pentium Processor 133 MHz

R123

OFF

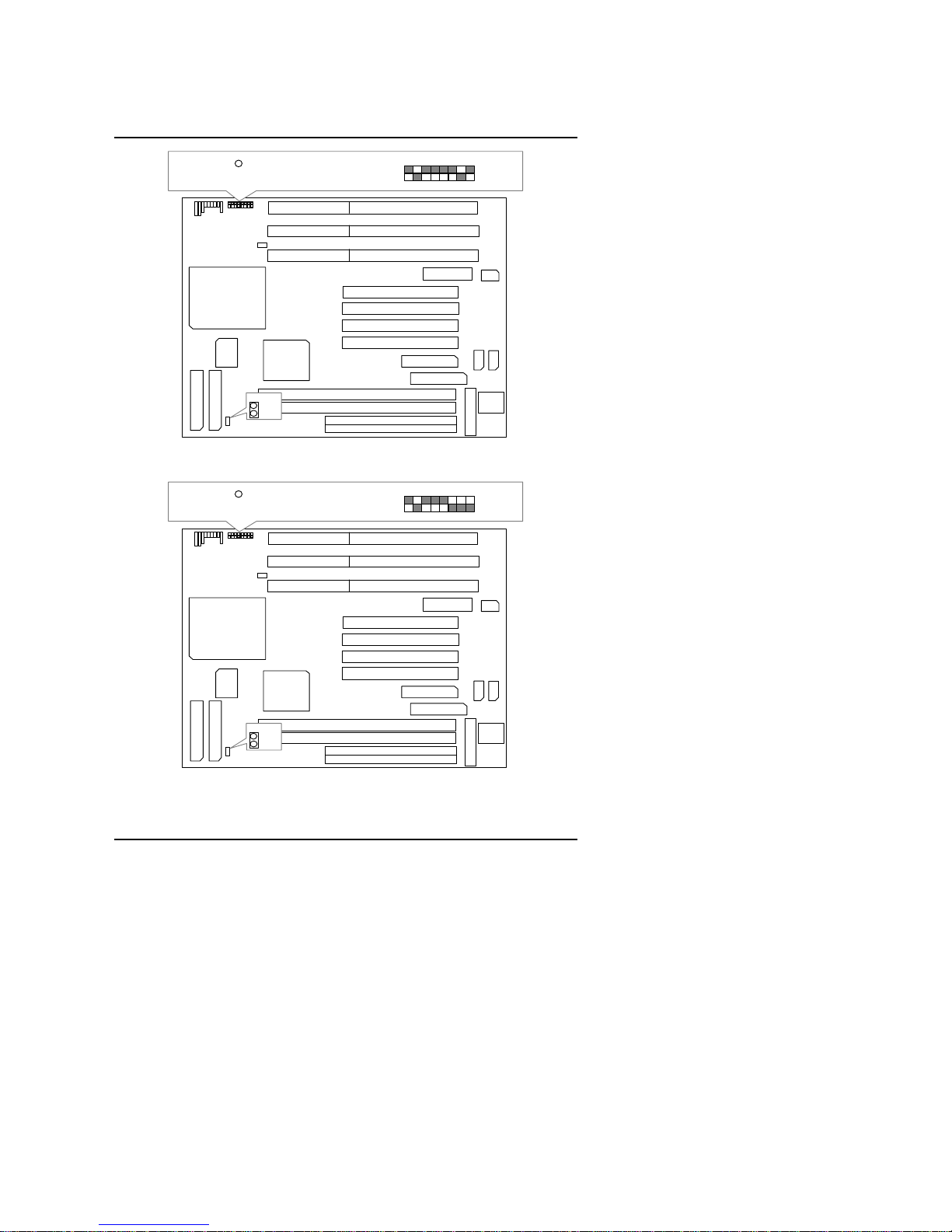

5. Pentium



Processor 150 MHz

++ +

CPU

JP1

Pentium Processor 150 MHz

R123

OFF

6. Pentium



Processor 166 MHz

Table of Contents

++ +

CPU

JP1

Pentium Processor 166 MHz

R123

OFF

7. Pentium



Processor 180 MHz

++ +

CPU

JP1

Pentium Processor 180 MHz

R123

OFF

8. Pentium



Processor 200 MHz

GA-586S2

++ +

CPU

JP1

Pentium Processor 200 MHz

R123

OFF

9. Intel MMX-150 MHz

++ +

CPU

JP1

Intel MMX-150 MHz 123

OFF

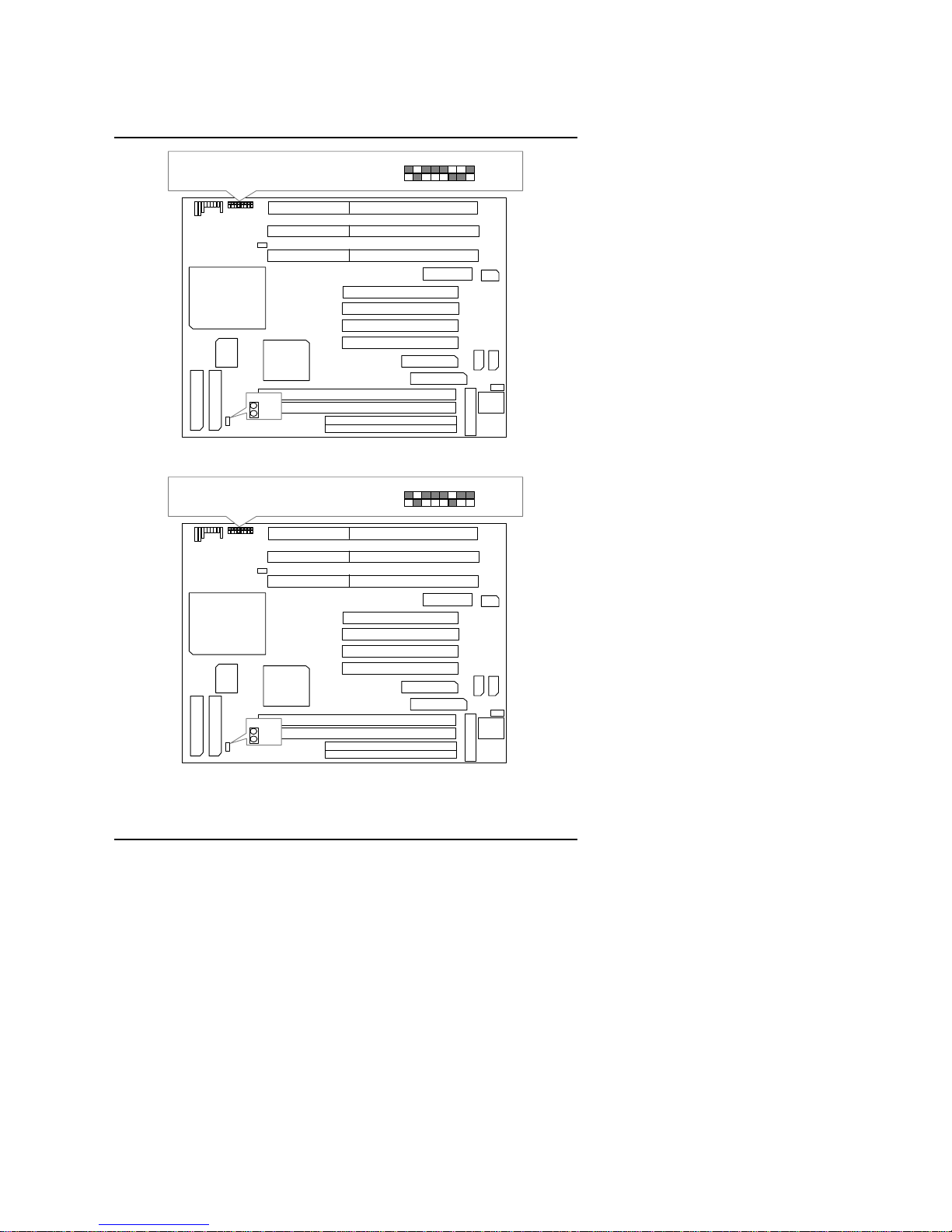

10. Intel MMX-166 MHz

Table of Contents

++ +

CPU

JP1

Intel MMX-166 MHz 123

OFF

11. Intel MMX-200 MHz

++ +

CPU

JP1

Intel MMX-200 MHz 123

OFF

12. Intel MMX-233 MHz

GA-586S2

++ +

CPU

JP1

Intel MMX-233 MHz 123

OFF

13. P54CT-150 MHz

++ +

CPU

JP1

P54CT-150 MHz 123

OFF

14. P54CT-166 MHz
