Gigabyte 6BXDU Manuel utilisateur

Table of Contents

TABLE OF CONTENTS

1. INTRODUCTION

1.1. PREFACE.............................................................................................................1-1

1.2. KEY FEATURES..................................................................................................1-1

1.3. PERFORMANCE LIST.........................................................................................1-2

1.4. BLOCK DIAGRAM ...............................................................................................1-3

1.5. INTRODUCE THE PentiumII Processor..........................................................1-4

1.6. What is AGP?.......................................................................................................1-6

2. SPECIFICATION

2.1. HARDWARE........................................................................................................2-1

2.2. SOFTWARE.........................................................................................................2-2

2.3. ENVIRONMENT...................................................................................................2-2

3. HARDWARE INSTALLATION

3.1. UNPACKING........................................................................................................3-1

3.2. MAINBOARD LAYOUT........................................................................................3-2

3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS ................................3-2

3.4. DRAM INSTALLATION........................................................................................3-5

3.5. CPU SPEED SETUP ...........................................................................................3-5

3.6. CMOS RTC & ISA CFG CMOS SRAM................................................................3-7

3.7. SPEAKER CONNECTOR INSTALLATION ........................................................3-7

3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION.......................3-7

3.9. POWER LED CONNECTOR INSTALLATION ...................................................3-7

6BXDU

3.10. IDE & ATAPI DEVICE INSTALLATION.............................................................3-7

3.11. SCSI DEVICE INSTALLATION ........................................................................3-7

3.12. PERIPHERAL DEVICE INSTALLATION...........................................................3-13

3.13. KEYBOARD & PS/2 MOUSE INSTALLATION..................................................3-13

4. BIOS CONFIGURATION

4.1. ENTERING SETUP .............................................................................................4-1

4.2. CONTROL KEYS.................................................................................................4-1

4.3. GETTING HELP...................................................................................................4-2

4.3.1. Main Menu................................................................................................4-2

4.3.2. Status Page Setup Menu / Option Page Setup Menu...............................4-2

4.4. THE MAIN MENU.................................................................................................4-2

4.5. STANDARD CMOS SETUP MENU ....................................................................4-4

4.6. BIOS FEATURES SETUP...................................................................................4-8

4.7. CHIPSET FEATURES SETUP............................................................................4-12

4.8. POWER MANAGEMENT SETUP.......................................................................4-17

4.9. PNP/PCI CONFIGURATION...............................................................................4-21

4.10. LOAD BIOS DEFAULTS....................................................................................4-23

4.11. LOAD PERFORMANCE DEFAULTS................................................................4-24

4.12. INTEGRATED PERIPHERALS. ........................................................................4-25

4.13. SUPERVISOR PASSWORD/USER PASSWORD...........................................4-30

4.14. IDE HDD AUTO DETECTION...........................................................................4-31

4.15. SAVE & EXIT SETUP........................................................................................4-32

4.16. EXIT WITHOUT SAVING..................................................................................4-33

Introduction

1-1

1. INTRODUCTION

1.1. PREFACE

Welcome to use the 6BXDU motherboard. It is a Dual PentiumII Processor

based PC / AT compatible system with AGP / PCI / SCSI / ISA Bus, and has

been designed to be the fastest PC / AT system. There are some new features

allow you to operate the system with just the performance you want.

This manual also explains how to install the motherboard for operation, and

how to set up your CMOS CONFIGURATION with BIOS SETUP program.

1.2. KEY FEATURES

qIntel PentiumII Processor based PC / AT compatible mainboard.

qSlot 1 supports PentiumII processor running at 200-633 MHz.

qIntel 440BX chipset, Supports AGP / SDRAM / Ultra DMA 33 IDE / Wake

on LAN / Keyboard and PS/2 Mouse Power On/3 steps ACPI LED

features.

qSupports Intel LDCMNetwork Manageability.

qSupports 4xDIMMs using 3.3V SDRAM DIMM module.

qSupports 16MB - 1 GB SDRAM memory on board.

qSupports ECC or Non-ECC type DRAM module.

q1xAGP slot, 4xPCI Bus slots, 3xISA Bus slots.

qSupports 2 channels Ultra DMA 33 IDE ports for 4 IDE Devices.

qSupports 2 Channels SCSI.

qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.

qSupports 2xUSB ports, 1xPS/2 Mouse, 1xPS/2 Keyboard.

qLicensed AWARD BIOS, 2M bits FLASH RAM.

q30.5 cm x 26.3 cm ATX SIZE form factor, 4 layers PCB.

6BXDU

1-2

1.3. PERFORMANCE LIST

The following performance data list is the testing results of some popular

benchmark testing programs.

These data are just referred by users, and there is no responsibility for different

testing data values gotten by users. (The different Hardware & Software

configuration will result in different benchmark testing results.)

•CPU PentiumII processor

•DRAM (128x1)MB SDRAM (TOSHIBA TC59S6408FTL-80H)

•CACHE SIZE 512 KB included in CPU

•DISPLAY GA-601 AGP Display Card (4MB SGRAM)

•STORAGE Onboard Ultra II SCSI (IBM DDRS-39130)

•O.S. Windows NT™4.0

•DRIVER Display Driver at 1024 x 768 x 64k colors x 75Hz.

Adaptec AIC-789x PCI Ultra II SCSI Driver

Intel PentiumII

Processor 300MHz(100x3) 350MHz(100x3.5)

Winbench98

CPU mark32 776 905

FPU Winmark 1540 1800

Business Disk 2070 2080

Hi-End Disk 4840 4950

Business Graphics 172 197

Hi-End Graphics 180 208

Winstone98Business 31 33.8

Hi-End 34.6 37.8

Introduction

1-3

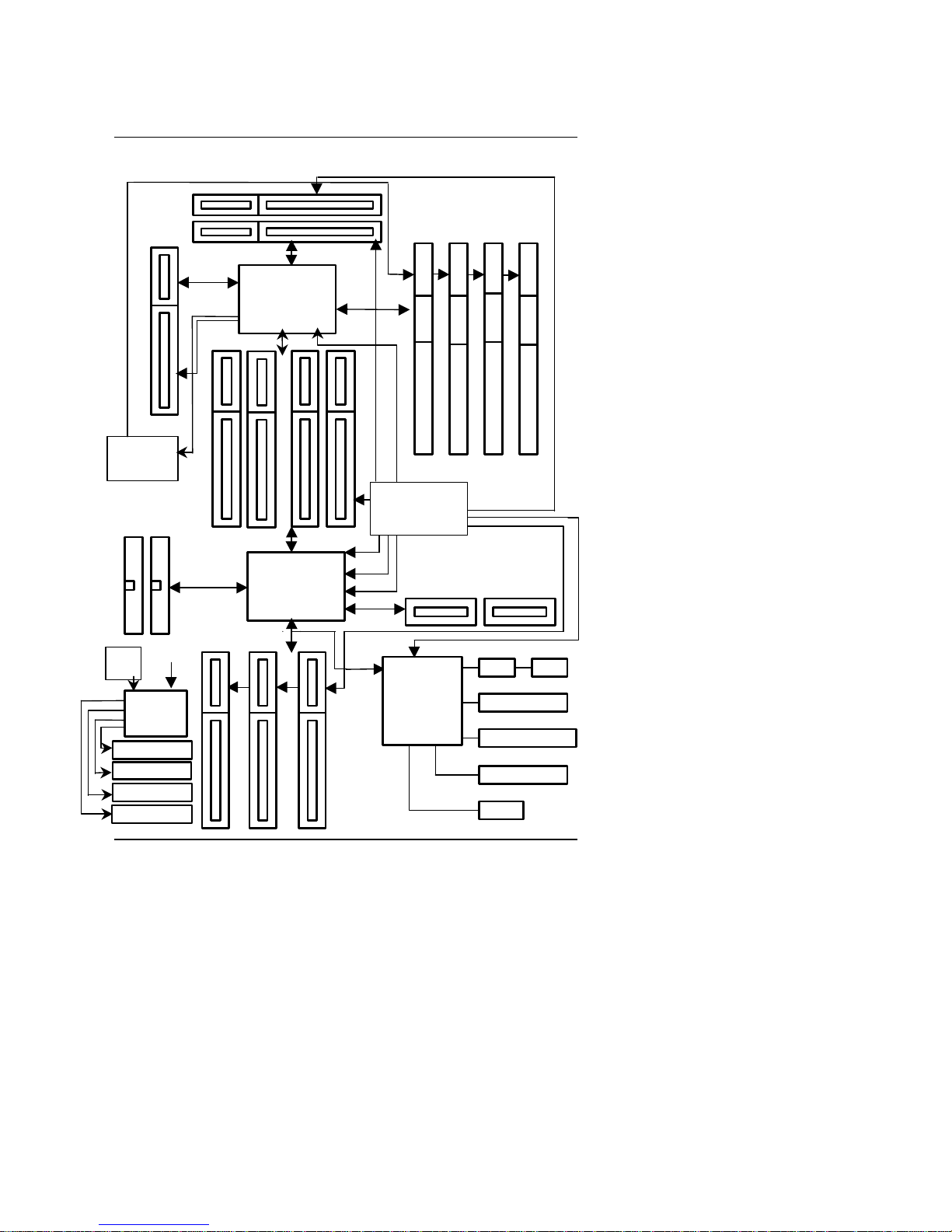

1.4. BLOCK DIAGRAM

48MHz

3.3V SDRAM

DIMM Sockets

14.318MHz

66 / 100

MHz

Ultra DMA/33

IDE Ports

IDE Bus

PCI Bus

ISA Bus

AGP Bus

LPT Port

Keyboard

Floppy Port

COM Ports

DRAM Bus

PS/2 Mouse

USB Bus

USB Ports

14.318MHz

48MHz

14.318MHz

I/O

CHIPSET

ITE8671

CPU 1

Host Bus

INTEL

82443BX

CHIPSET

Clock Gen

Buffer

PIIX4

82371EB

CHIPSET

Clock Gen

AGP

66MHz

66/100

MHz

66/100MHz

MHz

66/100MHz

CPU 2

PCI Bus

40MHz

OSC

SCSI

CHIPSET

AIC-7896

Ultra SCSI Port

INT LVD

INT. LVD

EXT. LVD

6BXDU

1-4

1.5. INTRODUCE THE Pentium



II Processor & AGP

Figure 1:Retention Mechanism & attach Mount

Figure 2:OEM PentiumII Processor

Introduction

1-5

Figure 3:Heatsink / FAN & Heat sink support for OEM PentiumII Processor

Figure 4:Boxed PentiumII Processor & Heat sink support

6BXDU

1-6

1.6 What is AGP

The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge

device that supports an AGP port. The main purpose of the AGP port is to

provide fast access to system memory.

The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-bits

at 33MHz) or as an AGP port which supports 2x data-rate, a read queue, and

side band addressing. When the 2x-data rate is used the port can transmit data

at 533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads –

removing the effects of the reads-latency. Side band addressing can be used to

transmit the data address on a separate line in order to speed up the

transaction.

Specification

2-1

2. SPECIFICATION

2.1. HARDWARE

•CPU −PentiumII processor 200 –633 MHz.

−242 pins 66/100MHz slot1 on board.

•PROTECTION −Speaker Alarm when detect "CPU FAN Failure" or

“CPU Overheat”.

−Automatically slow down CPU speed when "CPU

Overheat".

−Intel LDCMsupported.

−H/W monitor power status (±5V, ±12V, VcoreA,

VcoreB, voltage & CMOS battery voltage).(Optional)

•SPEED −66/100 MHz system speed.

−66 MHz AGP bus speed. (2Xmode 133MHz)

−33 MHz PCI-Bus speed.

−8 MHz AT bus speed.

•DRAM MEMORY −4 banks 168 pins DIMM module sockets on board.

−Use 16 / 32 / 64 / 128 / 256 MB DIMM module DRAM.

−16 ~ 1 GB SDRAM.

−Supports 3.3V SDRAM.

−Supports ECC or Non-ECC type DRAM.

•CACHE MEMORY −32 KB 1st cache memory included in CPU.

−256KB/512 KB 2nd cache in CPU.

−Supports DIB speed mode for L2 Cache.

•I/O BUS SLOTS −4 33MHz Master / Slave PCI-BUS.

−3 8MHz 16 bits ISA BUS.

−1 66MHz / 133MHz AGP bus.

•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels on

board.(Using IRQ14,15)

−Support Mode 3,4 IDE & ATAPI CD –ROM.
