Gefen CAT5-5600HD Manuel utilisateur

CAT5-5600HD

EXT-CAT5-5600HD

User Manual

www.gefen.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM - 5:00 PM Monday - Friday, Paciﬁc Time

Write To:

Gefen LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

CAT5-5600HD is a trademark of Gefen LLC

All trademarks are the property of their respective owners

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Panel Layout

5 Sender Panel Descriptions

6 Receiver Panel Layout

7 Receiver Panel Descriptions

8 Connecting and Operating the CAT5-5600HD

8 Wiring Diagram

9 Adjusting the Signal Quality

10 DIP Switch Configuration

13 Network Cable Wiring Diagram

14 Rack Mount Installation

15 Speciﬁcations

16 Warranty

INTRODUCTION

Congratulations on your purchase of the CAT5-5600HD. Your complete satisfac-

tion is very important to us.

Gefen

Gefen is a unique product line catering to the growing needs for innovative home

theater solutions. We specialize in total integration for your home theater, while

also focusing on going above and beyond customer expectations to ensure you

get the most from your hardware. We invite you to explore our distinct product

line and hope you ﬁnd your solutions. Don’t see what you are looking for here?

Please call us so we can better assist you with your particular needs.

The Gefen CAT5-5600HD

Extend two DVI sources and USB 2.0 peripherals from any computer or KVM

device with the Gefen CAT5-5600HD Professional Series KVM extender. Exten-

sion is up to 200 feet (60 meters) using three (3) CAT-6a cables.

The Receiver Unit allows the connection of up to two DVI monitors and up to four

USB devices, expanding your workspace and increasing productivity in a post-

production and editing environment.

USB 2.0 data rates up to 480 Mbps are supported in addition to backward-com-

patibility with USB 1.1.

How It Works

Place the CAT5-5600HD Sender Unit next to the source. Use the included DVI

cables to connect the DVI source(s) to the Sender Unit. Use the supplied USB

cable to connect the Sender Unit to the USB host (source) device. Connect the

Receiver Unit to the DVI displays using DVI cables. Connect the USB devices

to the Receiver Unit. Connect the Sender Unit to the Receiver Unit using three

CAT-6 cables up to 200 feet. Connect the included locking power supplies to the

Sender and Receiver Units, then connect both power cables to available electri-

cal outlets.

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE CAT5-5600HD

• CAT-6a cables can be used up to 200 feet (60 meters).

• CAT-5e cables can be used up to 150 feet (45 meters).

• Shielded (STP) CAT-5e/CAT-6a is recommended. However, unshielded

(UTP) CAT-5e/CAT-6a is acceptable.

NOTE: Shielded cable has an advantage by providing immunity to

Electromagnetic Interference (EMI), cell phones and A/C motors.

• The CAT5-5600HD only supports DVI-D signals. Analog DVI content is not

supported.

FEATURES

Features

• Extends two DVI sources to 200 feet (60 meters) up to 1080p or 1920x1200

(using CAT-6a cables)

• Extends USB 2.0 up to 200 feet (60 meters)

• Backward-compatible with USB 1.1 devices

• Works with any computer using DVI and USB

• Supports the DDWG standard for DVI compliant monitors

• Rack-mountable (includes rack ears)

Package Includes

(1) CAT5-5600HD - Sender Unit

(1) CAT5-5600HD - Receiver Unit

(2) 6 ft. DVI cable (M-M)

(1) 6 ft. USB cable (A-B)

(2) 5V DC Locking Power Supplies

(1) Set of Rack Ears

(1) User Manual

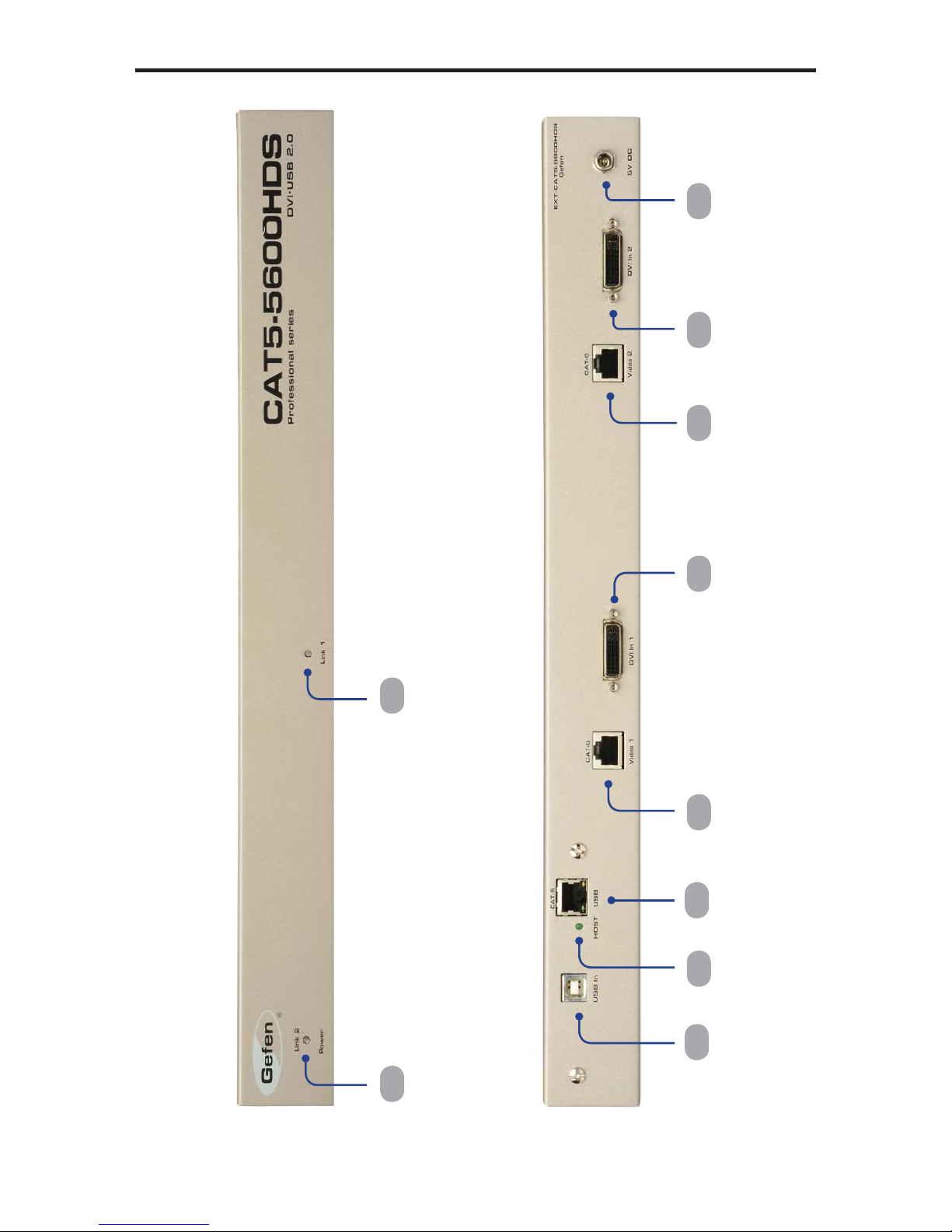

SENDER PANEL LAYOUT

Front Panel

Back Panel

6 7 8 9 104 53

SENDER PANEL DESCRIPTIONS

1 Power / Link 2 Indicator

When power is applied to the Sender Unit, this LED will glow bright red. Once a

DVI source is connected to the DVI 2 input, this LED will glow bright green.

2 Link 1 Indicator

When power is applied to the Sender Unit, this LED will glow bright red. Once a

DVI source is connected to the DVI 1 input, this LED will glow bright green.

3 USB Input Port

Connect the USB host device to this port.

4 USB Link Indicator

This LED will turn bright green once a USB link has been established

between the Sender Unit and the Receiver Unit. If the USB source device is

disconnected, then the LED will turn off.

5 USB / CAT-6 Link Output

Connects the USB / CAT-6 Link on the Sender Unit to the USB / CAT-6 Link on

the Receiver Unit using CAT-6 cabling.

6 Video 1 / CAT-6 Link Output

Connects the Video / CAT-6 Link on the Sender Unit to the Video / CAT-6 Link

on the Receiver Unit using CAT-6 cabling.

7 DVI 1 Input

Connect a DVI cable from the computer to this DVI-I connector.

8 Video 2 / CAT-6 Link Output

Connects the Video 2 / CAT-6 Link on the Sender Unit to the Video 2 / CAT-6

Link on the Receiver Unit using CAT-6 cabling.

9 DVI 2 Input

Connect a DVI cable from the computer to this DVI-I connector.

10 5 V DC Locking Power Connector

Connect the included 5 V DC locking power supply to this connector.

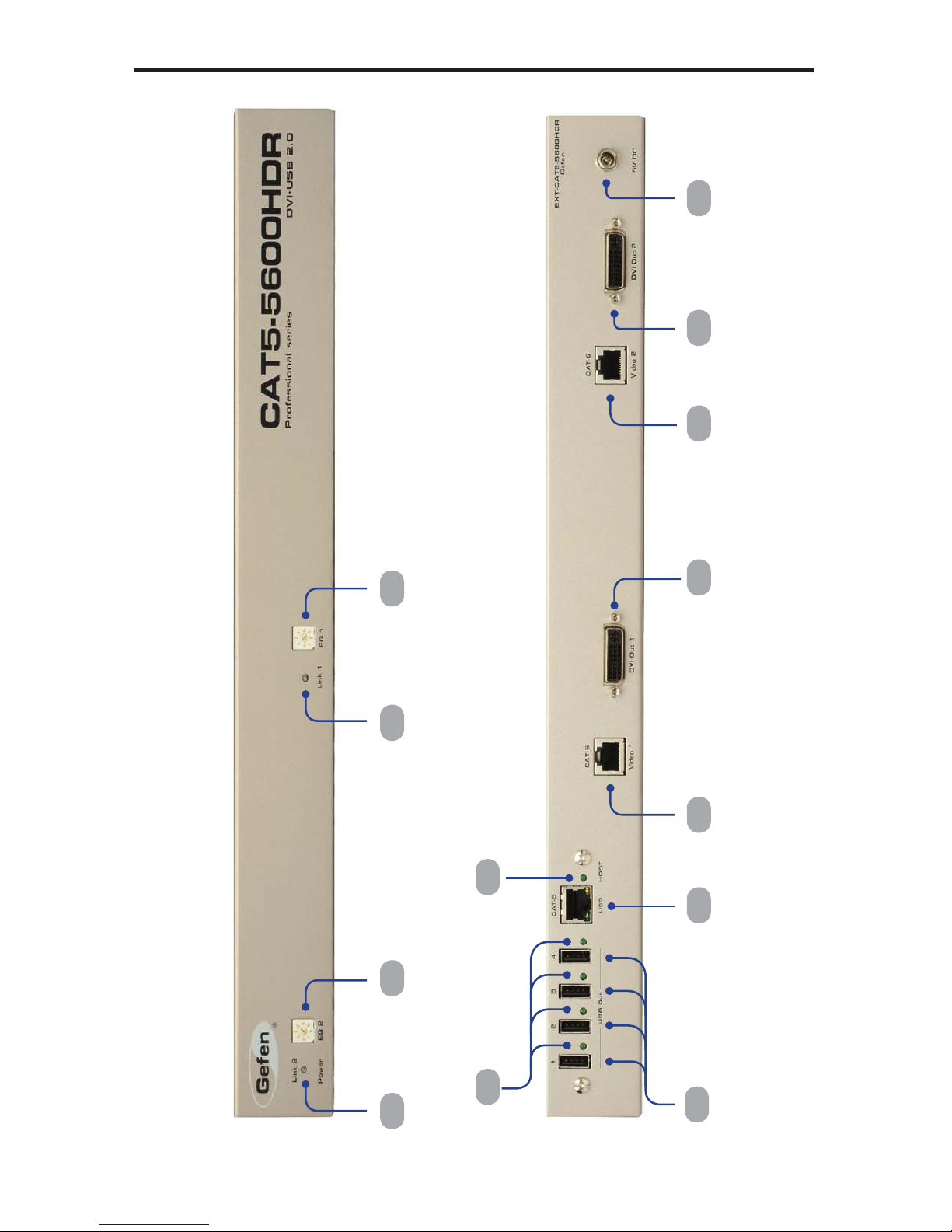

RECEIVER PANEL LAYOUT

Front Panel

Back Panel

3 4

10 11 12 13

RECEIVER PANEL DESCRIPTIONS

1 Power / Link 2 Indicator

When power is applied to the Receiver Unit, this LED will glow bright red. Once

a link has been established between the Sender Unit and the Receiver Unit, the

LED glows bright green.

2 Link 2 EQ Trim Pot

The EQ trim pot is used to equalize the signal on the DVI 2 output. See page 9

for details.

3 Link 1 Indicator

When power is applied to the Receiver Unit, this LED glows bright red. When

the link has been established between the Sender Unit and the Receiver Unit,

this LED glows bright green.

4 Link 1 EQ Trim Pot

The EQ trim pot is used to equalize the signal on the DVI 1 output. See page 9

for details.

5 USB Output Ports (1 - 4)

Connect USB devices to these ports.

6 USB Connection Indicators (1 - 4)

These LEDs will turn bright green when USB devices have been connected.

7 USB / CAT-6 Link Input

Connects the USB / CAT-6 Link on the Receiver Unit to the USB / CAT-6 Link on

the Sender Unit using CAT-6 cabling.

8 USB Link Indicator

This LED will turn bright green once a USB link between the Sender Unit and

the Receiver Unit has been made. If the USB link is lost, this LED will glow

bright red.

9 Video 1 / CAT-6 Link Input

Connects the Video / CAT-6 Link on the Receiver Unit to the Video / CAT-6 Link

on the Sender Unit using CAT-6 cabling.

10 DVI 1 Output

Connect a DVI display to this DVI-I connector.

11 Video 2 / CAT-6 Link Output

Connects the Video 2 / CAT-6 Link on the Receiver Unit to the Video 2 / CAT-6

Link on the Sender Unit using CAT-6 cabling.

12 DVI 2 Input

Connect a DVI display to this DVI-I connector.

13 5 V DC Locking Power Connector

Connect the included 5 V DC locking power supply to this connector.
