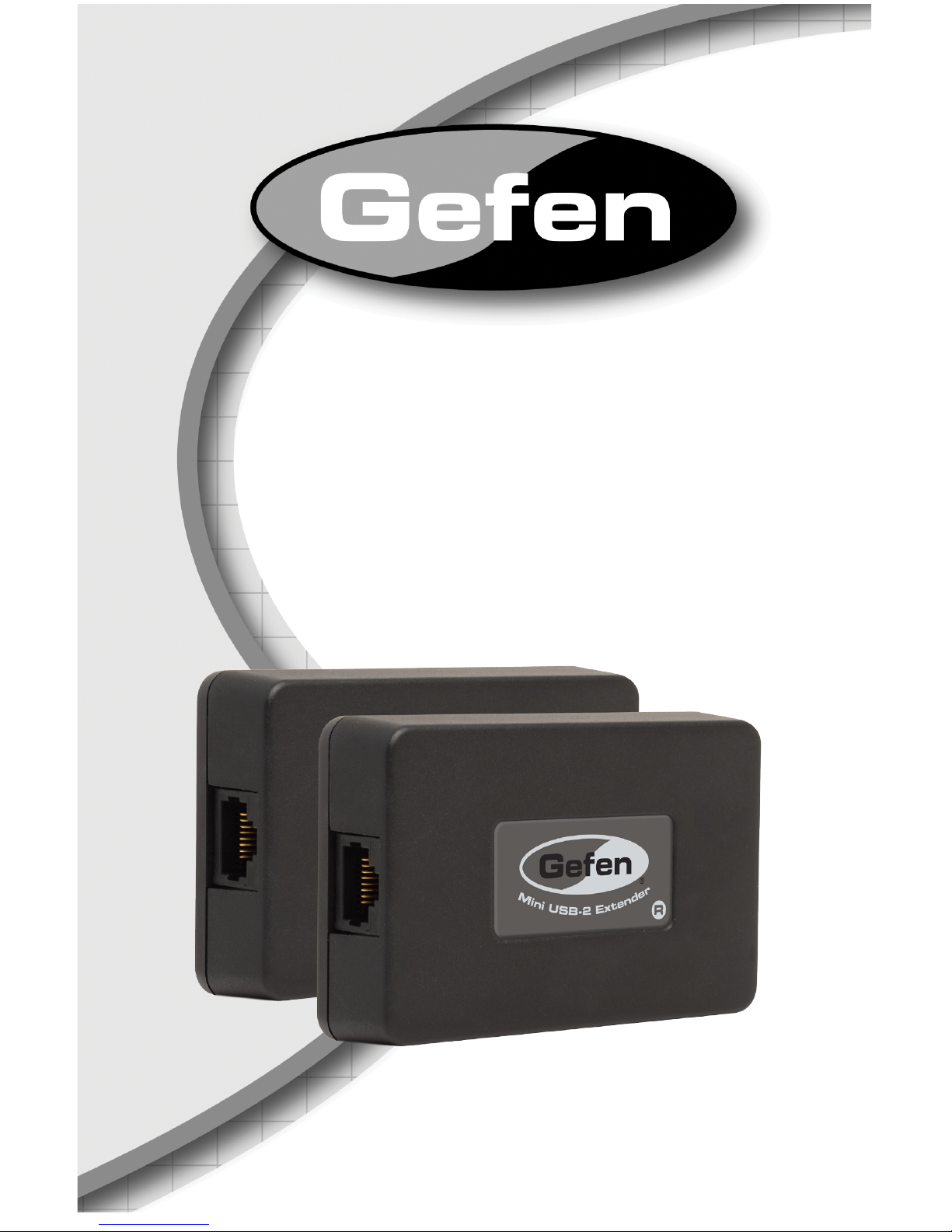

Gefen EXT-USB-MINI2N Manuel utilisateur

Mini USB-2

Extender

EXT-USB-MINI2N

USER MANUAL

www.gefen.com

ASKING FOR ASSISTANCE

Rev A1

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday PST

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging, and

any accompanying documentation without prior written notice.

Mini USB-2 Extender is a trademark of Gefen LLC

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Panel Layout

5 Sender Panel Descriptions

6 Receiver Panel Layout

7 Receiver Panel Descriptions

8 Connecting And Operating The Mini USB-2 Extender

9 Network Cable Wiring Diagram

10 Specications

11 Warranty

Congratulations on your purchase of the Mini USB-2 Extender. Your complete

satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen Mini USB-2 Extender

The Gefen Mini USB-2 Extender allows the extension of any USB 1.1 device up

to 150 feet (45 meters). The Receiver comes with a 2-port USB HUB.

This extender exceeds the 16-feet distance limitation of USB extension by using

Extreme USB technology to extend USB up to 150 feet (45 meters) away from

the computer. This solution is ideal for applications where two USB devices, such

as a keyboard and mouse, must be operated remotely but is also useful with

most other USB-based devices.

How It Works

Connect the Sender unit to the USB source using the included USB cable.

Place the Receiver unit up to 150 feet (45 meters) away from the USB source.

Use a single CAT-5e cable to connect the Sender unit to the Receiver unit.

Connect up to two USB devices to the Receiver unit.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE MINI USB-2 EXTENDER

• CAT-5e or CAT-6a cables should not exceed 150 feet (45 meters).

• Shielded (STP) CAT-5e or CAT-6a is recommended. However, un-shielded

(UTP) CAT-5e or CAT-6a is acceptable.

• The Sender and Receiver unit are powered by the source.

OPERATION NOTES

NOTE: The shielded cable has an advantage by providing

immunity to Electromagnetic Interference (EMI), cell

phones and A/C motors.

Features

• Extends any USB 1.1 device up to 150 feet (45 meters) using CAT-5 cable

• Provides support for any full-speed 12 Mb/s or low-speed 1.5Mb/s USB

device

• Provides two USB outputs

• Supports Windows XP, Windows Vista, Windows 7, Linux, and Mac OSX

operating systems

• Requires no external power adapter, powered by the USB bus

Package Includes

(1) Mini USB-2 Extender - Sender Unit

(1) Mini USB-2 Extender - Receiver Unit

(1) 6 ft. USB Cable (A - B)

(1) Quick-Start Guide

FEATURES

Front

Back

SENDER UNIT LAYOUT

1 USB Input

Connect the USB source to this port using the supplied USB cable

2 CAT-5

Connects the Sender to the Receiver unit using a CAT-5e cable

SENDER UNIT DESCRIPTIONS

Front

Back

RECEIVER UNIT LAYOUT
