Gefen EXT-USB-MIDI Manuel utilisateur

CAT-5 Cables

Optional

Accessories

USB MIDI Extende

Extends any USB device up to 150 feet away from the computer.

The USB MIDI extender extends any USB device up to 150 feet from the location of your computer,

eliminating the 16 feet distance limitation of USB. The USB MIDI sender and receiver units use one

CAT-5 cable for extension. It is optimized for applications where two devices, such as the keyboard

and mouse, must be operated remotely. The USB MIDI extender can even be used to extend

surveillance cameras for security purposes. The USB MIDI Extender extends any MIDI device.

How It Works

The USB MIDI extender sender unit is connected to the computer using the supplied USB cable.

The remote peripheral(s) are connected to the receiver unit. A category-5 (CAT-5) cable is used to

link the sender to the receiver.

Features:

zExtends any USB device up to 150 feet (45 meters) using CAT-5 cable

zRequires no external power adapter

zProvides support for any full-speed 12 Mb/s or low-speed 1.5Mb/s USB device

zUse either PC or Mac with USB keyboard/mouse

zIdeal for USB MIDI interface devices

Specifications:

zUSB device support: full-speed 12 Mb/s Low-speed 1.5 Mb/s

zUSB Input Connectors: type B

zUSB Output Connectors: type A

zLink Connector: RJ-45

zShipping Weight: 2 lbs.

Package Includes:

zUSB MIDI extender send unit

zUSB MIDI extender receive unit

z6.6' USB cable (A-B)

zUser Manual

EXT-USB-MIDI

Dystrybucja i sprzedaż: Meditronik Sp. z o.o.

02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46

http://www.meditronik.com.pl e-mail: [email protected]

USB MIDI

Extender

USER MANUAL

www.gefen.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00am to 5:00pm

Monday thru Friday

Write To:

Gefen, Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

USB MIDI is a trademark of Gefen Inc.

TABLE OF CONTENTS

Introduction / How It Works

Operation Notes / Features

USB MIDI Extender Installation

Panel Description

CAT-5 Cable Diagram

Warranty

Thank you for purchasing the USB MIDI Extender. Extending your USB peripherals

(i.e. computer keyboard, mouse or trackball) up to 150 feet away from the location of

your Macintosh or PC computer are done easily with the USB MIDI Extender.

The USB MIDI extender extends any USB device up to 150 feet from the location of

your computer, eliminating the 16 feet distance limitation of USB. The USB MIDI sender

and receiver units use one CAT-5 cable for extension. It is optimized for applications

where two devices, such as the keyboard and mouse, must be operated remotely.

The USB MIDI extender can even be used to extend surveillance cameras for security

purposes. The USB MIDI Extender extends any MIDI device.

How It Works

The USB MIDI extender sender unit is connected to the computer using the supplied

USB cable. The remote peripheral(s) are connected to the receiver unit.A category-5

(CAT-5) cable is used to link the sender to the receiver.

The USB MIDI Extender Package Includes:

(1) USB MIDI extender send unit

(1) USB MIDI extender receive unit

(1) 6.6’ USB cable (A-B)

(1) User Manual

INTRODUCTION

NOTES

READ THESE NOTES AND FEATURES BEFORE INSTALLING

OROPERATING THE USB MIDI EXTENDER.

• The USB MIDI sender and receiver were designed to operate on USB enabled

computers and systems. DO NOT attempt to use this equipment with any other type of

computer.

• Only dedicated Category 5 UTP type cable (CAT-5) is recommended for this

application (pin to pin). Shielded CAT-5 cables are recommended for long distances to

protect your signal from EMI.

• The length of cable used to connect the USB MIDI Extender MUST NOT EXCEED 150

FEATURES

• Extends any usb device up to 150 feet (45 meters) using CAT-5 cable

• Requires no external power supply

• Provides support for any full-speed 12 MB/S or low-speed 1.5 MB/S USB device

• Use either PC or MAC with USB keyboard/mouse

• Ideal for USB MIDI interface devices

USB MIDI EXTENDER INSTALLATION

1. Place the USB MIDI Reciever unit close to the USB devices at the remote end.

2. Connect the USB devices to the USB MIDI Reciever unit.

3. Place the USB MIDI Sender unit close to the host computer.

4. Connect the USB MIDI Sender unit to the USB MIDI Reciever unit using the desired

length of CAT5 cable.

5. Connect the USB•100S unit to the host computer using the USB cable supplied with

the unit. This connection should be made last.

PANEL DESCRIPTION

Sender

Reciever

USB cable connects to computer

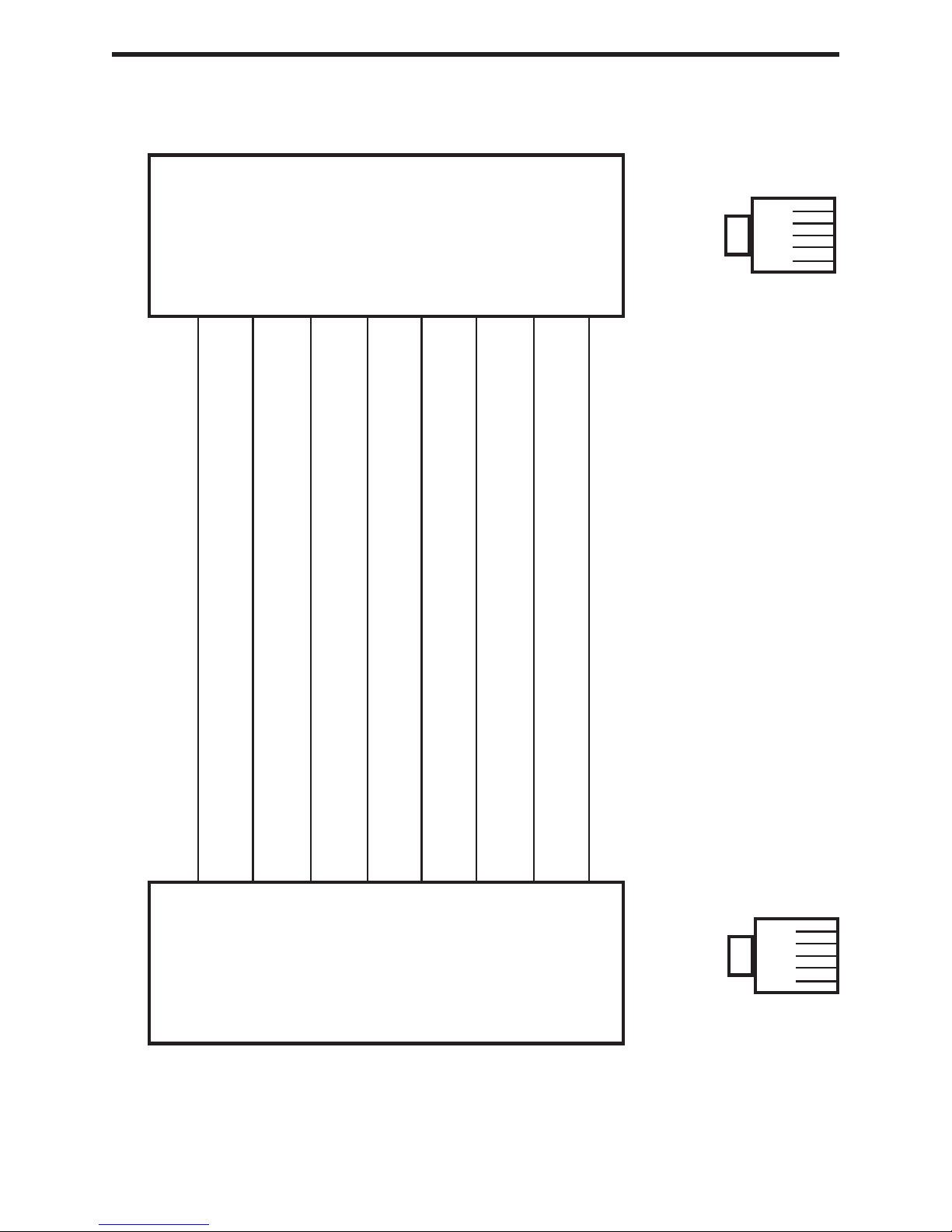

LINK CABLE - WIRING DIAGRAM

White/Blue

Blue

White/Green

Brown

White/Brown

Green

White/Orange

Orange

RJ-45 Jack

1818

WARRANTY

Gefen Inc. warrants the equipment it manufactures to be free from defects in material

and workmanship.

If equipment fails because of such defects and Gefen Inc. is notiﬁed within two (2) year

from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment,

provided that the equipment has not been subjected to mechanical, electrical, or other

abuse or modiﬁcations.

Equipment that fails under conditions other than those covered will be repaired at the

current price of parts and labor in effect at the time of repair. Such repairs are warranted

for ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or ﬁtness for any particular purpose, all

of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.

2. Customers outside the US are responsible for shipping charges to and from Gefen.

3. Copper cables are limited to a 30 day warranty and cable must be free from any

scratches, markings, and neatly coiled.

The information in this manual has been carefully checked and is believed to be accurate.

However,Gefen, Inc. assumesno responsibilityforany inaccuraciesthatmay becontained

in this manual. In no event will Gefen, Inc., be liable for direct, indirect, special, incidental,

or consequential damages resulting from any defect or omission in this manual, even if

advised of the possibility of such damages. The technical information contained herein

regarding USB MIDI Extender features and speciﬁcations is subject to change without

notice.
