Geeetech Delta Rostock mini G2 Manuel de l'opérateur

Geeetech Rostock mini G2 & G2s pro Quick Starter Manual

Please DO NOT rush to start your first printing after assembly, as this is a DIY kit,

some parameters of the printer may be different from each other, you need to modify

the firmware according the the real situation of your printer.

You are advised to read through the whole set-up instructions step by step to get a

whole picture of what you will be doing and stick to our instructions before you start

with your printer. Do not skip any details.

1 How to modify and upload firmware.

In the following set-up process, you will need to modify and upload the firmware by

yourself, so, first of all, let’s start with the firmware compiling and uploading process.

1. Download the firmware here:

Firmware for Delta Rostock mini G2 &G2s pro

2. Connect GT2560 to your PC with a USB cable，install FTDI drive. Usually it will

install automatically. If not you need to install manually.

download the FTDI driver here.

3. If there is nothing wrong with the hardware of board, you can find COM port in

device manager. But every computer has different COM watchword, you need check

by yourself.

4. Unzip the firmware, drag all the files into Arduino IDE.（I use Arduino1.0.5)，

choose Board\Arduino Mega or Mega2560，and selects ATmega2560(Mega2560) as

default Processor. The order cannot be wrong. Selects the COM port you find in the

device manager.

4 Most of the code you need to modify is in Configuration.h . More details on this

later.

Find the value you need to compile according to your printer. ( we will elaborate

which part of setting you need to change later one by one). Upon compiling, you can

upload the firmware to your control board. Simply click and to upload.

( Note: You need to disconnect the printer to Repetier Host before uploading).

Compiling

Uploading

Upload successfully

2 Printer preparing

1. Bed leveling

Put a level meter on the bed when adjusting the 3 screws of the bed to check if it is

level.

Or you can use the such a cube use a reference height about 10mm to make sure that

each top of each bed mounting point is the same after tightening the wing nuts.

Simply place a 10mm cube next to the bed (not under!), and tighten the screw till the

cube rightly fill gap between the bed and the base plate. Take out the cube and repeat

for the other two mounts.

* To protect the bed and the nozzle from crashing, please attach a piece of tape on the

bed.

3 Printer setting

Step1. Connect the USB to your Rostock mini G2 or G2s and power it up. You can

see the LED lights and fan come to life, you may be able to hear the motors idling.

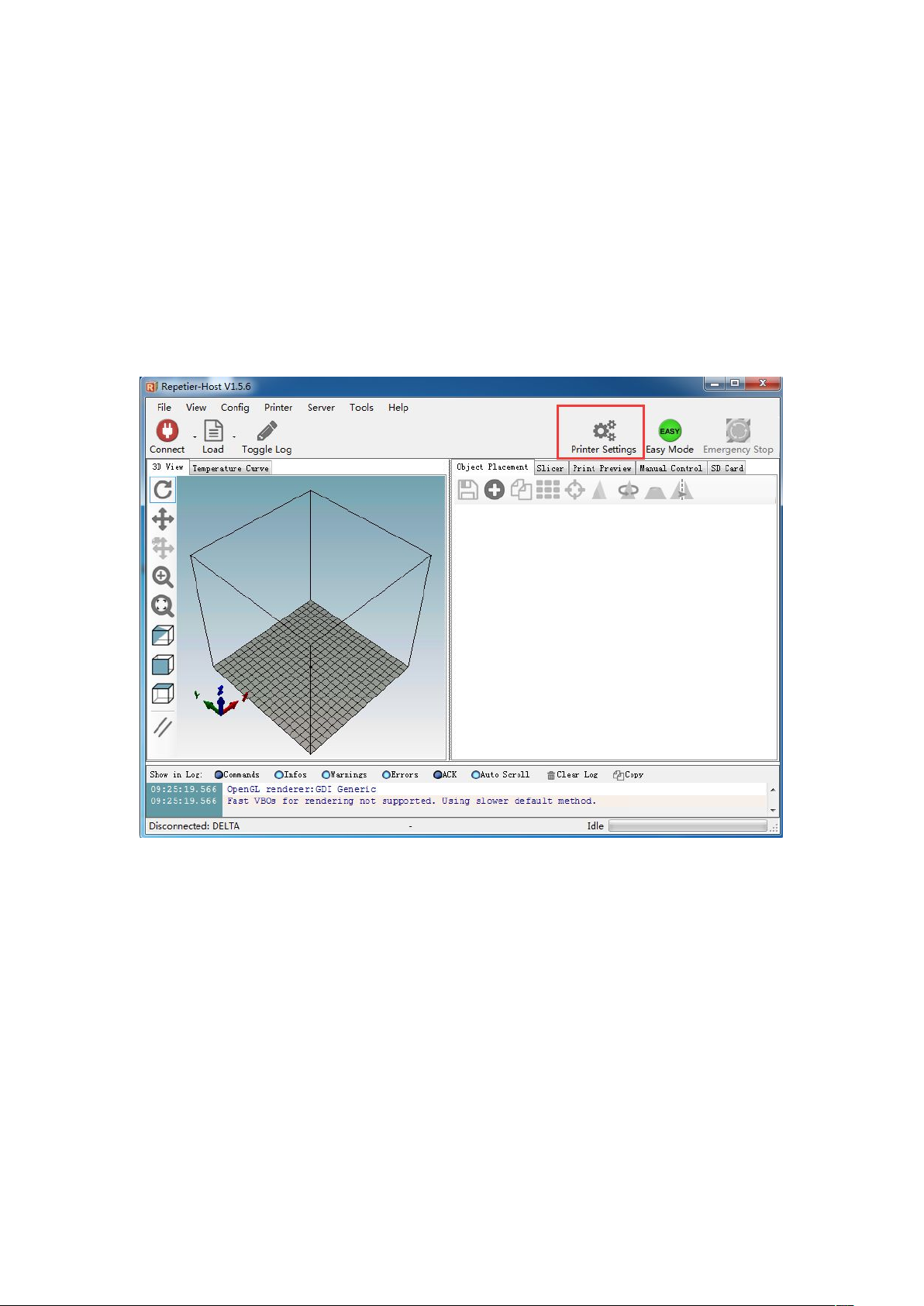

Step 2. Open Repetier Host and ensure that you have a valid port selected for

communications. To do this, simply click “Printer Settings” in the upper right-hand

corner to bring up the printer settings menu.

If you don’t know what the parameters mean, just hover your mouse over the item,

the explanatory note will prompt up. As shown below:
