Geeetech Acrylic Prusa I3 Instructions de fonctionnement

Assemble Manual of GeeetechAcrylic Prusa I3 (8mm)

ShenzhenGETECHCO.

LTD

GEEETECH

Warning:

1. This kit contains tiny parts; please keep them away from kids under 3.

2. Building and operating 3D printer involves electricity, so all necessary precautions

should be taken and adhered to.

3. Building a 3d printer requires a certain amount of handling ability and some

common sense and working principle of 3D printer.

However, do not worry; with this build instruction in hand, you can finish the

assembly easily.

1Unfold and check the package

Unfold the package and take all the parts out to check the condition of the items. As

you can see, all the parts are packed very carefully.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

zAll the acrylic plate has been etched with part ID.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

Tips:

1. Before assembly, you are advised to put all the parts, especially the screws and nuts

in order, which will save you a lot of time looking for the required parts.

2. The part ID is corresponding to the number labeled on the bag of every part.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

2 Assemble Y axis (the bottom part of the chassis)

2.1 Assemble the rods of a Y axis

Step1. Assemble the 2 threaded rods.

Part IDRequired numberRequired parts

NO.52M10 threaded rod

NO.A 142Acrylic Fender

NO.186M8 spring washer

NO.98M10 washer

NO.128M10 nut

Thread the nuts and washers into the two M10 threaded rods separately. The order

should be:

M10 washer > M8 spring washer >M10 screw > M10 screw > M10 washer > acrylic

fender > M10 washer > M8 spring washer > M10 screw > M10 screw > M8 spring

washer > M10 washer

ShenzhenGETECHCO.

LTD

GEEETECH

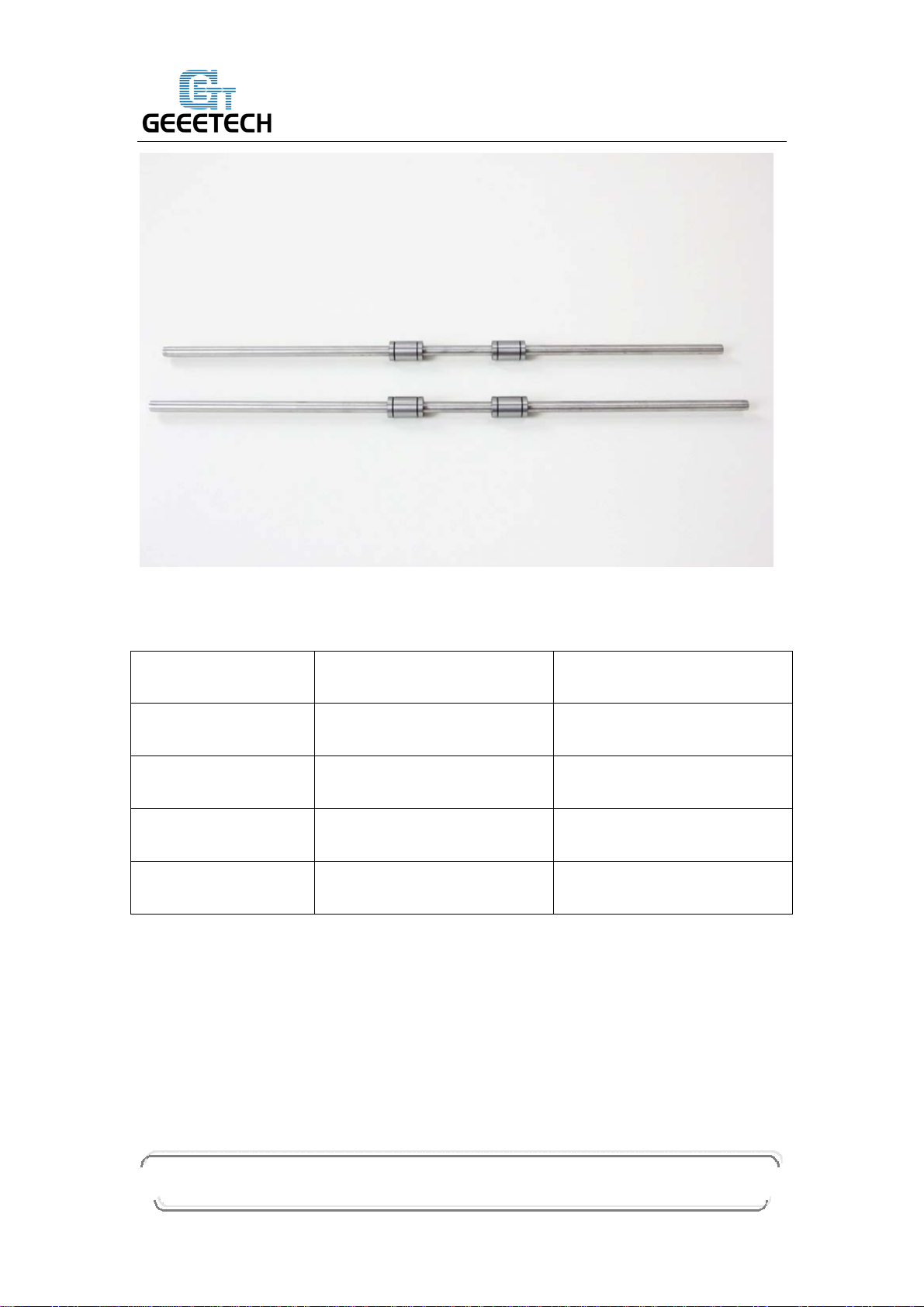

Step2. Assemble the 2 smooth rods

Part IDRequired numberRequired parts

NO.32M8 smooth rod

NO.394LM8UU Linear bearings

Slide 2 bearings on each smooth rod. Before you slide the bearings please make sure

they are clean.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

1.2. Attach the front and rear Acrylic support plates of the rods.

Part IDRequired numberRequired parts

NO. A9, A 102Acrylic plate( front)

NO. A 11, A 122Acrylic plate( back)

NO.94M10 washer

NO.124M10 nut

Slide the rods into the acrylic plate, Adjust the length so that the smooth rods fit

snugly between the front and back piece.

Each corner gets a washer and a nut. Adjust the inner and outer nuts so that the end of

the rod is flush with the outside M10 nut.

Do the same on all four corners.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

* Tips: the Y-axis must be a rectangle, that is the rods on both side should be parallel,

so is the front and back plate. Otherwise it will cause obstruction for the belt later.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

2.2 Assemble the Y idler

Part IDRequired numberRequired parts

NO.382624ZZ Ball bearing

NO.661Y belt holder

NO.271M3 x 20 screw

NO.151M3 wing nut

NO.351M4 x25 screw

NO.141M4 lock nut

Step1. Thread the M3 x 20 screw through the Y idler piece.

Put the M4 x25 screw through the holes with the 624ZZ bearings in between. Lock

the other end with a M3 nut.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

Step2. Mount the assembled idler onto the front support plates. And screw it with a

wing nut.

*Please leave enough room for the belt between the ball bearing and the screw.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858
