Geeetech Acrylic I3 Pro Instructions de fonctionnement

Assemble Instruction of GeeetechAcrylic Prusa I3

Pro & pro B

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

Notice:

1. This kit contains tiny parts; please keep them away from kids under 3.

2. This building instruction applies to both Geeetech Acrylic Prusa I3 pro and pro B.

3. Some pictures of the printed part may be a bit different from those in your

package, no worries, they work the same, and the way to assemble is similar.

4. Building and operating 3D printer involves electricity, so all necessary precautions

should be taken and adhered to.

5. Building a 3d printer requires a certain amount of handling ability and basic

knowledge of working principle of 3D printer.

6. Be patient, please. If you have any problems assembling, please contact us, we

will try our best to help you.

1Unfold the box and check the package

Unfold the package and take all the parts out to check the condition of the items. As

you can see, all the parts are packed very carefully.

ShenzhenGETECHCO.

LTD

GEEETECH

All the acrylic plate has been etched with part ID and the plate is covered with

a sheet of kraft paper, you need to tear them off.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

Tips:

1. Before assembly, you are advised to put all the parts, especially the screws and nuts

in order, which will save you a lot of time looking for the required parts.

2. The part ID is corresponding to the number labeled on the bag of every part. Some

parts may not have label, you can refer to the pictures on the package list.

2 Assemble Y axis

2.1 Assemble the rods of a Y axis

Step1. Assemble the 2 threaded rods.

Part IDRequired numberRequired parts

NO.52M10 threaded rod

NO.A142Y plate connecting

plate

NO.186M8 spring washer

NO.98M10 washer

NO.128M10 nut

Thread the nuts and washers into the two M10 threaded rods separately. The order

should be:

1) Thread the acrylic fender (Y plate connecting plate) in the middle.

2) Thread the M10 washer > M8 spring washer >M10 nut > M10 nut > M10 washer

on the left

ShenzhenGETECHCO.

LTD

GEEETECH

3) Thread theM10 washer < M8 spring washer < M10 nut < M10 nut< M8 spring

washer < M10 washer on the right

Step2. Assemble the 2 smooth rods

Part IDRequired numberRequired parts

NO.32M8 smooth rod

NO.394LM8UU Linear bearings

Slide 2 bearings on each smooth rod. Before you slide the bearings please make sure

they are clean.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

1.2. Attach the front and rear Acrylic support plates of the rods.

Part IDRequired numberRequired parts

NO. A9, A 102Acrylic plate( front)

NO. A 11, A 122Acrylic plate( rear)

NO.94M10 washer

NO.124M10 nut

Step1. Slide the rods into the acrylic plate; adjust the length so that the smooth rods fit

snugly between the front and rear piece.

Step2. Screw up the rods and plate with M10 nut and M10 washer.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

* Tips: the Y-axis must be a rectangle, that is the rods on both side should be parallel,

so is the front and back plate. Otherwise it will cause obstruction for the belt later.

You can use a Digital Caliper to measure.

2.2 Assemble the Y idler

Part IDRequired numberRequired parts

NO.382624ZZ Ball bearing

NO.661bearing holder

NO.271M3 x 20 screw

NO.151M3 wing nut

NO.351M4 x25 screw

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

NO.141M4 lock nut

Step1. Thread the M3 x 20 screw through the bearing holder.

Step2. Put the M4 x25 screw through the holes with the two 624ZZ bearings in

between. Lock the other end with a M4 lock nut.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858

ShenzhenGETECHCO.

LTD

GEEETECH

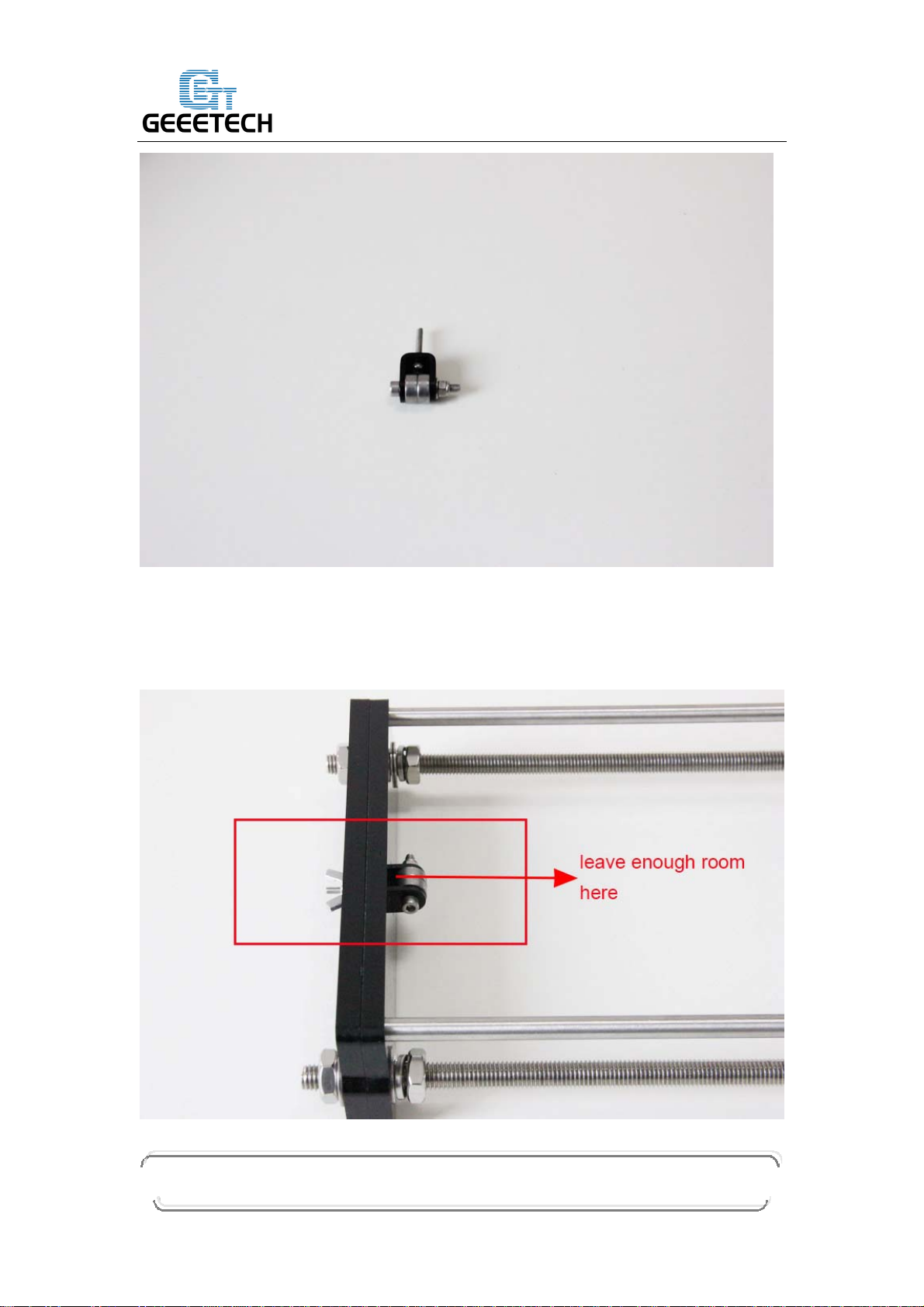

Step3. Mount the assembled bearing holder onto the front support plates. And screw it

with a wing nut.

*Please leave enough room for the belt between the ball bearing and the screw.

www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858
