N7100 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

N7100 CONSUMABLE REPLACEMENT

AND CLEANING INSTRUCTIONS

CG00002-291401

N7100CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

Brake Roller Pick Roller

CONSUMABLES LIST

Description Qty Life Fujitsu P/N

BrakeRoller 1

Pick Roller 1 200,000 PA03706-0001

Note: The Brake Roller and Pick Roller are included when

ordering part number PA03706-0001

N7100 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

CHECKING THE LIFE OF THE CONSUMABLES

1. On the [Main Menu] or [Job Menu] window, press

the [ConsumableAlert] button.

The [Consumable Alert] window appears.

2. Check which part needs to be replaced and press

the[OK]button.

Partswhose[UsageCounter]valueisbigger than the

[Replaceat]valueshouldbe replaced.

Thevalueof[Usage Counter] istheexactnumberof

scannedsheets.

3. Replace the part.

Refertothefollowing:

Replacing the Roller Set.

HINT

The [Consumables Alert] button on the [Job Menu] window can be shown

by pressing

N7100CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE ROLLER SET

TheRollerSetismadeupof the

brakerollerandthepickroller.The

procedureforreplacingeachroller

isasfollows.

1. Turn off the scanner power and wait

for at least 15 minutes.

2. Unplug the power cable from the AC outlet.

3. Remove any documents from the ADF paper chute.

4. Pull the cover release catch toward you, place

your hands at both sides of the LCD cover, and

open the LCD cover.

5. Replace the brake roller.

1. Open the cover of the brake roller.

Be careful that the LCD cover does not shut on your fingers.

Cover

Hold both ends of the cover of the brake roller, and open it in the direction of the arrow.

N7100 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE ROLLER SET (CONT.)

2. Remove the shaft.

Lifttherightsideof the rollerfirst,thenpullouttheshaft from the

slotonthe left.

Brake Roller

Shaft

3. Remove the brake roller from its shaft

Shaft

Brake Roller

4. Attach a new brake roller on the shaft.

Insert theprotrusionon theshaftintotheslot.

Shaft

Protrusion

Slot

Brake Roller

N7100CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE ROLLER SET (CONT.)

5. Install the brake roller with the shaft on the scanner.

Fit the left end of the shaft in the slot, then install the rest of the shaft in

place.

Brake Roller

Shaft

6. Close the cover of the brake roller.

ATTENTION

Make sure that the shaft is attached properly. If it is not correctly attached,

document jams and other feeding errors may occur.

ATTENTION

Make sure that the shaft is attached properly. If it is not correctly attached,

document jams and other feeding errors may occur.

N7100 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE ROLLER SET (CONT.)

1. Open the sheet guide.

Slide the side guides all the way, and pull the sheet guide open from the

dip.

2. Rotate the lock release tab on the shaft in the direction of the

arrow.

Dip

Side Guides

Sheet Guide

Lock Release Tab

N7100CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

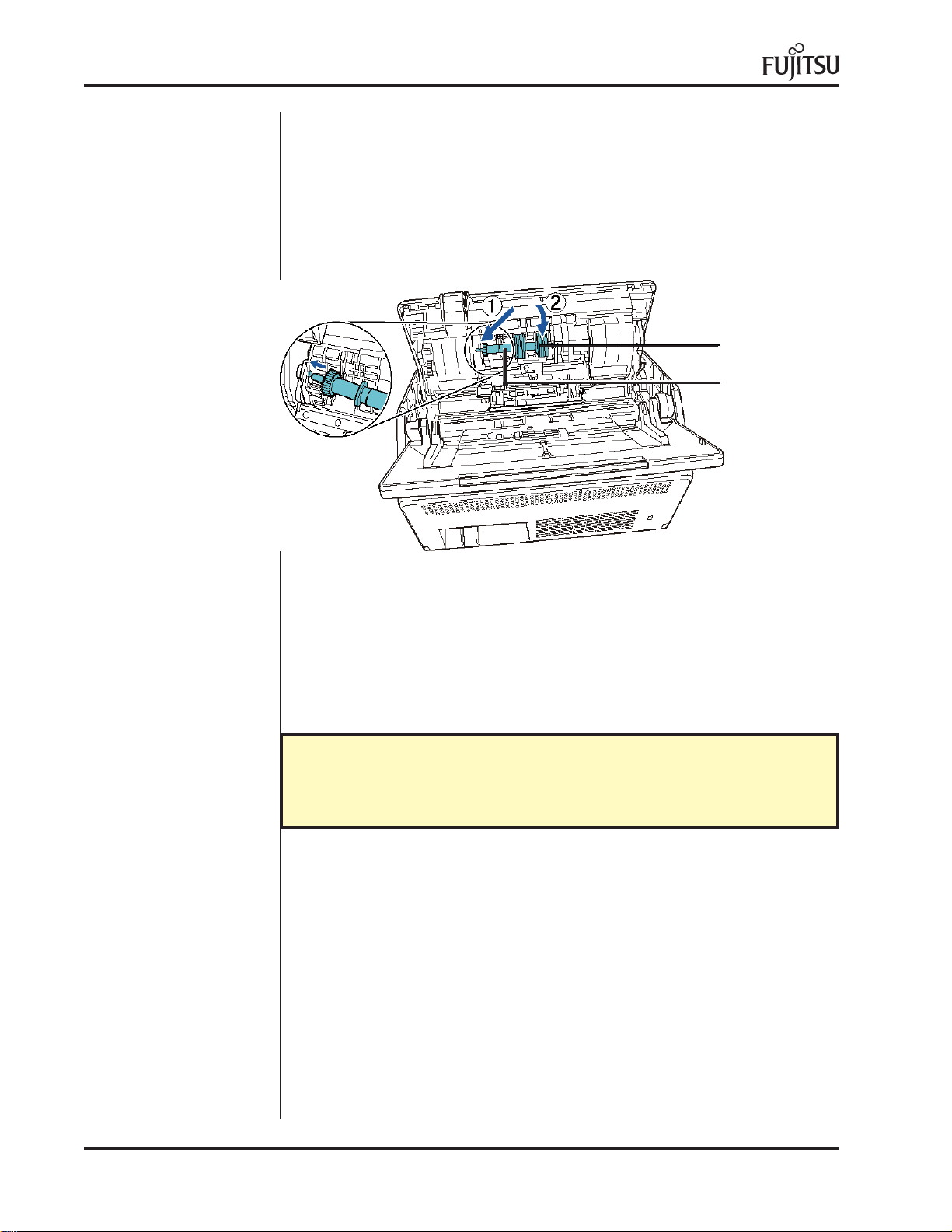

3. Remove the pick roller.

Slightly lift the Lock release tab of the shaft (by approximately 5 mm),

slide the shaft to the direction of the arrow below, and lift it up all the

way.

Lock Release Tab

ATTENTION

Becareful not totouchthegear near the lockreleasetab on the shaftas

it contains grease.

REPLACING THE ROLLER SET (CONT.)

N7100 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

4. Install a new pick roller on the scanner.

Insert the left end of the shaft into the slot of the scanner, and lower

the other end gradually.

Pick Roller

5. Rotate the lock release tab on the shaft in the direction

of the arrow.

Lock Release Tab

ATTENTION

Make sure that the pick roller is installed properly. Otherwise, paper

jams or other feeding errors may occur.

REPLACING THE ROLLER SET (CONT.)

N7100CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

6. Close the sheet guide.

Make sure that both ends of the sheet guide are locked firmly.

7. Close the LCD cover.

You should hear a click.

REPLACING THE ROLLER SET (CONT.)

Be careful that the LCD cover does not shut on your fingers.

8. Connect the power cable, and turn on the scanner.

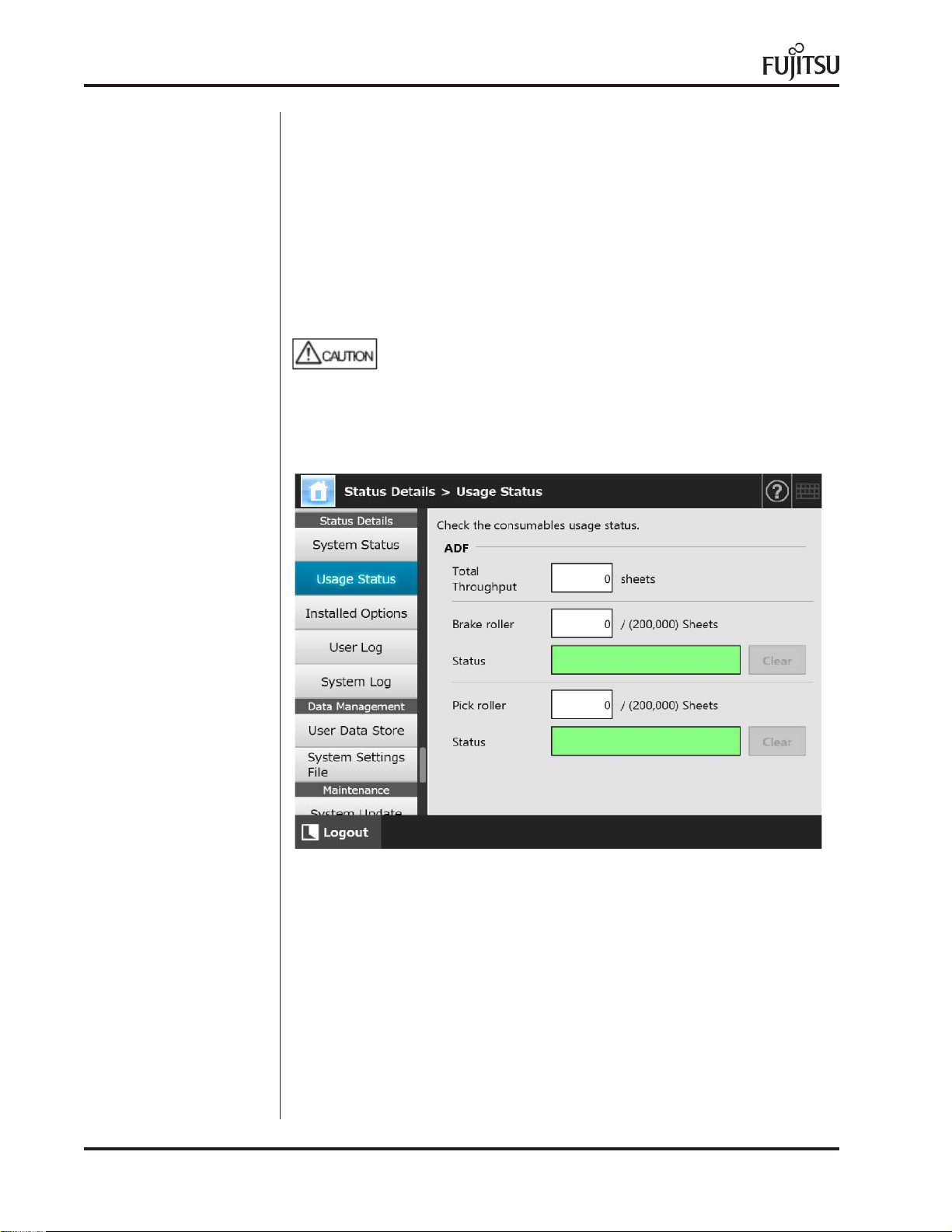

9. Reset the Roller Set usage counter.

After part replacement, the usage counter can be reset to return the part

status to normal.

1.Select [Usage Status] under [Status Details].

The [Usage Status] window appears.

2.Press the [Clear] button for the part replaced.

The counter reset confirmation window appears.

3.Press the [OK] button.
