Infinite Peripherals INFINEA TAB M Manuel utilisateur

INFINEA TAB M USER MANUAL

INFINEA TAB M

iPad® mini 1D/2D SCANNER

CONTACT INFORMATION

Mobility Sales/Technical Center: Inﬁnite Peripherals, Inc.

1641 McGaw Avenue

Irvine, CA 92614

Toll-Free: (866) 278-7860

Oce: (949) 222-0300

Fax: (949) 222-0375

Headquarters/Main Warehouse: Inﬁnite Peripherals, Inc.

2312 Touhy

Elk Grove Village, IL 60004

Toll-Free: (800) 278-7860

Oce: (847) 818-1260

Fax: (847) 818-1287

Technical Support: Inﬁnite Peripherals, Inc.

1641 McGaw Avenue

Irvine, CA 92614

Toll-Free: (866) 278-7860

Oce: (949) 222-0300

Fax: (949) 222-0375

Email [email protected]

ipcprint.com

LEGAL NOTICE

“Made for iPad,” means that an electronic accessory has been designed to

connect specifically to iPad, respectively, and has been certified by the

developer to meet Apple performance standards. Apple is not responsible for

the operation of this device or its compliance with safety and regulatory

standards. Please note that the use of this accessory with iPad may affect

wireless performance.

COMPATABILITY

Made for

iPad mini

USER MANUAL |

CONTENTS

Compatability 1!

Overview 3!

Technical Data –Infinea TAB M 4!

Box Contents 5!

Getting Started 6!

About Your Infinea TAB M 7!

Assembling your Infinea TAB M 8!

Charging your Infinea TAB M 9!

Status and Operational Modes 10!

Features-Barcode Scanning 11!

Features-Magnetic Card Reader 12!

Features-RFID Card Reader 13!

Syncing 14!

Replacing Battery 15!

Developing Applications 16!

SRED Encrypted MSR Information 17!

Troubleshooting –MSR Card Reading 18!

Troubleshooting –Barcode Scanning 19!

Troubleshooting –RFID Card 20!

Federal Communications Commission 21!

USER MANUAL |

OVERVIEW

The Infinea TAB M allows mobile employees to convert their iPad mini into a

powerful solution for retail, warehousing, supply chain, ticketing and

hospitality industries. The Infinea TAB M includes 3-track magnetic stripe

reader (encrypted or unencrypted), optional 2D barcode scanner, optional

Bluetooth, and optional RFID.

Features

Battery: Rechargeable Li-ion Battery – 1,100 mAh

Charging via USB or Charging Station

Magnetic Card Reader 3-Track Head

Swipe Speed: Minimum of 1.97 in/sec

MTBF: 1 million swipes

Bidirectional reading capabilities

Barcode Scanner:

2D High Speed Imager

2D - MTBF: 50K hours (Imager & Focus LED)

RFID: MIFARE MINI

MIFARE CLASSIC-1K, MIFARE CLASSIC-4K

MIFARE ULTRALIGHT, ULTRALIGHT-C

ISO 14443, ISO 15693

MIFARE PLUS 2K/4K

DESFire card

Indicators: Visual: 2 LEDs for device status, 4 LEDs for contactless indication

I/O Connectors:

8-pin lightning connector

10-pin female Mini-B USB connector for charging and

synchronization

External RS (232) port

USER MANUAL |

TECHNICAL DATA –INFINEA TAB M

* Specifications subject to change without notice.

Electrical

Power supply

Internal voltage 3.3V & 5V

Compatibility

iPad mini

Communications

USB Interface – between Infinea TAB mini and iPad mini

USB Synchronization between Apple iPad mini ® & PC

Power Consumption

Deep sleep ~20uA

Magnetic Stripe Reader

3-track bidirectional reading capabilities

Type: ISO 7816-1/2/3 compatible & RAW mode

Encryption Methods

3DES-112 with DUKPT Key Management

AES-256 with Fixed Key Management

Optional: AES-128 with Fixed Key Management

Barcode Scanner

2D High Speed Imager

Barcode Type

2D Supported Symbologies:

Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F,

Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code

(mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417

1D Scanner Supported Symbologies:

JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code

93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial

2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-

Code, Telepen, Tri-Optic, UK/Plessey

RFID Reader (Optional)

MIFARE MINI

MIFARE CLASSIC-1K, MIFARE CLASSIC-4K

MIFARE ULTRALIGHT, ULTRALIGHT-C

ISO 14443, ISO 15693

MIFARE PLUS 2K/4K

DESFire cardm FeLiCa

Bluetooth

Communication

Bluetooth 2.0 Class 2

Distance – Up to 10m

Serial Port Profile (SPP)

LEDs

Green LED for battery

Blue LED for device status

Four LEDs for Contactless indication

Buttons

Scan and status buttons

Battery

Rechargeable Li-ion Battery 3.7V/1100mAh, charging from USB port

or charging station

Cables

Standard USB A to mini B Cable (0.9m)

Audio Indicator

Audio magnetic buzzer

Mechanical

Dimensions

103mm (L) x 88mm (W) x 23.5mm (H)

Weight

140 grams (without iPad mini)

Environment

Operating Environment

- Operating temperature 0°C to +40°C

- Operating humidity 35 to 85% RH

- Storage temperature -5°C to +40°C

- Storage humidity 10 to 90% RH

Certifications

PCI

PTS 3.x SRED compliant (optional)

USER MANUAL |

BOX CONTENTS

Your Infinea TAB M comes with the following items listed below:

USB charge / Sync Cable

Infinea!TAB!M

*Bulk Shipments may ship without cables and manuals in each box.

Software: Drivers & SDK

Because of the continually evolving SDK, the latest SDK are not

distributed on CD.

For the latest Infinea TAB M SDK’s please visit our developer portal:

http://www.ipcprint.com/developer/!

USER MANUAL |

GETTING STARTED

The Infinea TAB M allows you to scan barcode and capture Magnetic Strip

information onto your iPad Mini. Before using your Infinea TAB M the battery

should be properly charged. The following Quick Start guide will help to get

your Infinea TAB M ready for use.

Quick Start Guide

Step

What to do

Purpose

Where to find more

Information

Fully charge your

Infinea TAB M as

recommended

The battery pack should

be fully charged before

use to ensure long battery

life

Charging Battery, Page 9

Install Software

All device features

require software to be

installed onto your iPad

Mini

Software is not provided

with Infinea TAB M. Please

contact your reseller or

Infinite Peripherals for Third-

Party software solutions

options.

Developers should refer to

the section in this manual on

“Developing Applications”

Page 16

Attach device to

iPad Mini

Connecting your Infinea

TAB m and iPad Mini

Page 8

USER MANUAL |

ABOUT YOUR INFINEA TAB M

1. Scan Button

2. Charging Connectors

3. Barcode Scanner

4. Status LED/Battery Charging LED

5. 8-pin Lightning connector

6. USB Sync & Charging Port

7. External RS Port

8. RFID Receiver/Transmitter

9. Magnetic Stripe Reader

10. Four LEDs (NFC OPTION ONLY)

USER MANUAL |

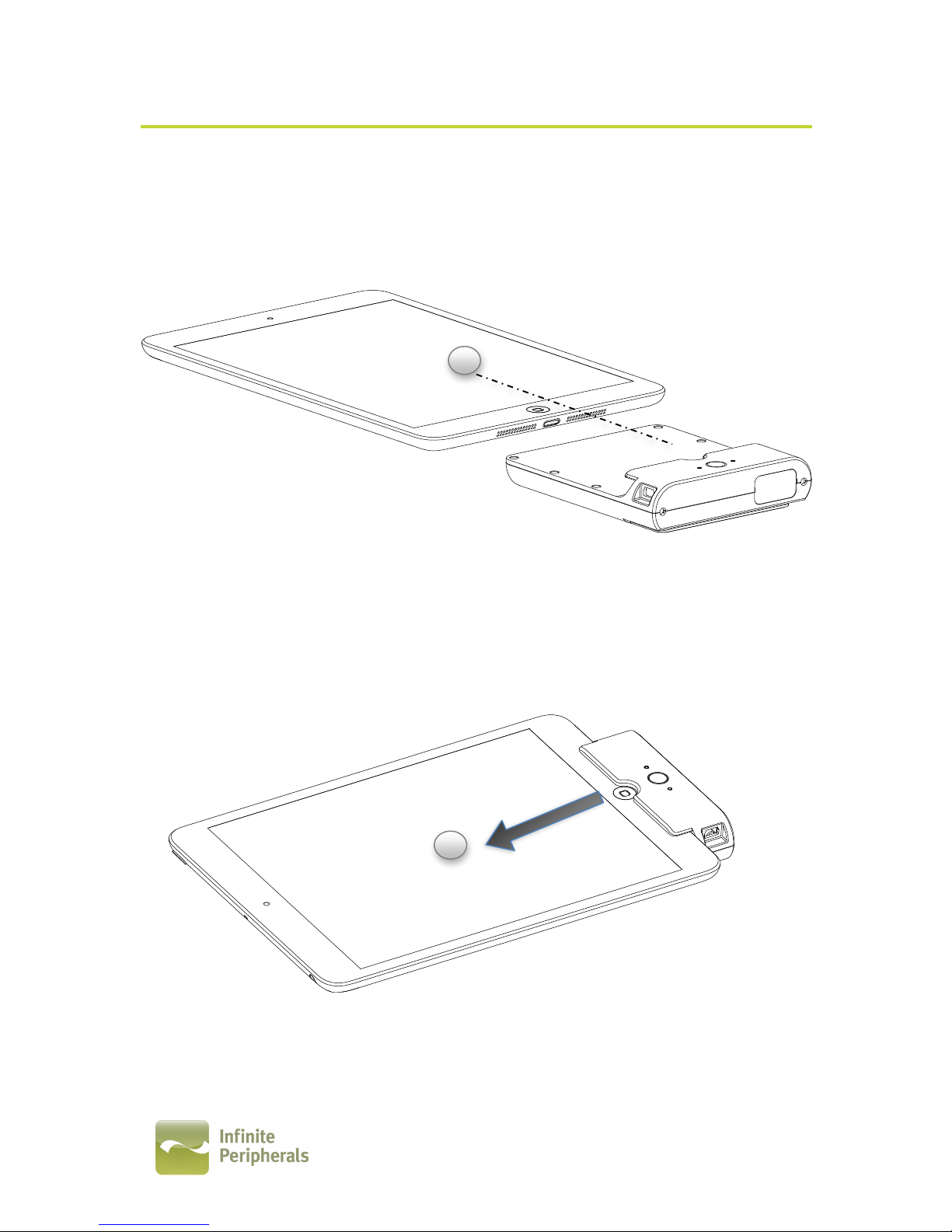

ASSEMBLING YOUR INFINEA TAB M

1. Align the home button on iPad mini and the half circle on the Infinea

TAB M as shown below.

2. Gently slide the Infinea TAB M into position as shown below.
