FS IES3100-8TF-P Manuel utilisateur
L2+ MANAGED INDUSTRIAL SWITCH
L2+ MANAGED INDUSTRIELLER SWITCH
SWITCH INDUSTRIEL MANAGEABLE L2+
Quick Start Guide V1.0
Quick-Start Anleitung
Guide de Démarrage Rapide
IES3100-8TF-P
Introduction
Accessories
IES3100-8TF-P
Thank you for choosing IES3100-8TF-P managed switch. This guide is designed to familiarize you with
the layout of the switch and describes how to deploy the switch in your network.
1
EN
Console Cable x 1
NOTE: IES3100-8TF-P switch has dust plugs delivered with it. Keep the dust plugs properly
and use them to protect idle ports.
Front Panel Ports
Upper Panel
Hardware Overview
2x 100/1000/2500BASE-X SFP Ports
8x 10/100/1000BASE-T Ports
CONSOLE
2
EN
Ports Description
10/100/1000BASE-T ports for Ethernet connection
SFP ports for 100M/1G/2.5G connection
A Mini USB console port for serial management
RJ45
SFP
CONSOLE
Grounding Point Terminal Block Connector
Rear Panel
3
EN
Front Panel LEDs
SFP
RJ45
SYS
PWR
DIN-rail Mounting Kit
4
EN
Installation Requirements
NOTE: It is recommended to use Internet Explorer 8.0 or above to access the switch. If the
web interface of the industrial managed switch is not accessible, please turn o the
anti-virus software or rewall and then try it again.
Power is being supplied to power input.
Power is not being supplied to power input.
LEDs DescriptionStatus
PWR
On
O
On
On
O
The system is ready for operation.
No supply voltage or the system is not ready for operation.
SYSTEM
RJ45
SFP
Blinking
O
On
Blinking
O
A PoE terminal device is connected and receiving power via PoE.
No PoE port available or Power over Ethernet function is disabled.
Yellow: PoE
The port is active and links.
The port’s data is being transmitted.
The port is inactive or link down.
The port is active and links.
Blinking The port’s data is being transmitted.
O The port is inactive or link down.
Green:
Link/Act
Before you begin the installation, make sure that you have the following:
Workstations running Windows XP/2003/Vista/7/8/10/2008, MAC OS X or later, Linux, UNIX, or other
platforms are compatible with TCP/IP protocols.
Workstations are installed with Ethernet NIC (Network Interface Card).
Serial Port Connection (Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232 converter.
The above Workstations have been installed with terminal emulator, such as HyperTerminal
included in Windows XP/2003.
Serial cable -- one end is attached to the RS232 serial port, while the other ends to the Mini USB
console port of the switch.
Ethernet Port Connection
Network cables -- Use standard network (UTP) cables with RJ45 connectors.
The above PC is installed with Web browser.
5
EN
1. Position the unit in front of the DIN-rail and hook the mount bracket over the top of the rail.
2. Rotate the switch downward towards the rail to lock it into place. You will know it is secure when
you hear the click.
3. To remove the unit, pull down to clear the bottom of the DIN-rail and rotate away from the rail.
Mounting the Switch
Grounding and wire routing help limit the eects of noise due to electromagnetic interference (EMI).
Run the ground connection from the ground screw to the grounding surface prior to connecting
devices.
DIN-rail Mounting
Grounding the Switch
Mounting the unit Releasing the unit
6
EN
The Upper Panel of the switch indicates a DC inlet power socket and consists of one terminal block
connector within 5 contacts. Please follow the steps below to insert the power wire.
1. Insert positive/negative DC power wires into Contacts + and - for Power 1 and Power 2.
2. Tighten the wire-clamp screws for preventing the wires from loosening.
Connecting the Power
NOTE: This product is intended to be mounted to a well-grounded mounting surface such
as a metal panel.
PWR1
48-57V DC
PWR2
Live line/Positive
Null line/Negative
Requiring good ground connection
NameNo. Description
L/+
N/-
1
2
3
7
EN
1. Connect an Ethernet cable to the RJ45 port of a camera, outdoor AP, computer or other network
device.
2. Connect the other end of the Ethernet cable to the RJ45 port of the switch.
1
V1+ V1-
PWR1 PWR2
V2- V2+
2345
Connecting the RJ45 Ports
NOTE: The wire gauge for the terminal block should be in the range from 12 to 16 AWG.
Pin 2 / 4
Positive (+) Pin Negative (-) Pin
Pin 1 / 5
8
EN

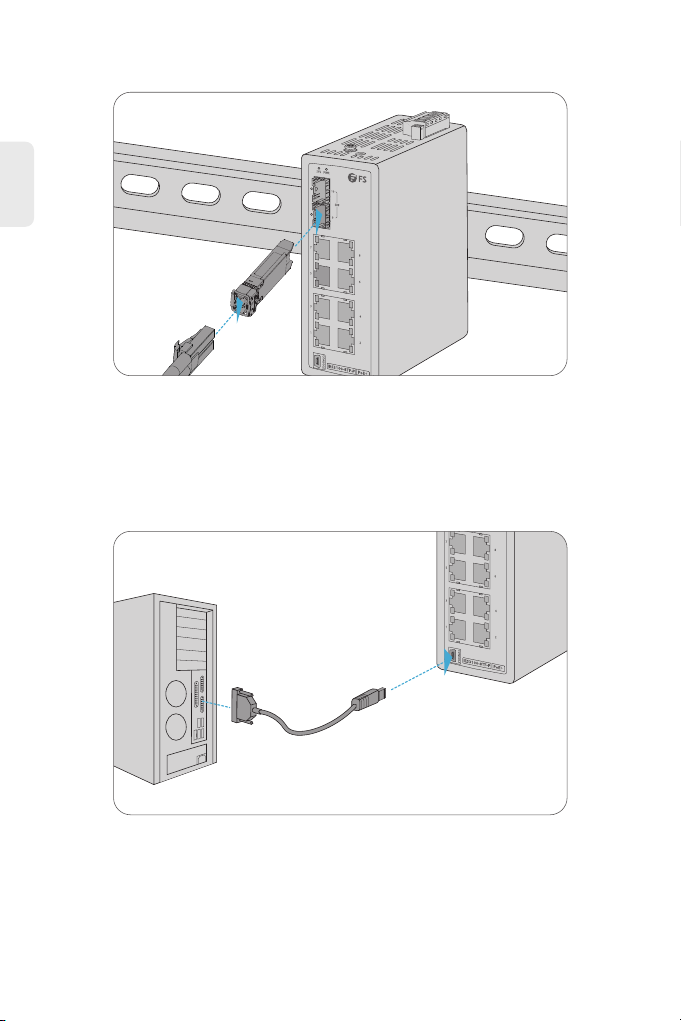

1. Plug the compatible SFP transceiver into the SFP port.
2. Connect a ber optic cable to the ber transceiver. Then connect the other end of the cable to
another ber device.
1. Insert the Mini USB connector into the Mini USB console port on the front of the switch.
2. Connect the DB9 female connector of the console cable to the serial port on the computer.
Connecting the SFP Ports
Connecting the Console Port
9
EN
Step 1: Connect the computer to any RJ45 port of the switch using the network cable.
Step 2: Set the IP address of the computer to 192.168.2.x (“x” is any number from 2 to 255).
Step 3: Open a web browser, enter the default IP address of the switch 192.168.2.1, and enter the
default username and password, admin/admin.
Step 4: Click Login to display the web-based conguration page.
100M/1G/2.5G Port is not Working
1. Ensure the optical module and cable have no problem.
2. Check if the conguration at both ends of the communication device is auto or forced rate.
Connecting the Switch Remotely Unsuccessfully
1. Test network connectivity through ping.
2. If the network is reachable, try restarting the switch.
3. Check if the corresponding service is enabled.
The Port is not Working, the LED Indicator is O
1. Ensure the switch ports are in the no shutdown state.
2. Check if the switch can read the DDM information.
3. Check if the port speed setting is correct.
4. Try looping the switch cable.
Step 1: Connect a computer to the switch's console port using the console cable.
Step 2: Start the terminal simulation software such as HyperTerminal on the computer.
Step 3: Set the parameters of the HyperTerminal:
9600 bits per second
8 data bits
no parity
1 stop bit
no ow control.
Step 4: After setting the parameters, click Connect to enter.
Conguring the Switch
Troubleshooting
Conguring the Switch Using the Web-based Interface
Conguring the Switch Using the Console Port
