FS S3200 Series Manuel utilisateur
Switch Ethernet Manageable L3
L3 Managed Ethernet-Switch
S3200 Series Switches
L3 Managed Ethernet Switch
V1.0
Quick Start Guide
Quick Start Anleitung
Guide de Démarrage Rapide
S3200-8M4GS-U PoE+
Left LED: Link/Act Mode Right LED: PoE Mode
SYS
PWR
PoE
CONSOLE
1 2 3 4 5 6 7 8
9 10 11 12
10G
1 2 3 4
SYS
PWR
CONSOLE
5 6 7 8
9 10 11 12
S3200-8M4GS Left LED: Link/Act Mode
10G
Introduction
Thank you for choosing S3200 Series Switches. This guide is designed to familiarize you with the layout
of the S3200 Series Switches and describes how to deploy them in your network.
Accessories
S3200-8M4GS-U/S3200-8MG4S
1
EN
Grounding Cable x1
Power Cord x1 Mounting Bracket x2
M4 Screw x8
Rubber Pad x4
Console Cable x1
S3200-8MG4S-U
S3200-8MG4S
1 2 3 4
SYS
PWR
CONSOLE
5 6 7 8
9 10 11 12
S3200-8M4GS Left LED: Link/Act Mode
10G
Left LED: Link/Act Mode Right LED: PoE Mode
SYS
PWR
PoE
CONSOLE
S3200-8M4GS-U PoE+
1 2 3 4 5 6 7 8
9 10 11 12
10G
S3200-8M4GS-U
Hardware Overview
Front Panel Ports
S3200-8M4GS-U
Front Panel LEDs
Port Description
CONSOLE
PoE RJ45
SFP+
A RJ45 console port for serial management
10/100/1000/2.5Base-T ports for Ethernet connection
SFP+ ports for 1/10G connection
Port Description
CONSOLE
RJ45
SFP+
A RJ45 console port for serial management
10/100/1000/2.5Base-T ports for Ethernet connection
SFP+ ports for 1/10G connection
2
EN
PWR
SYS PoE RJ45 PoE SFP+
Left LED: Link/Act Mode Right LED: PoE Mode
SYS
PWR
PoE
CONSOLE
1 2 3 4 5 6 7 8
9 10 11 12
10G
S3200-8M4GS-U PoE+
CON RJ45 SFP+
1 2 3 4
SYS
PWR
CONSOLE
5 6 7 8
9 10 11 12
S3200-8M4GS Left LED: Link/Act Mode
10G
CON RJ45 SFP+
S3200-8M4GS-U PoE+
Left LED: Link/Act Mode Right LED: PoE Mode
SYS
PWR
PoE
CONSOLE
1 2 3 4 5 6 7 8
9 10 11 12
10G
S3200-8MG4S
LED State Description
PWR
SYS
PoE
RJ45
SFP+
Green (Solid) Power is provided to the switch.
The switch is not connect to power or power
failure occurred.
The switch has loaded the agent software code
and is operating normally.
The system operating failure occurred.
The system operating failure occurred.
Total POE budget≧15.4W, to indicate total
budget is sufficient.
Total POE budget<15.4W, early warning total
budget may insufficient.
Total POE budget≦0W, to warn total budget is
empty.
OFF
Green (Blinking)
Green (Solid)
OFF
Green (Solid)
Yellow (Solid)
Red (Solid)
The port is linked and the bandwidth could be
10M/100M/1000M/2500M.
The port is linked and there is data activity.
No link.
The port is supplying power to PD device.
The port is not connecting to PD device.
Link/act
Green (Solid)
Green (Blinking)
OFF
Green (Solid)
PoE
OFF
Green (Solid)
Green (Blinking)
OFF
The port is linked and the bandwidth could be
100M/1000M/10G.
The port is linked and there is data activity.
No link.
EN
3
1 2 3 4
SYS
PWR
CONSOLE
5 6 7 8
9 10 11 12
S3200-8M4GS Left LED: Link/Act Mode
10G
PWR
SYS RJ45 SFP+
S3200-8MG4S-U/S3200-8MG4S
Back Panel
LED State Description
PWR
SYS
RJ45
SFP+
Green (Solid) Power is provided to the switch.
The switch is not connect to power or power
failure occurred.
The switch has loaded the agent software code
and is operating normally.
The system operating failure occurred.
The system operating failure occurred.
The port is linked and the bandwidth could be
10/100/1000M.
The port is linked and there is data activity.
No link.
OFF
Green (Blinking)
Green (Solid)
OFF
10/100/1000M
Link/act
Yellow (Solid)
Yellow(Blinking)
OFF
The port is linked and the bandwidth is 2.5G.
The port is linked and there is data activity.
No link.
The port is linked and the bandwidth could be
100M/1G/10G.
The port is linked and there is data activity.
2.5G Link/act
Green (Solid)
Green (Blinking)
OFF
Green (Solid)
Green (Blinking)
OFF No link.
Grounding Point
POWER
Before installation, make sure that you have the followings:
Installation Requirements
Phillips screwdriver.
Standard-sized, 19" wide rack with a minimum of 1U height available.
Category 5e or higher RJ-45 Ethernet cables for connecting network devices.
EN
4
Make sure that the relative humidity of installation site is maintained at 10%~90%.
Site Environment:
Make sure that the temperature of installation site is maintained at 0°~50°.
The installation site must be well ventilated. Ensure that there is adequate air flow around the
switch.
Make sure that the switch is level and stable to avoid any hazardous conditions.
Make sure that the rack and working platforms are well earthed.
The installation site must be free from leaking, dripping water or heavy dew.
Keep the installation site dust-free.
Desk Mounting
Mounting the Switch

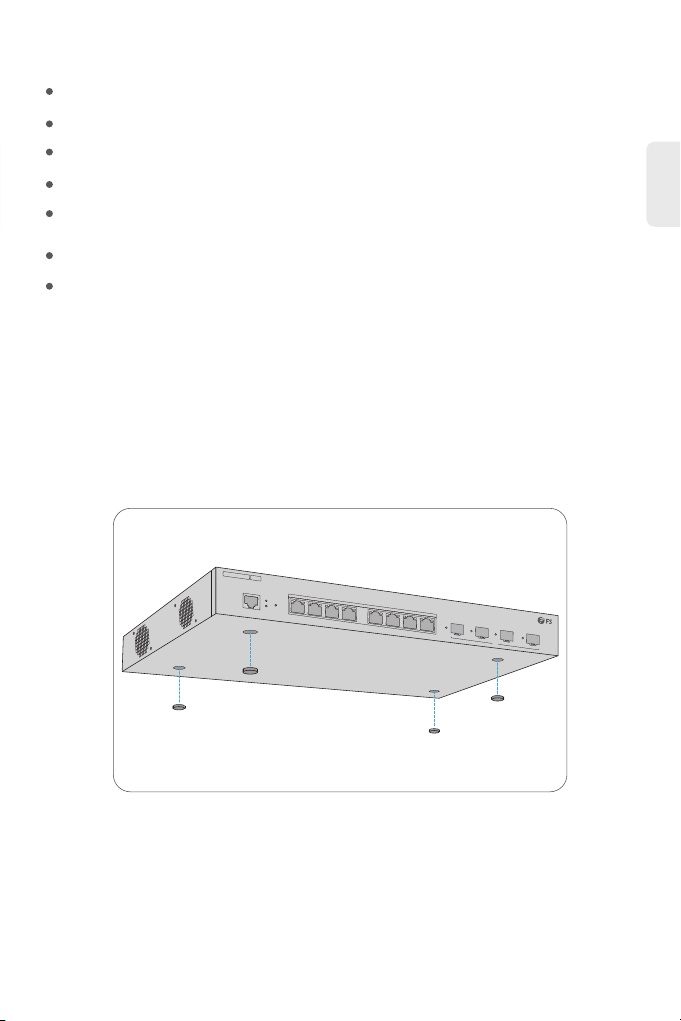

1. Attach four rubber pads to the bottom of switch.
2. Place the switch on a desk.
Left LED: Link/Act Mode RightLED: PoE Mode
SYS
PWR
PoE
CONSOLE
S3200-8M4GS-U PoE+
1 2 3 4 5 6 7 8
910 11 12
10G
EN
5
Left LED: Link/Act Mode Right LED: PoE Mode
SYS
PWR
POE
CONSOLE
S3200-8M4GS-U PoE+
1 2
COMBO
65 87 21 43
On=Link Flashing=ACT Green=1000M Yellow=10/100M
Rack Mounting
1. Fix the mounting brackets to the two sides of the switch with eight M4 screws.
2. Fix the switch to the rack with M6 screws and cage nuts.
NOTE: For wall mounting, you need to turn the mounting brackets to 90°and fix them to the two
sides of the switch. Then mount the switch on the wall.
EN
6
Left LED: Link/Act Mode Right LED: PoE Mode
3 4 5 6 7 8
910 11 12
10G
465 87 109 1211
Left LED: Link/Act Mode Right LED: PoE Mode
SYS
PWR
POE
CONSOLE
S3200-8M4GS-U PoE+
1 2 3 4 5 6 7 8
910 11 12
10G
1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the
switch is mounted.
2. Fix the grounding lug to the grounding point on the back panel of the switch with the washers and
screws.
Grounding the Switch
Connecting the Power
CAUTION: The earth connection must not be removed unless all supply connections have been
disconnected.
EN
7
1. Plug the AC power cord into the power port on the back panel of the switch.
2. Connect the other end of the power cord to an AC power source.
1. Connect one end of an Ethernet cable to the RJ45 port.
2. Connect the other end of the Ethernet cable to another network device.
Connecting the RJ45 Ports
Connecting the SFP/SFP+ Port
WARNING: Do not install power cord while the power is on.
EN
8
Left LED: Link/Act Mode Right LED: PoE Mode
SYS
PWR
PoE
CONSOLE
S3200-8M4GS-U PoE+
1 2 3 4 5 6 7 8
10G
S3200-8M4GS-U PoE+
Left LED: Link/Act Mode RightLED: PoE Mode
SYS
PWR
PoE
CONSOLE
1 2 3 4 5 6 7 8
910 11 12
10G
1. Plug the compatible SFP/SFP+ optical module into the SFP/SFP+ port.
2. Connect one end of a fiber optic cable to the optical module. Then connect the other end of the
cable to another fiber device.
1. Insert the RJ45 connector of the console cable into the console port of the switch.
2. Connect the DB9 female connector of the console cable to the serial port of the computer.
Connecting the CONSOLE Port
WARNING: Laser beams will cause eye damage. Do not look into bores of optical modules or
fiber optical cables without eye protection.
Configuring the Switch
Configuring the Switch via the Web-based Interface
Step 1: Connect the computer to the Management port of the switch using the network cable.
Step 2: Set the IP address of the computer to 192.168.1.x.(“x”is any number from 2 to 254.)
EN
9
Left LED: Link/Act Mode Right LED: PoE Mode
SYS
PWR
PoE
CONSOLE
S3200-8M4GS-U PoE+
1 2 3 4 1 2 3 4
