Front Runner SSDS126 Manuel utilisateur

front runner

SSDS126

ENG

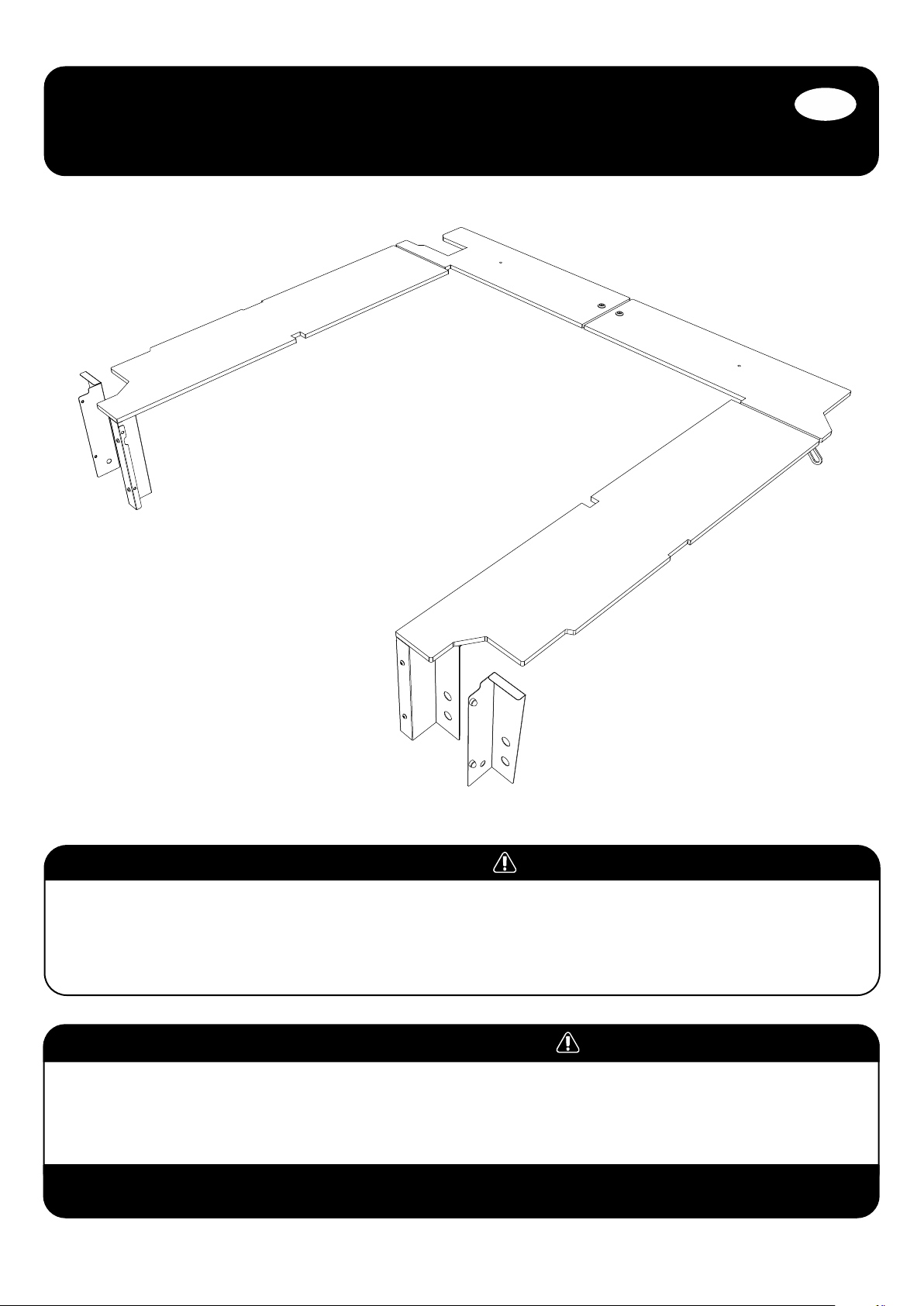

Thank you for purchasing a Front Runner Ford Raptor (2019 - Current) w/Drop-In Bed Liner Deck Completion Set.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

FORD RANGER RAPTOR (2019-CURRENT)

W/DROP-IN BED LINER DECK COMPLETION SET

TOOLS NEEDED

FIGURE 1.1

GET ORGANIZED

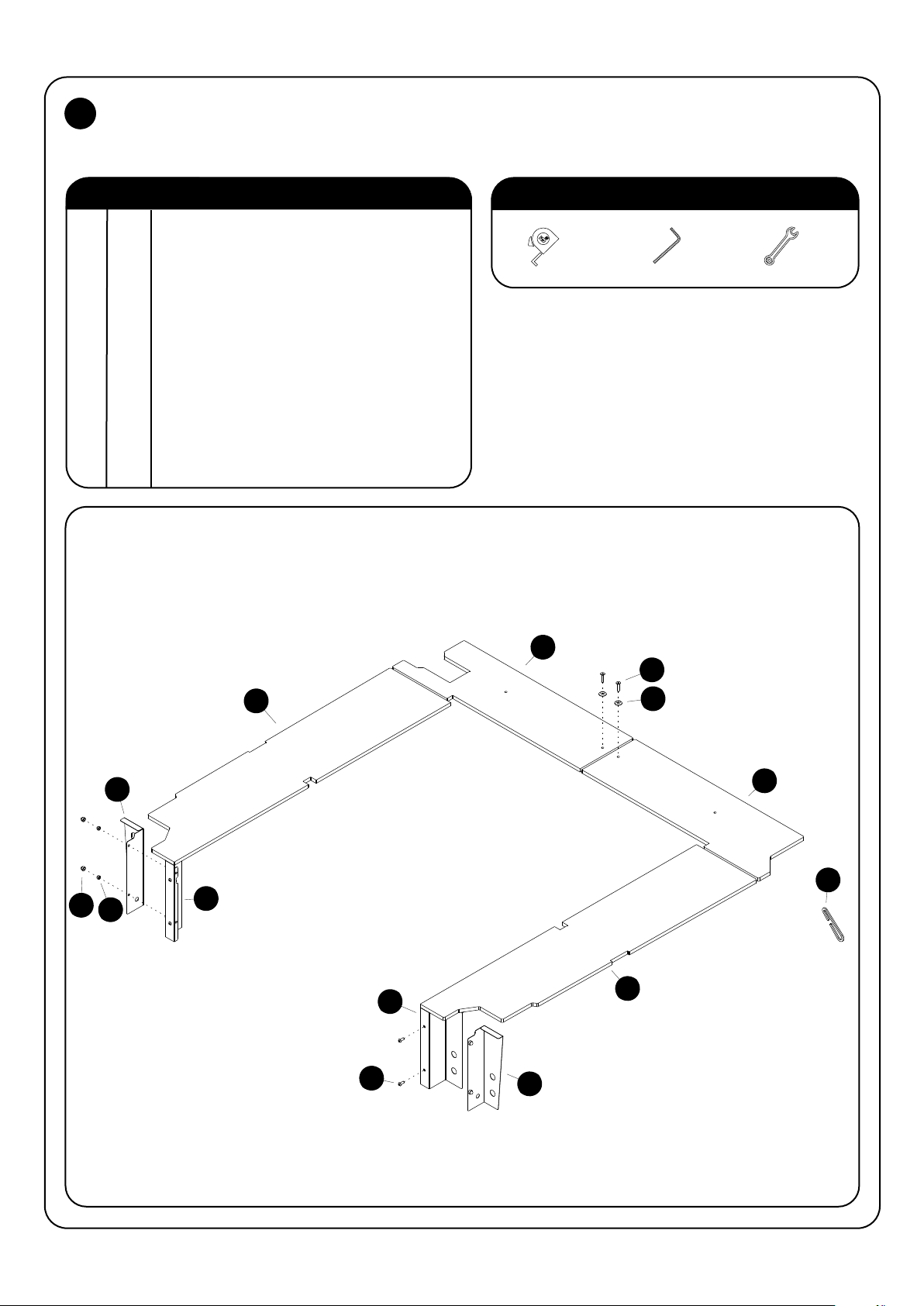

IN THE BOX

1 1 X Rear Left Deck

2 1 X Front Left Deck

3 1 X Front Right Deck

4 1 X Rear Right Deck

5 1 X Front Plate LH Side

6 1 X Front Plate RH Side

7 1 X Face Plate / Narrow LHS

8 1 X Face Plate / Narrow RHS

9 2 X Carb03

10 2 X Finishing Washer M6

11 2 X M6 x 30 CSK Socket Screw

12 4 X M6 x 16 Button head

13 4 X M6 Nyloc Nut

14 4 X M6 Nut Cap

5mm

14 13

FIT AND SECURE

2.1

2.2

2.3

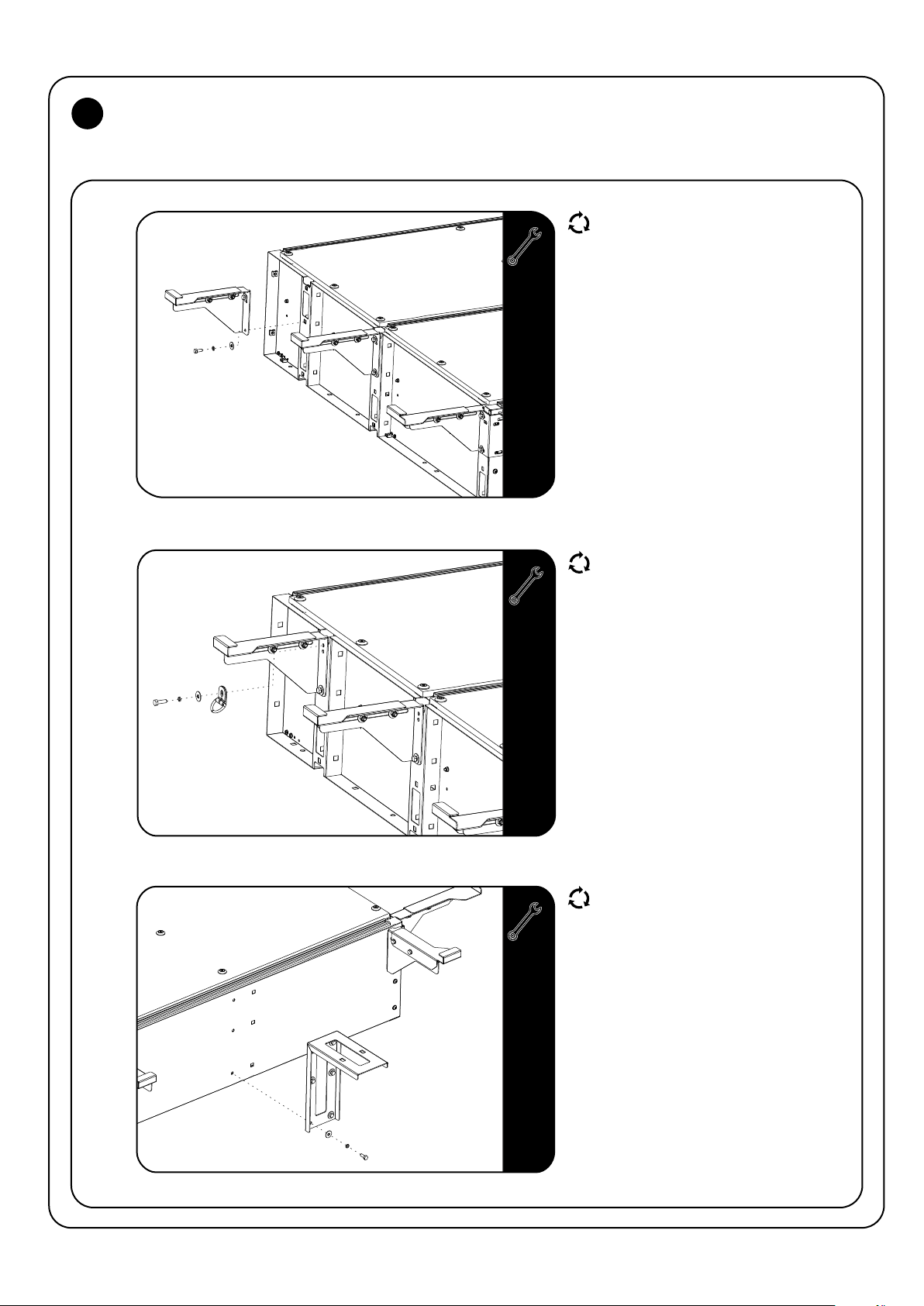

Secure the three LH / RH Side Wings

(SSWS001) to the drawer system, using

M6x20 Hex Bolts, M6 Spring Washers &

M6x19 Flat Washers.

Secure the D-Rings, using the fasteners

supplied with the drawer system (SSDR010)

as shown. Two on the right and two on the

left hand side.

Secure the Rear Wing Sets as shown, using

M6x20 Hex Bolts, M6 Spring Washers &

M6x19 Flat Washers.

10mm

FIT AND SECURE2

2.4

2.5

2.6

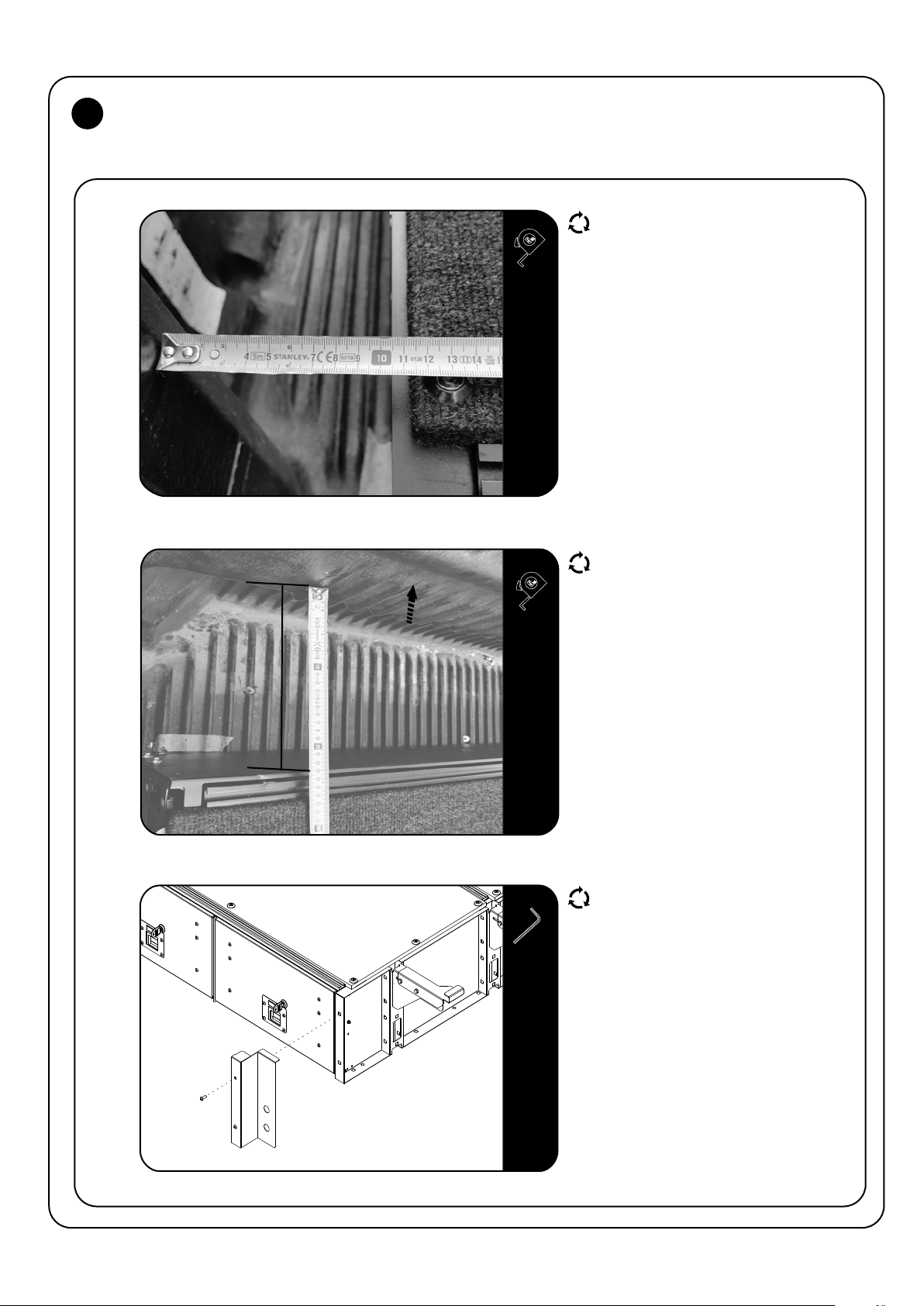

Center the drawer in the load bed.

Position the drawer 230mm from the back of

the cab as shown.

Secure the two Face Plates LH / RH

(Item 5 & 6) to the drawer using four M6x12

Button Head Screws (Item 12).

4mm

230mm

CAB

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutﬁtters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

FIT AND SECURE

2.7

2.8

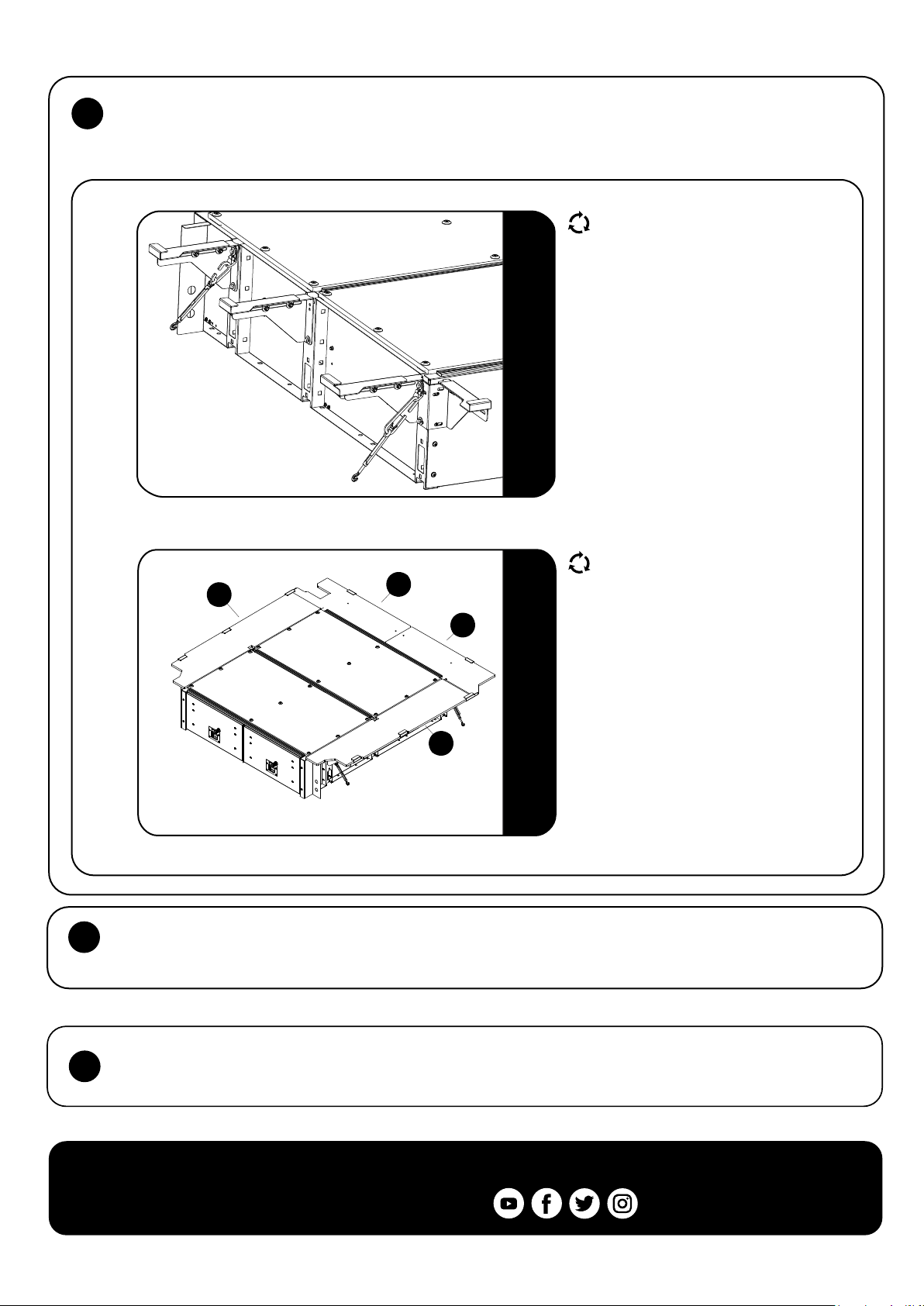

Secure the Drawer System in position using

the Turnbuckles (supplied with SSDR010)

and Carabiner (Item 9) as shown.

Place the relevant deck sets in place as

shown, making sure that you slide it into

the C-clip of the Side Wings.
