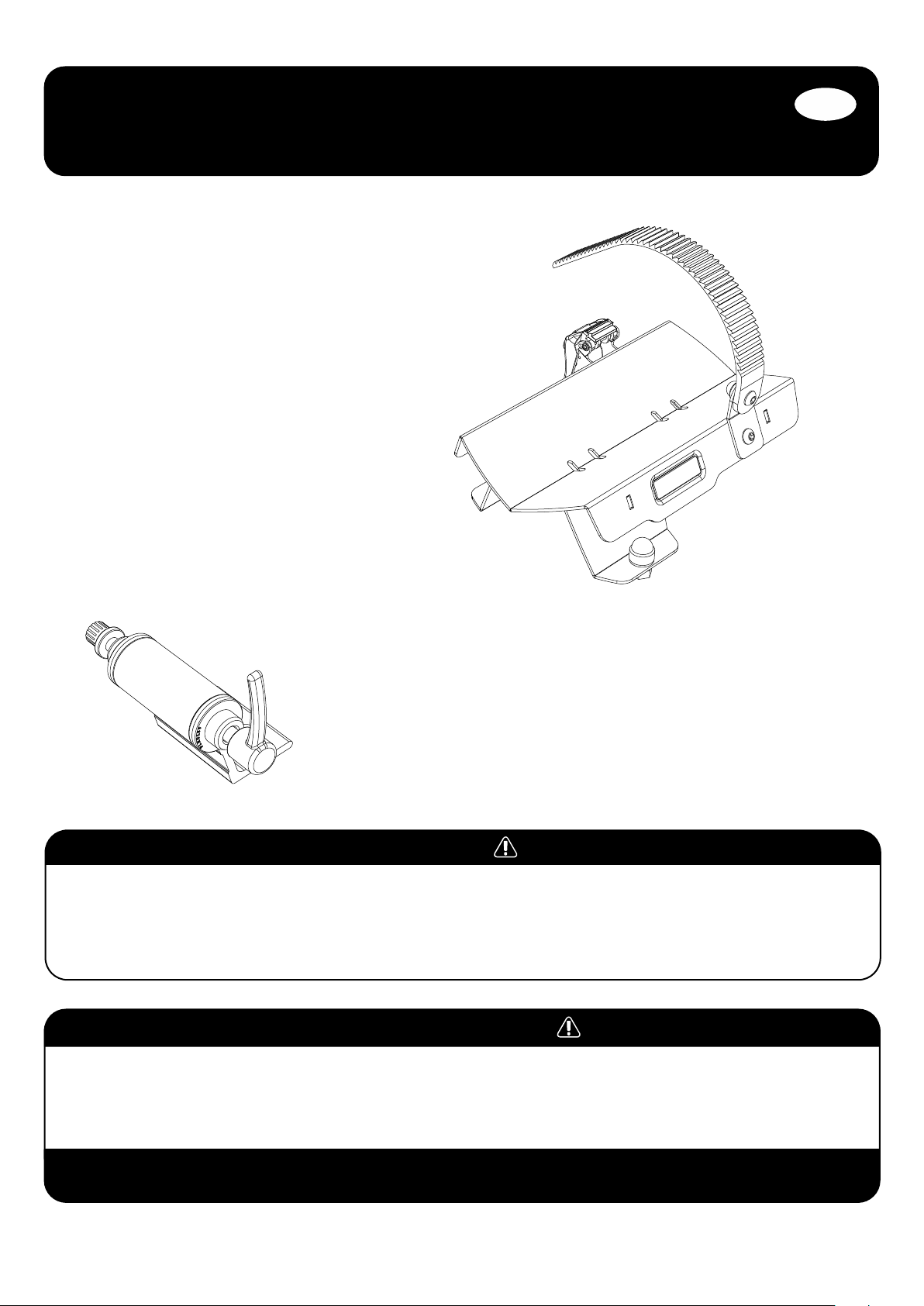

Front Runner RRAC189 Guide de démarrage rapide

Fork Mount

Bike Carrier /Power Edition

RRAC189

ENG

Thank you for purchasing a Front Runner Fork Mount Bike Carrier / Power Edition.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

front runner

TOOLS NEEDED

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED

IN THE BOX

1 1 X Bike Rear Wheel Holder

2 1 X Thru Axle Bracket (68mm)

3 2 X Quick Release 9mm Insert

4 1 X Fork Mount Holder Quick Release

5 4 X M8 x 20 Hex Head Bolt

6 4 X M8 Nyloc Nut

7 4 X M8 Nut Cap

8 2 X M6 x 16 Button Head Bolt

9 2 X M6 Nyloc Nut

10 2 X M6 Nut Cap

11 1 X Angled Bracket

12 1 X Strap 300mm

4mm

5mm

10 9

10mm

13mm

RRAC189_REV_A00

FIT AND SECURE

4MM

2.1

2.2

2.3

13MM

Mounting to a SLII Rack

Mounting to a Load Bar

10MM

Assemble the Quick Release 9mm Insert to

the Thru Axle Bracket (Item 2 & 3) as shown

in ﬁg 1.1. Decide where you want to mount

your bicycle on the rack. Figure out the

correct spacing between the fork and rear

wheel. To ﬁt the Thru Axle Extrusion (Item

2), slide two M8 x 20 Hex Bolts (Item 5) into

the T-slot of the choosen slat. Place the Thru

Axle Bracket (Item 2) over the two Hex bolts

and secure to the rack using two M8 Nyloc

Nuts (Item 6) This will apply to Load Bars

as well. Mount the Rear Wheel Mounting

Bracket (Item 1) to a slat / combined slat as

shown. Slide two M8 x 20 Hex Bolts (Item 5)

into the chosen slat / combined slat. place

the Bracket over the Hex Bolts and line up

the Bracket with the center of the Thru Axle

Bracket. Secure the Rear Wheel Bracket to

the rack using M8 Nyloc Nuts (Item 6). Place

M8 Nut caps over all Hex Bolts.

Assemble the Quick Release 9mm Insert to

the Thru Axle Bracket (Item 2 & 3) as shown

in ﬁg 1.1. Figure out the correct spacing

between the fork and rear wheel. To ﬁt the

Thru Axle Extrusion (Item 2), slide two M8

x 20 Hex Bolts (Item 5) into the T-slot of the

choosen slat. Place the Thru Axle Bracket

(Item 2) over the two Hex bolts and secure

to the Load Bars using two M8 Nyloc Nuts

(Item 6). Mount the Rear Wheel Mounting

Bracket (Item 1) to the rear slat as shown.

Slide two M8 x 20 Hex Bolts (Item 5) into

the front slat. Place the Bracket over the

Hex Bolts and line up the Bracket with the

center of the Thru Axle Bracket. Secure the

Rear Wheel Bracket to the Load Bars using

M8 Nyloc Nuts (Item 6). Place M8 Nut caps

over all Hex Bolts.

If the Strap (Item 12) needs to be length-

ened, use the Angle Bracket (Item 11).

Loosen the Strap and secure the Angle

Bracket to the Rear Wheel Mounting Bracket

(Item 1) using the existing fasteners.

Secure the Strap to the Angle Bracket

(Item 11) using M6 x 16 Button Head and

M6 Nyloc Nut (Items 8 & 9).

Place M6 Nut Caps (Item 10) over all M6

Nyloc Nuts.

13MM

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutﬁtters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

Assemble the Quick Release 9mm Insert

to the Thru Axle Bracket (Item 2 & 3) as

shown in ﬁg 1.1. Decide where you want to

mount your bicycle on the rack. Figure out

the correct spacing between the fork and

rear wheel. To ﬁt the Thru Axle Extrusion

(Item 2), slide two M8 x 20 Hex Bolts (Item

5) into the T-slot of the choosen slat. Place

the Thru Axle Bracket (Item 2) over the two

Hex bolts and secure to the rack using two

M8 Nyloc Nuts (Item 6). Mount the Rear

Wheel Mounting Bracket (Item 1) to a slat

as shown. Slide two M8 x 20 Hex Bolts (Item

5) into the chosen slat. place the Bracket

over the Hex Bolts and line up the Bracket

with the center of the Thru Axle Bracket.

Secure the Rear Wheel Bracket to the rack

using M8 Nyloc Nuts (Item 6). Place M8 Nut

caps over all Hex Bolts.

Mounting to a Slimsport Rack

2.4
