Front Runner BRONCO TBRA040 Manuel utilisateur

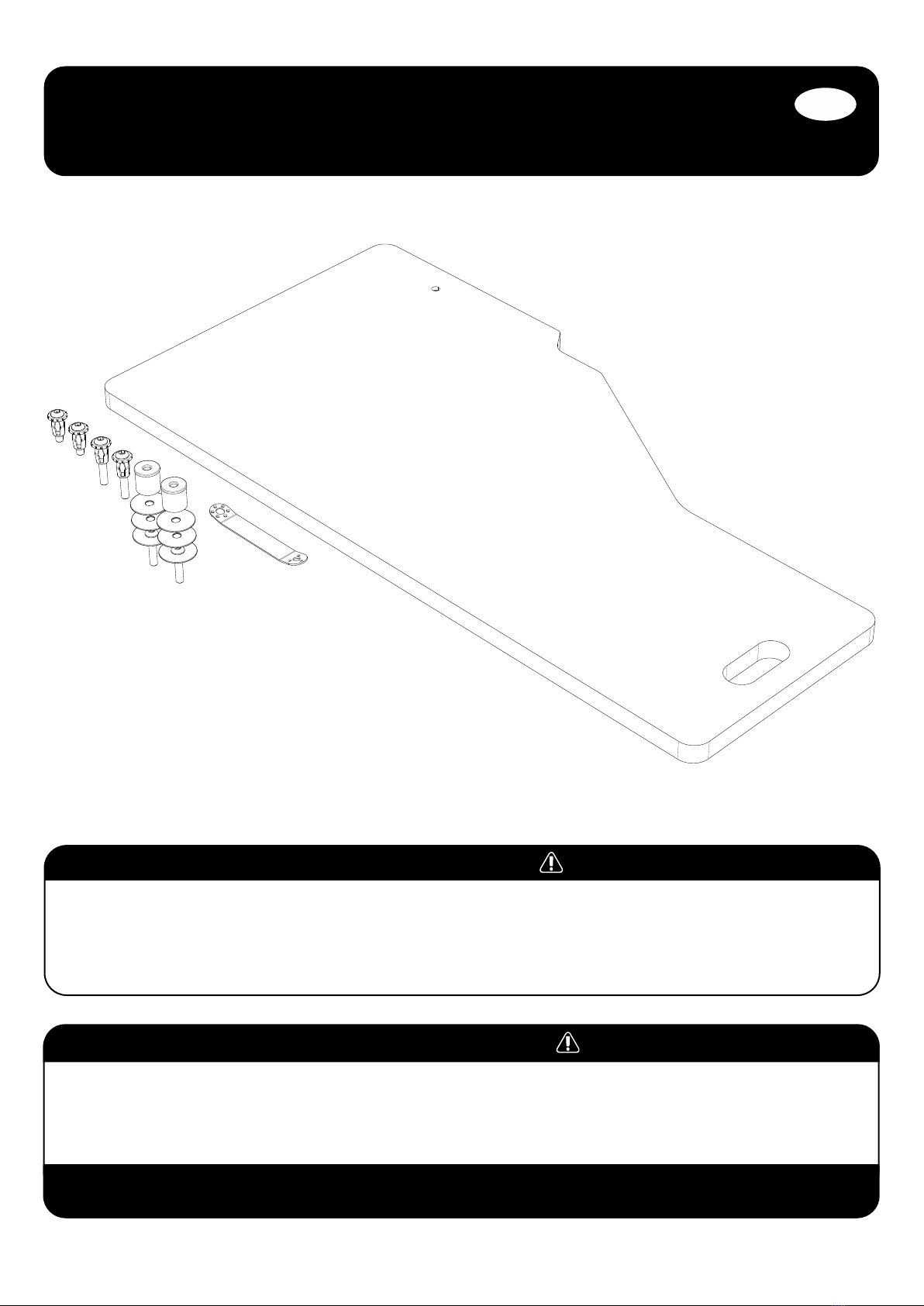

Bronco Wood Tray Extension

for drop down table

front runner

TBRA040

ENG

Thank you for purchasing a Front Runner Bronco Wood Tray Extension For Drop Down Table.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME!

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

TOOLS NEEDED

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

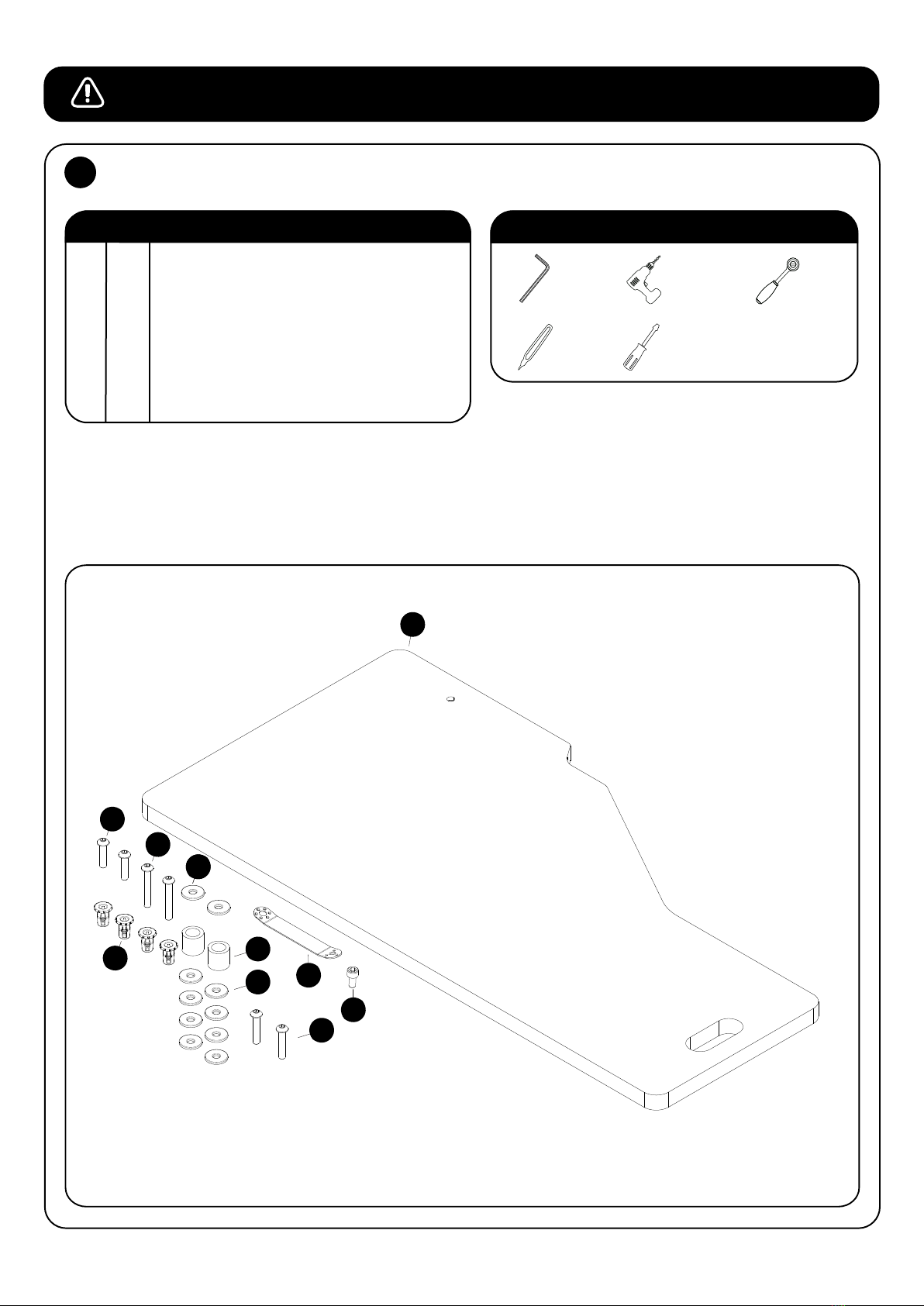

GET ORGANIZED

IN THE BOX

1 1 X Tray Extension

2 2 X M6 x 25 Button Head Bolt

3 2 X M6 x 40 Button Head Bolt

4 8 X M6 x 20 x 2 Flat Washers

5 1 X M6 x 12 Cap Screw

6 3 X M6 Jack Nuts

7 1 X Jack Nut Tool

8 2 X M6 x 30 Button Head Bolt

9 2 X Aluminium Spacers

6mm

4mm

12mm (15/32) 10mm (3/8)

5mm (3/16)

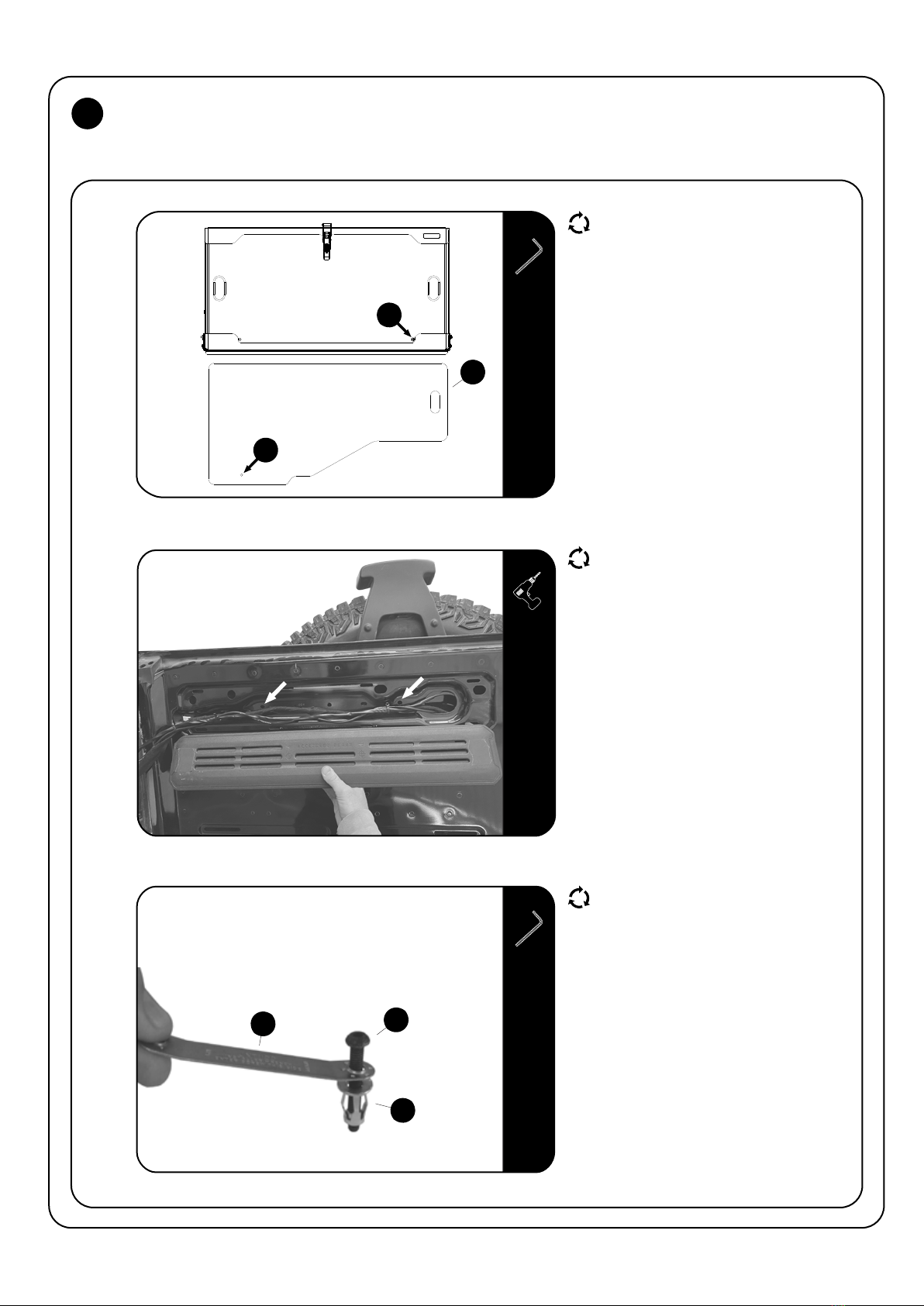

FIT AND SECURE

2.1

2.2

2.3

6mm

4mm

5mm

12mm

Remove the Tray Extension supplied with

TBRA034 by removing Bolt (A) as shown.

Insert the Tray Extension (Item 1) supplied

with TBRA040 in the orientation shown

and use the M6 x 12 Cap Screw (Item 5) to

secure the Tray Extension to the table

Remove the rear plastic cover as shown.

Open the holes shown in 2.2 to a 12mm hole.

Insert a M6 x 30 Button Head Bolt (Item 8)

into the Jack Nut Tool (Item 7) and loosely ﬁt

a Jack Nut (Item 6) to the button head bolt as

shown.

Using the Jack Nut Tool and a M6 x 30 button

head bolt, set the M6 jack nut into both the

holes, opened in step 2.2.

Using a cordless driver and a 4mm allen

cordless bit, set the jack nut into the hole

while holding the Jack Nut Tool, to prevent

the Jack Nut from turning.

Secure the Table using M6 x 25 Button

Head Bolts (at the bottom), M6 x 40 Button

Head Bolts (at the top), M6 Spring Washers

(Supplied with TBRA034), M6 x 20 x 2

Flat Washers and Aliminium Spacers

(Items 2, 3, 4 & 9).

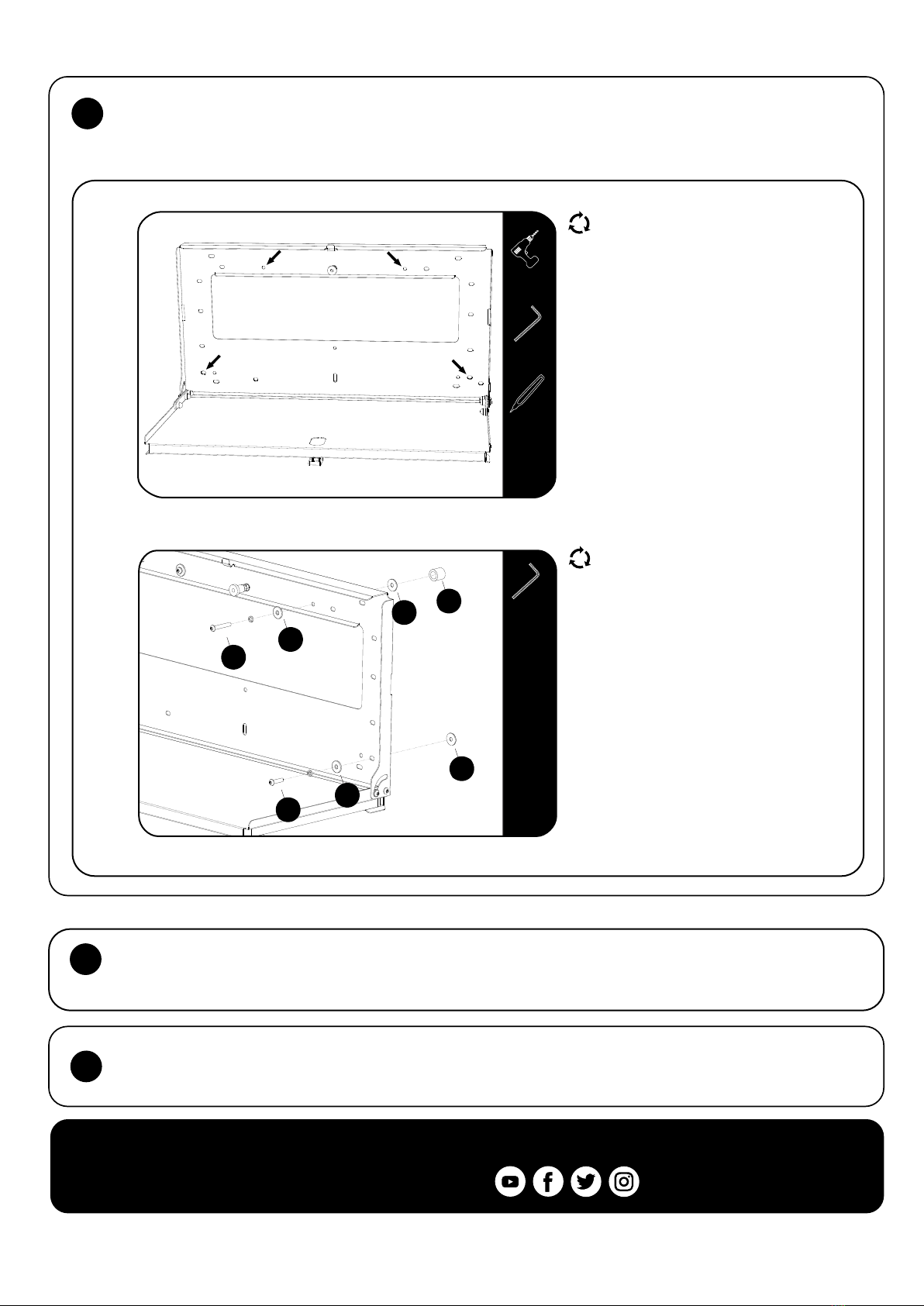

FIT AND SECURE

2.4

2.5

4mm

(A) (A)

(B) (B)

Secure the table to the door using mounting

holes (A) and M6 x 25 Button Head Bolts,

M6 x 30 x 1 Flat Washers and Aluminium

Spacers (Items 2, 5 & 9).

Mark Holes (B) as indicated and remove the

table from the door

First drill a 5mm pilot hole on the marks you

made and then open up to a 12mm and repeat

step 2.3.

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutﬁtters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

5mm

12mm
