Frigidaire FGB24T3E C Manuel utilisateur

FGB24T3EC.eps CFGB24T3ESA.eps LA00BR84410-1.eps BFGB24T3ESC.eps

DFGB24T3ECA.eps 318046309.eps

Bake

Broil

Timer

On/Off

Clear

Off

Clock

Set

Product No. FGB24T3ECD

38454413B50S4

Series 24" double gas

Color stainless

Market North America

Wiring Diagram 318046309

Owner's Guide 318200958

Installation Instructions 318201554

Timer Guide 318200144

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995491437

07/05/24

(EN/SERVICE/BJH)

377

DOUBLE GAS WALL

OVEN

Model No.

FGB24T3E

Publication No: 5995491437 FGB24T3ECD

05/07 2

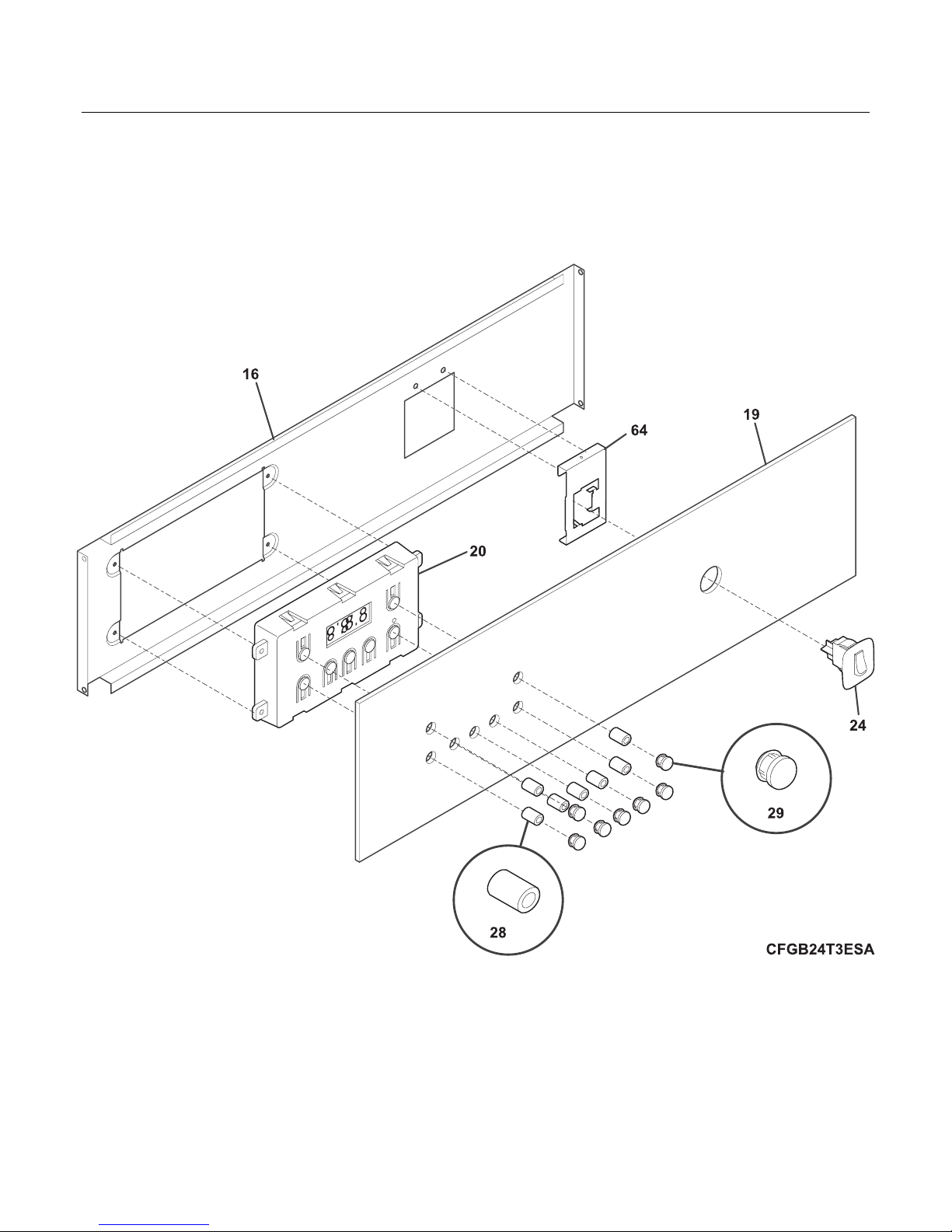

CONTROL PANEL

FGB24T3ECD Publication No: 5995491437

# Functional Parts 3 05/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

16 318116906 Plate, instrument mtg

19 318212505 Glass, control panel, black

20 # 316455461 Clock/Timer, electronic, ES100

* 08016432 Screw, truss head, 8-18 x 0.375

24 # 316090900 Switch, oven light, black

28 5304410865 Tube, timer knob

29 318017711 Knob, clock/timer, black

64 318110700 Bracket, light switch

* 5303211311 Screw, 8 x 0.500

Publication No: 5995491437 FGB24T3ECD

05/07 4

BURNER

FGB24T3ECD Publication No: 5995491437

# Functional Parts 5 05/07

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

14 # 5303210167 Regulator, pressure

17 # 5303210156 Valve, safety

18 # 5303207603 Burner, oven

20 5303317122 Baffle, oven burner

21 3201885 Nut, Keps, 10-24

26 # 318177710 Ignitor, oven burner

28 # 5303295305 Valve, shut off

49 5303317124 Bracket, safety valve

59 5303317123 Bracket, safety valve, support

64 5303295303 Retainer, oven burner

* 5303211311 Screw, 8 x 0.500

* 5303311333 Screw, 8-32 x 3/8

* 5303323135 Screw, 10 x 1-7/8

Publication No: 5995491437 FGB24T3ECD

05/07 6

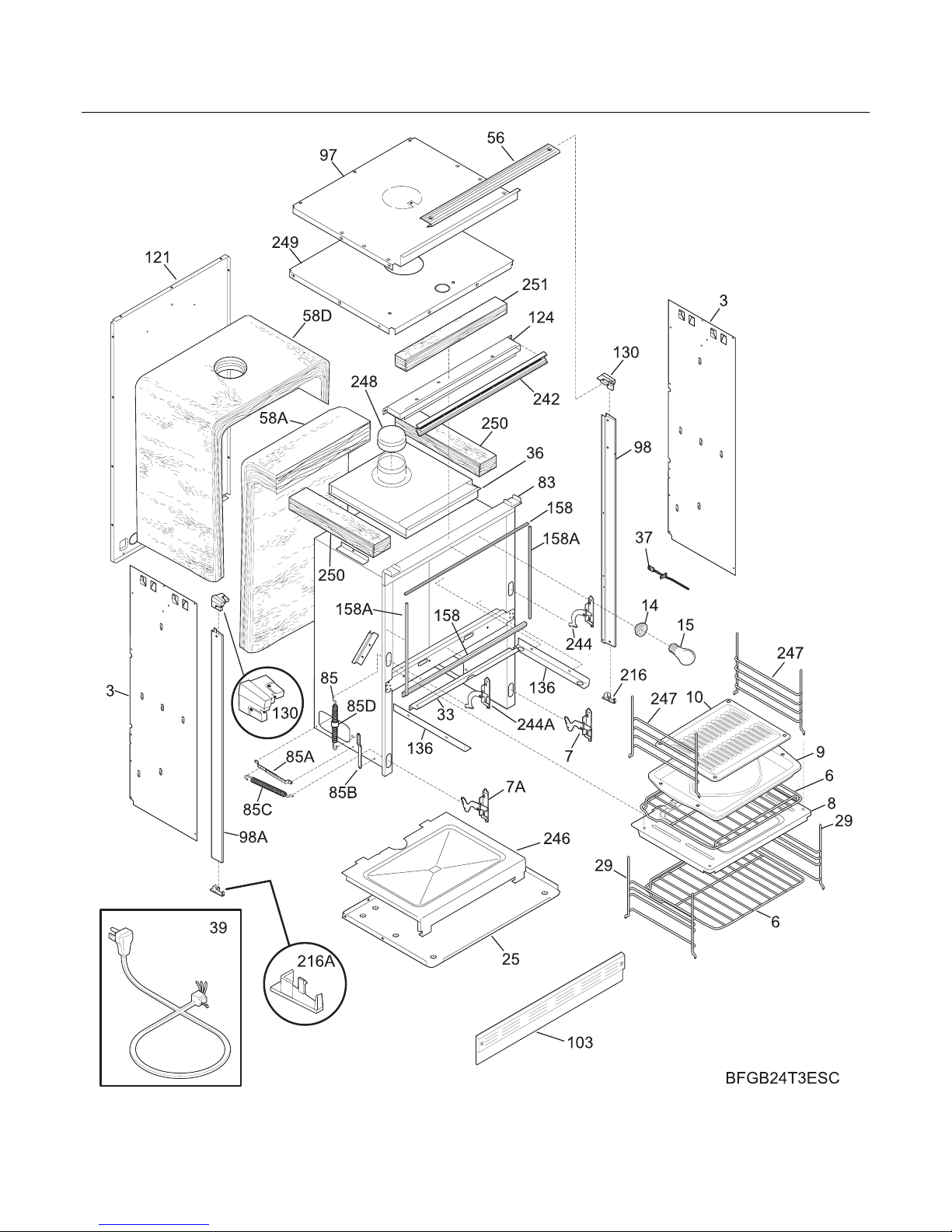

BODY

FGB24T3ECD Publication No: 5995491437

# Functional Parts 7 05/07

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

3 5303317132 Wrapper, side, outer

6 318345800 Rack, oven, upper & lower, (3)

7 5303298313 Hinge Assy, RH lower

7A 5303298312 Hinge Assy, LH lower

8 318136500 Panel, oven bottom

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

25 5303317712 Shield, heat, lower

29 5303209887 Glide, broiler rack

33 5303317128 Shield, heat

36 5303298341 Flue

37 # 316217005 Probe, oven temp

39 318144008 Cord, service

56 318028200 Trim, oven top

58A 318285007 Insulation, oven back

58D 318285008 Insulation, oven wrapper

83 318109511 Liner, oven assy

85 5303317711 Spring, oven door, lower

85A 318113300 Bracket, door spring, lower

85B 5303317126 Bracket, door spring, upper

85C 5303207651 Spring, oven door, (1)

85D 318166900 Sleeve, door spring

97 5303317130 Wrapper, top, outer

98 318029001 Trim, bodyside, black, RH

98A 318029000 Trim, bodyside, black, LH

103 5303316735 Trim, base, black, lower

121 5303317131 Wrapper, back

124 318076801 Box, horizontal flue

130 318034600 Cap, end top, black, (2)

136 5303317129 Angle, rack guide

158 5303207644 Seal, door, black, top broiler

158A 5303295311 Seal, side, bake oven

216 318034500 Cap, end bottom, black, RH

216A 318034501 Cap, end bottom, black, LH

242 318027200 Trim, center, black

244 5303205940 Hinge Assy, oven door, RH upper

244A 5303205939 Hinge Assy, oven door, LH upper

246 318133600 Panel, oven bottom

247 3018717 Glide, oven rack

248 5303317121 Cap, flue

249 5304400385 Wrapper, top, inner

250 318285042 Insulation, 3" X 2" X 17.5", (2)

251 318285048 Insulation, 2"X 2.5"X 21.5"

* 318232522 Wiring Harness, main

* 5304400429 Screw (8-18 X 1 )

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (2)

* 5303311333 Screw, 8-32 x 3/8

Publication No: 5995491437 FGB24T3ECD

05/07 8

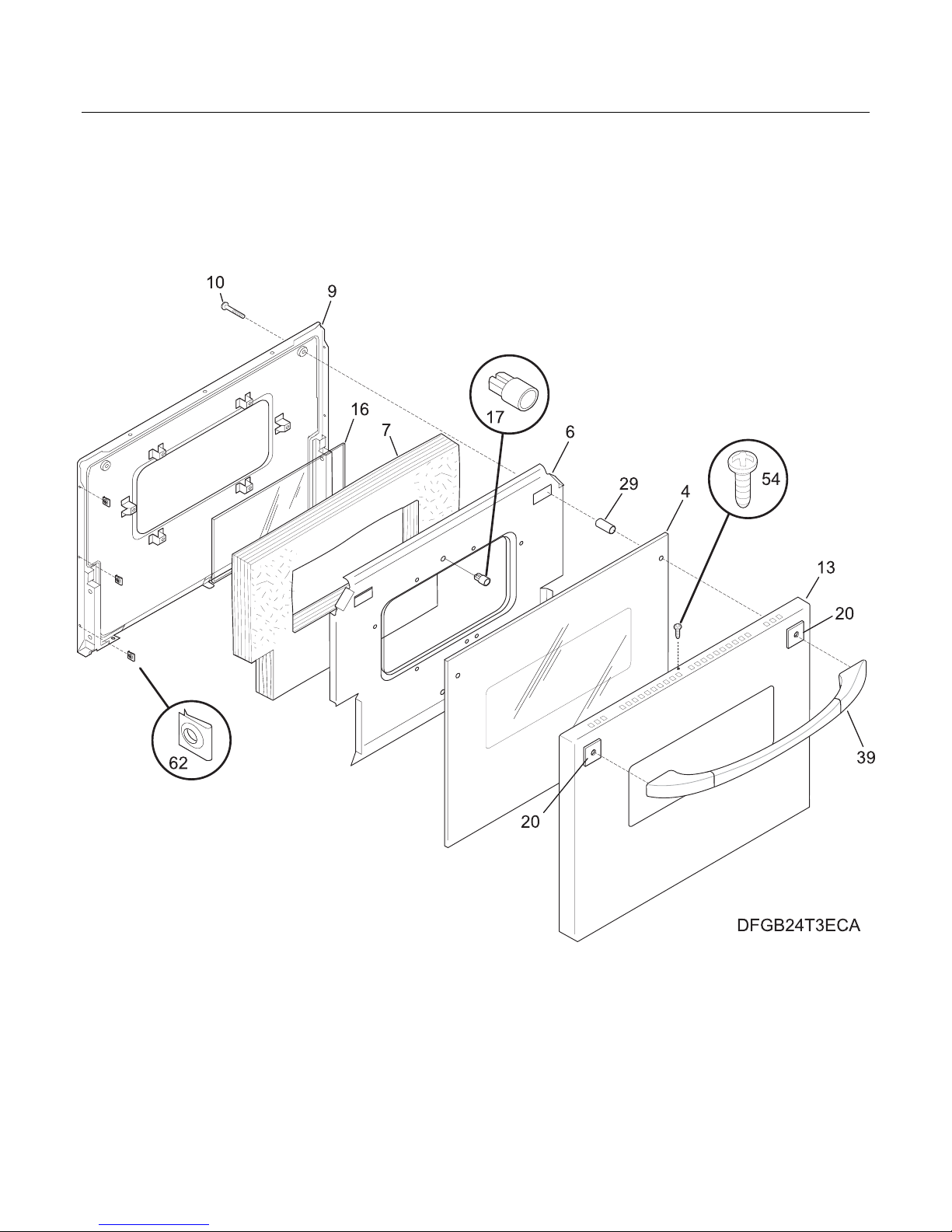

DOOR

FGB24T3ECD Publication No: 5995491437

# Functional Parts 9 05/07

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

4 318178504 Glass, door, black, outer

6 318116600 Shield, wool

7 318285009 Insulation, oven door

9 318048901 Liner, oven door

10 5304416408 Screw, 10-24 x 1.750, handle mtg

13 318328400 Panel, exterior door, stainless

16 318042310 Glass, door, heat barrier

17 5304400397 Fastener, spacer

20 5303300175 Spacer, handle, black

29 318014401 Spacer, door

39 318186101 Handle, door, black

54 5303308456 Screw, 8-18 x 0.531, black

62 08010463 Fastener, clip

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303311333 Screw, 8-32 x 3/8

Publication No: 5995491437 FGB24T3ECD

05/07 10

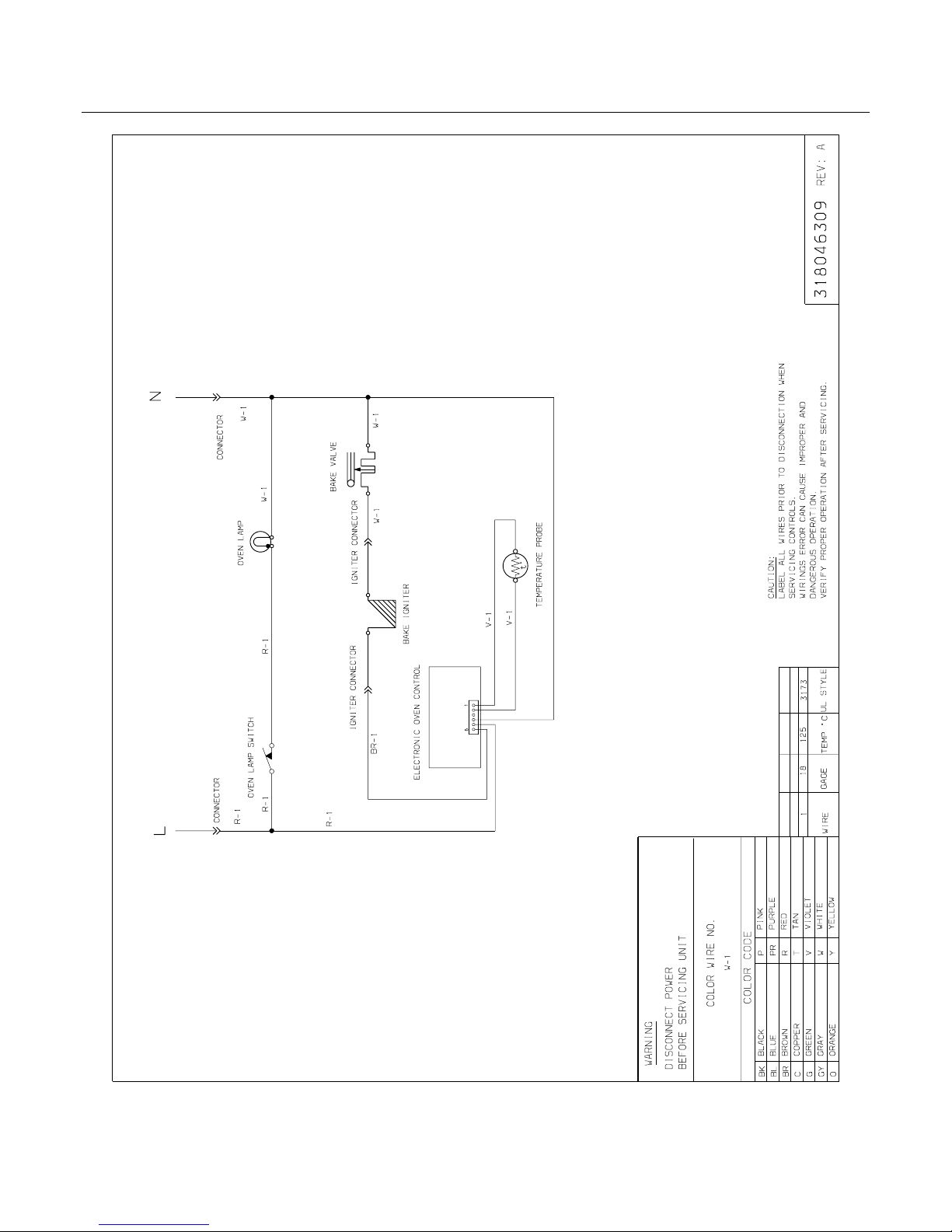

WIRING DIAGRAM
