Frigidaire FPEW3085KFA Control Mode d’emploi

FPEW3085KF.tif CFPEW3085KFA.eps BFPEW3085KFA.eps DFPEW3085KFA.eps

318046266.eps

Product No. FPEW3085KFA

38257373C90S1

Series 30" single

Color stainless

Market North America

Wiring Diagram 318046266

Owner's Guide 318205305

Installation Instructions 318201532

Service Data Sheet 318047448

Timer Guide 318204125

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995539854

09/05/08

(EN/SERVICE/ECL)

377

30” SINGLE ELECTRIC

WALL OVEN

Model No.

FPEW3085KFA

Publication No: 5995539854 FPEW3085KFA

05/09 2

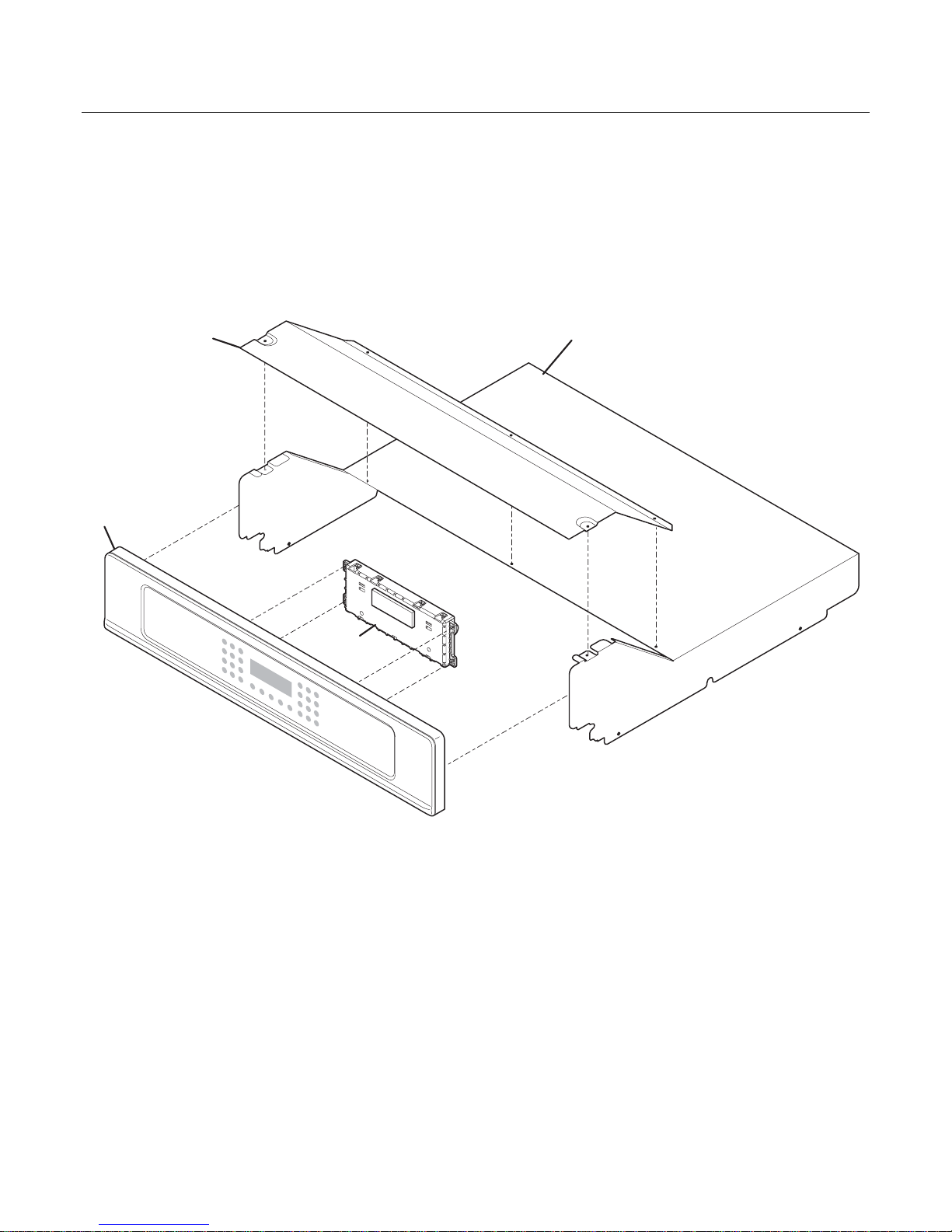

CONTROL PANEL

2B 2A

CFPEW3085KFA

FPEW3085KFA Publication No: 5995539854

# Functional Parts 3 05/09

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 # 318575100 Panel Assembly, control, stainless, w/overlay-trim

20 # 316560148 Controller, electronic, ES530W3

20* 5303311306 Screw, 8-18 x 0.375, (6)

* 5304436875 Screw, 8-18 X 1/2, black

* 5304454881 Screw, #8-18 x 3/8

Publication No: 5995539854 FPEW3085KFA

05/09 4

BODY

119

143

272

161 111

111

109

125

107

58B

264

131

132

58D

133

108

108A

185

163

142

58A

127

BFPEW3085KFA

185

56A

FPEW3085KFA Publication No: 5995539854

# Functional Parts 5 05/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259224 Back, main

2 318258957 Shield, insulation, upper

6 318922301 Rack, oven

6A 318926803 Rack, half, oven

6B 318919801 Rack, oven

6C 318929702 Insert, half rack

7 318368300 Pin, locking, (2)

9 5303317977 Pan, broilerOPTIONAL ACCESS0RY

10 5303317976 Insert, broiler panOPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

18 318222400 Housing, oven light

18* 318368500 Seal, housing, flat washer, lower oven

20 318389400 Plate, retainer

21 318389000 Seal, ring

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

56 318903704 Trim, side, black, RH

56A 318903705 Trim, side, black, LH

57 318361610 Panel, service

58 318330501 Insulation, service panel, 12.47 x 14.77

58A 318536600 Insulation, wrapper, top and sides

58B 318926906 Insulation, wrapper, back and bottom

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072577 Duct, oven vent

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255800 Element, broil, 4000W

67 # 318601601 Element, hidden bake, upper oven

* # 318231870 Wiring Harness, bake element

* 5303323130 Screw, 8 x 1/4, (5)

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056292 Front, oven

80 5303320846 Plate, oven mtg

* 5304400794 Screw, handle mtg, 10-32 x 3/4

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258730 Shield, insulation, lower

83 318261438 Liner, oven assy

86 318561100 Receptacle, hinge, (2)

86* 5304461333 Screw, 10-32 x 17/32

87 318260600 Bracket, cable mtg.

* 5303323136 Screw ground

89 # 318261215 Motor, latch assy

Publication No: 5995539854 FPEW3085KFA

05/09 6

BODY

119

143

272

161 111

111

109

125

107

58B

264

131

132

58D

133

108

108A

185

163

142

58A

127

BFPEW3085KFA

185

56A

FPEW3085KFA Publication No: 5995539854

# Functional Parts 7 05/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

* # 318370303 Wiring Harness, latch

90 318259828 Trim, base, stainless

99 318256201 Bracket, side, bottom, (2)

107 318550200 Cover, fan, dual

108# 318073028 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 318399800 Nut, fan retainer

119# 318004902 Switch, thermal

125# 318398200 Motor, fan

125* 318142100 Washer, motor, convection

127 318357001 Adapter Assembly, w/vent tube, and catalyst

131 318272901 Box, vent

132 318003000 Plate, shield

* 5304436875 Screw, 8-18 X 1/2, black

133 318347800 Chimney

142 318123910 Deflector

143 318172904 Support, wire

161# 318535300 Element, convection, duo

163 318531703 Spacer, (4)

185 318531800 Spacer, oven shield, (2)

264 318257723 Trim, oven, black, front

272 318249409 Tube, protector

* # 318394441 Box & wires assy

* # 318532183 Harness, wiring, main

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303323277 Screw, 8-18 X 13/32

* 5303324184 Screw, 8-18 x 5/16, black, (4)

* 5304415832 Screw, 8-18 x 0.406

* 5304470882 Screw, anti-tip, 8 - 5/8, black, (2)

Publication No: 5995539854 FPEW3085KFA

05/09 8

DOOR

4142

DFPEW3085KFA

FPEW3085KFA Publication No: 5995539854

# Functional Parts 9 05/09

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260522 Baffle, door

7 318372000 Insulation, door, (2)

7A 318372002 Insulation, door, (2)

8 316117500 Glass, oven door, heat barrier

9 318360108 Liner, oven door, upper

10 5304472906 Screw, handle mtg, #10-24 x 1.5, (2)

12 318053121 Seal, oven door, upper

13 318927800 Door Assembly, outer, steel/glass, stainless/black, w/badge

16 318212210 Glass, oven door, heat barrier, lower door

17 318264710 Spacer, glass, lower, (2)

23 318567100 Hinge, upper, oven door, (2)

* 5304461333 Screw, 10-32 x 17/32

39 316551500 Handle, door, stainless

40 318242702 Bracket, glass holder, door, (2)

41 318370600 Bracket, glass retainer, (2)

42 318382301 Bracket, glass retainer, (4)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer

* 5303300265 Screw, 8-18 X 1/2, (4)

Publication No: 5995539854 FPEW3085KFA

05/09 10

WIRING DIAGRAM
