Foxconn 661MXPro Fiche technique
1
Easy Installation Guide
P/N:91-185-661-GX-0E
661MXPro Motherboard Layout
Remark:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
184-pin DIMM Slots
ATXPower
Connector
ATA 66/100/133
IDE Connectors
SYSFANConnector
Clear
CMOS Jumper
FrontPanelConnector
12VATXPower
Connector
FrontAudio Connector
SPDIF_OUT
Connector(optional)
SiS 661 Chipset
CD-IN Connector
IrDAConnector
(optional)
Speaker Connector
478-pinCPU Socket
FDD Connector
PCIExpansionSlots
8XAGPSlot
USB2.0Connector
SiS963LChipset
CPU FAN Connector
CPU Model Selection
Jumper
2
PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
This 25-pin port connects a parallel printer, a scanner, or other devices.
VGA Port (optional)
The VGA port is for output to a VGA-compatible device.
USB 2.0 Ports
These four Universal Serial Bus (USB) ports are available for connecting USB 2.0
devices.
LAN Port (optional)
This port allows connection to a Local Area Network (LAN) through a network hub.
Line-in jack, Line-out jack, Microphone jack
Use the three audio ports to connect audio devices. The Line-in jack is for a tape
player or other audio sources. The Line-out jack is for a headphone or a speaker.
The Microphone jack is for a microphone. In 6-Channel mode, the function of the
three jacks becomes Rear Speaker Out, Front Speaker Out and Center/Subwoofer
Speaker respectively.
2
5
3
6
1
Serial Port
(COM1) VGAPort
(optional) USB 2.0 Ports
PS/2Mouse
Connector
Parallel Port
(Printer Port) LAN Port
(optional)
Line-injack
Line-out jack
Microphone
jack
1
4
5
8
PS/2 Keyboard
Connector
3
2
8
4
6
7
7
661MXPro Rear Panel
3
Thanks for your purchasing Foxconn’s 661MXPro series motherboard. Please
carefully check the package; if there are any missing or damaged items, contact
your distributor as soon as possible.
661MXPro motherboard (x1)
Foxconn Utility CD (x1)
Easy Installation Guide (x1)
IDE Ribbon cable (x1)
FDD Ribbon cable (x1)
I/O Shield (x1)
Accessory Checklist
CPU/ Memory Support Features
CPU:
Supports Intel®Pentium ®4 socket 478 (Willamette/Northwood/Prescott) pro-
cessors
Supports Intel®Celeron ®socket 478 (Willamette/Northwood) processors
Supports FSB at 400MHz/533MHz
Overclock to 800MHz
Memory:
Two 184-pin DIMM slots
Supports 266/333/400MHz Single Channel DDR DRAM interface
Supports 128/256/512/1024 Mb memory technology up to 2.0GB
Supports unbuffered non-ECC RAM
4

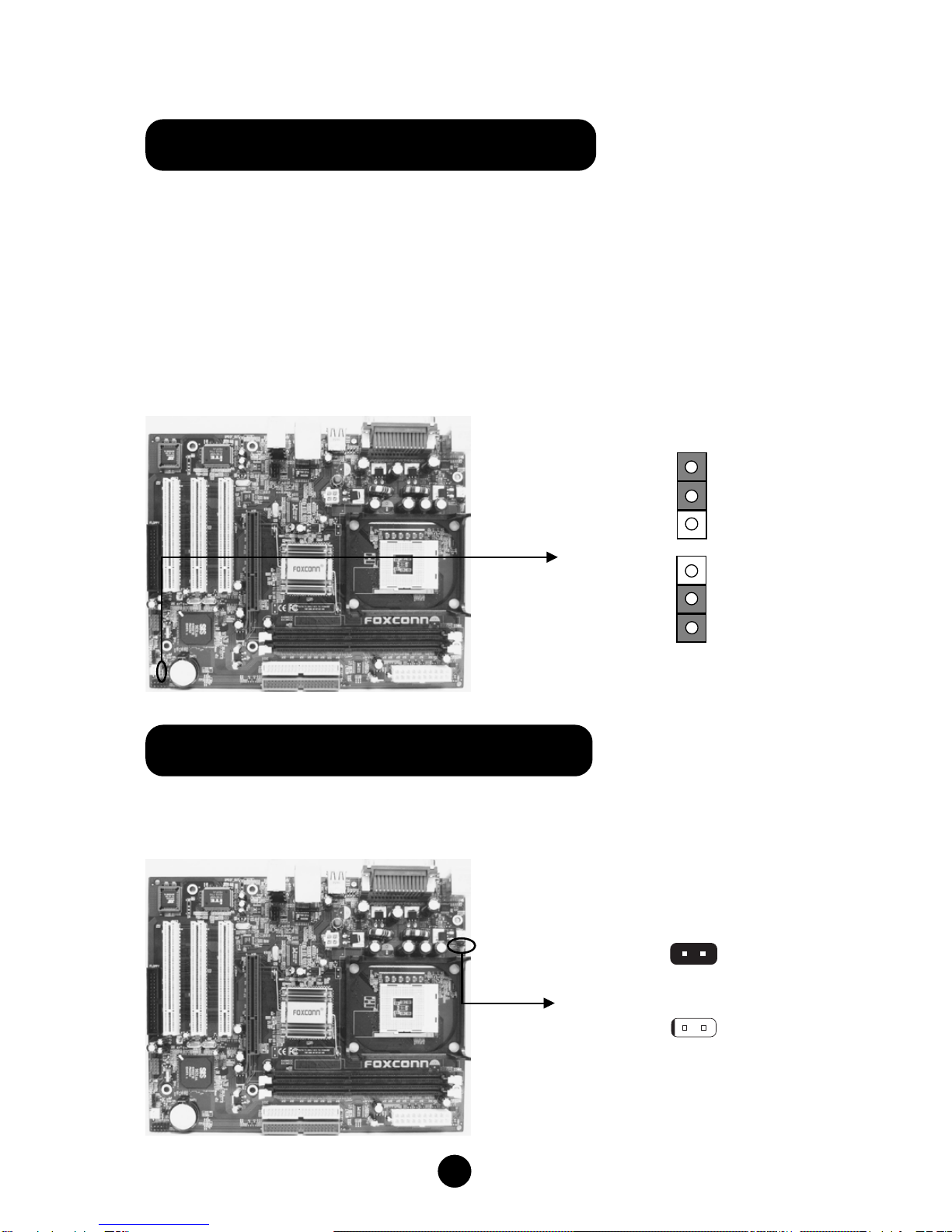

You can clear CMOS to restore default system setting. To clear the CMOS, follow
the procedures described below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from PWR1 connector.
3. Short pins 1 and 2 on this jumper.
4. Return the jumper to the normal setting by locking pins 2 and 3 together with
the jumper cap.
5. Turn the system on. The BIOS is returned to the default settings.
2. CPU Model Selection Jumper: J2
J2 is OPEN at default, which supports the Prescott and Northwood CPU. If J2 is
set as SHORT, it supports the Willamette CPU.
CLS_CMOS
Clear CMOS
1
Normal
(default)
1
J2
SHORT
OPEN
(Default)
12
12
1. Clear CMOS Jumper: CLS_CMOS
5

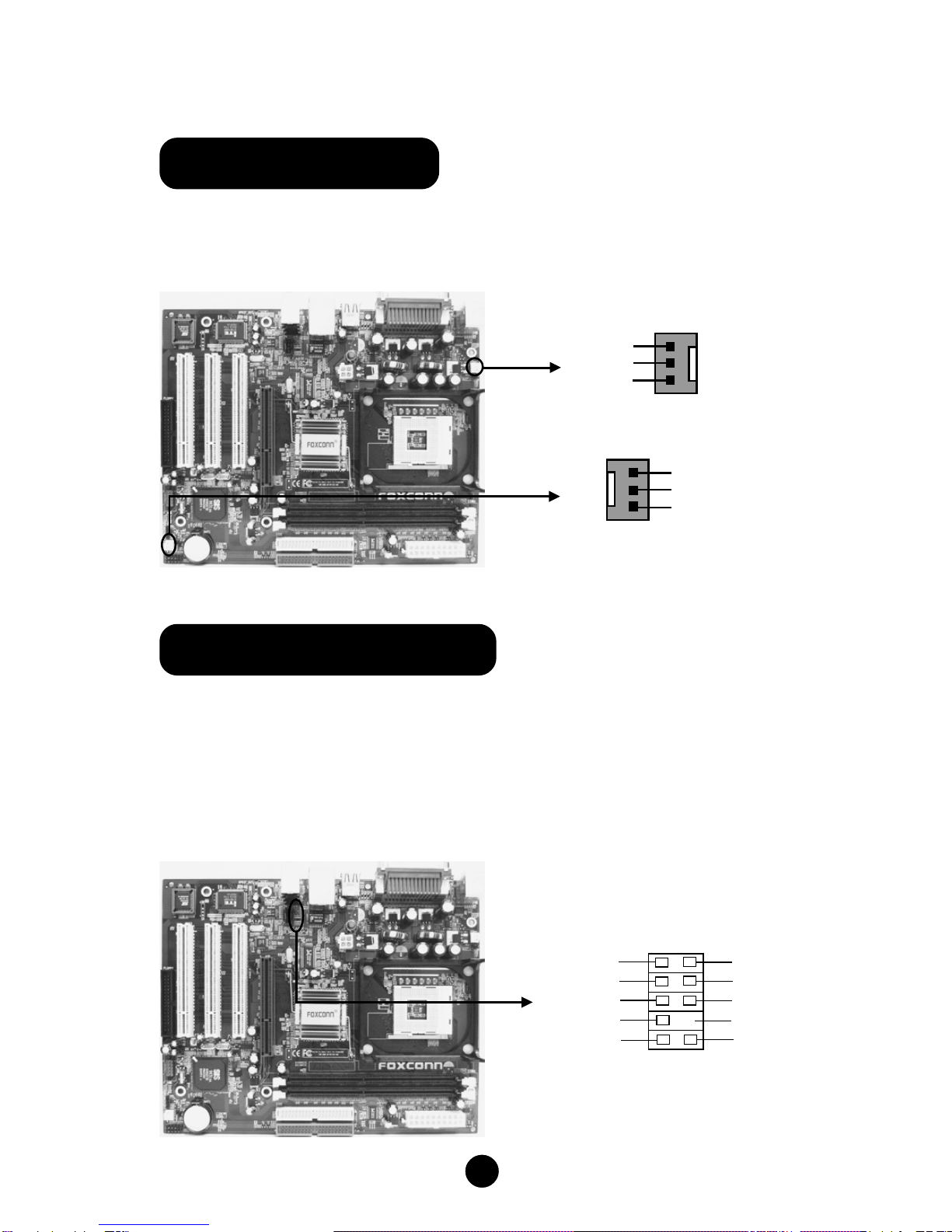

Plug the CPU cooling fan cable into the 3-pin CPU FAN power supply on the
motherboard. Connect the case cooling fan connector to FAN1.
3. CPU FAN & FAN1
4. Front Audio Connector
The audio interface provides two kinds of audio output choices: the Front Audio,
the Rear Audio. Their priority is sequenced from high to low (Front Audio to Rear
Audio). If headphones are plugged into the front panel of the chassis (using the
Front Audio), then the Line-out (Rear Audio) on the rear panel will not work. If you
do not want to use the Front Audio, pin 5 and 6, pin 9 and 10 must be SHORT, and
then the signal will be sent to the rear audio port.
FAN1
SENSE
+12V
GND
1
CPUFAN
GND
+12V
SENSE 1
F_AUDIO
MIC_IN MIC_GND
MIC_PWR +5VA
AUD_OUT_R AUD_RET_R
AUD_OUT_L AUD_RET_L
12
910
EmptyNC
6
CD_IN is Sony standard CD audio connector, it can be connected to a CD-ROM
drive through a CD audio cable.
5. CD_IN Connector
CD_IN
CD_R
GND
CD_L
1
Attach the power LED, IDE LED, reset switch and power switch connectors to the
corresponding pins.
6. Front Panel Connector
FP1
PLED
IDE_LED
PWRBTN#
- +
1
RESET NC
- +
7

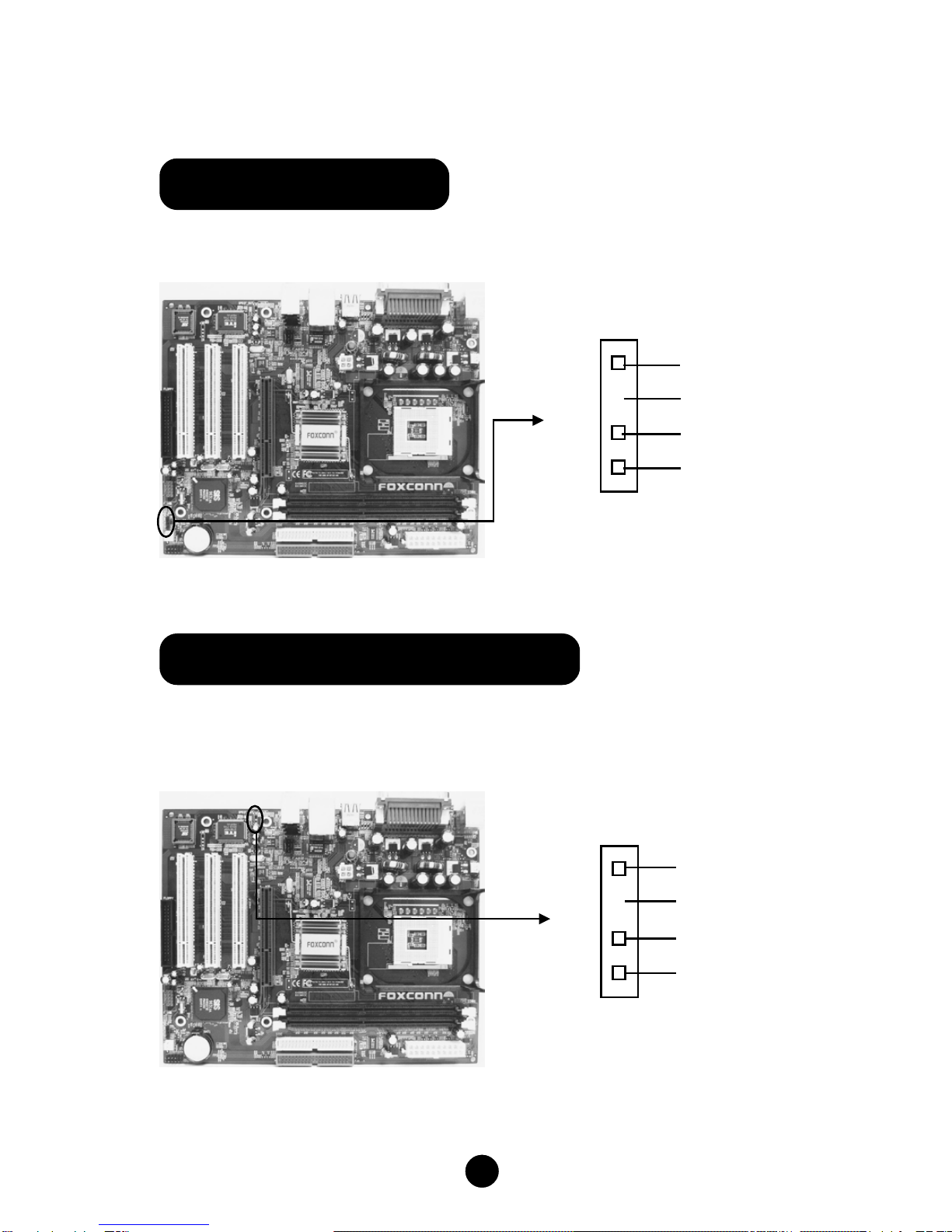

The speaker connector is used to connect the speaker of the chassis.
7. Speaker Connector
The SPDIF output connector is capable of providing digital audio to external
speakers, or compressed AC3 data to an external Dolby digital decoder.
8. SPDIF Out Connector (optional)
SPK(pull high)
NC
SPKJ
Empty
1
SPEAKER
SPDIF_OUT
+5V
SPDIF_OUT
GND
Empty
1
8
10. IrDA Connector (optional)
This header supports wireless transmitting and receiving devices. Before using
this function, Configure the settings of IR mode from the “Integrated Peripherals”
section of the CMOS Setup Utility.
Empty
+5V
GND
IRRX
IRTX
IR
1
The USB connector is available for additional USB port if the USB ports on the rear
panel are inadequate. Compared to traditional USB 1.1 with the speed of 12Mbps,
USB 2.0 has a fancy speed up to 480Mbps, which allows faster Internet connection,
interactive gaming, and simultaneous running of high-speed peripherals.
9. USB Connector
F_USB
D0+
D0-
Empty
GND
VCC VCC
GND
D1-
D1+
1
NC
9
After you finish the setting of jumpers and connect correct cables, power on the
system and press <Del> during POST (Power On Self Test) to enter the BIOS Setup
Utility. Choose “Load Optimized Defaults” for recommended optimal performance.
12. Power on and Load Optimized Defaults
Select this option
and press <Enter>.
11. 6-channel Audio Effects
The motherboard is equipped with the CODEC ALC655 chip, which provides supp-
ort for 6-channel audio output, including 2 front, 2 rear, 1 center and 1 subwoofer
channel. ALC655 allows the board to attach 4 or 6 speakers for a better surround
sound effect. To apply this function, you have to install the audio driver in utility CD as
well as an audio application supporting 6-channel. The illustration shown below
represents the standard location of all speakers in 6-channel sound track. Connect
the front speaker to the green audio output; connect the surround sound speaker to
the blue audio output and connect the center speaker/subwoofer to the red microphone
output.
Blue
FrontLeft Front Right
RearLeft Rear Right
Subwoofer
Center
Green
Red
10
This motherboard comes with one Utility CD. To begin using the CD, simply insert
the CD disc into the CD-ROM drive. The CD will automatically bring up the main
menu screen. Click “Install Driver”, then click the relevant buttons to install the IDE
Driver,AGP Driver, VGADriver, DirectX 9.0b, USB2.0 Driver, Audio Driver and LAN
Driver from this CD.
Follow the screen
order to install the
motherboard drivers
13. Foxconn Utility CD
