Foxconn NF4K8AC series Manuel utilisateur
This manual is the intellectual property of Foxconn Inc. Although the
information in this manual may be changed or modified at any time,
Foxconn does not obligate itself to inform the user of these changes.
Statement:
All trademarks are the property of their respective owners.
User’s Manual V1.0 in English for NF4K8AC/NF4UK8AC series motherboard.
P/N: 91-181-CK8-A5-0E
Symbol description:
Note: refers to important information that can help you to use motherboard
better.
Attention: indicates that it may damage hardware or cause data loss,
and tells you how to avoid such problems.
Warning: means that a potential risk of property damage or physical
injury exists.
More information:
If you want more information about our products, please visit the following
website: http://www.foxconnchannel.com
Version:
Trademark:
ＮＦ４Ｋ８ＡＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2005-4-20, 8:261
Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard
NF4K8AC/NF4UK8AC
is in conformity with
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
EN 55022: 1998/A2: 2003 Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
EN 61000-3-2: 2000 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current <= 16A per phase)
EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage fluctuations and flicker in low-voltage
supply systems for equipment with rated current <= 16A
EN 55024: 1998/A2:2003 Information technology equipment-Immunity characteristics limits
and methods of measurement
Signature : Place / Date : TAIPEI/2005
Printed Name : James Liang Position/ Title : Assistant President
ＮＦ４Ｋ８ＡＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2005-4-20, 8:262

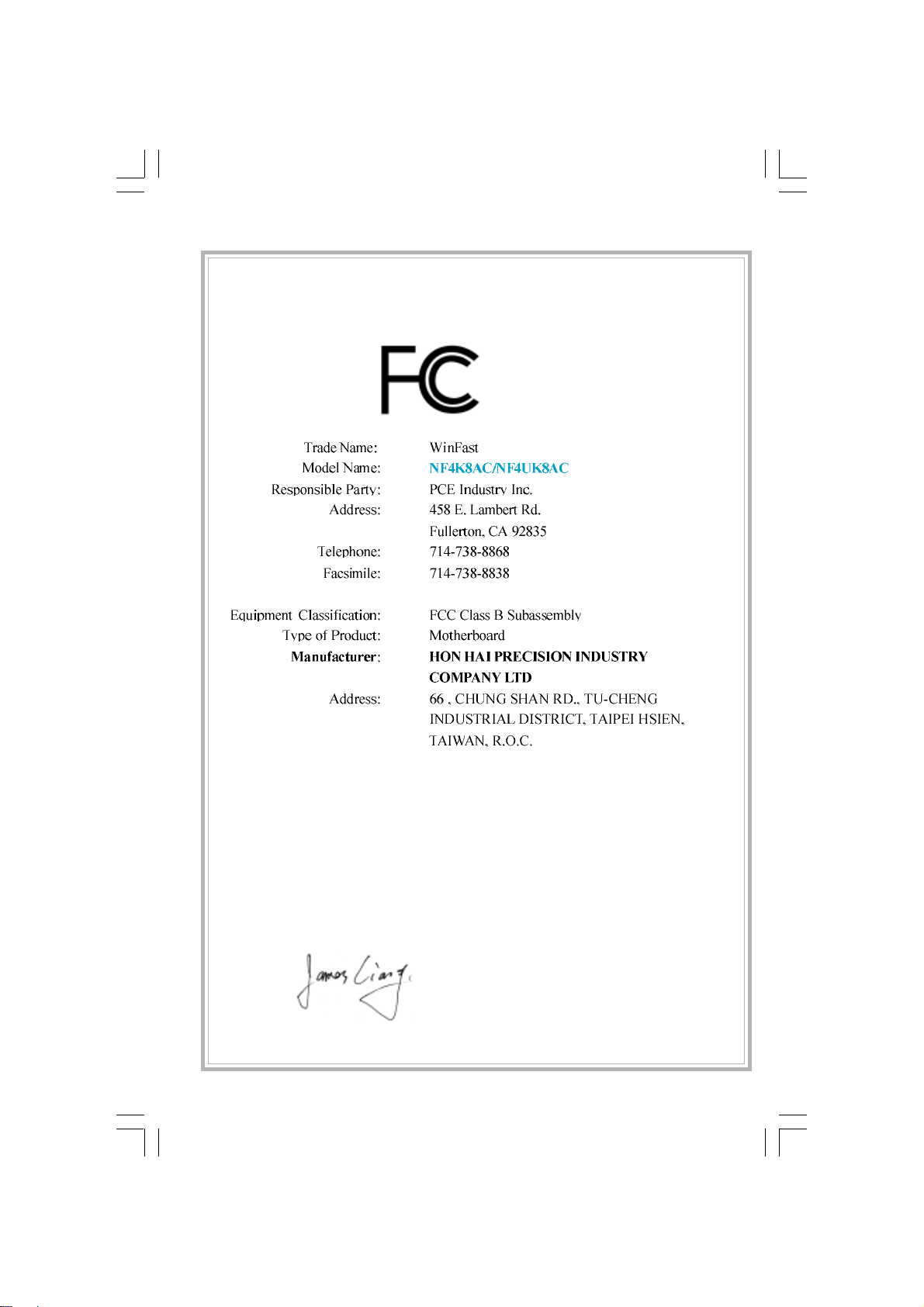

Declaration of conformity
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2005
ＮＦ４Ｋ８ＡＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2005-4-20, 8:263
Main Features .............................................................................................. 2
Motherboard Layout .................................................................................... 5
Rear Panel Connectors ................................................................................ 6
Installation Instructions
CPU .............................................................................................................. 9
Memory ...................................................................................................... 12
Power Supply ............................................................................................ 14
Other Connectors ...................................................................................... 15
Expansion Slots ......................................................................................... 21
Jumpers ..................................................................................................... 21
BIOS Description
Enter BIOS Setup ....................................................................................... 25
MainMenu ................................................................................................. 25
Standard CMOS Features .......................................................................... 27
BIOS Features ........................................................................................... 29
Advanced BIOS Features .......................................................................... 30
Advanced Chipset Features ...................................................................... 32
Integrated Peripherals ................................................................................ 34
Power Management Setup ......................................................................... 37
PnP/PCIConfigurations ............................................................................... 40
PC Health Status (O.T.S) ............................................................................ 41
X-BIOS II <Over Clocking> .......................................................................... 42
Load Best Defaults .................................................................................... 43
Set Supervisor/User Password ................................................................. 43
Save & Exit Setup ...................................................................................... 44
Exit Without Saving .................................................................................... 44
Table of Contents
Chapter
Chapter
Chapter
Product Introduction
ＮＦ４Ｋ８ＡＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2005-4-20, 8:264
Driver CD Introduction
Utility CD content ........................................................................................
Directions for Bundled Software
SuperStep ................................................................................................. 49
SuperLogo ................................................................................................. 52
SuperUpdate .............................................................................................. 57
nTune ........................................................................................................ 59
Special BIOS Functions
SuperBoot ................................................................................................. 66
SuperBIOS-Protect .................................................................................... 67
SuperRecovery ......................................................................................... 68
SuperSpeed ............................................................................................... 69
Appendix
Using 8-channel Audio (optional) ............................................................... 79
Table of Contents
Chapter
Chapter
Chapter
ＮＦ４Ｋ８ＡＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2005-4-20, 8:265
1. Attach the CPU and heatsink using silica gel to ensure full contact.
2. It is suggested to select high-quality, certified fans in order to avoid
damage to the motherboard and CPU due to high temperature.
3. Never turn on the machine if the CPU fan is not properly installed.
4. Ensure that the DC power supply is turned off before inserting or re
moving expansion cards or other peripherals, especially when you
insert or remove a memory module. Failure to switch off the DC power
supply may result in serious damage to your system or memory
module.
Warning:
We cannot guarantee that your system will operate normally while
overclocked. Normal operation depends on the overclock capacity of
your device.
Warning:
Attention:
Since BIOS programs are upgraded from time to time, the BIOS de-
scription in this manual is just for reference. We do not guarantee that
the content of this manual will remain consistent with the actual BIOS
version at any given time in the future.
Attention:
The pictures of objects used in this manual are just for your reference.
Please refer to the physical motherboard.
ＮＦ４Ｋ８ＡＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2005-4-20, 8:266
This manual is suitable for motherboard of NF4K8AC/
NF4UK8AC series. Each motherboard is carefully designed
for the PC user who wants diverse features.
-L with onboard 10/100M LAN
-K with onboard Gigabit LAN
-6 with 6-channel audio
-8 with 8-channel audio
-E with 1394
-S with SATA
-R with RAID

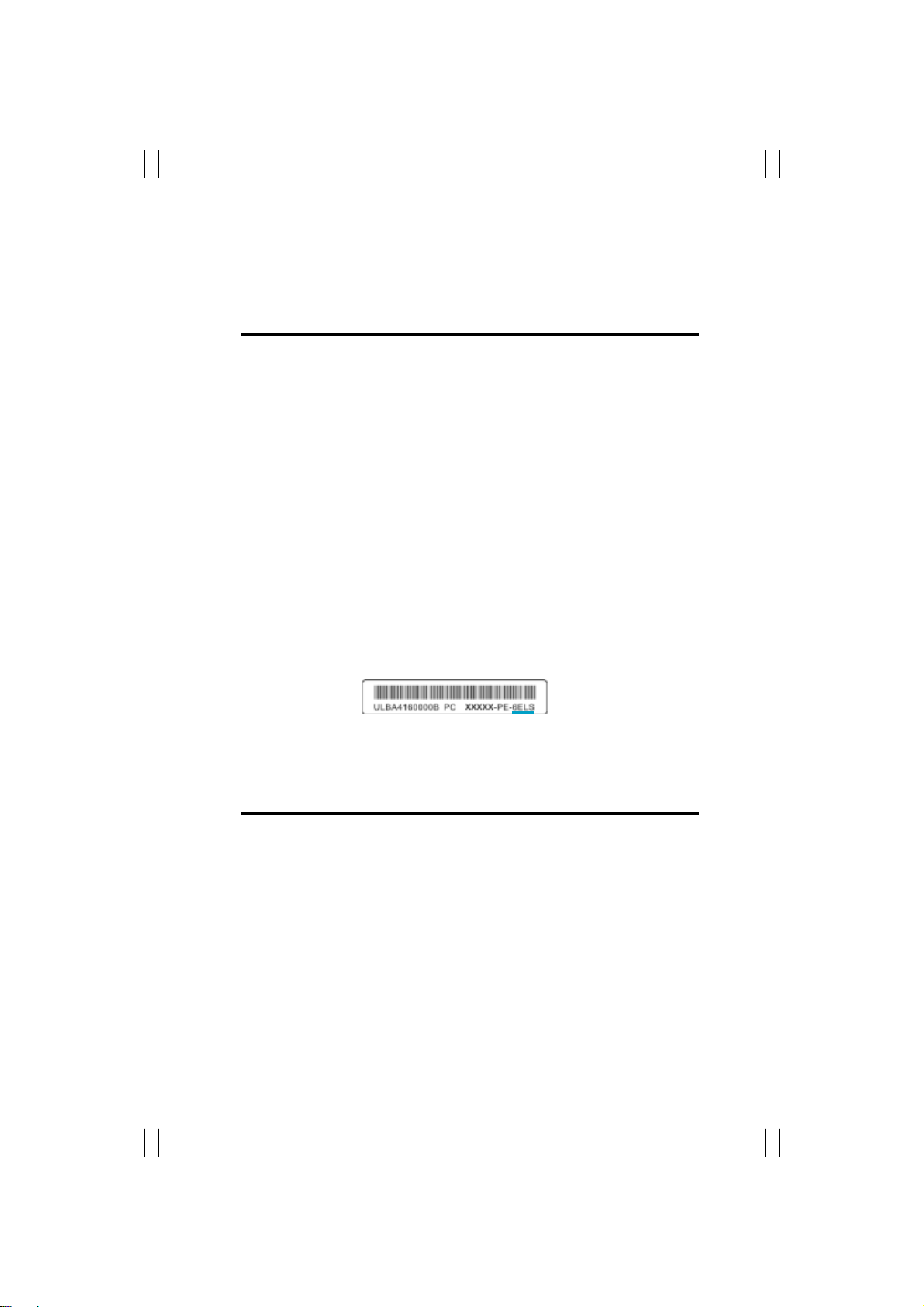

You can find PPID label on the motherboard. It indicates the
functions that the motherboard has.
For example:
On the blue mark of the PPID label, it means the motherboard
supports 6-channel Audio (-6), 1394 port (-E), onboard 10/100M
LAN (-L), SATA function (-S).
ＮＦ４Ｋ８ＡＣ－Ｅｎｇｌｉｓｈ ｐｒｅｆａｃｅ．ｐ６５ 2005-4-20, 8:267
Chapter
Thank you for buying WinFast NF4K8AC/NF4UK8AC series
motherboard. This series of motherboard is one of our new
products, and offers superior performance, reliability and
quality, at a reasonable price. This motherboard adopts the
advanced NVIDIA nForce 4 / nForce 4 Ultra chipset, provid-
ing users a computer platform with a high integration-com-
patibility-performance price ratio.
This chapter includes the following information:
Main Features
Motherboard Layout
Rear Panel Connectors
1
1
Chapter 1 Product Introduction
2
Main Features
Size:
ATX form factor of 12” x 9.6”
Microprocessor:
Supports Socket 939 for AMD K8 AthlonTM 64FX/AthlonTM 64 processors
HyperTransport Technology:
16 x 16 link running at 1GHz for extremely high throughput (8.0GB/sec)
Differential lines with low voltage swings
Chipset:
NVIDIA Chipset: NVIDIA nForce 4 / nForce 4 Ultra
System Memory
Four 184-pin DDR DIMM slots
Supports DDR 266/333/400 memory
Supports 128/256/512/1024Mb technology up to 4GB
USB 2.0 Port
Supports hot-plug
Eight USB 2.0 ports (four rear panel ports, two onboard USB connectors
providing four extra ports)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 protocol up to 480Mbps transmission rate
Onboard Serial ATA
Supports up to four S-ATA devices, such as HDD, etc
Dual controller architecture providing 150MB/s data transfer rate to each disk
NVIDIA RAID Technology
Supports RAID 0, RAID 1, RAID 0+1 and JBOD
Cross-controller RAID uniquely supports both SATA and PATA disk devices within
a single array
3
Chapter 1 Product Introduction
Onboard 1394 (optional)
Supports hot-plug
With rate of transmission at 400Mbps
Self-configured addressing
Supports two independent 1394 units synchronously at most, such as HDD,
CD-ROM
Onboard LAN (-L/-K) (optional)
Supports10/100/1000 (-L/-K) Mbps Ethernet
LAN interface built-in on board
Onboard Audio (-6) (optional)
AC’97 2.3 Specification Compliant
Supports SPDIF output
Onboard Line-in jack, Microphone jack, Line-out jack
Supports 6-channel audio (setting via software)
Onboard Audio (-8) (optional)
Supports 8-channel audio
Supports SPDIF output
Supports Universal Audio Jack (UAJ)
Supports high quality differential CD input
BIOS
Licensed advanced AWARD (Phoenix) BIOS, supports flash ROM, Plug-and-
Play
Supports IDE, CD-ROM, SCSI HDD or USB device boot up
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(suspend to disk-depends on OS), and S5 (soft-off) ACPI state
PCI Express x16 support
Supports 4 GB/sec (8GB/sec concurrent) bandwidth
Low power consumption and power management features
