Foxconn NF4K8MC Manuel utilisateur
This manual is the intellectual property of Foxconn Inc. Although the
information in this manual may be changed or modified at any time,
Foxconn does not obligate itself to inform the user of these changes.
Statement:
All trademarks are the property of their respective owners.
User’s Manual V1.1 in English for NF4K8MC/NF4XK8MC series motherboard.
P/N: 91-181-NF4-KX-1E
Symbol description:
Note: refers to important information that can help you to use motherboard
better.
Attention: indicates that it may damage hardware or cause data loss,
and tells you how to avoid such problems.
Warning: means that a potential risk of property damage or physical
injury exists.
More information:
If you want more information about our products, please visit the following
website: http://www.foxconnchannel.com
Version:
Trademark:
ＮＦ４Ｋ８ＭＣ＆ＮＦ４ＸＫ８ＭＣ－ｍａｎｕａｌ－Ｅｎｇｌｉｓｈ－ｐｒｅｆａｃｅ．ｐ６５ 2005-4-18, 15:131
Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard
NF4K8MC/NF4XK8MC
is in conformity with
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
EN 55022/A1: 2000 Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
EN 61000-3-2/A14:2000 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current <= 16A per phase)
EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage fluctuations and flicker in low-voltage
supply systems for equipment with rated current <= 16A
EN 55024/A1:2001 Information technology equipment-Immunity characteristics limits
and methods of measurement
Signature : Place / Date : TAIPEI/2005
Printed Name : James Liang Position/ Title : Assistant President
ＮＦ４Ｋ８ＭＣ＆ＮＦ４ＸＫ８ＭＣ－ｍａｎｕａｌ－Ｅｎｇｌｉｓｈ－ｐｒｅｆａｃｅ．ｐ６５ 2005-4-18, 15:132

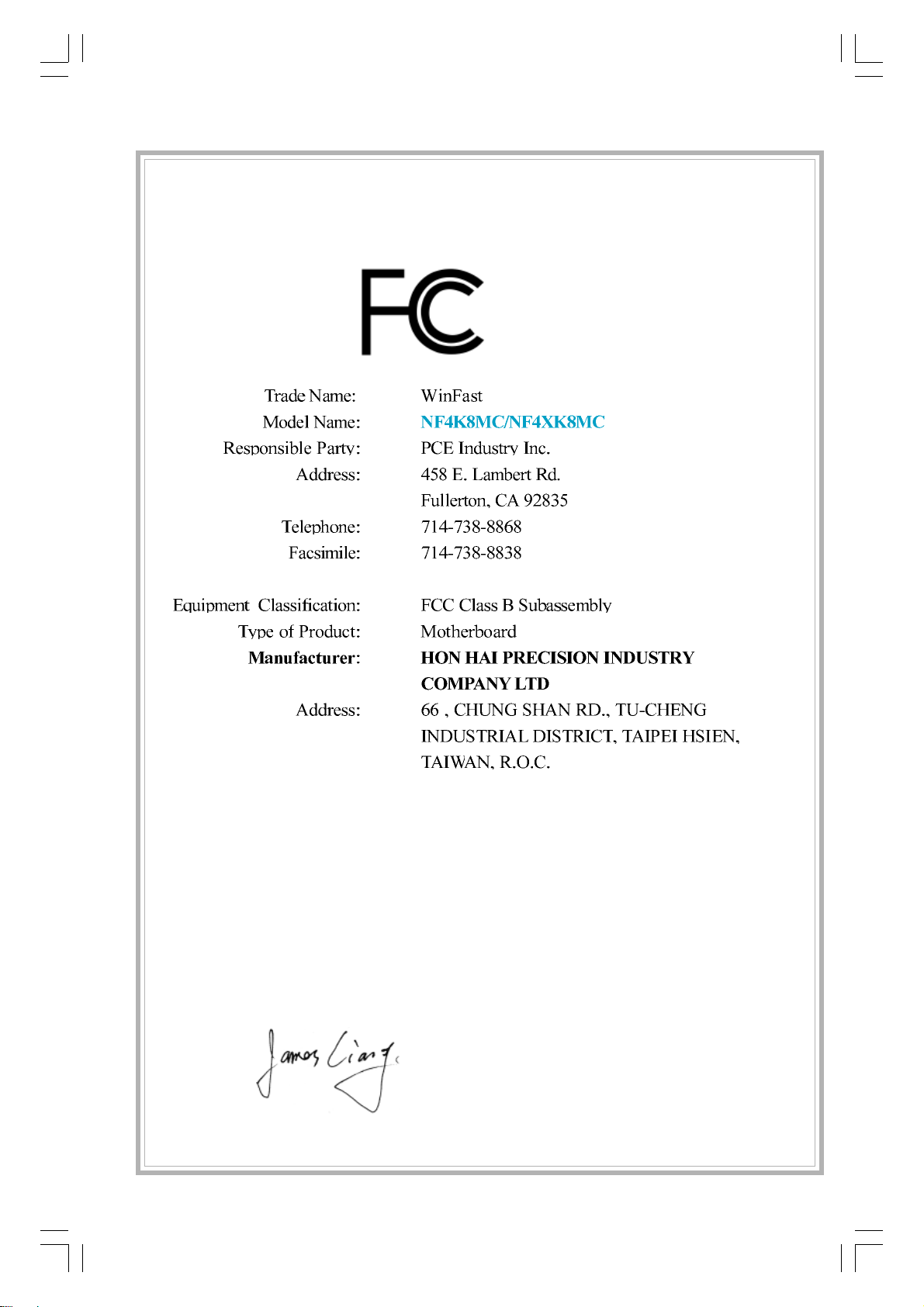

Declaration of conformity
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2005
ＮＦ４Ｋ８ＭＣ＆ＮＦ４ＸＫ８ＭＣ－ｍａｎｕａｌ－Ｅｎｇｌｉｓｈ－ｐｒｅｆａｃｅ．ｐ６５ 2005-4-18, 15:133
Main Features .............................................................................................. 2
Motherboard Layout .................................................................................... 4
Installation Instructions
CPU .............................................................................................................. 7
Memory ....................................................................................................... 11
Power Supply ............................................................................................ 13
Rear Panel Connectors .............................................................................. 14
Other Connectors ...................................................................................... 16
Expansion Slots ......................................................................................... 20
Jumpers ..................................................................................................... 22
BIOS Description
Enter BIOS Setup ....................................................................................... 26
Mainmenu ................................................................................................. 26
Standard CMOS Features .......................................................................... 28
BIOS Feature ............................................................................................. 31
Advanced BIOS Features .......................................................................... 32
Advanced Chipset Features ...................................................................... 34
Integrated Peripherals ................................................................................ 36
Power Management Setup ......................................................................... 39
PnP/PCIConfigurations ............................................................................... 41
PC Health Status ........................................................................................ 42
Load Fail-Safe Defaults ............................................................................. 43
Load Optimized Defaults ............................................................................ 43
Set Supervisor/User Password ................................................................. 43
Save & Exit Setup ...................................................................................... 44
Exit Without Saving .................................................................................... 44
Table of Contents
Chapter
Chapter
Chapter
Product Introduction
ＮＦ４Ｋ８ＭＣ＆ＮＦ４ＸＫ８ＭＣ－ｍａｎｕａｌ－Ｅｎｇｌｉｓｈ－ｐｒｅｆａｃｅ．ｐ６５ 2005-4-18, 15:134
Driver CD Introduction
Utility CD content ........................................................................................
Start to install drivers .................................................................................
Table of Contents
Chapter
NVIDIA RAID Introduction
NVIDIA RAID .............................................................................................
Chapter
ＮＦ４Ｋ８ＭＣ＆ＮＦ４ＸＫ８ＭＣ－ｍａｎｕａｌ－Ｅｎｇｌｉｓｈ－ｐｒｅｆａｃｅ．ｐ６５ 2005-4-18, 15:135
1. Attach the CPU and heatsink using silica gel to ensure full contact.
2. It is suggested to select high-quality, certified fans in order to avoid
damage to the motherboard and CPU due to high temperature.
3. Never turn on the machine if the CPU fan is not properly installed.
4. Ensure that the DC power supply is turned off before inserting or re
moving expansion cards or other peripherals, especially when you
insert or remove a memory module. Failure to switch off the DC
power supply may result in serious damage to your system or
memory module.
Warning:
We cannot guarantee that your system will operate normally while
overclocked. Normal operation depends on the overclock capacity of
your device.
Warning:
Attention:
Since BIOS programs are upgraded from time to time, the BIOS de-
scription in this manual is just for reference. We do not guarantee that
the content of this manual will remain consistent with the actual BIOS
version at any given time in the future.
Attention:
The pictures of objects used in this manual are just for your reference.
Please refer to the physical motherboard.
ＮＦ４Ｋ８ＭＣ＆ＮＦ４ＸＫ８ＭＣ－ｍａｎｕａｌ－Ｅｎｇｌｉｓｈ－ｐｒｅｆａｃｅ．ｐ６５ 2005-4-18, 15:136
This manual is suitable for motherboard of NF4K8MC/
NF4XK8MC series. Each motherboard is carefully designed
for the PC user who wants diverse features.
-L with onboard 10M/100M LAN
-K with onboard 1Giga LAN
-6 with 6-channel audio
-8 with 8-channel audio
-E with 1394 function
-S with SATA function
-R with RAID function

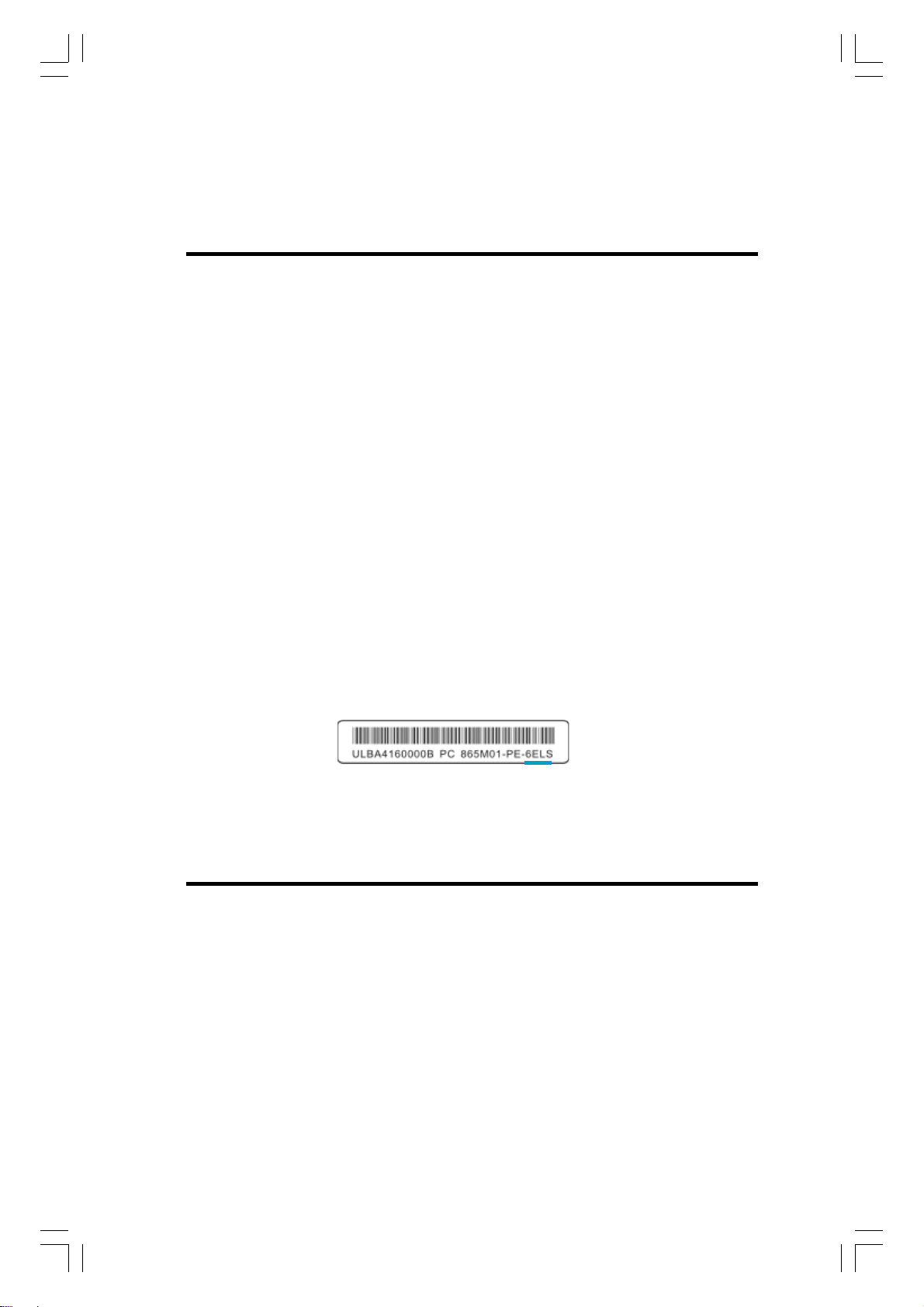

You can find PPID label on the motherboard. It indicates the
functions that the motherboard has.
For example:
On the blue mark of the PPID label, it means the
motherboard supports 6-channel Audio (-6), 1394 port (-E),
onboard 10M/100M LAN (-L), SATA function (-S).
ＮＦ４Ｋ８ＭＣ＆ＮＦ４ＸＫ８ＭＣ－ｍａｎｕａｌ－Ｅｎｇｌｉｓｈ－ｐｒｅｆａｃｅ．ｐ６５ 2005-4-18, 15:137
Chapter
Thank you for buying WinFast NF4K8MC/NF4XK8MC series
motherboard. This series of motherboard is one of our new
products, and offers superior performance, reliability and
quality, at a reasonable price. This motherboard adopts the
advanced nForce 4 chipset, providing users a computer plat-
form with a high integration-compatibility-performance price
ratio.
This chapter includes the following information:
Main Features
Motherboard Layout
1
1
Chapter 1 Product Introduction
2
Main Features
Size:
mATX form factor of 9.6” x 9.6”
Microprocessor:
Supports Socket-939 for AMD AthlonTM 64/AthlonTM 64 FX processors
Supports HyperTransport technology
Chipset:
NVIDIA chipset: nForce 4
System Memory
Two 184-pin DDR DIMM slots
Supports DDR 266/333/400 memory
Supports 128/256/512/1024Mb technology up to 2GB
USB 2.0 Port
Supports hot-plug
Eight USB 2.0 ports (four rear panel ports, two onboard USB headers
providing four extra ports)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 protocol up to 480Mbps transmission rate
Onboard Serial ATA (optional)
150MBps transfer rate
Supports four S-ATA devices
Onboard 1394 (optional)
Supports hot-plug
With rate of transmission at 400Mbps
Self-configured addressing
Supports two independent 1394 units synchronously at most, such as HDD,
CD-ROM
3
Chapter 1 Product Introduction
Onboard LAN(-L/-K) (optional)
Supports10/100/1000(-L/-K)Mbps Ethernet
LAN interface built-in on board
Onboard Audio
AC’ 97 2.3 Specification Compliant
Supports S/PDIF output
Onboard Line-in jack, Microphone jack, Line-out jack
Supports 6-channel audio (setting via software)
BIOS
Licensed advanced AWARD (Phoenix) BIOS, supports flash ROM, Plug-and-
Play
Supports HDD, Floppy, CD-ROM, SCSI HDD or USB device boot up
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(suspend to disk-depends on OS), and S5 (soft-off) ACPI state
Expansion Slots
Two PCI slots
One PCI Express x1 slot
One PCI Express x16 Graphics slot
Advanced Features
PCI 2.3 Specification Compliant
Supports PC Health function (capable of monitoring system voltage, CPU/
system temperature, and fan speed)
