Flowserve ASG 3 Manuel utilisateur

ASG3 - atomac sight glass

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 1

Date: 05.1999

Revision: 06.2020

Technical Manual

CONTENTS - ASG 3

Contents Page

Technical Data ASG 3-DIN ..................................................................................... 2

Material Specication ASG 3.................................................................................. 3

Dimensions ASG 3-DIN.......................................................................................... 4

Spare Parts ASG 3 ................................................................................................. 5

Assembly Instructions ASG 3 ................................................................................. 6

Disassembly Instructions ASG 3 ............................................................................ 6

ASG 3 - Recommended Tightening Torques .......................................................... 7

Technical Data ASG/B-DIN..................................................................................... 8

Material Specication ASG/B.................................................................................. 9

ASG/B - Recommended Tightening Torques.......................................................... 9

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

ASG3 - atomac sight glass

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 2

Date: 05.1999

Revision: 06.2020

Technical Manual

Technical Data ASG 3

Face-to-Face Dimensions: DIN EN 558 (Basic series 1)

Flange Connections: DIN EN 1092-2 PN 16

Attension!

Thermal Shock Resistance of Borosilicate-

Glass is according to DIN 7080 t= max. 80°C

(176°F). Everything else according to

atomac Pressure / Temperature Diagram.

weight

DN / DIN L L/2 Ød

025 mm 160 80 45 kg 6,3

inch 6,3 3,15 1,77 lbs 14,0

050 mm 230 115 77 kg 15,3

inch 9,06 4,53 3,03 lbs 33,7

080 mm 310 155 100 kg 26,7

inch 12,2 6,1 3,94 lbs 58,7

100 mm 350 175 125 kg 28,1

inch 13,78 6,89 4,92 lbs 91,9

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

ASG3 - atomac sight glass

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 3

Date: 05.1999

Revision: 06.2020

Technical Manual

Material specication ASG 3

No. Designation Pieces Material Material-No. / DIN ASTM / AISI

010 body 1ductile iron / PFA EN-JS1049 (GGG-40.3) / DIN EN 1563 A 395

ductile iron / PFA conductive EN-JS1049 (GGG-40.3) / DIN EN 1563 A 395

020 ange 2ductile iron EN-JS1049 (GGG-40.3) / DIN EN 1563 A 395

030 glass 2borosilicate-glass DIN 7080

040 at gasket 2UNITEC 300 green DIN 3535-6

050 stud bolt 1 set stainless steel 1.4301 / DIN EN 10088-3 A 193 B8

060 hexagon nut 1 set stainless steel 1.4301 / DIN EN 10088-3 A 194 8

Valves with conductive lining only contain components with conductive materials

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

ASG3 - atomac sight glass

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 4

Date: 05.1999

Revision: 06.2020

Technical Manual

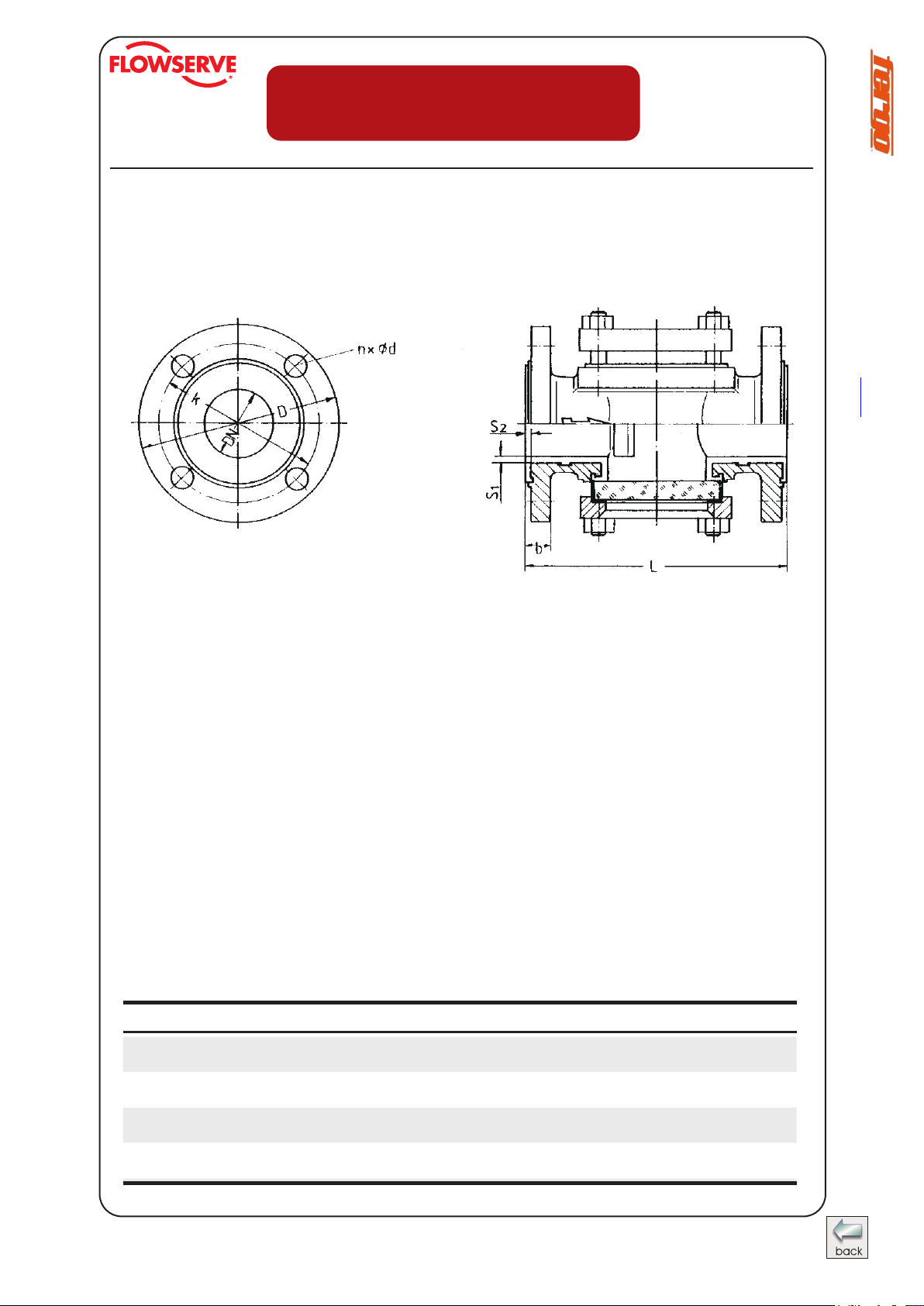

Dimensions ASG 3

DN / DIN L L/2 b D k nxØd S1 S2

025 mm 160 80 20 115 85 4x14 4 4

inch 6,3 3,2 0,79 4,53 3,35 4x0,55 0,16 0,16

050 mm 230 115 23 165 125 4x18 4 4

inch 9,06 4,53 0,91 6,5 4,92 4x0,71 0,16 0,16

080 mm 310 155 25 200 160 8x18 5 4

inch 12,2 6,1 0,98 7,87 6,3 8x0,71 0,2 0,16

100 mm 350 175 25 220 180 8x18 5 4

inch 13,78 6,89 0,98 8,66 7,09 8x0,71 0,2 0,16

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

ASG3 - atomac sight glass

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 5

Date: 05.1999

Revision: 06.2020

Technical Manual

Spare Parts (item n°) - ASG 3

Borosilicate

glass

at gasket

DIN PTFE

025 0009537 0005257

050 0009539 0005259

080 0009540 0009546

100 0009541 0009184

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

ASG3 - atomac sight glass

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 6

Date: 05.1999

Revision: 06.2020

Technical Manual

ASSEMBLY INSTRUCTIONS ASG 3

DISASSEMBLY INSTRUCTIONS ASG 3

The general installation and maintenance instructions must be observed.

1. When assembling ASG, special care must be taken that sealing surfaces are

absolutely clean and free from any damage.

2. Screw in stud bolts (050).

3. Insert glass (030).

4. Insert gasket (040).

5. Put on ange (020).

6. Put one serrated lock washer (100) per ange over a stud bolt and tighten

hexagon nuts (060) by criss-cross method acc. to recommended torques.

For all jobs which are to be carried out on an installed valve, the works safety

requirements and the general installation and maintenance instructions for our

carbon resin lined atomac valves must be observed.

1. Prior to disassembly, the valve must be drained of all line media, acc. to the

above-mentioned instructions. After having removed the ange connection,

put valve on workbench with a soft cover (rubber mat).

2. Remove hexagon nuts (060).

3. Remove parts as follows:

a. ange (020)

b. gasket (040)

c. glass (030)

4. Remove stud bolts (050).

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

ASG3 - atomac sight glass

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 7

Date: 05.1999

Revision: 06.2020

Technical Manual

ASG 3 - recommended tightening torques*

* max. value

When bolting together dissimilar materials, always tighten to the lowest

recommended torque of the components in the joint. Using higher torques

may cause excessive deformation of the „softer“ material in the joint

tie rods connection ange

DN (050/060)

Nm lbf · in Nm lbf · in

025 14 124 25 221

050 40 195 65 575

080 55 487 55 487

100 47 416 64 566

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

ASG3 - atomac sight glass

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 8

Date: 05.1999

Revision: 06.2020

Technical Manual

Technical Data ASG/B

weight

Max. allowed overpressure 145 psi DIN 28121

Flange Connections DIN EN 1092-2 PN 10

„DBGM“

rubber ller

sealed

DN / DIN H ØD Ød Ød4 ØK

080 mm 50 80 61 138 160 kg 8,2

inch 1,97 3,15 2,4 5,43 6,3 lbs 18,1

100 mm 50 100 86 158 180 kg 11,0

inch 1,97 3,94 3,39 6,22 7,09 lbs 24,3

125 mm 58 125 110 188 210 kg 15,7

inch 2,28 4,92 4,33 7,4 8,27 lbs 34,7

150 mm 58 125 110 212 240 kg 19,0

inch 2,28 4,92 4,33 8,35 9,45 lbs 41,9

200 mm 58 150 135 268 295 kg 33,0

inch 2,28 5,91 5,31 10,55 11,61 lbs 72,8

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

ASG3 - atomac sight glass

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 9

Date: 05.1999

Revision: 06.2020

Technical Manual

Material specication ASG/B

ASG/B - recommended tightening torques

No. Designation Pieces Material Material-No. / DIN ASTM / AISI

010 basic ange 1 steel / PFA 1.0038 DIN EN 10025-2 A 283-78

020 counter ange 1 steel 1.0038 DIN EN 10025-2 A 283-78

030 glass 1borosilicate-glass DIN 7080

040 at gasket 1UNITEC 300 green DIN 3535-6

050 hexagonal socket head 4 steel 8.8 / DIN EN ISO 4762

DN Nm

80 55

100 67

125 90

150 130

200 190

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu
