AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 1

Date: 12.1995

Revision: 01.2018

Technical Manual

Contents Page

Technical Data AKH2-DIN.............................................................................................2

Technical Data AKH2-ANSI .........................................................................................3

Material Specication AKH2 .........................................................................................4

Dimensions AKH2-DIN .................................................................................................5

Dimensions AKH2-ANSI ...............................................................................................6

Spare Parts AKH2 Standard - DIN................................................................................7

Spare Parts AKH2 Standard - ANSI.............................................................................8

Assembly Instructions AKH2.........................................................................................9

Disassembly Instructions AKH2..................................................................................10

AKH2 - Recommended Tightening Torques ...............................................................11

Manual Actuator..........................................................................................................12

Material Specication - AKH2 with manual actuator ...................................................13

AKH2 - Actuator sizing torques...................................................................................14

AKH2 with actuator mounting (drawing) .....................................................................15

Material Specication - AKH2 with actuator mounting ................................................16

AKH2 - Dimension Sheet for actuator mounting acc. to NAMUR-recommendation..........17

Material Specication AKH2 300lbs ...........................................................................18

Dimensions AKH2 300lbs...........................................................................................19

AKH2-300 - Recommended Tightening Torques ........................................................20

Material Specication AKH2/DA..................................................................................21

Assembly Instruction - AKH2/DA ................................................................................22

Optional with pressure compensation grooves by slotted seat ring............................23

AKH2 with stem extension (drawing)..........................................................................24

Material Specication - AKH2 with stem extension.....................................................25

Technical Data - AKH2 with stem extension ..............................................................26

AKH2 with lockable hand lever ...................................................................................27

AKH2 - Kvand Cv- Data .............................................................................................28

Optional ball with side vent hole ................................................................................29

Optional with C-ball.....................................................................................................30

Optional with V-ball or S-ball.......................................................................................31

CONTENTS - AKH2

AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 2

Date: 12.1995

Revision: 01.2018

Technical Manual

DN / DIN L H R t Ød

015 mm 130 120 160 59,5 15 kg 4,0

inch 5,12 4,72 6,3 2,34 0,59 lbs 8,8

020 mm 150 120 160 69,5 20 kg 4,8

inch 5,9 4,72 6,3 2,7 0,79 lbs 10,6

025 mm 160 123 160 65,5 24 kg 5,4

inch 6,3 4,84 6,3 2,58 0,94 lbs 11,9

032 mm 180 145 210 81 32 kg 10,2

inch 7,09 5,71 8,27 3,19 1,26 lbs 22,4

040 mm 200 145 210 80 38 kg 10,7

inch 7,87 5,71 8,27 3,15 1,5 lbs 23,5

050 mm 230 160 210 87,5 48 kg 14,1

inch 90,6 6,3 8,27 3,44 1,89 lbs 31,0

065 mm 290 200 313 108 65 kg 24,0

inch 11,42 7,87 12,32 4,25 2,56 lbs 52,8

080 mm 310 205 313 118 80 kg 31,0

inch 12,2 8,07 12,32 4,65 3,15 lbs 68,2

100 mm 350 220 313 140 100 kg 47,5

inch 13,78 8,66 12,32 5,51 3,94 lbs 104,5

150 mm 480 312 337°° 180 147 kg 100,0

inch 18,9 12,28 13,27°° 7,09 5,79 lbs 220,3

200/150** mm 457 312 337°° 228,5 147 kg 117,0

inch 18 12,28 13,27°° 9 5,79 lbs 257,7

200** mm 457 373 450° 230 195 kg 208,0

inch 18 14,69 17,72° 9,06 7,68 lbs 458,1

250** mm 534 -- -- 267 245 kg 320,0

inch 21 -- -- 10,51 9,65 lbs 704,0

300** mm 610 -- -- 294 290 kg 432,0

inch 24 -- -- 11,6 11,42 lbs 957,0

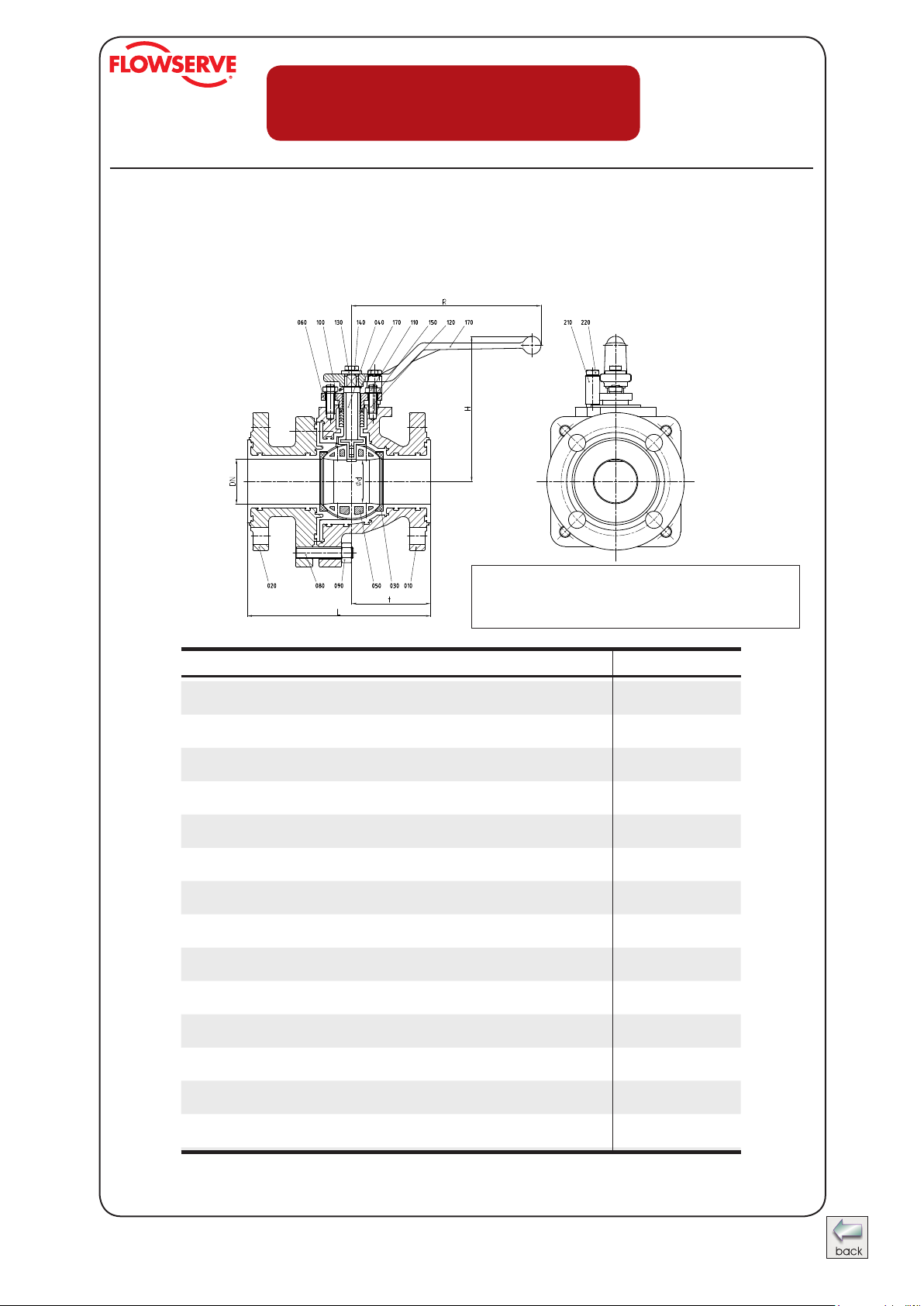

Technical Data AKH2 (DIN)

Face to Face dimensions DIN EN 558 (Basic series 1)

Flange Connection DIN EN 1092-2 PN 16

DN 200, DN 250, DN 300 DIN EN 1092-2 PN 10

°° pass-through handlever Ø 26,52 inch standard

° pass-through handlever Ø 35,43 inch standard

** Face-to-Face Dimensions acc. to ANSI B 16.10

weight

AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 3

Date: 12.1995

Revision: 01.2018

Technical Manual

Technical Data AKH2 (ANSI)

°° pass-through handlever Ø 26,52 inch standard

° pass-through handlever Ø 35,43 inch standard

** Face-to-Face Dimensions acc. to DIN EN 558 (Basic series 1)

* ball valve only manual actuator (weight without actuator)

weight

Flange Connections ANSI B 16.5 Cass 150,

Min. Flange thickness acc.

to ASME B 16.5 Cass 150,

Table 9 (Flanged Fittings)

DN / ANSI L H R t Ød

½" ** inch 5,12 4,72 6,3 2,34 0,59 lbs 9,5

mm 130 120 160 59,5 15 kg 4,3

¾" ** inch 5,9 4,72 6,3 2,74 0,79 lbs 10,1

mm 150 120 160 69,5 20 kg 4,6

1" inch 6 4,84 6,3 2,58 0,98 lbs 11,0

mm 152 123 160 65,5 25 kg 5,0

1½" inch 7 5,71 8,27 3,15 1,50 lbs 18,5

mm 178 145 210 80 38 kg 8,4

2" inch 8 6,3 8,27 3,44 1,89 lbs 28,2

mm 203 160 210 87,5 48 kg 12,8

3" inch 9,5 8,07 12,32 4,65 3,15 lbs 64,0

mm 241 205 313 118 80 kg 29,1

4" inch 11,5 8,66 12,32 5,51 3,94 lbs 95,7

mm 292 220 313 140 100 kg 43,5

6" inch 14 12,28 13,27°° 7,09 5,79 lbs 213,9

mm 356 312 337°° 180 147 kg 97,1

8"/6" inch 18 12,28 13,27°° 9 5,79 lbs 237,9

mm 457 312 337°° 228,5 147 kg 108,0

8" inch 18 14,69 17,72° 9,06 7,68 lbs 458,1

mm 457 373 450° 230 195 kg 208,0

10" inch 21 - - 10,51 9,65 lbs 704,0

mm 534 - - 267 245 kg 320,0

12" * inch 24 - - 11,6 11,42 lbs 991,2

mm 610 - - 294 290 kg 450,0

14"* inch 27,01 - - 13,50 13,78 lbs 1267,3

mm 686 - - 343 350 kg 575,0

AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 4

Date: 12.1995

Revision: 01.2018

Technical Manual

Material specication AKH2

No. Designation Pieces Material Material-No. / DIN ASTM / AISI

010 body 1 ductile iron / PFA EN-JS1049 (GGG-40.3) / A 395

ductile iron / FEP ° DIN EN 1563

020 side piece 1 ductile iron / PFA EN-JS1049 (GGG-40.3) / A 395

ductile iron / FEP ° DIN EN 1563

030 seat ring 2 PTFE pure - PTFE

040 stem 1 stainless steel / PFA 1.4470 / DIN EN 10283 A 890 CD3MN

Hastelloy C4 / PFA ** 2.4610 / DIN 17744

050 ball

DN 15 - 50, DN ½"- 2" 1 cast steel / PFA 1.0619 / DIN EN 10213-2 ASTM A216 Grade WCB

cast steel / FEP°

DN 65 - 300, DN 3"- 14" 1 ductile iron / PFA EN-JS1049 (GGG-40.3) / A 395

ductile iron / FEP ° DIN EN 1563

ceramic Al2O3*

MG-PSZ DN 150/6" °°

060 gland follower 1 stainless steel 1.4308 / DIN EN 10283 A 743 CF-8

065 gland insert 1 PTFE-graphite

070 hand lever

DN 15 - 50, DN ½"- 2" 1 die cast metall (galvanized) ZP0410 / DIN EN 12844

DN 65 - 100, DN 3"- 4" 1 ductile iron (galvanized) EN-GJS-50-7 (GGG-50)

DN 150, 200, DN 6", 8" 1 steel 1.0037 / DIN EN 10025-2 A 283 B

080 stud bolt

DN 15, 20, 32, 1 set stainlees steel 1.4301-K70 / DIN EN 10088-3 A 193 B8

150 - 300, DN ½"- 14"

hexagon bolt

DN 25, 40, 50, 65, 1 set stainless steel 1.4301-K70 / DIN EN 10088-3 A 193 B8

80, 100

090 hexagon nut 1 set stainless stel 1.4301-K70 / DIN EN 10088-3 A 194 8

100 packing material 1 set PTFE °

( chevron ) PTFE-graghit °

110 hexagon nut 2 stainless steel 1.4301 / DIN EN 10088-3 A 194 8

120 stud bolt 2 stainless steel 1.4301 / DIN EN 10088-3 A 193 B8

130 lock washer 1 stainless steel 1.4301 / DIN EN 10088-3 AISI 304

140 hexagon bolt 1 stainless steel 1.4301 / DIN EN 10088-3 A 193 B8

150 serrated lock washer 2 stainless steel 1.4301 / DIN EN 10088-3 AISI 304

170 grounding device 1 stainless steel 1.4310 / DIN EN 10270-3 AISI 301

210 stop

DN 15 - 100, DN ½"- 4" 1 steel (galvanized) 1.0037 / DIN EN 10025-2 A 283 B

DN 150, 200, DN 6", 8" 2 stainless steel 1.4104 / DIN EN 10088-3 AISI 430 F

220 hexagon bolt°° 1 stainless steel 1.4301 / DIN EN 10088-3 A 193 B8

*ceramic ball on request ( available up to DN 150 / 6" )

** Hastelloy stem on request

°optional

°° DN 6", 8", 150 and 200 - 2 hexagon bolts

AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 5

Date: 12.1995

Revision: 01.2018

Technical Manual

Dimensions AKH2 (DIN)

- stem lining DN 15, 20 and 25 0,059 inch

- all other sizes at least 0,098 inch

° DN 80 octagonal, DN 100 hexagonal

DN / DIN L b D k nxØd S1 S2 S3 S4 S5 E °

015 mm 130 15 95 65 4x14 3,5 4 2,5 3,5 5 107

inch 5,12 0,59 3,74 2,65 4x0,55 0,14 0,16 0,1 0,14 0,2 4,21

020 mm 150 16 105 75 4x14 3,5 4 2,5 3,5 2,5 107

inch 5,9 0,63 4,13 2,95 4x0,55 0,14 0,16 0,1 0,14 0,1 4,21

025 mm 160 16,5 115 85 4x14 3,5 2,5 3 3,5 2,5 106

inch 6,3 0,65 4,53 3,35 4x,055 0,14 0,1 0,12 0,14 0,1 4,17

032 mm 180 20 140 100 4x18 4 3 3 4 3,5 124

inch 7,09 0,79 5,51 3,94 4x0,71 0,16 0,12 0,12 0,16 0,14 4,88

040 mm 200 20 150 110 4x18 4 3 3 4 3 124

inch 7,87 0,79 5,91 4,33 4x0,71 0,16 0,12 0,12 0,16 0,12 4,88

050 mm 230 20,5 165 125 4x18 4 3 3,5 4 3 144

inch 9,06 0,81 6,5 4,92 4x0,71 0,16 0,12 0,14 0,16 0,12 5,67

065 mm 290 24 185 145 4x18 4 3 3,5 4,5 3,5 190

inch 11,42 0,94 7,28 5,71 4x0,71 0,16 0,12 0,14 0,18 0,14 7,48

080 mm 310 26 200 160 8x18 4 5 4 4,5 4,25 230

inch 12,2 1,02 7,87 6,3 8x0,71 0,16 0,2 0,16 0,18 0,17 9,06

100 mm 350 28 220 180 8x18 4 5 4 5 4,5 250

inch 13,78 1,1 8,66 7,09 8x0,71 0,16 0,2 0,16 0,2 0,18 9,84

150 mm 480 29 285 240 8x22 4 5 4 6 5,5 Ø365

inch 18,9 1,14 11,22 9,45 8x0,87 0,16 0,2 0,16 0,23 0,22 Ø14,37

200/150 mm 457 33 340 295 8x22 4 5 4 6 5,5 Ø365

inch 18 1,3 13,39 11,61 8x0,87 0,16 0,2 0,16 0,23 0,22 Ø14,37

200 mm 457 36,5 340 295 8x22 4 5 4 6 5,5 Ø485

inch 18 1,44 13,39 11,61 8x0,87 0,16 0,2 0,16 0,23 0,22 Ø19,09

250 mm 534 36,5 406,4 361,9 12x25 4,5 5 4,5 6 5,5 Ø580

inch 21 1,44 16 14,25 12x1 0,18 0,2 0,18 0,23 0,22 Ø22,83

300 mm 610 43,5 445 400 12x22 4,5 5 4,5 7 6 Ø642

inch 24,02 1,71 17,52 15,75 12x0,87 0,18 0,2 0,18 0,28 0,23 Ø25,28

AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 6

Date: 12.1995

Revision: 01.2018

Technical Manual

Dimensions AKH2 (ANSI)

- stem lining DN ½“, ¾“ and 1“ 0,059 inch

- all other sizes at least 0,098 inch

° DN 3“ octagonal, DN 4“ hexagonal

DN /

ANSI L b D k nxØd S1 S2 S3 S4 S5 E °

½“ inch 5,12 0,59 3,5 2,38 4x0,63 0,14 0,16 0,1 0,14 0,2 4,21

mm 130 15 88,9 60,5 4x16 3,5 4 2,5 3,5 5 107

¾“ inch 5,9 0,63 3,88 2,75 4x0,63 0,14 0,16 0,1 0,14 0,1 4,21

mm 150 16 98,5 70 4x16 3,5 4 2,5 3,5 2,5 107

1“ inch 6 0,65 4,25 3,13 4x0,63 0,14 0,1 0,13 0,14 0,1 4,17

mm 152,4 16,5 107,9 79,2 4x16 3,5 2,5 3 3,5 2,5 106

1½“ inch 7 0,79 5 3,88 4x0,63 0,16 0,13 0,13 0,16 0,12 4,88

mm 178 20 127 98,5 4x16 4 3 3 4 3 124

2“ inch 8 0,81 6 4,75 4x0,75 0,16 0,13 0,14 0,16 0,13 5,67

mm 203 20,5 152,4 120,5 4x19 4 3 3,5 4 3 144

3“ inch 9,5 1,02 7,5 6 4x0,75 0,16 0,2 0,16 0,17 0,17 9,06

mm 241 26 190,5 152,5 4x19 4 5 4 4,25 4,25 230

4“ inch 11,5 1,1 9 7,5 8x0,75 0,16 0,2 0,16 0,2 0,18 9,84

mm 292 28 228,6 190,5 8x19 4 5 4 5 4,5 250

6“ inch 14 1,14 11 9,5 8x0,87 0,16 0,2 0,16 0,23 0,22 Ø14,37

mm 356 29 279,4 241,5 8x22 4 5 4 6 5,5 Ø365

8“/6“ inch 18 1,3 13,5 11,75 8x0,87 0,16 0,2 0,16 0,23 0,22 Ø14,37

mm 457 33 342,9 298,5 8x22 4 5 4 6 5,5 Ø365

8“ inch 18 1,44 13,5 11,75 8x0,87 0,16 0,2 0,16 0,23 0,22 Ø19,09

mm 457 36,5 342,9 298,5 8x22 4 5 4 6 5,5 Ø485

10“ inch 21 1,44 16 14,25 12x1 0,18 0,2 0,18 0,23 0,22 Ø22,83

mm 534 36,5 406,4 361,9 12x25 4,5 5 4,5 6 5,5 Ø580

12“ inch 24 1,71 19 17 12x1 0,18 0,2 0,18 0,23 0,22 Ø25,28

mm 610 43,5 482,6 431,8 12x25 4,5 5 4,5 6 5,5 Ø642

14“ inch 27,01 1,71 13,99 18,76 12x1,12 0,18 0,24 0,18 0,24 0,24 Ø27,76

mm 686 43,5 355,4 476,5 12x28,5 4,5 6 4,5 6 6 Ø705

AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 7

Date: 12.1995

Revision: 01.2018

Technical Manual

DIN FEP PFA PTFE

015 0000266 0000321 0002316 0000159

020 0000267 0000322 0002316 0000159

025 0000268 0000323 0002317 0015001

032 0000269 0000324 --- 0000160

040 0000270 0000325 0002319 0000160

050 0000271 0000326 0002320 0000161

065 0000272 0000327 0002321 0000162

080 0000273 0000328 0002322 0000163

100 0000274 0000329 0002323 0000164

150 0000275 0000330 0002405 0000165

200/150 0000275 0000330 --- 0000165

200 0000276 0000331 --- 0000166

250 0011249 0010845 --- 0011250

300 0004048 0004049 --- 0006353

DIN Hastelloy / PFA PTFE

015 0000113 0000114 0000167 0000174

020 0000113 0000114 0000167 0000174

025 0000115 0000116 0000167 0000174

032 0000117 0000118 0000168 0000175

040 0000117 0000118 0000168 0000175

050 0000119 0000120 0000169 0000176

065 0000121 0000122 0000170 0000177

080 0000121 0000122 0000170 0000177

100 0000121 0000122 0000170 0000177

150 0000123 0000124 0000172 0000179

200/150 0000123 0000124 0000172 0000179

200 0000125 0000126 0000173 0000180

250 0010843 --- 0011251 0011252

300 0004038 --- 0006348 0006349

° Al2O3

Spare Parts (item n°) -

AKH2 Standard Version (DIN)

Ball Seat Rings

Ceramic°

Stainless Steel / PFA

Stem

PTFE / Graphite

Packing (set)

AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 8

Date: 12.1995

Revision: 01.2018

Technical Manual

Spare Parts (item n°) - AKH2 Standard Version

Ball Seat Rings

Ceramic°

Stainless Steel / PFA

Stem

PTFE / Graphite

Packing (set)

ANSI FEP PFA PTFE

½" 0000266 0000321 0002316 0000159

¾" 0000267 0000322 0002316 0000159

1" 0000268 0000323 0002317 0015001

1½" 0000270 0000325 0002319 0000160

2" 0000271 0000326 0002320 0000161

3" 0000273 0000328 0002322 0000163

4" 0000274 0000329 0002323 0000164

6" 0000275 0000330 0002405 0000165

8"/6" 0000275 0000330 --- 0000165

8" 0000276 0000331 --- 0000166

10" 0011249 0010845 --- 0011250

12" 0004048 0004049 --- 0006353

14" --- 0042879 --- 0042881

ANSI Hastelloy / PFA PTFE

½" 0000113 0000114 0000167 0000174

¾" 0000113 0000114 0000167 0000174

1" 0000115 0000116 0000167 0000174

1½" 0000117 0000118 0000168 0000175

2" 0000119 0000120 0000169 0000176

3" 0000121 0000122 0000170 0000177

4" 0000121 0000122 0000170 0000177

6" 0000123 0000124 0000172 0000179

8"/6" 0000123 0000124 0000172 0000179

8" 0000125 0000126 0000173 0000180

10" 0010843 --- 0011251 0011252

12" 0004038 --- 0006348 0006349

14" 0004038 --- 0006348 0006349

° Al2O3

AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 9

Date: 12.1995

Revision: 01.2018

Technical Manual

Assembly Instructions AKH2

The general installation and maintenance instructions must be observed.

1. Screw stud bolts (120) into body (010).

2. Insert stem (040) from inside of body in such a way that the at side is paral-

lel to body longitudinal axis.

3. Insert chevron packing (100).

4. Install gland insert (065), gland follower (060), safety washers (150), hexa-

gon nuts (110) and grounding strap (170) also on valves with actuator.

5. Install hand lever (070) on to stem (040) and tighten it using lock washer

(130) and hexagon bolt (140).

6. Insert rst ball seat ring (030) into body (010).

7. Insert ball (050) to valve stem by pushing the ball in a downward motion

through valve body.

8. Turn hand lever 90° of longitudinal axis of body.

9. Install second ball seat ring (030) on to ball (050).

10. Install side piece (020) on to body (010), making sure that recess for stem is

on the correct side.

11. Install body bolts (080) and hexagon nuts (090) and tighten by crisscross

method to recommended torques.

12. Assemble stop (210) with hexagon bolt

(220).

AKH2 - atomac ball valve - full port

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 10

Date: 12.1995

Revision: 01.2018

Technical Manual

Disassembly Instructions for AKH2

For all jobs which are to be carried out on an installed valve, the works safety require-

ments and the gerneral accident prevention instructions must be observed. Moreover,

the general installation and maintenance instructions for atomac uorcarbon resin lined

valves must be considered.

1. Prior to disassembly, the valve must be cleared of all uid according to the

above-mentioned instructions. Particular care must be taken that during rin

sing and draining of the piping, the valve is opened and closed repeatedly.

These cycles (opening and closing) are to be

repeated during draining of the piping. Only when following this procedure, is it

ensured that all remaining pressure inside the body (stem guide and ball seats) is

eliminated.

2. For disassembly of the valve, put body on a work bench with a soft cover (rubber

mat). Remove hexagon bolt (110) and lock washer (150).

3. Open valve completely. Remove hand lever.

4. Disassemble grounding device (170).

5. Disassemble gland follower (060) and gland insert (065). If necessary, stud bolts

(120) can also be removed now.

6. Remove body bolts (080) and separate side piece from body.

7. Remove rst ball seat ring (030).

8. Put ball in closed position and push ball

out of the body. Remove hand lever (070).

9. Remove stem (040) by pushing it down

through the body (010). Care must be taken

not to damage body liner.

10. Chevron packing (100) can easily be removed.

11. If necessary, remove hand lever

stop (210) by releasing bolt

(220).

Table des matières

Autres manuels Flowserve Unité de contrôle

Flowserve

Flowserve Nordstrom Series Mode d'emploi

Flowserve

Flowserve AKH2A Manuel utilisateur

Flowserve

Flowserve NAF 8886 Series Manuel utilisateur

Flowserve

Flowserve Argus EK Series Mode d’emploi

Flowserve

Flowserve atomac ARV/SG Series Manuel utilisateur

Flowserve

Flowserve FlowTop V726 Manuel utilisateur

Flowserve

Flowserve 158 Manuel utilisateur

Flowserve

Flowserve 94 Series Manuel

Flowserve

Flowserve Valtek Mark Six Manuel utilisateur

Flowserve

Flowserve Valtek Three-way Mode d’emploi

Flowserve

Flowserve 13 Series Manuel utilisateur

Flowserve

Flowserve atomac AKH7 Series Manuel utilisateur

Flowserve

Flowserve Valtek ShearStream Mode d’emploi

Flowserve

Flowserve ARL Manuel utilisateur

Flowserve

Flowserve NAF Trunnball DL Series Manuel utilisateur

Flowserve

Flowserve Serck Audco Manuel utilisateur

Flowserve

Flowserve Valtek MaxFlo 4 Manuel utilisateur

Flowserve

Flowserve Edward 602Y Manuel utilisateur

Flowserve

Flowserve Valtek CavControl Trim Mode d’emploi

Flowserve

Flowserve NAF-Setball Manuel utilisateur

Flowserve

Flowserve Valtek MaxFlo 3 Manuel du propriétaire

Flowserve

Flowserve Worcester V-Flow 51 Series Manuel utilisateur

Flowserve

Flowserve NAF ProCap Instructions d'installation

Flowserve

Flowserve ColdFlow 341000 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
