Flowserve AKH6 Manuel utilisateur

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 1

Date: 07.1991

Revision: 06.2020

Technical Manual

CONTENTS - AKH6

Contents

Technical Data AKH6 (DIN) ................................................................................... 2

Technical Data AKH6 (ANSI)................................................................................. 3

Material specication AKH6................................................................................... 4

Dimensions AKH6 (DIN) ........................................................................................ 5

Dimensions AKH6 (ANSI)...................................................................................... 6

Spare Parts (item n°) - AKH6 Standard Version.................................................... 7

Assembly Instructions AKH6 ................................................................................ 8

Disassembly Instructions for AKH6 ....................................................................... 9

AKH6 - recommended tightening torques* .......................................................... 10

Gear Operator (worm gear) ................................................................................. 11

Material specication - AKH6 with manual Gear ................................................. 12

AKH6 - Actuator Sizing Torques .......................................................................... 13

AKH6 with kit for actuator mounting .................................................................... 14

AKH6 - Dimension for actuator mounting acc. to NAMUR - recommendation .... 15

AKH6/DA with pressure compensation grooves by slotted seat ring................... 16

Special cleaning and packaging procedures ....................................................... 17

AKH6 Extension Kit ............................................................................................. 17

AKH6 - Kv Data and CvData (DIN EN 60534-2-3) ............................................... 18

Optional ball with side vent hole .......................................................................... 19

Optional with C-ball ............................................................................................. 20

Optional with V-ball or S-ball ............................................................................... 21

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 2

Date: 07.1991

Revision: 06.2020

Technical Manual

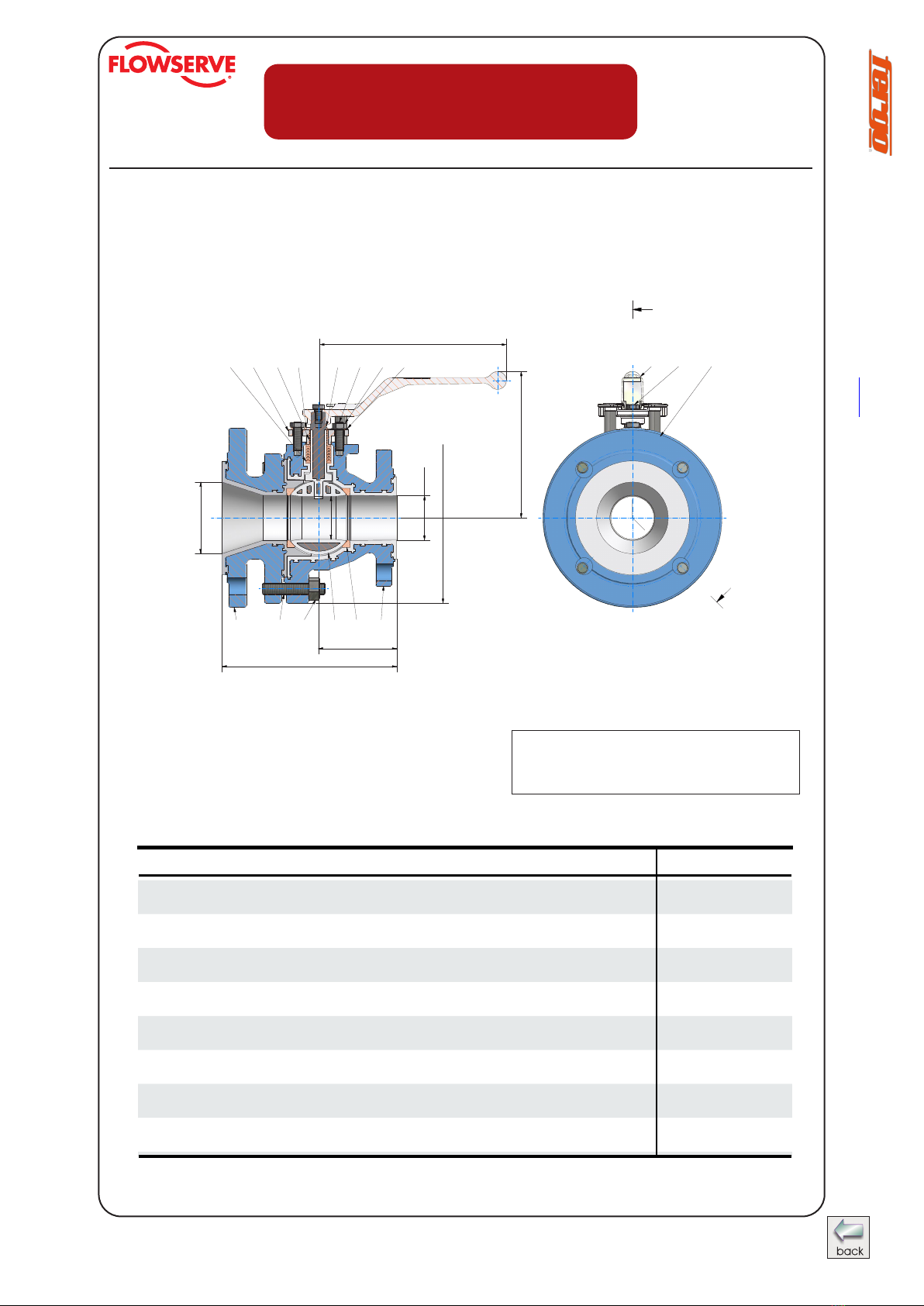

Technical Data AKH6 (DIN)

A - A

B - B

300 304 310

010030050090080020

Ød

060100 065 170 040 120 110 150

S1 S3

S2 S5

020

080

030

050

040

090

010

310

120

100

065

060

170

150

110

300

304

420

430

440

445

450

455

500

510

535

530

520

525

Ød

L2L1

DIN EN ISO 5211

350

352

354

356

360

362

372

374

400

410

ØD°

Øk1

nxØd

Øk

nxØd

weight

* pass-through handlever ø 26,54 inch

° DN 025-050 quadrilateral, DN 080 octagonal, DN 100 hexagonal

DN1 / DN2 L H R t ØD° Ød

025/050 mm 150 124 160 65,5 106 24 kg 7,6

inch 5,91 4,88 6,3 2,58 4,17 0,94 lbs 16,8

025/100 mm 150 124 160 65,5 106 24 kg 10,7

inch 5,91 4,88 6,3 2,58 4,17 0,94 lbs 23,6

040/080 mm 185 150 210 80 124 38 kg 10,7

inch 7,28 5,91 8,27 3,15 4,88 1,5 lbs 23,6

050/080 mm 195 165,5 210 87,5 144 48 kg 17,7

inch 7,68 6,52 8,27 3,44 5,67 1,89 lbs 39,0

050/100 mm 200 165,5 210 87,5 144 48 kg 19,8

inch 7,87 6,52 8,27 3,44 5,67 1,89 lbs 43,7

050/150 mm 185 165,5 210 87,5 144 48 kg 22,6

inch 7,28 6,52 8,27 3,44 5,67 1,89 lbs 49,8

080/100 mm 245 212 313 118 230 80 kg 39,0

inch 9,65 8,35 12,32 4,65 9,06 3,15 lbs 86,0

080/150 mm 280 212 313 118 230 80 kg 37,8

inch 11,02 8,35 12,32 4,65 9,06 3,15 lbs 83,3

100/150 mm 290 227 313 140 250 100 kg 52,0

inch 11,42 8,94 12,32 5,51 9,84 3,94 lbs 114,6

150/200 mm 305 317 337* 180 365 147 kg 90,0

inch 12 12,48 13,27* 7,09 14,37 5,79 lbs 198,4

150/250 mm 350 317 337* 180 395 147 kg 211,0

inch 13,78 12,48 13,27* 7,09 15,55 5,79 lbs 465,2

Flange Connections DIN EN 1092-2 PN 16

DN 200 DIN EN 1092-2 PN 10

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 3

Date: 07.1991

Revision: 06.2020

Technical Manual

Technical Data AKH6 (ANSI)

A - A

B - B

300 304 310

010030050090080020

Ød

060100 065 170 040 120 110 150

S1 S3

S2 S5

020

080

030

050

040

090

010

310

120

100

065

060

170

150

110

300

304

420

430

440

445

450

455

500

510

535

530

520

525

Ød

L2L1

DIN EN ISO 5211

350

352

354

356

360

362

372

374

400

410

ØD°

Øk1

nxØd

Øk

nxØd

weight

* pass-through handlever Ø 26,54 inch

° DN 1“-2“ quadrilateral, DN 3“ octagonal, DN 100 hexagonal

DN1 / DN2 L H R t ØD° Ød

1“/2“ inch 5,91 4,88 6,3 2,58 4,17 0,94 lbs 16,8

mm 150 124 160 65,5 106 24 kg 7,6

1½“/3“ inch 7,28 5,91 8,27 3,15 4,88 1,5 lbs 23,6

mm 185 150 210 80 124 38 kg 10,7

2“/3“ inch 7,68 6,52 8,27 3,44 5,67 1,89 lbs 37,7

mm 195 165,5 210 87,5 144 48 kg 17,1

2“/4“ inch 7,87 6,52 8,27 3,44 5,67 1,89 lbs 43,7

mm 200 165,5 210 87,5 144 48 kg 19,8

2“/6“ inch 7,28 6,52 8,27 3,44 5,67 1,89 lbs 48,7

mm 185 165,5 210 87,5 144 48 kg 22,1

3“/4“ inch 9,65 8,35 12,32 4,65 9,06 3,15 lbs 82,7

mm 245 212 313 118 230 80 kg 37,5

4“/6“ inch 11,42 8,94 12,32 5,51 9,84 3,94 lbs 123,7

mm 290 227 313 140 250 100 kg 56,1

6“/8“ inch 12 12,44 13,27* 5,08 14,37 5,79 lbs 198,4

mm 305 316 337* 129 365 147 kg 90,0

Flange Connections ASME B 16.5 Cass 150,

 Min.angethicknessacc.

to ASME B 16.5 Cass 150,

Table 9 (Flanged Fittings)

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 4

Date: 07.1991

Revision: 06.2020

Technical Manual

Material specication AKH6

No. Designation Quantity Material Material-No. / DIN ASTM / AISI

010 body 1 ductile iron / PFA EN-JS1049 (GGG-40.3) / DIN EN 1563 A 395

1 ductile iron / PFA conductive EN-JS1049 (GGG-40.3) / DIN EN 1563 A 395

020 side piece 1 ductile iron / PFA EN-JS1049 (GGG-40.3) / DIN EN 1563 A 395

1 ductile iron / PFA conductive EN-JS1049 (GGG-40.3) / DIN EN 1563 A 395

DN 150/° 1 stainless steel / PFA 1.4571

030 seat ring 2 PTFE

2 PTFE conductive

040 stem 1 stainless steel / PFA 1.4470 / DIN EN 10283 A 890 CD3MN

1stainless steel / PFA conductive 1.4470 / DIN EN 10283 A 890 CD3MN

1 Hastelloy C4 / PFA ** 2.4610 / DIN 17744

050 ball

DN 025/°-050/°, DN 1“/°-2“/° 1 cast steel / PFA 1.0619 / DIN EN 10213-2 A 216 Grade WCB

1 cast steel / PFA conductive 1.0619 / DIN EN 10213-2 A 216 Grade WCB

DN 080/°-150/°, DN 3“/°-6“/° 1 ductile iron / PFA EN-JS1049 (GGG-40.3) / DIN EN 1563 A 395

1 ductile iron / PFA conductive EN-JS1049 (GGG-40.3) / DIN EN 1563 A 395

1ceramic Al2O3*

060 gland follower 1 stainless steel / PTFE-graphite 1.4308 / DIN EN 10283 A 743 CF-8

080 stud bolt

DN 150/°, DN 1“/° - 6“/° 1 set stainless steel 1.4301-K70 / DIN EN 10088-3 A 193 B8

hexagon bolt

DN 025/° - 100/° 1 set stainless steel 1.4301-K70 / DIN EN 10088-3 A 193 B8

090 hexagon nut 1 set stainless steel 1.4301-K70 / DIN EN 10088-3 A 194 8

100 packing material 1 set PTFE °

(chevron) 1 set PTFE-graphite °

110 hexagon nut 2 stainless steel 1.4301 / DIN EN 10088-3 A 194 8

120 stud bolt 2 stainless steel 1.4301 / DIN EN 10088-3 A 193 B8

150 serrated lock washer 1 stainless steel 1.4301 / DIN EN 10088-3 AISI 304

170 grounding device 1 stainless steel 1.4310 / DIN EN 10270-3 AISI 301

300 hand lever

DN 025/°-100/°, 1“/°-4“/° 1 die cast metall (galvanized) ZP0410 / DIN EN 12844

DN 150/°, 6“/°: adapter;

lever

Stainless steel;

steel (chromated)

1.4308 / DIN EN 10283;

1.0037 / DIN EN 10025-2

A 743 CF-8;

A283 B

304 hexagon bolt 1 stainless steel 1.4301 / DIN EN 10088-3 A 193 B8

310 stop

DN 025/°-100/°, 1“/°-4“/° 2 stainless steel 1.4301 / DIN EN 10088-3 AISI 304

DN 150/°, DN 6“/° ^ 1 stainless steel 1.4104 / DIN EN 10088-3 AISI 430 F

Valves with conductive lining only contain components with conductive materials

*ceramic ball on request (available up to DN 150/200 and DN 6“/8“)

** Hastelloy stem on request

°optional

^DN 150/° und 6“/° 2 hexagon bolts

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 5

Date: 07.1991

Revision: 06.2020

Technical Manual

Dimensions AKH6 (DIN)

stem lining DN 025/050 0,059 inch

all other sizes at least 0,098 inch

A - A

B - B

300 304 310

DN2

010030050090080020

Ød

060100 065 170 040 120 110 150

DN2

S1 S3

S2 S5

020

080

030

050

040

090

010

310

120

100

065

060

170

150

110

300

304

420

430

440

445

450

455

500

510

535

530

520

525

Ød

L2L1

DIN EN ISO 5211

350

352

354

356

360

362

372

374

400

410

DN1

ØD°

Øk

nxØd1

Øk

nxØd

DN1

DN1 / DN2 L b b1 Øk Øk1 n x Ød n x Ød1 S1 S2 S3 S4 S5

025/050 mm 150 16,5 22 85 125 4 x 14 4 x 18 3,5 2,5 3 3,5 2,5

inch 5,91 0,65 0,85 3,35 4,92 4 x 0,55 4 x 0,71 0,14 0,1 0,12 0,14 0,09

025/100 mm 150 16,5 31,5 85 180 4 x 14 4 x 18 3,5 2,5 3 3,5 2,5

inch 5,91 0,65 1,24 3,35 7,09 4 x 0,55 4 x 0,71 0,14 0,1 0,12 0,14 0,09

040/080 mm 185 20 28 110 160 4 x 18 4 x 18 3,5 3 3 4 3

inch 7,28 0,79 1,1 4,33 6,3 4 x 0,71 4 x 0,71 0,14 0,12 0,12 0,16 0,12

050/080 mm 195 20,5 27 125 160 4 x 18 4 x 18 4 3 3,5 4 3

inch 7,68 0,81 1,06 4,92 6,3 4 x 0,71 4 x 0,71 0,16 0,12 0,14 0,16 0,12

050/100 mm 200 20,5 31 125 180 4 x 18 4 x 18 4 3 3,5 4 3

inch 7,87 0,81 1,22 4,92 7,09 4 x 0,71 4 x 0,71 0,16 0,12 0,14 0,16 0,12

050/150 mm 185 20,5 28 125 240 4 x 18 4 x 18 4 3 3,5 4 3

inch 7,28 0,81 1,10 4,92 9,45 4 x 0,71 4 x 0,71 0,16 0,12 0,14 0,16 0,12

080/100 mm 245 26 31 160 180 8 x 18 8 x 18 4 5 4 4,5 4,25

inch 9,65 1,02 1,22 6,3 7,09 8 x 0,71 8 x 0,71 0,16 0,2 0,16 0,18 0,17

080/150 mm 280 26 28,5 160 240 8 x 18 8 x 18 4 5 4 4,5 4,25

inch 11,02 1,02 1,12 6,3 9,45 8 x 0,71 8 x 0,71 0,16 0,2 0,16 0,18 0,17

100/150 mm 290 28 32,5 180 240 8 x 18 8 x 22 4 5 4 5 4,5

inch 11,42 1,1 1,28 7,09 9,45 8 x 0,71 8 x 0,87 0,16 0,2 0,16 0,2 0,18

150/200 mm 305 29 33 240 295 8 x 22 8 x 22 4 5 4 6 5,5

inch 12 1,14 1,3 9,45 11,61 8 x 0,87 8 x 0,87 0,16 0,2 0,16 0,24 0,22

150/250 mm 350 29 36,5 240 355 8 x 22 12 x 26 4,5 5 4 6 5,5

inch 13,78 1,14 1,44 9,45 13,98 8 x 0,87 12 x 1,02 0,18 0,2 0,16 0,24 0,22

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 6

Date: 07.1991

Revision: 06.2020

Technical Manual

Dimensions AKH6 (ANSI)

A - A

B - B

300 304 310

DN2

010030050090080020

Ød

060100 065 170 040 120 110 150

DN2

S1 S3

S2 S5

020

080

030

050

040

090

010

310

120

100

065

060

170

150

110

300

304

420

430

440

445

450

455

500

510

535

530

520

525

Ød

L2L1

DIN EN ISO 5211

350

352

354

356

360

362

372

374

400

410

DN1

ØD°

Øk

nxØd1

Øk

nxØd

DN1

DN1 / DN2 L b b1 Øk Øk1 n x Ød n x Ød1 S1 S2 S3 S4 S5

1“/2“ inch 5,91 0,65 0,85 3,13 4,74 4 x 0,63 4 x 0,75 0,14 0,12 0,12 0,14 0,09

mm 150 16,5 21,5 79,2 120,5 4 x 16 4 x 19 3,5 3 3 3,5 2,5

1½“/3“ inch 7,28 0,79 1,02 3,88 6 4 x 0,63 4 x 0,75 0,14 0,12 0,12 0,16 0,12

mm 185 20 26 98,5 152,5 4 x 16 4 x 19 3,5 3 3 4 3

2“/3“ inch 7,68 0,81 1,06 4,75 6 4 x 0,75 4 x 0,75 0,16 0,12 0,14 0,16 0,12

mm 195 20,5 27 120,5 152,5 4 x 19 4 x 19 4 3 4 4 3

2“/4“ inch 7,78 0,81 1,22 4,75 7,5 4 x 0,75 8 x 0,75 0,16 0,12 0,14 0,16 0,12

mm 200 20,5 31 120,5 190,5 4 x 19 8 x 19 4 3 4 4 3

2“/6“ inch 7,28 0,81 1,1 4,75 9,45 4 x 0,75 8 x 0,75 0,16 0,12 0,14 0,16 0,12

mm 185 20,5 28 120,5 240 4 x 19 8 x 19 4 3 4 4 3

3“/4“ inch 9,65 1,02 1,22 6 7,5 8 x 0,75 8 x 0,75 0,16 0,2 0,16 0,18 0,17

mm 245 26 31 152,5 190,5 8 x 19 8 x 19 4 5 4 4,5 4,25

4“/6“ inch 11,42 1,1 1,28 7,5 9,51 8 x 0,75 8 x 0,87 0,16 0,2 0,16 0,2 0,18

mm 290 28 32,5 190,5 241,5 8 x 19 8 x 22 4 5 4 5 4,5

6“/8“ inch 12 1,14 1,3 9,51 11,75 8 x 0,87 8 x 087 0,16 0,2 0,16 0,24 0,22

mm 305 29 33 241,5 298,5 8 x 22 8 x 22 4 5 4 6 5,5

stem lining DN 1“/2“ 0,059 inch

all other sizes at least 0,098 inch

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 7

Date: 07.1991

Revision: 06.2020

Technical Manual

Spare Parts (item n°) - AKH6 Standard Version

Ball Seat Rings

Ceramic°

Stainless Steel/PFA

Stem

PTFE / Graphite

Packing (set)

DIN ANSI PFA PTFE

025/050 1“/2“ 0000323 0002317 0000159

025/100 --- 0000323 0002317 0000159

040/080 1½“/3“ 0000325 0002319 0000160

050/080 2“/3“ 0000326 0002320 0000161

050/100 2“/4“ 0000326 0002320 0000161

050/150 2“/6“ 0000326 0002320 0000161

080/100 3“/4“ 0000328 0002322 0000163

080/150 -- 0000328 0002322 0000163

100/150 4“/6“ 0000329 0002323 0000164

150/200 6“/8“ 0000330 0002405 0000165

150/250 -- 0000330 0002405 0000165

DIN ANSI Hastelloy / PFA PTFE

025/050 1“/2“ 0000115 0000116 0000167 0000174

025/100 --- 0000115 0000116 0000167 0000174

040/080 1½“/3“ 0000117 0000118 0000168 0000175

050/080 2“/3“ 0000119 0000120 0000169 0000176

050/100 2“/4“ 0000119 0000120 0000169 0000176

050/150 2“/6“ 0000119 0000120 0000169 0000176

080/100 3“/4“ 0000121 0000122 0000170 0000177

080/150 -- 0000121 0000122 0000170 0000177

100/150 4“/6“ 0000121 0000122 0000170 0000177

150/200 6“/8“ 0000123 0000124 0000172 0000179

150/250 -- 0000123 0000124 0000172 0000179

° Al2O3

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 8

Date: 07.1991

Revision: 06.2020

Technical Manual

Assembly Instructions AKH6

A - A

B - B

300 304 310

DN2

010030050090080020

Ød

060100 065 170 040 120 110 150

DN2

S1 S3

S2 S5

020

080

030

050

040

090

010

310

120

100

065

060

170

150

110

300

304

420

430

440

445

450

455

500

510

535

530

520

525

Ød

L2L1

DIN EN ISO 5211

350

352

354

356

360

362

372

374

400

410

DN1

ØD°

Øk

nxØd1

Øk

nxØd

DN1

The general installation and maintenance instructions must be observed.

1. Screw stud bolts (120) into body (010).

2. Insert stem (040)frominsideofbodyinsuchawaythattheatsideisparal-

lel to body longitudinal axis.

3. Insert chevron packing (100).

4. Install gland insert (065), gland follower (060), safety washer (150), hexagon

nuts (110) and grounding strap (170).

5. Install hand lever (300) on to stem (040) with the hexagon bolt (304).

6. Insertrstseatring(030) into body (010).

7. Insert ball (050) to valve stem by pushing the ball in a downward motion

through valve body.

8. Turn hand lever (300) 90° of longitudinal axis of body.

9. Install second ball seat ring (030) on to ball

(050).

10. Install side piece (020) on to body (010),

making sure that recess for stem is on the

correct side.

11. Install body bolts (080) and hexagon nuts

(090) and tighten by crisscross

method to recommended torques.

12. Assemble the two stops (310).

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 9

Date: 07.1991

Revision: 06.2020

Technical Manual

Disassembly Instructions for AKH6

A - A

B - B

300 304 310

DN2

010030050090080020

Ød

060100 065 170 040 120 110 150

DN2

S1 S3

S2 S5

020

080

030

050

040

090

010

310

120

100

065

060

170

150

110

300

304

420

430

440

445

450

455

500

510

535

530

520

525

Ød

L2L1

DIN EN ISO 5211

350

352

354

356

360

362

372

374

400

410

DN1

ØD°

Øk

nxØd1

Øk

nxØd

DN1

For all jobs which are to be carried out on an installed valve, the works safety require-

ments and the gerneral accident prevention instructions must be observed. Moreover,

the general installation and maintenance instructions for atomac uorcarbon resin lined

valves must be considered.

1. Priortodisassembly,thevalvemustbeclearedofalluidaccordingtothe

above-mentioned instructions. Particular care must be taken that during rin

sing and draining of the piping, the valve is opened and closed repeatedly.

These cycles (opening and closing) are to be

repeated during draining of the piping. Only when following this procedure, is it

ensured that all remaining pressure inside the body (stem guide and ball seats) is

eliminated.

2. For disassembly of the valve, put body on a work bench with a soft cover (rubber

mat). If necessary, remove the stops (310). Remove hexagon bolt (110)

and lock washer (150) and grounding device

(170).

3. Open valve completely. Remove hand lever

(300).

4. Disassemble gland follower (060) and gland

insert (065). If necessary, stud bolts

(120) can also be removed now.

5. Remove body bolts (080) and separate side

piece from body.

6. Removerstballseatring(030).

7. Put ball in closed position and push ball

out of the body.

8. Remove stem (040) by pushing it down

through the body (010). Care must be taken

not to damage body liner.

9. Chevron packing (100) can easily be

removed.

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

AKH6 - atomac vessel bottom drain valve

Ahaus GmbH

von-Braun-Straße 19a

D-48683 Ahaus

Postfach 1162 D-48661 Ahaus

Telefon: +49(0) 2561-686-100

Fax: +49(0) 2561-686-200

Page: 10

Date: 07.1991

Revision: 06.2020

Technical Manual

AKH6 - recommended tightening torques*

DN (080/090) DN1 DN2 (110/120/150)

Nm lbf · in Nm lbf · in Nm lbf · in Nm lbf · in

025/050 26 230 25 221 65 575 4 35

1“/2“ 26 230 15 133 60 531 4 35

025/100 26 230 25 221 65 575 4 35

040/080 54 478 50 442 55 486 7 62

1½“/3“ 59 522 26 257 100 885 7 62

050/080 80 708 65 575 55 486 7 62

2“/3“ 87 770 60 531 100 885 7 62

050/100 80 708 65 575 65 575 7 62

2“/4“ 87 770 60 531 76 673 7 62

050/150 80 708 65 575 130 1150 7 62

2“/6“ 87 770 60 531 129 1142 7 62

080/100 84 743 55 486 65 575 8 71

3“/4“ 87 770 100 885 76 673 8 71

080/150 84 743 55 486 130 1150 8 71

100/150 138 1221 65 575 130 1150 8 71

4“/6“ 143 1266 76 673 129 1142 8 71

150/200 178 1575 130 1150 190 1681 12 106

6“/8“ 180 1593 129 1042 188 1664 12 106

150/250 178 1575 130 1150 232 2053 12 106

* maximum value

When bolting together dissimilar materials, always tighten to the lowest recommended torque of

the components in the joint. Using higher torques may cause excessive deformation of the „softer“

material in the joint

tie rods connection ange gland bolts

Your distribution partner:

Blindeisenweg 31 • D-41468 Neuss • Tel.: +49 2131 / 15 39 28-0 • Fax: +49 2131 / 15 39 28-99 • info@fergo.eu • www.fergo.eu

Table des matières

Autres manuels Flowserve Unité de contrôle

Flowserve

Flowserve McCANNA Manuel utilisateur

Flowserve

Flowserve NAF Trunnball DL Series Manuel utilisateur

Flowserve

Flowserve Edward 602Y Manuel utilisateur

Flowserve

Flowserve AKH2A Manuel utilisateur

Flowserve

Flowserve Valtek Mark Mode d’emploi

Flowserve

Flowserve Valtek MaxFlo 3 Manuel du propriétaire

Flowserve

Flowserve T4E-1 Manuel utilisateur

Flowserve

Flowserve Worcester V-Flow 53 Series Manuel utilisateur

Flowserve

Flowserve Valtek MegaStream Mode d’emploi

Flowserve

Flowserve Valtek Mark Six Mode d’emploi

Flowserve

Flowserve ASF Manuel utilisateur

Flowserve

Flowserve 94 Series Manuel

Flowserve

Flowserve Valtek Mark 100 Manuel utilisateur

Flowserve

Flowserve 13 Series Manuel utilisateur

Flowserve

Flowserve Gestra GAV 56F Manuel utilisateur

Flowserve

Flowserve Valtek FlowTop V746 Manuel utilisateur

Flowserve

Flowserve Valtek Valdisk Mode d’emploi

Flowserve

Flowserve Worcester V-Flow 51 Series Manuel utilisateur

Flowserve

Flowserve Valtek Mark Six Manuel utilisateur

Flowserve

Flowserve GESTRA BB 1 Series Manuel utilisateur

Flowserve

Flowserve Argus EK 71 Manuel utilisateur

Flowserve

Flowserve Series 081000 Manuel utilisateur

Flowserve

Flowserve NAF 8886 Series Manuel utilisateur

Flowserve

Flowserve Valtek CavControl Trim Mode d’emploi

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
