FIC 1st Mainboard KC19+ Manuel utilisateur

KC19+

MAINBOARD

MANUAL

DOC No.: M99701

Rev. : A1

Date : 3, 2000

Part No. : 25-11412-21

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the mainboard. Before handling any motherboard outside of its

protective packaging, ensure that your body is not electrostatically

charged.

2. There is a danger of explosion if the battery is incorrectly replaced.

Replace only with the same or an equivalent type of battery as

recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s

instructions.

Observe the following basic precautions when handling the motherboard

or other computer components:

nWear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

nTouch a grounded or anti-static surface or a metal fixture such as a

water pipe.

nEnsure add-on cards, mainboards, and models do not come into

contact with the golden fingers connectors, plugged into the expan-

sion slot.

The above methods prevent static build-up and allow it to be discharged

properly.

Trademark

All trademarks mentioned in this manual are registered property of

the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,

transcribed, translated, or transmitted in whatever form without the

written consent of the manufacturer, except for copies retained by the

purchaser for personal archival purposes.

Notice

TableofContents

Table of Contents

Chapter 1 Overview

The KC19+ Mainboard .............................................................. 1-2

Package Checklist .......................................................................... 1-2

Main Features ................................................................................ 1-3

ACPI Ready ................................................................................... 1-5

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support .................... 1-5

Chapter 2 Installation Procedures

Quick Reference ............................................................................. 2-2

Mainboard Layout ......................................................................... 2-6

1). Set System Switches ................................................................ 2-8

Clear CMOS: SW1-2 .......................................................... 2-8

Clear Password: SW1-3 ..................................................... 2-8

2). Install Memory Modules .......................................................... 2-9

RAM Module Configuration ..................................................... 2-9

Install and Remove RIMMs ...................................................... 2-9

3). Install the CPU .......................................................................... 2-10

CPU Frequency Selection .......................................................... 2-12

4). Install Expansion Cards ............................................................. 2-13

5). Connect Devices ....................................................................... 2-14

Floppy Diskette Drive Connector: Floppy ........................ 2-14

IDE HDD Device Connectors: Primarey, Secondary .......... 2-15

ATX Power Connector: POWER ....................................... 2-15

CPU Fan Connector: CPU_FAN ........................................ 2-16

Wake-On-LAN Connector: WOL ...................................... 2-16

Front Panel Block Connector: STATUS_PANEL ............... 2-17

PS/2 Keyboard and Mouse Connector: KB, MS ............... 2-18

Universal Serial Bus Connectors: USB .............................. 2-18

Printer Connector: LPT ...................................................... 2-19

Serial Port Connectors: COM1, COM2 .............................. 2-19

Chapter 3 BIOS Setup

KC19+Mainboard Manual

Chapter 4 FAQs

General FAQs ................................................................................. 4-1

BIOS FAQs .................................................................................... 4-4

Windows 98/98 SE FAQs ............................................................... 4-6

Windows 95 FAQs ......................................................................... 4-6

1 - 1

Overview

Chapter 1

The new 1stMainboard KC19+ is an ATX sized Slot 1 motherboard supporting

the latest high speed Intel® Pentium® III 450  733 MHz and Pentium® II 350

 450 MHz processors at FSB speeds of 100/133 MHz. With 2 RIMM there is

support for up to 1GB of the new industry changing memory technology

Rambus DRAM.

The KC19+ is based around the new Intel 820 Chipset which delivers a new

level of superior performance and headroom with next generation RDRAM

memory, while also being equipped with ECC memory support. The enhanced

performance of AGP 4X graphics technology provides 1GB/s bandwidth, eas-

ily supporting new games and upcoming 3D-hardware.

The new HUB Architecture replaces the slow PCI bus (133MB/s) and relieves

the previous bottleneck to I/O devices by doubling the bandwidth to 266MB/

s. Support for the Ultra DMA/66 protocol and its high-speed interface further

ensures that data transfer speeds are improved, especially for long sequential

transfers required by audio/visual applications. The Intel 820 provides excep-

tional onboard audio and video capabilities reducing potential costs for sys-

tem integrators by eliminating the cost of purchasing and assembling Audio/

VGA cards.

Expansion is provided by 1 AGP, 4 PCI and 2 ISA slots. Standard I/O connec-

tions include 2 serial ports, 1 parallel port, 1 PS/2 mouse and keyboard connec-

tor, 2 USB connectors and 1 media connector ( Line-in, Line-out and Mic-in).

The KC19+ is fully PC99 and Y2K compliant, and is ACPI ready, ensuring

improved energy efficiency. Other features include hardware monitoring, Wake-

On-LAN, CD Pro with enhanced drivers.

1 - 2

KC19+Mainboard Manual

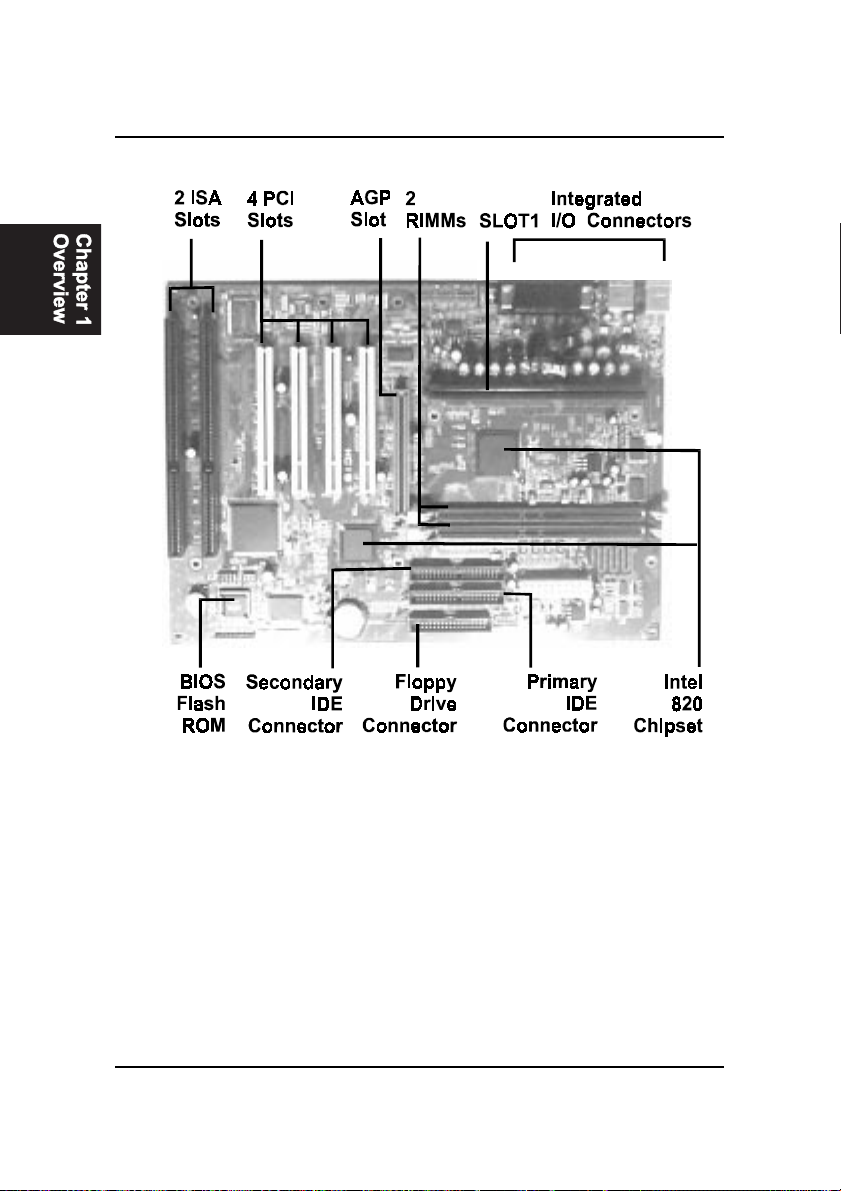

The KC19+ Mainboard

Package Checklist

If you discover any item below was damaged or lost, please contact your

vendor.

Ö The mainboardwithoneC-RIMMmodule

Ö Thisusermanual

Ö Onefloppydisk drivecable

Ö One HDD cable

Ö OneATA-66 cable

Ö CD-ProSoftwareutilities

Ö CD Plus Software tools

1 - 3

Overview

Main Features

■Easy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,

||LS-120|drives, IDE ZIP drives, Windows 95, Windows 98/98 SE, Windows

||2000, and OS/2.

■Leading Edge Chipset

Intel 820 chipset provide integrated memory controllers with new Dy-

namic Power Management Architecture (DPMA), concurrent PCI (2.0/

2.1), AGP 1.0 compliant and USB.

■Flexible Processor Support

Onboard CPU Slot supports:

Intel® Pentium® III 450-733+ MHz at 100/133 Front Side Bus

Intel Pentium® II 350-450 MHz at 100 Front Side Bus.

|■Versatile Main Memory Support

Accepts up to 1 GB RDRAM using two Direct RIMMs of 64, 128, 256,

512MB with support for lightning-fast RDRAM (800MHz).

■Enhanced PCI Bus Master IDE Controller with Ultra DMA/33 and

Ultra DMA/66 Support

Integrated Enhanced PCI Bus Master IDE controller features two dual-

channel connectors that accept up to four Enhanced IDE devices, includ-

ing CD-ROM and Tape Backup Drives, as well as Hard Disk Drives sup-

porting the new Ultra DMA/66 protocol. Standard PIO Mode 3, PIO Mode

4, DMA Mode 2, DMA Mode 4 devices are also supported.

■AGP, ISA, and PCI Expansion Slots

One AGP Bus expansion slot, four PCI Bus expansion slots, and two ISA

Bus provide the room to install a full range of add-on cards.

1 - 4

KC19+Mainboard Manual

■■

■Super Multi Input/Output (I/O) Support

Integrated Plug and Play multi-I/O chipset features two high-speed UART

16550 compatible serial ports, one EPP/ECP capable parallel port, and one

FDD connector.

■■

■Convenient Rear Panel USB Connection Support

Two USB ports integrated in the rear I/O panel with one manufacturing

optional USB connector for front panel connection allow convenient and

high-speed Plug and Play connections to the growing number of USB

compliant peripheral devices on the market.

■■

■Remote Wake On LAN Support

Onboard Wake On LAN (WOL) connector allows remote management on

your network even when the system is powered off. The feature provides

a more simple and convenient control for LAN-based networks.

■■

■Onboard Accelerated Graphics Port (AGP)

The motherboard is installed with one 32-bit AGP bus with a dedicated

66MHz/133MHz path from the graphics card to the system memory (in 4x

mode), offering much greater bandwidth than the 32-bit PCI bus. The

board is fully compliant with the AGP 1.0 specification. AGP enabled 3D

graphics cards can directly access main memory across this fast path

instead of using local memory. To make use of the improved AGP perfor-

mance, the motherboard should be installed with SDRAM type memory

and the VGA card Drivers should also be fully AGP compliant. Using

Microsofts Windows 98/SE and Windows 2000 which implement

DirectDraw will allow the system to take full use of AGPs benefits with-

out the need to install additional drivers.

1 - 5

Overview

ACPI Ready

This mainboard fully implements the new ACPI (Advanced Configuration and

Power Interface) 1.0 Hardware and BIOS requirement. If you install a ACPI

aware operating system, such as Windows 98/98 SE, you can fully utilize the

power saving features under ACPI.

The mainboard is compatible with all other non ACPI-aware operating sys-

tems. If you want to setup ACPI features under Windows 98, please follow the

instructions below:

Run Windows 98 setup by using setup/p j on the command line for installing

Windows 98 with the ACPI control features.

If you type setup without the parameter /p j, Windows 98 will be installed as

APM, PnP mode, no ACPI will be used.

For more detailed information, please visit the web site of Microsoft. The URL

is : www.microsoft.com/hwtest/.

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support

NOTE: If BIOS date is after 12/02/1999, the ACPI will be installed

automatically. Users do not need to setup in the above-mentioned

way.

■■

■BIOS Guardian

BIOS Guardian by default is enabled. It must be disabled in order to

reflash BIOS, thus effectively acting as a fire-wall against viruses that can

attack the BIOS while the system is running.

BIOS Guardian can be disabled as follows:

1. Go to BIOS Set Up Menu.

2. Disable BIOS Guardian.

3. Save the setting, and restart system.

1 - 6

KC19+Mainboard Manual

This Page Left Blank for Notes
