FeiYu Tech VLOG Pocket Manuel utilisateur

Instructions

EN V 1.2

Foldable Smartphone Gimbal

Catalogue

1. Overview 1

2. Start to Use

3. Function Operation

3.1 Function / Modes Introduction

3.2 Function Button Operation

3.3 Shutter Button Operation

2.1 Fold and Unfold

2.2 Charging

2.3 Smartphone Installation

5. Download and Connect App

5.1 Download the App

5.2 Connect the App

4. Gimbal Initialization

5.3 Shooting / control interface

5.4 Firmware Upgrade

6. Speciﬁcations

3.4 Trigger Button Operation

3.5. Landscape and Portrait Shot Switching

3.6 Light Indicator

2.4 Power on / oﬀ 4

2.5 Landscape Switching 4

Suggestion

Download the Feiyu ON App

Vlog pocket includes below information, please read the information before using

the gimbal

The tutorial videos can be watched at FeiyuTech oﬃcial website

or scan the QR code as below: http://www.feiyu-tech.com/play/

Please download Feiyu ON at your smartphone app store or can the QR code below.

1. Quick start guide

2. Online instruction

3. Tutorial

iOS Version Android Version

* Requires iOS 9.0 or later, Android 6.0 or later.

VLOG pocket is a three-axis handheld gimbal suitable for mobile phones. It is

small and foldable which can be folded into a pocket. The gimbal supports

landscape and portrait shooting, which can also control phone shooting.

1. Overview

Accessories

www.feiyu-tech.com

X1X1

TripodMicro-USB Cable

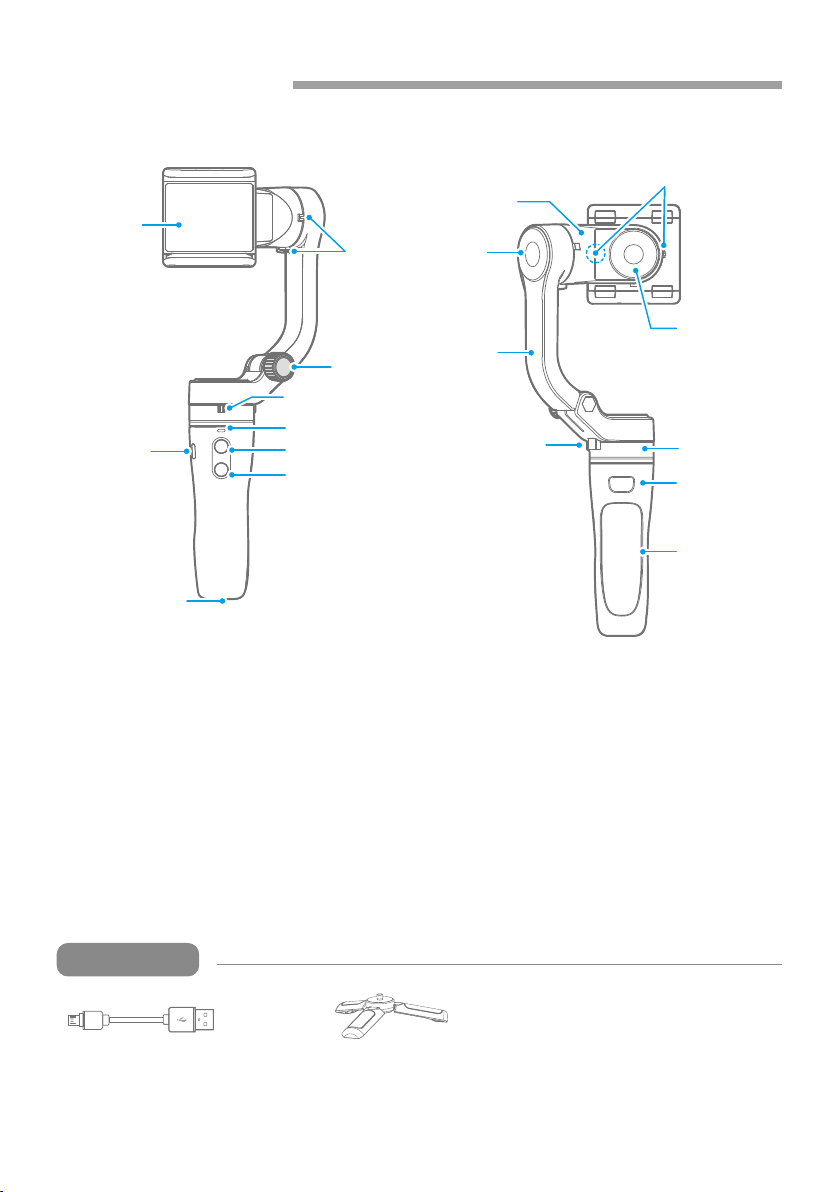

12. Tilt axis clamp

13. Pan axis clamp

14. Micro-USB port

5. Tilt axis 17. Status indicator11. Roll axis clamp

8. Vertical arm

15. Handle3. Trigger button 9. Folding knob

1. Function button

2. Shutter button

10. Smartphone holder4. Roll axis 16. 1/4 inch thread hole

6. Pan axis

7. Cross arm

*This product does not include the smartphone

www.feiyu-tech.com

(1) Please fully charge the battery before powering on the gimbal for the ﬁrst time.

(2) If the power is too low, the red light will ﬂash three times every ﬁve seconds that

indicating you should charge it immediately.

(3) When not in use, power oﬀ the gimbal.

(4) Unlock the three axis clamp before powering on the gimbal.

(5) Landscape to mount smartphone.

TIPS

2. Start to Use

Folded status

Unfolded status

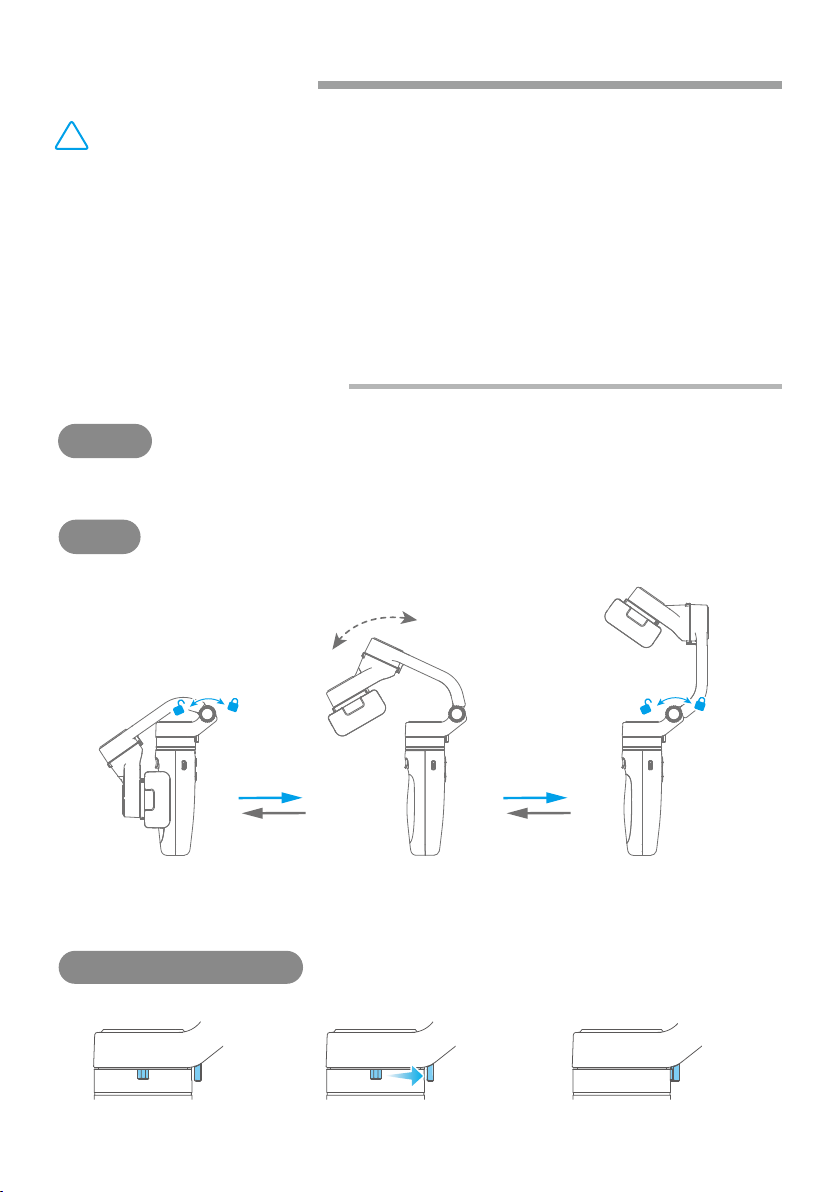

2.1. Fold and Unfold

(1) Loosen the folding knob and tighten the knob after unfolding

the vertical arm.

(2) Unlock the three axis clamp.

(1) Lock the three axis clamp.

(2) Loosen the folding knob, and then tighten the knob after folding

the vertical arm.

Unfold

Fold

Unlock status

Take the pan axis clamp for example.

Lock status

Unlock / Lock the clamp

Charge complete

Installation complete

Charging

Connect the USB cable to charge. The indicator light is red when charging, and

green when fully charged.

2.2 Charging

2.3 Smartphone Installation

It is recommended to remove the smartphone case before installation and keep

the logo of the smartphone holder upward.

Keep the smartphone holder in center.

www.feiyu-tech.com

keep upward

Front holding Upside down holding Wrong operation

Press and hold

the Trigger button

Holding the gimbal, press and hold the trigger button, turn the handle forward to

the inverted holding, and release the trigger button after adjusting the phone to the

appropriate angle. Upside-down handheld can be used to take low angle pictures.

Double click trigger button is recommended before operating the landscape mode.

Please do not rotate the gimbal from your right side to upside down position.

www.feiyu-tech.com

Turn on the smartphone only after it is installed securely.

Unlock the three axis clamp before powering on the gimbal.

Long time press the function button and release it when you hear

the tone.

Long time press the function button and release it when you hear

the tone.

Long time press

Power oﬀ

Power on

2.4 Power on / oﬀ

2.5 Landscape Switching

(Green light will change to blue)

(The red light will turn oﬀ)

www.feiyu-tech.com

3.1 Function / Modes Introduction

3. Function Operation

Panning Mode（Default mode）

Lock Mode

Follow Mode

The roll direction is ﬁxed, and the smartphone moves according to the left-right

movements, up-down movements of the user's hand.

The roll and tilt direction are ﬁxed, and the smartphone moves according to the

left-right movements of the user's hand.

The orientation of the camera is ﬁxed.

Panning Mode

Single click the

function button

Follow and

rotate

Follow and

rotate

Default mode Lock Mode Follow Mode

Click again the

function button

Press and hold the

Shortcut button

Reset

Manual Lock

Return to panning mode, three axises return to default position.

Slide the tilt axis to one position for shooting.

Landscape and Portrait Shot

Assist landscape or portrait shooting.

Lock the

position

www.feiyu-tech.com

3.2 Function Button Operation

Function Button

Status Indicator

Single click

Click again

Click once Panning Mode

Lock Mode

Keep current status

Function

button Function

Double click Landscape and portrait shot switching

Five click

Long time

press Power on / oﬀ

Power on

Power oﬀ

Gimbal Initialization

( Single click the function button to wake up )

www.feiyu-tech.com

Bluetooth connection

Connect Smartphone

3.3 Shutter Button Operation

（1）Power on VLOG pocket, open smartphone bluetooth.

（2）Choose below Bluetooth connection way:

a. Choose VLOG pocket Bluetooth to connect like FY_PocketV_xx.

b. Open Feiyu ON app, logon or register via tips to connect.

（3）After Bluetooth connecting successful, the shutter button is activated.

The gimbal can control the photography after only Bluetooth is connected with smartphone.

Shutter Button

Single

click

Double click

Photography

Video

( Click again to ﬁnished the video )

Switch to photo / video mode

Shutter

Button Function Control

the App Control smartphone

camera

via bluetoothFeiyu ON

Triple click Switch front and rear camera

Long time

press

Video recording in shooting mode

*We suggest close Feiyu ON App when you control smartphone camera.

The green light ﬂashes once while other indicator status (About every 5 seconds ﬂashes once)

( Long press the shutter button again to

end the recording )
