FeiYu Tech G5 Manuel utilisateur
User Manual
3-Axis Stabilized Handheld Gimbal
Compatible with GoPro HERO5 / HERO4 / HERO3+ / HERO3 /
Yi Cam 4K / AEE etc.
GuiLin FeiYu Technology Incorporated Company
2016.12
V 1.2
Long press the selfie button, the lens will rotate 180 °,
release to restore.
Self-timer button
Product Overview
Joystick
1/4 Inch
Screw Hole
Rolling
Indicator Status Mode / Status
Blue light flashes once
Blue light flashes twice
Panning mode
Panning and
Tilting mode
Lock mode / InitializingBlue light constant on
Blue light keeps flashing Initialization failure /
Malfunction
Blue light flashes for three times Stand-by
Low batteryRed light flashes three times
Red light keeps flashing Entering stand-by /
Entering power off
Function Button
You can using the function button to switch the
working mode, power on or power off the gimbal.
Please refer to chapter “Modes / Functions”.
Power on: Long press Function Button and release it
until the green light is on.
Power off：Long press Function Button and release it
until the red light changes from quick flashing to constant.
* The showing sports camera is only
for reference
Up
Right
Down
Left
Compatible with
Accessories
App ControlWater Splash Proof
*Never submerge the gimble in water

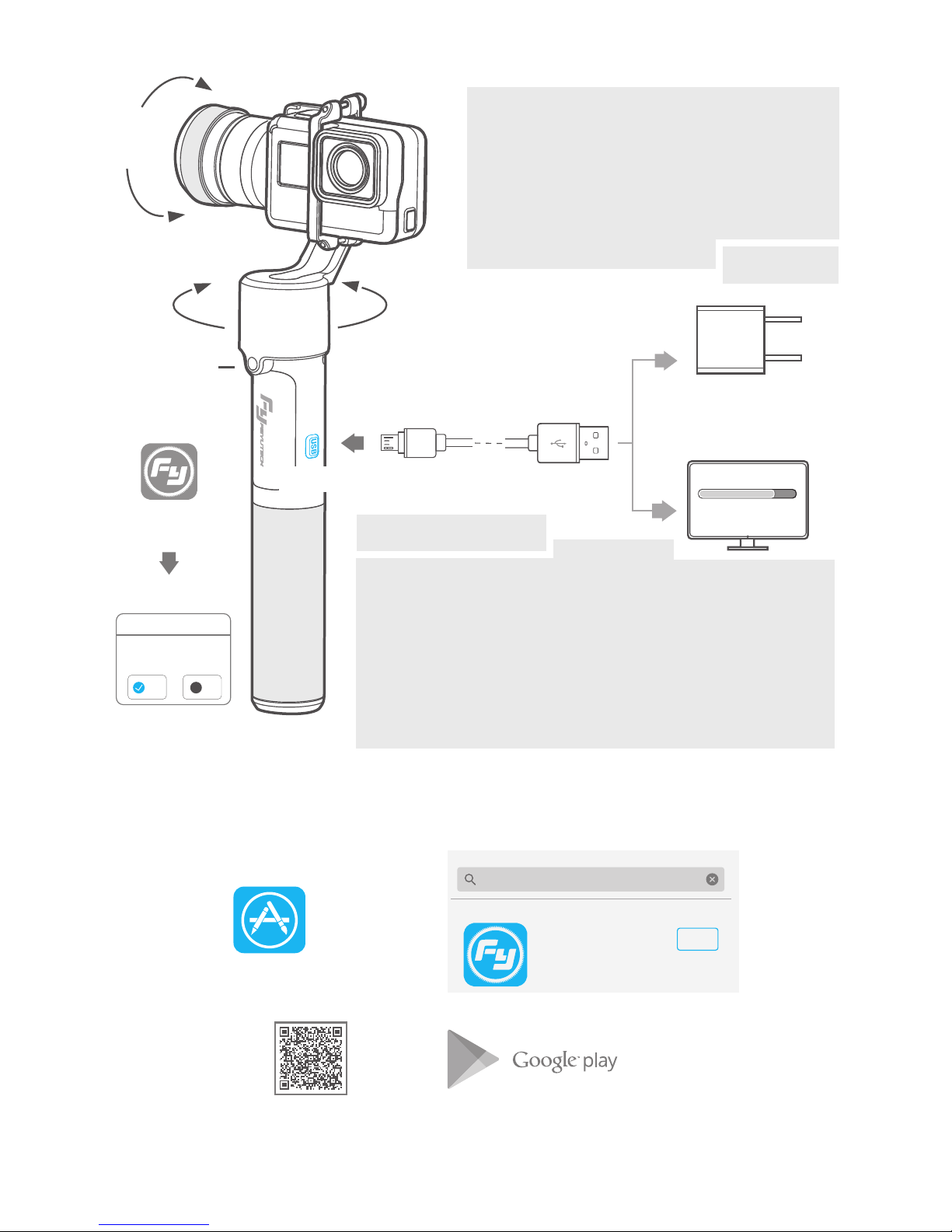

Firmware upgrade
Firmware upgrade (1) Please visit the official website www.feiyu-tech.com to download the
relevant programs for upgrading, including USB driver, firmware upgrade
software and product firmware, and install the relevant software,
decompress the firmware files for standby application.
Connect the USB cable with micro port as the above picture.
Please upgrade the relevant firmware according to the operation
instructions of firmware upgrade software.
(2)
(3)
Or use the FY Settings App for firmware upgrades.
Tilting
Panning
micro port
USB Cable
5V USB power adapter
(Equipped by user )
Upgrade........
PC
After power off, connect the USB cable to USB port,
and connect with 5V USB power adapter (equipped
by user) by USB cable .
The red indicator light is on during charging, and
green light is on after the battery is fully charged.
Or take out the battery, and use the corresponding
charger(equipped by user) to
charge the battery . Charging
USB Port
Connecting App
1/4 Inch
Screw Hole
FY Settings
new firmware is available,
do you want to upgrade?
×
（2） Start the app on your smartphone, follow the instructions to connect the smartphone with
gimbal via Bluetooth.
（1） Please go to Apple app store to search "FY Settings" and then install it.
iOS version:
Android version:
APP Store
FY Settings Open
FY Settings
GuiLin FeiYu Technology Incorporated Company
Firmware upgrade
Yes No
scan to down load
User Guide
1Install the battery
Remove the handle and
insert one 22650 battery
into it.
Install the camera on retainer plate,then fix
the camera with retainer bar and screw.
2Install the Camera
4Power on / off
In order to achieve in a better performance of
the gimbal, please try to balance the camera
before power on G5.
3Camera balance adjustment
!
4
!
(1) Please install the camera before powering on the gimbal
(2) Please turn off the power when the gimbal is not in use,
then remove the camera
Attention !
Power On： Press and hold function button until the green
light is on.
Power Off： Press and hold function button until the red
light changes from quick flashing to constant.
In case of low battery, the indicator will light red and
flash 3 times every 5 seconds. Please charge G5 or
replace the battery.
Attention: Make sure the camera is
secure before power on the Gimbal.
Best Balance
Balance adjustment reference :
GoPro HERO 5 ⸺ counter weight & weight ring
GoPro HERO 4 ⸺ counter weight
USB cable X1
Long screw X2
Mini camera
charging cable X1
Screw
Battery
(Type:22650) X1
Retainer bar
Counter
weight Retainer plate
Option 1 Option 2
Take the Gopro HERO 5 camera for example
1-normal position 2-reverse position
3
Counter weight
Weight ring
Weight ring
1
Modes / Functions
Working Modes
Reset
Stand-by
Other Functions
Mode / Function Operation Instructions
Shutdown all motors.
Hold the direction of camera lens.
Panning Mode
Hold the tilting and rolling direction of camera lens, camera lens will move along
with handle moving.
Panning and Tilting Mode
Hold the rolling direction of camera lens, camera lens will move along with handle moving.
Lock Mode
* The gimbal will work on Panning Mode after power on.
Reset the tilting axis of the gimbal to initial
orientation and initial mode
Function Button
Double tap
Single tap
Mode / Function
Explanation
Panning Mode / Lock Mode
Panning and Tilting Mode
Triple tap
Single tap to switch between panning
mode and lock mode
Under panning and tilting mode, single tap
to switch to lock mode
Rotate 180° in horizontal Make the lens rotate 180 °
Quadruple tap Reset
Long press until
the red light
flashes quickly
Under stand-by mode, you can wake up G5 by
single tapping on function button or you can
initialize G5 by triple tapping on function button
Stand-by
Reset to power on status.
≤30°
≤30°
Single tap
Single tap
Single tap
Single tap
30°≥
30°≥
Vertical Shooting
Vertical Shooting Mode
Vertical Shooting Reset
7985
246
143
360°
245°
360°
min 2°/s max 75°/s
min 3°/s max 150°/s
Gimbal initialization
You can initialize your gimbal when:
（1） Camera is not level
（2） Haven been used for long time
（3） Big variation of ambient temperature
42
44.7
11.3
4.9
Parameters Unit: mm
Titling Angle
Rolling Angle
Panning Angle
Adaption
Weight
and other cameras
with the same size
GoPro HERO5 / HERO4 / HERO3+ / HERO3 / Yi cam 4K / AEE
271g （Not including battery, camera or counter weight ）
Titling Increments
Panning Increments
Usage time 8 Hours
16.5～29
Flash
1 2
press and hold Press and hold Triple tapTriple tap
Adjusting steps:
Light on Stands on table
Blue light flash
three times quickly
Initialization
successful
3
[ MANUAL AUDIO CONTROL ] Wind Only
By connecting the camera(equipped with
Mini-USB charging port) and G5, the camera
can be charged while G5 is power on.
Mini
camera
charging cable
Mini Port Micro Port
Audio effect optimization
Charging for Camera 相机供电接口
Wind Only
MANUAL AUDIO CONTROL
[ RAW AUDIO TRACK ] HIGH
RAW AUDIO TRACK
When installing GoPro HERO5 on G5, the
following configuration of HERO5 will help you
to get better audio effect:
Applies full audio
processing including wind
and/or stereo and
automatic gain.
HIGH
MID
GoPro HERO
mini Port
GoPro HERO
mini Port
Camera power-
supply port
DISCLAIMER
Attention
Please correctly assemble the gimbal in accordance with the diagram
When the gimbal is not in use or placed on the table, please ensure it is powered off
Please install the camera before powering on the gimbal
Prohibit any user for any illegal purpose. Users will be responsible for all behaviors of purchase
and use products.
The Company assumes no liability for any risks related to or resulting from the debug and use
of this product (including the direct, indirect or third-party losses).
For any unknown sources of using, we will not be at any services.
The updating and changes of product firmware and program may cause changes in function
descriptions in this user manual, please read the instructions carefully before upgrading the
firmware and use the corresponding user manual.
You can get the latest user manual from the official website: www.feiyu-tech.com
Feiyu Tech reserves the right to amend this manual and the terms and conditions of use the
product at any time.
Stereo Only
www.feiyu-tech.com
Create More Possibilities
For more information, please visit our official website: www.feiyu-tech.com
Support Email: service@feiyu-tech.com
This product is due to follow-up hardware and software updates may occur
description of the introduction does not match the actual product features.
You can get the latest user manual from the official website
