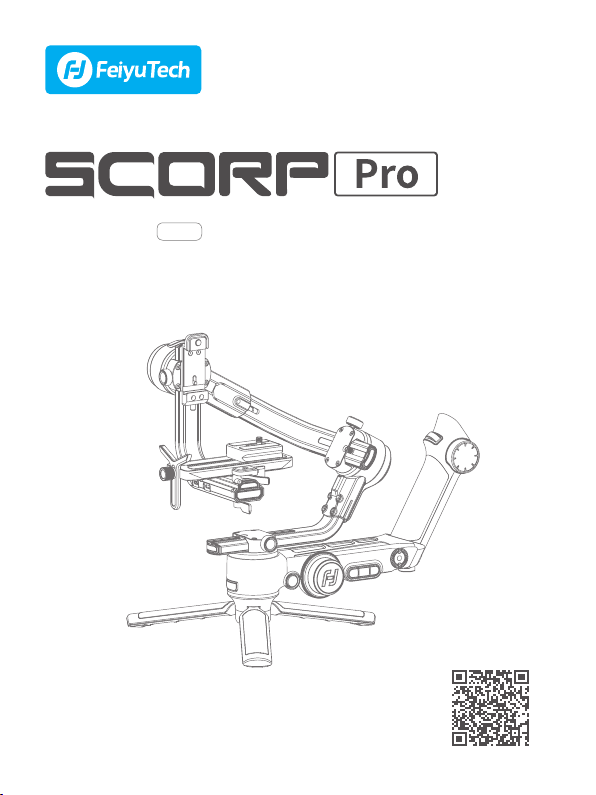

FeiYu Tech SCORP PRO Manuel utilisateur

Instructions V 1.1

Tutorial Videos

Catalogue

1. Overview ……………………………………………………………………………………………………… 1

2. Getting started ……………………………………………………………………………………………… 3

2.1 Charging ……………………………………………………………………………………………………………… 3

2.2 Install the tripod …………………………………………………………………………………………………… 3

2.3 Install the remote control handle ………………………………………………………………………………… 4

2.4 Adjust the gimbal to gimbal balancing position ……………………………………………………………… 4

3. Mounting the Camera ……………………………………………………………………………………… 5

3.1 Attach the quick release plate and camera backing base(Optional) ……………………………………… 5

3.2 Install lens holder (Optional) ……………………………………………………………………………………… 5

3.3 Mount camera on gimbal ………………………………………………………………………………………… 6

4. Gimbal Balancing …………………………………………………………………………………………… 8

4.1 Balancing the tilt axis ……………………………………………………………………………………………… 8

4.2 Balancing the roll axis ……………………………………………………………………………………………… 9

4.3 Balancing the pan axis …………………………………………………………………………………………… 9

4.4 Using the memory slider ………………………………………………………………………………………… 9

5. Power ON/ OFF& Wake up ……………………………………………………………………………… 10

5.1 Power ON/ OFF ……………………………………………………………………………………………………… 10

5.2 Lock/Unlock screen ………………………………………………………………………………………………… 11

5.3 Sleep/Wake up ……………………………………………………………………………………………………… 11

6. Function/Modes introduction ………………………………………………………………………… 11

6.1 Follow modes introduction ……………………………………………………………………………………… 11

6.2 Other function introduction ……………………………………………………………………………………… 12

7. App Connecting …………………………………………………………………………………………… 13

7.1 Connect with Feiyu SCORP APP ………………………………………………………………………………… 13

7.2 Function introduction of APP …………………………………………………………………………………… 13

8. Operation ………………………………………………………………………………………………… 16

8.1 Button operation …………………………………………………………………………………………………… 16

8.2 Touch screen operation …………………………………………………………………………………………… 20

8.3 Function operation ………………………………………………………………………………………………… 24

8.4 Remote control handle operation ……………………………………………………………………………… 29

8.5 Control ports ………………………………………………………………………………………………………… 30

9. Speci󽗉cations …………………………………………………………………………………………… 30

Introduction

Feiyu SCORP Pro is a professional 3-axis stabilized handheld gimbal for DSLR and

mirrorless camera which developed by Guilin Feiyu Technology Incorporated

Company. It is compatible with popular DSLR and mirrorless cameras on the market.

Feiyu SCORP Pro is designed with button area, multifunction knob and touch screen,

which can switch follow modes, control the rotation, image transmission transmitter

and the parameters settings by one hand. The camera shutter cable is equipped for

controlling the photo taking, video recording and focusing directly at handle.

Feiyu SCORP Pro also come with camera control port, image transmission port and 2

extension ports, which support to connect focus motor and other extension device at

the same time.

Tutorial

·The tutorial videos can be watched at FeiyuTech o󽗋cial

website or scan the QR code.

https://www.feiyu-tech.com/play/

- 1 -

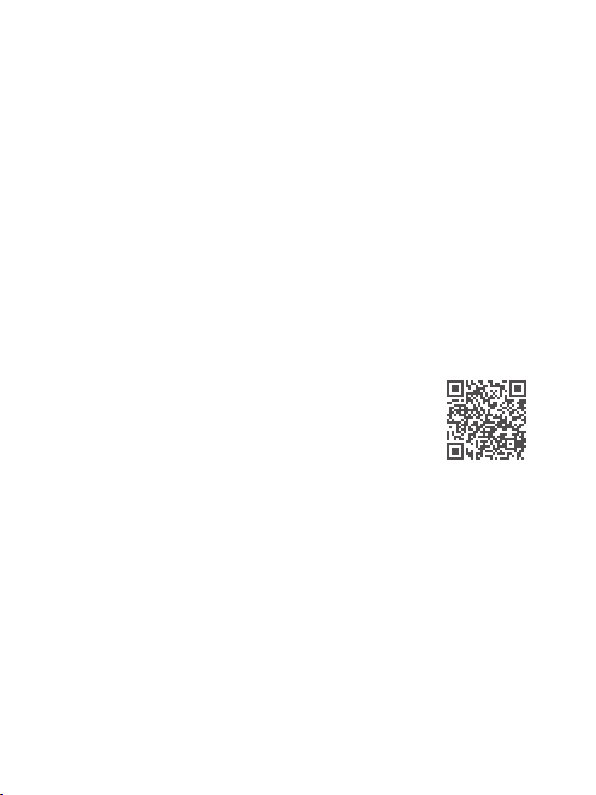

Download the App

Scan the QR code to download the app, or

search for "Feiyu SCORP" in the App Store or

Google Play.

* Requires iOS 9.0 or above, Android 6.0 or above.

iOS Android

1. Overview

* Not include camera.

[18]

[11]

[12]

[13]

[16]

[17]

[19]

[20]

[1]

[2]

[3]

[4]

[5]

[6]

[7] [8]

[9] [10]

[14] [P1] [P2]

[21]

[22]

[15]

- 2 -

[23]

[24]

[25]

[26]

[27]

[28]

[29]

[30] [31]

[32]

[33]

[34]

[35]

[36]

[37]

[38]

[40]

[41]

[P3][P4]

[39]

[1] Touch Screen

[2] Shutter button

[3] Joystick

[4] Handle mode button

[5] Customizable button

[6] Handle power button

[7] Handle lock

[8] Gimbal mode button

[9] Gimbal power button

[10] Type-C charging port

[11] Tripod

[12] Pan lock

[13] Pan axis

[14] Vertical arm

[15] Roll lock

[16] Slide arm

[17] Tilt axis

[18] Vertical quick release

plate safety lock

[19] Tilt lock

[20] Cross arm extending position knob

[21] Cross arm

[22] Roll axis

[23] Slide arm lock knob

[24] Camera backing base

[25] Quick release plate

[26] Lens holder

[27] Lens holder screw

[28] Vertical arm lock knob

[29] Knob function switching button

[30] Trigger button

[31] Multifunction knob (Main knob)

[32] A /B /C button (Record Mark

points)

[33] Remote control handle

[34] Multifunction knob

(Handle knob)

[35] Focusing wheel

[36] Cross arm lock knob

[37] Vertical mounting plate

[38] Quick release plate safety

lock

[39] Anti-drop column

[40] Slider lock

[41] Fixed plate slider

[P1] Camera control port

[P2] Image transmission port

[P3] Extension port 1

[P4] Extension port 2

- 3 -

2. Getting started

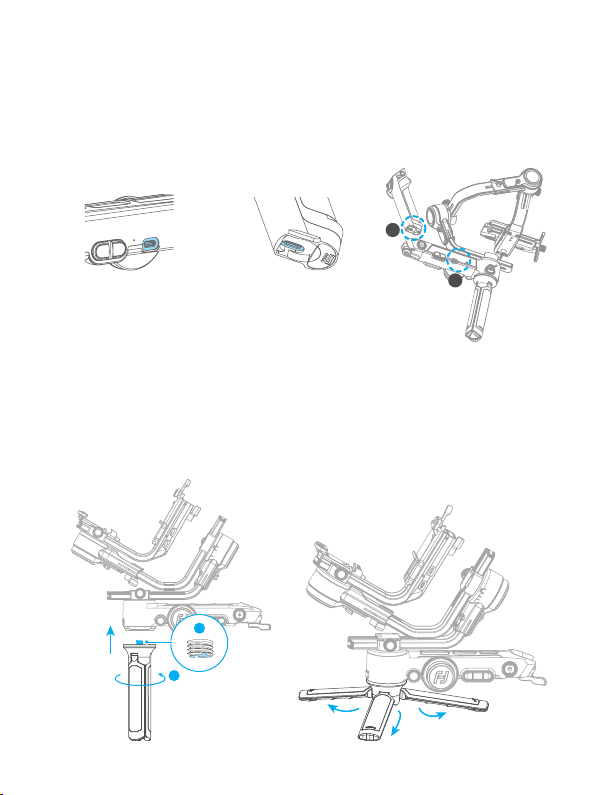

2.1 Charging

Please fully charge the battery before power on the gimbal for the 󽗉rst time.

Charging with USB2.0 to Type-C cable, supports quick charge.

① Gimbal charging port

Charge for gimbal and handle

② Handle charging port

Handle charging only

2.2 Install the tripod

Install the 3/8 - 1/4 inch thread insert① with the slot side down on the 1/4 inch screw

which is on the top of the tripod (The thread insert is factory mounted). Mount the

tripod ② to the bottom of the gimbal, then unfold the tripod and place the gimbal

on a 󽗊at surface.

- 4 -

2.3 Install the remote control handle

When install the handle, please wedge in the buckle ①, then push down the handle

from ②, until the handle lock ③ is engaged, then toggle the handle lock lever to

the locked position to 󽗉nish the installation.

When detach the handle, please toggle the handle lock lever to the unlocked

position, and pull up the handle.

Attention！

Wedge

Mount the remote control handle Detach the remote control handle

2.4 Adjust the gimbal to gimbal balancing position

The gimbal is folded by default, please toggle the tilt lock, roll lock, and pan lock

levers to the unlocked position and adjust the gimbal to gimbal balancing position,

and then toggle the three locks to the locked position.

Gimbal folded position Gimbal balancing position

- 5 -

3. Mounting the Camera

Before mounting the camera, make sure the camera is ready for shooting (Install the

camera lens, and the lens cover should be removed, the memory card and battery

needs to be inserted to the camera, and battery is fully charged) , complete all the

steps which mentioned in chapter "2. Getting started" and the gimbal is adjusted to

gimbal balancing position. Make sure the gimbal is powered o󽗈 or in sleep mode

before mounting the camera.

3.1 Attach the quick release plate and camera backing

base(Optional)

Attach the quick release plate to camera by tightening the screw.

User can choose to attach the camera backing base if needed ( For example, when

using a long or heavy lens). Attach the camera backing base to camera, then attach it

to quick release plate by tightening 2 screws.

Attach with quick release plate only Attach with camera backing base and quick

release plate

3.2 Install lens holder (Optional)

Install the lens holder on the quick release plate if needed, the rubber of the lens

holder must be directly under the lens. It is recommended to use the lens holder

when using a long or heavy lens.

- 6 -

3.3 Mount camera on gimbal

Horizontal mounting

Unlock the quick release plate safety lock ①, push the plate with the mounted

camera into the slot ② in direction of arrow, lock the safety lock ① once the camera

is roughly balanced. It is recommended to push the camera against the tilt axis.

Unlock the slider lock ③ to move the camera left or right according to camera's

width, then lock the slider lock ③.

113

- 7 -

Remove: Unlock the quick release plate safety lock ①, remove the quick release

plate while pressing anti-drop column ④.

Vertical mounting

Unlock the vertical quick release plate safety lock ⑤, push the plate with the

mounted camera into the slot ⑥, lock the safety lock ⑤ once the camera is roughly

balanced.

Remove: Please refer to the remove steps for horizontal mounting. Unlock the quick

release plate safety lock ⑤, remove the quick release plate while pressing anti-drop

column ⑦.
