Feelworld Master MA7S Manuel utilisateur

7" Full HD SDI On-camera Monitor

Support 4K HDMI Input/ Output

Guide Manual

Thank you for choosing Feelworld monitor.

Please read this manual carefully before you use.

MA7S

Contents

Caring For Your MA7S Monitor

What Should Be In The Box

Product Description

Front Panel and Button

Rear Panel

Sunshade

Battery Plate

Menu Operation Instruction

Menu Function Instruction

Technical Parameters

Trouble Shooting

01

02

03

03

05

06

07

10

11

16

18

1

CARING FOR YOUR MA7S MONITOR

•Do not attempt to disassemble the monitor. Doing so voids

warranty.

•Water damage is not covered by warranty, but taking the right

precautions when a water event occurs can sometimes preserve

unit functionality.

• Clean the screen with a high quality microber cloth only.

Never spray the screen directly with any sort of cleaning uid.

•Keep away from the heat source and avoid long exposure to

the sun.

•Do not cover the vents in case of overheating problems.

•For better product lifetime, try not to impact, crush or scratch

on the monitor.

Caring For Your MA7S Monitor

2

WHAT SHOULD BE IN THE BOX

What Should Be In The Box

• MA7S Monitor

• HDMI to Mini HDMI Cable

• HDMI to Micro HDMI Cable

• Cold Shoe Mount

• F970 Battery Plate

• Carrying bag

• Sunshade

• Manual

3

PRODUCT DESCRIPTION

Product Description

• Front Panel and Button

4

PRODUCT DESCRIPTION

Function when OSD is not

displayed

F1 Custom button 1 /

F2 Custom button 2 /

Volume reduction

Value adjustment of selected

parameter

Volume increase

Value adjustment of selected

parameter

MENU OSD Main menu display Back to previous OSD menu

/ Item selection of next menu

MODE/ Signal input selection Item selection of previous menu

Power On/Off

Button Function when OSD is displayed

5

PRODUCT DESCRIPTION

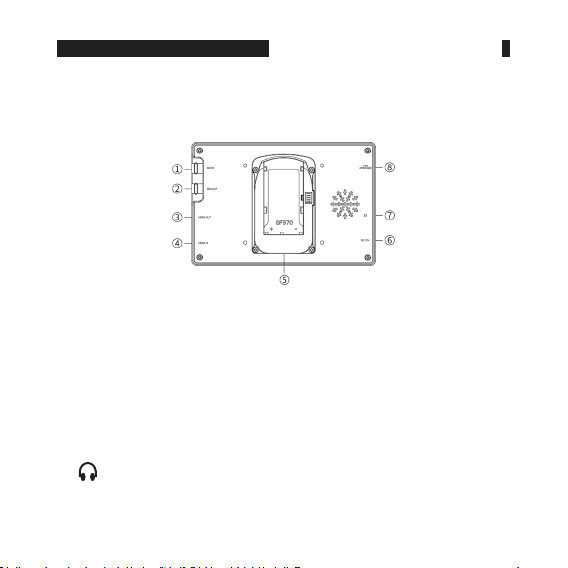

• Rear Panel

① SDI-IN: SDI signal input

② SDI-OUT: SDI signal output

③HDMI-OUT: HDMI signal output

④ HDMI-IN: HDMI signal input

⑤ Battery plate

⑥ DC power input interface

⑦ : Earphone output port

⑧ USB upgrade port

6

PRODUCT DESCRIPTION

• Sunshade

① Sunshade

③Fixed Frame

② Sunshade Frame

④Sunshade Application

First open the Sunshade Frame ①, and match the sticker on

the sunshade inside to the marked part of the sunshade frame

②, smooth and press 3 sides on the sunshade ③, and then

complete the sunshade installation ④.
