Feelworld A737 Manuel utilisateur
7" Full HD On-camera Monitor
Support 4K HDMI Input
User Manual
1
Product Overview
Thank you for purchasing our photography, broadcasting kits color
LCD monitor, which adopts advanced integrated digital signal
processing circuits and professional IPS LED panel, which makes it
high brightness, low power consumption, stable performance, low
radiation etc. It is equipped with HDMI, AV signals inputs, which
make it wide application, casing compact, simple operation, and
portable convenient and strong compatibility.
Advanced features include Histogram, Focus Assist , False Colors,
Over Exposure, Ratio Marker, Camera Mode, Image Flip, P2P,
Center Marker, Safe Frames, Check Field, Image Freeze,
Embedded Audio, Nine Grid, Zoom, Anamorphic etc., ideal portable
lightweight as viewfinder and video monitor equipment.
The monitor is equipped with an external battery plate; you can use
the power adapter supply or use the external battery for power
supply.
To insure best use of the unit, please read the
user’s manual carefully
CAUTION
● Please avoid the heavy impact and drop onto the ground when
move the product.
● Please do not cover the vents and holes on the enclosure and
do not place the machine on a bed, sofa, and rug to ensure
good ventilation. Otherwise it will lead to overheating and
reduces the service life.
● The screen of this product is made of glass. Please do not
impact the screen towards the ground. Keep away from injury if
the screen is broken.
2
● Keep the product away from the heat source, such as radiator,
water heater, stoves or other heating products.
● Avoid prolonged exposures to the sun as the LCD screen will
be damaged.
● Please use the adapter in accessory, or use the qualified
battery if need.
● To avoid damaging the product, please do not take apart or
repair the unit by yourself without adjustable component in the
unit.
● To better maintain the LCD screen, please notice the way as
below to avoid the scratch, discoloration and other damage.
1. Please refrain from using hard objects to hit the screen.
2. Please do not force to wipe the screen.
3. Please do not use chemical solutions to clean the screen.
4. Please do not spray any detergent on the screen.
5. Please do not write on the screen directly.
6. Please do not stick on the screen.
7. Please simply wipe with a clean soft cloth and make sure no
water on the screen.
● To better protect the plastic cover, please follow these ways as
below to avoid the damage:
1. Please do not use chemical solutions to clean the cover.
2. Please keep away from the volatile things.
3. Please keep away from the rubber.
4. Please do not clean hard casing.
5. Please simply wipe with a clean soft cloth and make sure no
water on the cover.
3
Features
●IPS LCD panel, Support 4K UHD HDMI input.
3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24Hz)
●Histogram is a quantitative tool to inspect image brightness, to
guide photography exposure control.
●Analog stereo L/R, Embedded Audio Display
●Focus Assist (Focus edge can be Red, Green, Blue).
●Zebra and False Colors function, convenient to guide using
light when shooing and post production.
●Check Field (Red, Green, Blue, Mono)
●Camera Mode, no delay in camera photography, adaptive
camera output resolution system.
●Image Zoom function.
● Anamorphic Mode.
●Image Flip (H, V, H/V)
●Image Freeze
●Image Nine Grid, zoom one of the images to realize the full
screen.
●P2P(Pixel to Pixel)
●Marker Types, Safe Frames and Center Marker
●Brightness, Contrast, Tint, Saturation and Color Temp adjust.
●Support a variety of different types of battery brands
(F970, LP-E6, D28S, U60)
●Speaker and earphone output
●External sunshade, sunlight readable
4
CONTENTS
1. Product Description ------------------------- 5
2. Operation Instruction ---------------------- 11
3. Menu Instruction ---------------------------- 12
4. Technical Parameters ---------------------- 22
5. Trouble Shooting ---------------------------- 23
5
1. Product Description
1.1 Front Panel Features
1. Power Indicator light: when power on/standby, it turns red;
when signal in, it turns green!
2. :Power on/off
3. F4: Custom button, enter secondary menu item F
(self-defined button), then self-define the function as user
need.
4. F3: Custom button, same as F4 operation
5. ∧/F2: Multi button. In OSD Menu is for up adjustment.
It can be custom button when not in OSD. See F4.
6. ∨/F1: Multi button. In OSD Menu is for down adjustment.
6
It can be custom button when not in OSD. See F4.
7. MENU: Menu button
8. >: Volume up, in OSD menu to increase the value of
analog on the menu.
9. <: Volume down, in OSD menu to decrease the value of
analog on the menu.
10. MODE: Signal switch button
11. LCD Display
1.2 Rear Panel Features
1. USB Upgrade Port
2. OSD Controller input. Insert OSD Controller into this port,
to have a remote operation on the parameters of the
monitor
7
3. : Earphone port
4. AV: AV signal input, to input the AV signal into the monitor
through the assorted port
5. HDMI: HDMI (High Definition Multimedia Interface) signal
input
6. :DC power input interface, pole of the power should
match the image.
7. Built-in Speaker
1.3 Matching VIDEO Cable (optional)
The input of the VIDEO signal is 3.5mm four section plug (as the
picture above)
When use，
Insert the black plug (1) into the video input of the monitor
White RCA jack (2) for L Audio input
Red RCA jack (3) for R Audio input
Yellow RCA jack (4) for Video input
8

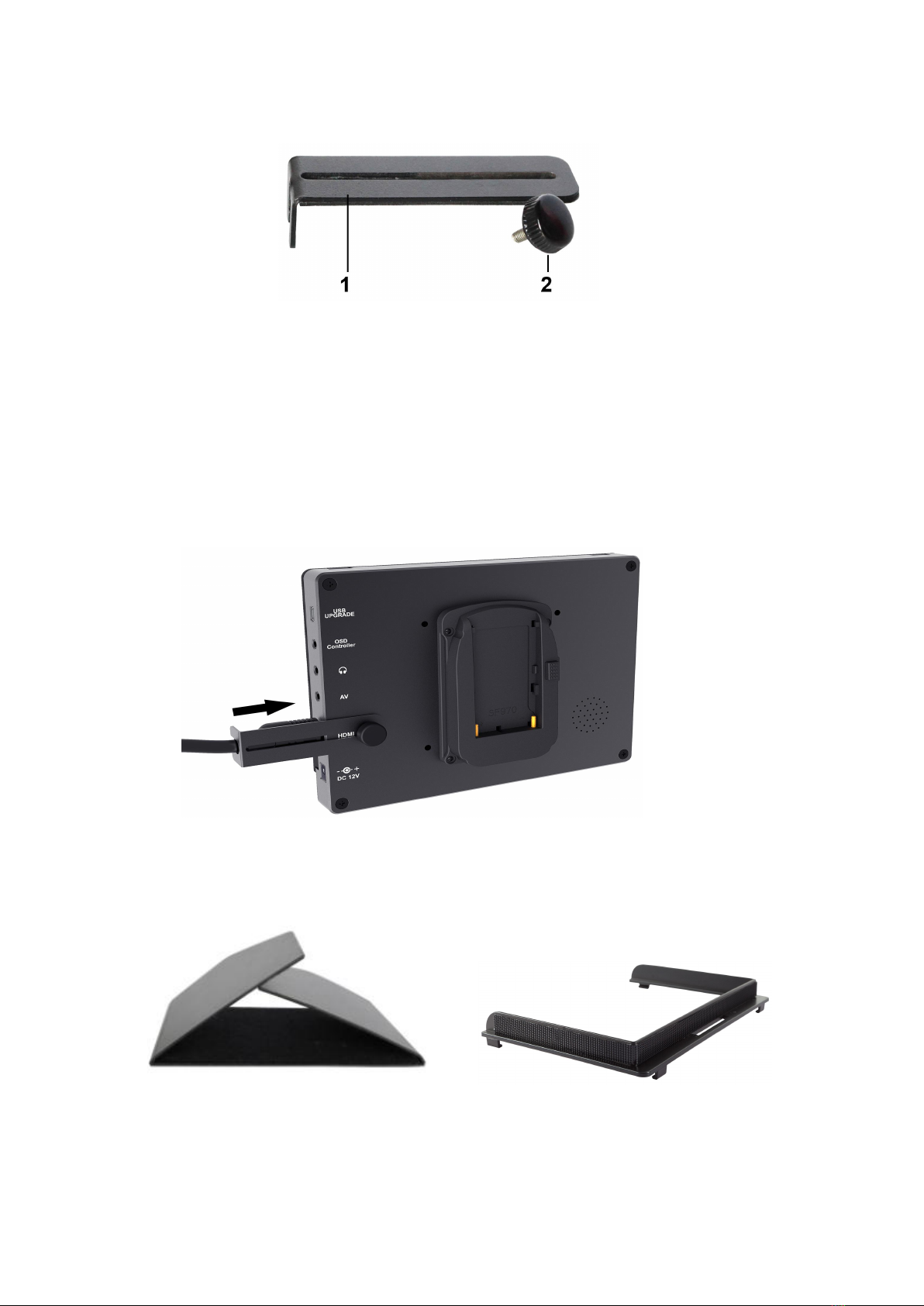

1.4 HDMI Lock
1. HDMI Locking Plate 2. Locking Screw
Use HDMI locking plate to lock the plug of HDMI cable, then put the
locking plate close to the monitor, and finally bolt the locking screw
to lock the plate with the monitor. As the picture below (arrow
direction)
1.5 Sunshade
①Sunshade ②Sunshade Frame
9
③Complete Shape ④Sunshade Application
First, open the sunshade ①, and match the sticker on the
sunshade inside to the marked part of the sunshade frame ②,
press the side of the sunshade frame, ③smooth and press 3 sides
on the sunshade, ④lock the sunshade with the monitor tight.
1.6 Battery Plate
There is a battery plate installed on the back of the monitor, you
can assemble the corresponding battery to power the monitor.
There are many different battery plates. Customers can choose the
suitable battery plate according to the battery.
Battery Plates in different model as below:
F970 LP-E6 D28S U60
