Feelworld fpv121dt Manuel utilisateur
32 Channel Auto Searching
Wireless FPV Monitor with Dual
Receiver LCD Monitor
User Manual
1
Product description：
Wireless FPV monitor with dual receiver LCD monitor is a new
multi-function product; adopts advanced integrated circuits and
high-quality new HD LCD monitor. It integrates a high-sensitivity
32channel and dual 5.8GHZ AV wireless receivers. It is with Aerial
receiver, high-definition monitor, easy to operate, which can be
used for FPV ground station, security monitoring, baby monitors,
photography viewfinder, construction site video surveillance,
advertising and other venues.
To insure best use of the unit, please read the user’s
manual carefully.
CAUTION
1. Do not use any damaged or leaking battery and please replace
the battery immediately if it’s working life becomes short
significantly.
2. Do not expose this product to direct sunlight, heat or humid
conditions.
3. Keep away from strong light while using this product so as to
obtain the clearest and the most colorful picture. Please use sun
shade for the outdoor necessary.
4. Please avoid heavy impact or drop on the ground.
5. Do not use chemical solutions to clean this unit. Please simply
wipe with a clean soft cloth to keep the brightness of the surface.
6. Without adjustable component in the unit, please do not take
apart or repair the unit by yourself, to avoid damage the product.
2
Product Feature
●Dual antenna receiver, high-sensitivity, strong anti-interference
●5.8G wireless receiver, a monitor for the integration of
multi-functional combination machine, compact, suitable for a
variety of purposes
●-90dbm high-sensitivity,5.8G wireless receiver,32 Channel Auto
Scan, effectively avoid signal interference
●Channel auto scan and channel choice of menu buttons function,
improve the accuracy and convenience of channel choice
●Aerial video receives no blue screen
●High brightness, Contrast, Anti-glare screen with a sun shade,
Sun clearly visible
●With VIDEO、AUDIO、HDMI、DVI、VGA input, suitable for a
Variety of sources
●Color Control Systems support, enter the menu to manually
select the appropriate format, and adaptable
●Headphone monitors playback audio effects
CONTENTS
1. Product description ----------------------------- 3
2. Wireless transmits receiver operation ---- 5
3. Operation instructions ------------------------- 8
4. Parameters ---------------------------------------- 16
5. Trouble shooting -------------------------------- 17
3
1. Product description
1.1 Front view:
1. Power Indicator
2. ：ON/OFF Key
3. ：Multi button.
In VIDEO/HDMI/DVI/VGA input state, Volume up button.
In RF state，long press this button for about 3
seconds to enter the channel auto scan. Press this
button for Manual channel setting, to set channel
1~8CH
In OSD, to select or set adjustment items and the
increase adjustment of value button.
4
4. ：Multi button
In VIDEO/HDMI/DVI/VGA input state，volume down
button.
In RF state, Press button to enter the manual
channel，to set BAND A/B/E/F transformation.
In OSD, to select or set adjustment items
and the decrease adjustment of value button.
5. ：Menu Button
6. ：Input signal selection or exit the menu.
1.2 Rear View:
1. :Power input jack, When clients use
their own power supply, please make sure that the
supply current shall not be less than 1.2 A and
5
voltage range in 6 ~ 24 v qualified dc power
supply.
2. HDMI IN:HD HDMI signal input jack
3. DVI IN: Digital video signal input jack
4. VGA IN:VGA signal input jack
5. ：Stereo headphone output jack
6. Black DC jack, DC input
7.Red RCA jack：Analog audio signal input
8. Yellow RCA Jack: VIDEO signal input
2.Wireless transmits receiver operation
Take the form a complete set of the antenna assemble on the
unit’s antenna input ports, the assembly should be secured,
locked on the buckle.
6
2.1 Frequency band selection:
Wireless transmitter channel and receiver channel must be
strictly consistent; otherwise it will not receive a transmitter
signal.
This unit can auto searching for 32 receiver channels, also can
accept simultaneously multi transmitters and receivers together
work, to avoid co-channel interference
Note! Channels must be supporting the transmitter
2.2 Auto Searching:
Confirm that the transmitter has entered a normal working
condition.
Press “ ” to turn on the monitor, press “ ” to select
“RF” signal.
Long pressing “ ”，“Auto Searching” will display on the
top left corner of the screen,means the machine start to auto
scan. When the screen on the upper left corner shows
the“BAND:X CH:X”, image displaymeans finished searching.
Now it can receive the signal.
7
2.3 Manual channel scan and setting:
Confirm that the transmitter has entered a normal working
condition.
Press “ ” to turn on the monitor, press “ ” to select
“RF” signal.
Press “ ”button，“BAND:X CH:X” will display on the top
left corner of the screen; press“ ”button to switch
BAND A/B/E/F channels, and then press “ ” button to
select 1~8 channels. If the transmitter has worked, receiver
and transmitter frequency in agreement, the receiver will
receive the signal sent from the transmitter and displayed on
the monitor
Note: The effect of receiving the distance has a great
relationship with the reception power of the transmitter and
the receiver venues. If the reception is poor, the antenna can
be replaced with three leaves, four leaf antenna or panel
antenna. Replace the antenna should pay attention to the
antenna and receiving the same frequency.
8
3. Operation instructions

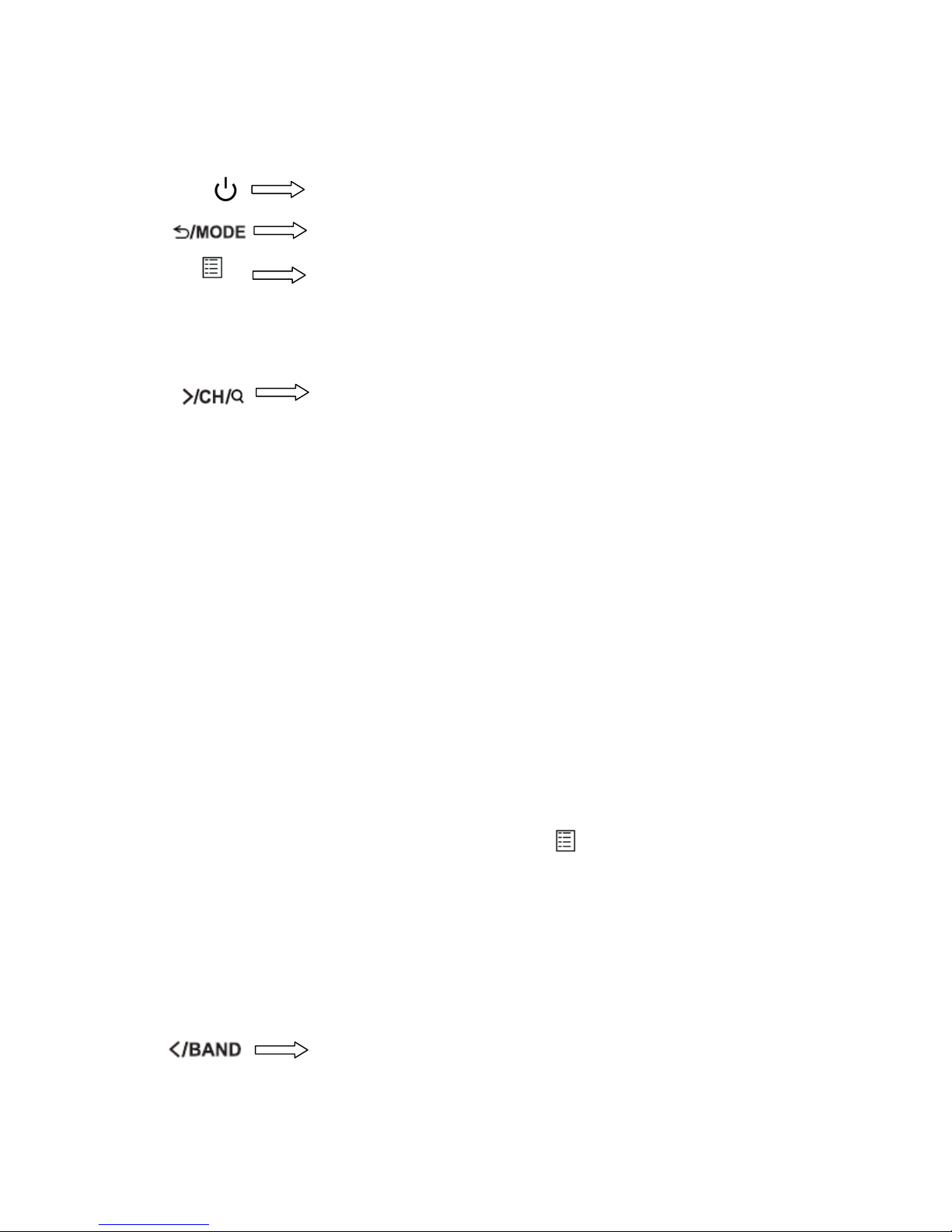

3.1 Button instructions:
ON/OFFKey
Input signal switch button, in OSD for exit button.
Menu key, under a signal input mode, pressing this
button to pop up the menu, and the current menu
and sub-menu item to confirm the adjustment
Multi button, In different input state, it has
different functions:
In RF state
Auto Searching: Long press this button for
(≥3 seconds)to enter the channel scan.
Manual adjustment : directly press this button to set
1～8CH.
In VIDEO/HDMI/DVI/VGA state
No menu is displayed, press this button to increase
the volume.
In OSD
Enter the menu operation, press button to
confirm and enter sub-menu, then press this
button to select or set adjustment items.
Enter the adjustment items, it is used to set and
increase the adjustment of value button.
Multi button, In different input state, it has
different functions:
9
In RF State
Manual adjustment to set BAND:A/B/E/F.
Volume adjustment in RF state，need to press this
button to confirm. When screen appears the volume
adjustment, press this button to decrease the
volume, press button to increase the volume.
In VIDEO/HDMI/DVI/VGA state
No menu is displayed，directly press this button to
decrease the volume.
In OSD
Enter the menu operation, press button to
confirm and enter sub-menu, then press this
button to select or set adjustment items.
Enter the adjustment items, it is used to set
And decrease the adjustment of value button.
