Feelworld F570 Manuel utilisateur
5.7" Full HD On-camera Monitor
Support 4K HDMI Input / Output
User Manual
1
Product Overview
Thank you for purchasing our Full HD color LCD monitor, which
adopts advanced integrated digital signal processing circuits and
professional IPS LED panel, which makes it high brightness, low
power consumption, stable performance, etc. It is equipped with
HDMI input and output, which make it wide application, casing
compact, simple operation, portable convenience and strong
compatibility.
Advanced features include Histogram, Focus Assist , False Colors,
Zebra Exposure, Aspect Ratio, Image Flip, P2P, Center Marker,
Safe Frames, Check Field, Image Freeze, Nine Grid, Zoom,
Anamorphic etc. It is an ideal, portable and lightweight viewfinder
and video monitor.
The monitor is equipped with an external battery plate; you can use
the power adapter supply or use the external battery for power
supply.
To insure the best use of the unit, please read the
user’s manual carefully
CAUTION
● Please avoid the heavy impact and drop onto the ground when
move the product.
● Please do not cover the vents and holes on the enclosure and
do not place the machine on a bed, sofa, and rug to ensure
good ventilation. Otherwise it will lead to overheating and
reduce the service life.
2
● The screen of this product is made of glass. Please do not drop
the screen towards the ground. Keep away from injury if the
screen is broken.
● Keep the product away from the heat source, such as the
radiator, the water heater, the stoves and the other heating
products.
● Avoid the prolonged exposures to the sun as the LCD screen
will be damaged.
● To avoid damaging the product, please do not take apart or
repair the unit by yourself without the adjustable components in
the unit.
● To maintain the LCD screen better, please notice the ways as
below to avoid the scratch, the discoloration and the other
damages.
1. Please refrain from using the hard objects to hit the screen.
2. Please do not force to wipe the screen.
3. Please do not use the chemical solutions to clean the screen.
4. Please do not spray any detergent on the screen.
5. Please do not write on the screen directly.
6. Please do not stick on the screen.
7. Please simply wipe with a clean soft cloth and make sure no
water on the screen.
● To protect the plastic cover better, please follow these ways as
below to avoid the damages;
1. Please do not use the chemical solutions to clean the cover.
2. Please keep away from the volatile things.
3. Please do not clean the case hard.
4. Please simply wipe with a clean soft cloth and make sure no
water on the cover.
3
Features
● IPS LCD panel, support 4K HDMI input and output
3840×2160p (30/29.97/25/24/23.98 Hz) / 4096×2160p (24Hz)
●Histogram is a quantitative tool to inspect the image brightness,
to guide the exposure control
●Focus Assist (Focus edge can be Red, Green, Blue)
●Zebra and False Color function, convenient to guide the using
light when shooting and the post production
●Check Field (Red, Green, Blue, Mono)
●Image Zoom-in function
● Anamorphic Mode
●Image Flip (H, V, H/V)
●Image Freeze
●Image Nine Grid, zoom one of the images to realize the full
screen
●Pixel to Pixel
●Marker Types, Safe Frames and Center Marker
●Brightness, Contrast, Tint, Saturation and Color Temp
Adjustment.
●Support varieties of the different types of the battery brands
(F970, LP-E6, D28S, U60)
●Earphone output
●External sunshade, sunlight readable
4
CONTENTS
1. Product Description ----------------------------------------- 5
1.1 Button Instruction --------------------------------------------- 6
1.2 Port Instruction ------------------------------------------------ 7
1.3 1/4" Screw Lock Installation --------------------------------7
1.4 Sunshade ------------------------------------------------------- 8
1.5 Battery Plate --------------------------------------------------- 9
2. Menu Operation Instruction ------------------------------- 11
3. Menu Function Instruction --------------------------------- 12
4. Technical Parameters --------------------------------------- 22
5. Trouble Shooting --------------------------------------------- 23
5

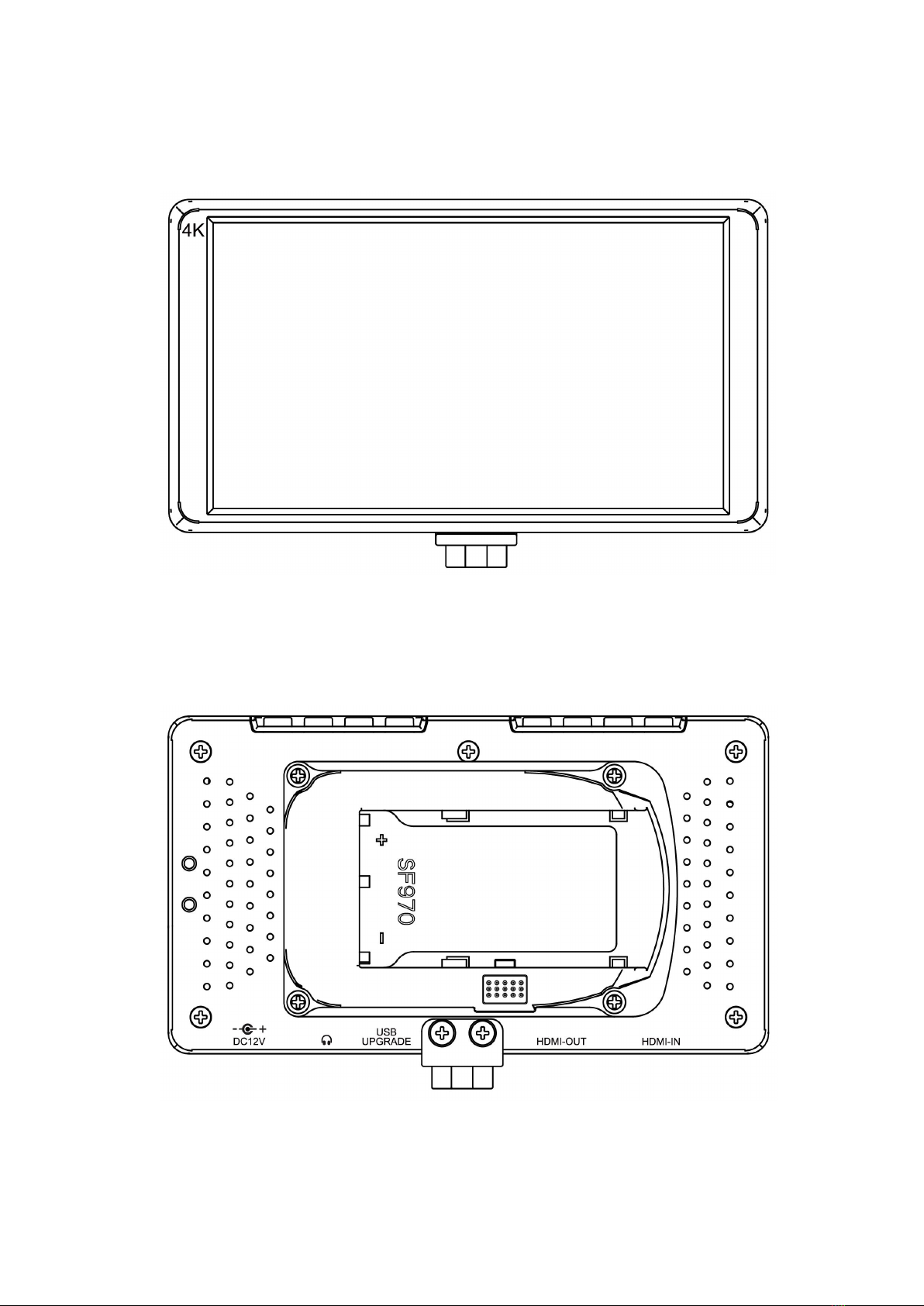

1. Product Description
Front Panel
Back Panel
6
1.1 Button Instruction
①. F1: Custom button, enter into the Secondary F menu of the
OSD Menu to set custom button according to your own habit.
②. F2: Custom button, same setting as F1.
③.<:Volume down, in menu operation it is the adjust button
for the set item.
④. >:Volume up, in menu operation it is the adjust button for
the set item.
⑤. MENU: Menu button.
⑥. ∨:When enter into OSD operation, it is for the down item
selection.
⑦. ∧:When enter into OSD operation, it is for the up item
selection.
⑧. :Power On/Off button
⑨. Power Indicator light: when power on/standby, it turns red;
when signal in, it turns green.
7
1.2 Port Instruction
①DC12V: DC power input interface, polarity as the input
power .
②:Earphone port output
③USB upgrade port
④Install 1/4" screw lock
⑤HDMI-OUT: HDMI signal output
⑥HDMI-IN: HDMI signal input
1.3 1/4" Screw Lock Installation
You can install it on the bottom or right side of the monitor.
①Fasten the 1/4" screw lock with the monitor.
②Use 2 screws to fasten the1/4" screw lock and the monitor.
8
1.4 Sunshade
①Sunshade ②Sunshade Frame
③Fixed Frame ④Sunshade Application
First open the Sunshade Frame ①, and match the sticker on the
sunshade inside to the marked part of the sunshade frame ②,
smooth and press 3 sides on the sunshade ③, and then complete
the sunshade installation ④.
9
1.5 Battery Plate
There is a battery plate installed on the back of the monitor, you
can assemble the corresponding battery to power the monitor.
There are many different battery plates. Customers can choose the
suitable battery plate according to the battery.
Battery Plates in different models as below:
F970 LP-E6 D28S U60
●Sony F970 battery plate for battery of Sony DV:
Sony F970 F960 F950 F930 F770 F750 F730 F570 F550 F530
series.
●LP-E6 battery plate for battery of Canon DV:
Canon LP-E6
●D28S battery plate for battery of Panasonic DV:
