Feelworld FVP215-9HSD Manuel utilisateur
High Definition Color LCD Monitor
2
21
1.
.5
5”
” H
Hi
ig
gh
h D
De
ef
fi
in
ni
it
ti
io
on
n M
Mo
on
ni
it
to
or
r
User manual
Dear users:
Thank you for purchasing our photography, broadcast HD-SDI
LCD Monitor kit. This product employs digital signal processing
circuit and professional TFT LCD screen. It’s high brightness,
low power consumption, stable performance and emits no
radiation advantages, strong compatibility, adjustable color
temperature control. Advanced features include Screen marker,
CAMERA mode, Image magnification, Image flip and change,
Monochrome mode etc. It is an ideal portable light weight
frame supporting the monitor. The monitor is not only with
HDMI, COMPONENT（YPbPr), composite Video, Audio signals
input, also with HD-SDI input & output, to meet different
customers' needs.
To insure best use of the unit, please read the user's
manual carefully.
CAUTION
1. Please use the adapter attached in the accessory.
2. Do not expose this product to direct sunlight, heat or
humid conditions
3. Keep away from strong light while using this product so
as to obtain the clearest and the most colorful picture.
4. Please avoid heavy impact or drop on the ground.
5. Do not use chemical solutions to clean this unit. Please
simply wipe with a clean soft cloth to keep the
brightness of the surface.
6. Without adjustable component in the unit, please do
not take apart or repair the unit by yourself, to avoid
damage the product.
1
Product feature:
◆5D II Camera Modes
◆Screen Marker: off, 96%, 93%, 90%, 85%，80%
◆Screen Center Marker (cross mark) display setting
◆Scan mode: (standard, under scan, over scan)
(1080I, 1080P, 50/60HZ NO use)
◆Monochrome display: color, black and white, red,
green, blue, Closed
◆Image magnification/scaling, image flip function
(1080I, 1080P, 50/60HZ NO use)
◆H/V delay
◆Picture in picture (PIP) function
◆Aspect ratio: panoramic, full screen, point to point,
Zoom 1, 4:3, 16:9, 14:9 option
◆Scan Mode: standard, under scan, over scan
◆Display pixel and the pixel point to point display
◆Panel Button（F1～F4）function custom setting
◆LED backlight, Image display brighter, screen does not
flicker
◆Front panel stereo monitors earphone output
◆Multiple signal output port, flexible use
2
CONTENTS
1. Product description --------------------------------4
A. Front panel view ---------------------------------4
B. Rear panel view ----------------------------------5
C. Battery Plates -------------------------------------6
D. Power input way----------------------------------7
E.TALLY use and connect ------------------------8
2. Button operation instruction--------------------9
3. Menu function introduction---------------------10
4. Signal format form---------------------------------16
5. Accessories------------------------------------------16
6. Parameters-------------------------------------------17
7. Trouble shooting-----------------------------------18
3
1．Product description
A. Front panel view
1. Power ON/OFF: ：Power connect, ○：power cut
2. : Earphone jack
3. SDI: Digital component serial signal input selection button
4. HDMI：HDMI HD signal input selection button
5. VIDEO: Composite video signal input selection button
6. YPbPr: YPbPr Color difference signal input selection button
7. :Camera mode
8. MENU: To activate or close OSD (on-screen display) menu
9. ：Volume down, in OSD menu for left adjustment,
function confirm or decrease the value of analog on the
menu
10.：Down adjustment button, menu item selection button,
4
press the button directly, which enables the movable
picture still in the picture.
11. ：Volume up, in OSD menu for right adjustment, function
Confirm or increase the value of analog on the menu
12. ：Up adjustment button, menu item selection button
13～16. F1～F4：Custom button, can select (Screen marker,
Monochrome display, point to point, scanning mode,
center marker, segmentation, magnified image) one of
them as definition function
17. TALLY (indicator)
B．Rear panel view
1. Battery Plate: (According to the users' requirements
Selection)-see attached instruction
2. Tally (indicator) signal input
3. 4-pin XLR DC power input
5
4. HDMI OUT: HDMI (High Definition Multimedia Interface)
signal output
5. HDMI IN: HDMI (High Definition Multimedia Interface)
Signal input
6. Y IN： Y signal input
7. Y 0UT： Y signal
output
8. Pb IN： Pb signal input
9. Pb OUT：Pb signal output
10. Pr IN: Pr signal input
11. Pr OUT: Pr signal output
12. VIDEO IN：Composite Video signal input
13 VIDEO OUT: Composite video signal output
14. AUDIO L IN: Audio signal input
15. AUDIO R IN: Audio signal output
16. HD-SDI IN: Digital component serial interface signal
I
nput(option)
17. 3G-SDI OUT: Digital component serial interface signal
Output (option)

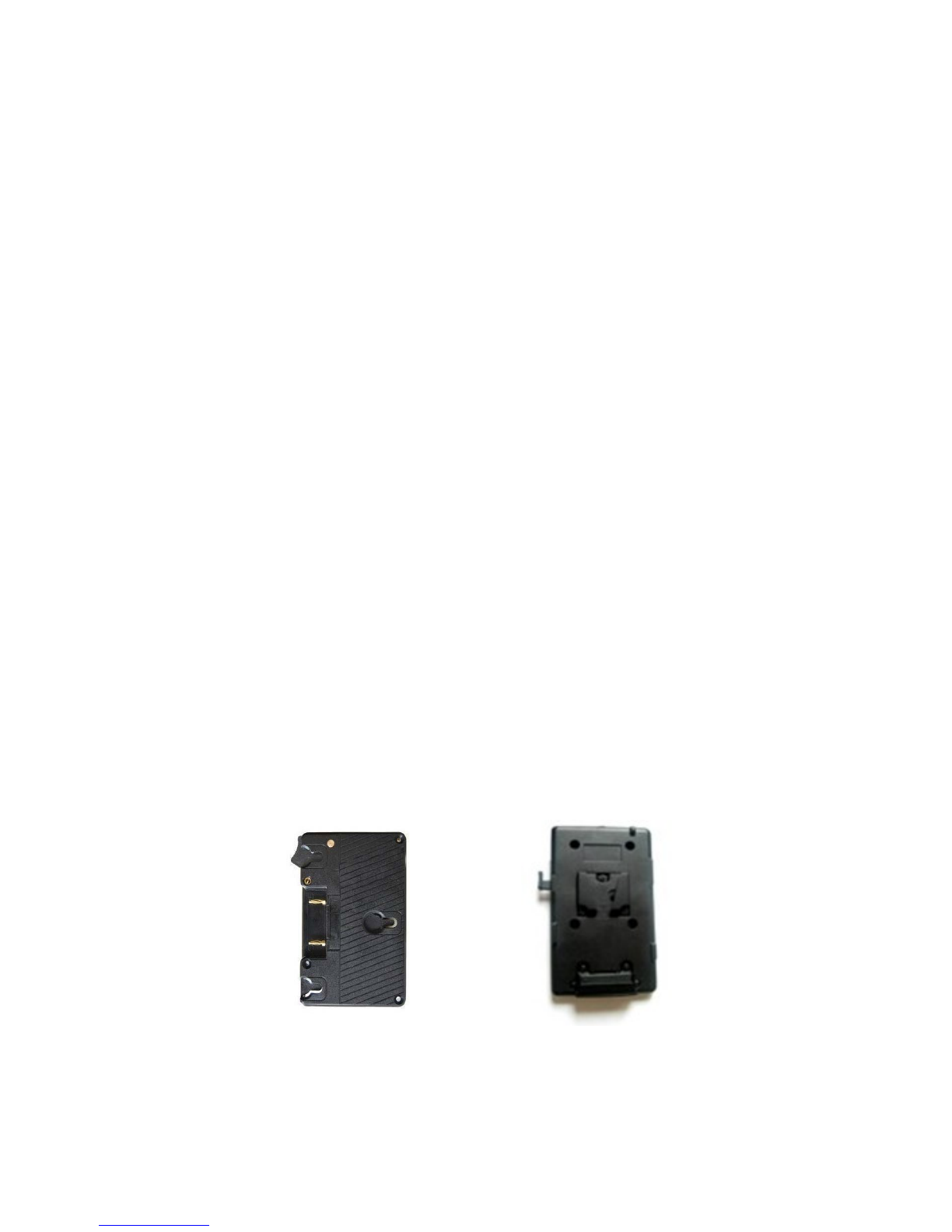

C. Battery plates:
Panasonic Anton Bauer Sony V-Mount Plate
According to the different requirements of battery for the
customers, attached different battery plates. NO requirements, the
6
factory defaults assembly Sony V-Mount battery plate.
Remark: Different specifications of the battery, capability is
different. The working time for the monitor will be different.
Higher capability (working time) will be longer.
D．Power input way
The monitor can work with power through 4 pin XLR (XLR)
interface or battery plate install battery-powered, when the 4 pin
XLR (XLR) interface and battery plate both with power, the monitor
automatically selected by the 4 pin XLR (XLR) interface power
supply.
D-1. 4 pin XLR (XLR) interface power supply. The unit working
voltage range of 10～24V DC voltage. XLR polarity power
input ports as shown below, please note that the polarity of
the input power, otherwise it may damage monitor! When
customer self optional power adapter, you should pay
attention to choose the output voltage of DC 10 ~ 24V, output
power> 30W power adapter.
D-2. Another option of power source is using batteries. The product
back case including battery plate is available for two types of
batteries. Customers can choose different battery plates
according to their needs.(NO requirements, the factory defaults
assembly V-Mount battery plate)
7
Different specifications of the battery, capability is different.
The working time for the monitor will be different. Higher
capability (working time) will be longer.
Without design charging circuit for the monitor, please remove
the battery to the battery charger for charge.Suggestion:
Better remove the battery for long-term NO use this product.
E．Tally use and connect
TALLY Kit
To use random TALLY kit connect TALLY signal line from the
switching station as shown
Connection method:
E-1. Active connection: GND and G with 0-5V voltage wire shorted
to ground access
When the voltage is 0.3-2.7V, green TALLY lamp lights
When the voltage is 2.8-5.5V, red TALLY lamp flashes
E-2. Passive connection: GND, R +, G all shorted red TALLY lamp
flashes
●please note the connection method
8
2. Button operation instruction
SDI→Digital component serial signal input selection
HDMI →High Definition Multimedia Digital Signal input selection
VIDEO →Composite video signal input selection
Ypbpr →Color difference interface video signal input selection
→Photography mode. Using 5D2 or 550D and other similar
camera, press the button , the screen image
disappears after about 6-8 seconds, will return to full
screen display image, then watch from framing of the
screen image to the recording when there is no time
difference, image NO distortion, NO black, NO delay,
perfect without distortion
MENU →Menu button
→Volume up, in OSD menu for left adjustment, function
confirm or increase the value of analog on the menu
→Volume down, in OSD menu for right adjustment, function
confirm or decrease the value of analog on the menu
→Enter menu operation for menu option and submenu up
Selection
→Image still and menu operation down selection button. No
Enter
menu operation, press this button directly enables the
Movable picture still in the picture. Enter menu operation as
9
