Extech Instruments RPM250W Manuel utilisateur

Quick Start

RPM250W Laser

Tachometer

Bluetooth® Connectivity with the

ExView® Mobile App

Quick Start (en)

PREPARATION

1. Included items: RPM250W, reflective tape, Quick Start, and

batteries.

2. Download the User Manual from the Extech website.

3. Download the ExView mobile app from the App Store (iOS®) or

Google Play (Android™).

4. Install the batteries in the rear compartment, observing correct

polarity.

5. Long press the power button to switch the meter on (short

press to switch off).

6. Short press the button to select Tachometer (RPM) or Coun-

ter (COUNT) function.

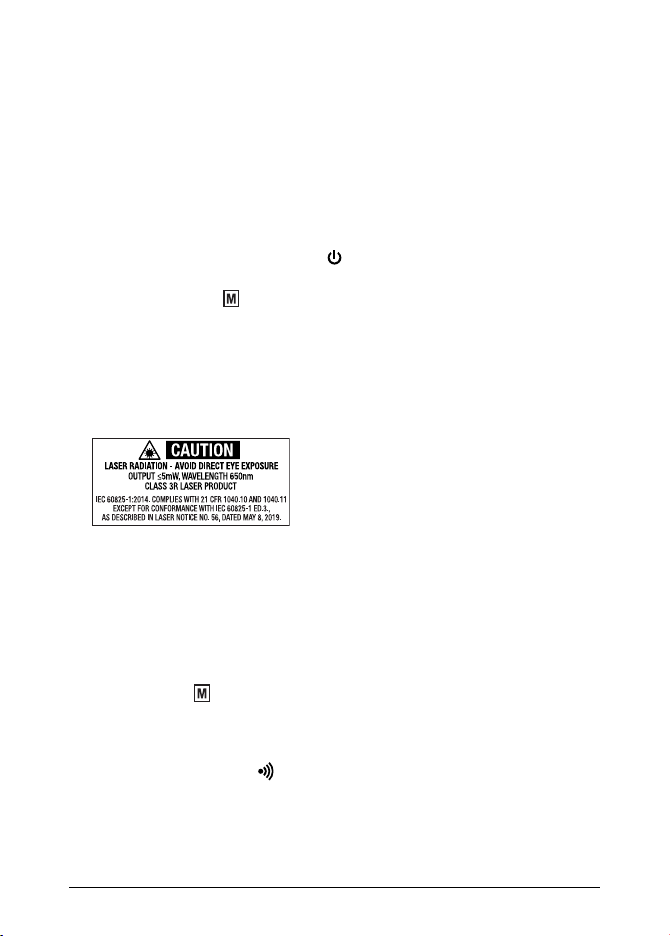

GENERAL SAFETY

• Check for damage to the device before use. Return the unit if

damage is evident.

• Do not attempt to open the meter housing.

• Do not point the Laser beam toward the eyes.

• Allow at least 2 in. (50 mm) between the meter and the meas-

ured objects.

• CE and FCC compliant.

TACHOMETER (RPM) OPERATION

1. Switch off the device under test to ensure that it is not moving.

2. Affix a 0.5 x 0.5 in. (12 mm x 12 mm) piece of reflective tape to

the device under test.

3. Short press to select RPM.

4. Switch on the device under test so that it begins moving.

5. From a distance of 2 to 20 in. (50 to 500 mm), aim the meter

sensor (top) toward the reflective tape.

6. The monitor symbol appears when the meter detects the re-

flected light.

7. Read the RPM measurement on the LCD.

8. Short press MAX/MIN to step through MAX/MIN readings.

#NAS100083; r. AA/78963/78963; en-US 1

9. For measurements > 99,999 RPM, OL will appear.

COUNT OPERATION (ILLUMINATED OBJECTS)

1. Short press the button until COUNT is displayed.

2. Position the meter 2 to 20 in. (50 to 500 mm) from the device

under test.

3. Switch on the device under test so that it begins moving.

4. Each time an illuminated object passes the meter sensor, the

count increments by 1, and the monitor symbol appears.

5. Short press MAX/MIN to reset the counter to zero.

6. If the count is > 99,999, OL will display.

COUNT OPERATION (EXTERNAL ILLUMINATION)

1. Set up the test so that the device under test is between the me-

ter and the optical source.

2. Short press until COUNT is displayed.

3. Long press to switch off the Laser.

4. Position the meter 2 to 20 in. (50 to 500 mm) from the object

under test.

5. Switch on the device under test so that it begins moving.

6. As each object passes between the meter and the optical

source, the count increments by 1, and the monitor symbol

appears.

7. Short press MAX/MIN to reset the counter.

BLUETOOTH OPERATION

Long press the Bluetooth button to switch Bluetooth on or off.

Download the ExView mobile app onto your smart device from the

App Store or Google Play.

Instructions for app use are available on the Extech website (Ex-

View product page). Switch APO off when using Bluetooth by

pressing the power and Hbuttons until the APO symbol

switches off.

#NAS100083; r. AA/78963/78963; en-US 2

METER DESCRIPTION

1. Photo-electric sensor and Laser pointer lens

2. Backlit LCD

3. Function buttons

4. Tripod Mount

5. Battery compartment

FUNCTION BUTTONS

Long press to switch the meter on. Short press to switch off.

Long press to switch Bluetooth on/off.

In RPM mode, short press to view the MAX/MIN readings;

Long press to clear the readings.

In Count mode, short press to reset the count to zero.

Short press to freeze/unfreeze the displayed reading.

Long press to switch the LCD backlight on/off.

Short press to toggle Tachometer (RPM) and Count modes.

Long press to switch the Laser pointer on/off.

#NAS100083; r. AA/78963/78963; en-US 3

DISPLAY SYMBOLS

1. Measurement reading

2. Laser pointer symbol

3. Tachometer/Counter monitor symbol

4. Data Hold

5. Maximum reading

6. Minimum reading

7. Low battery symbol

8. Auto Power Off (APO) symbol

9. Bluetooth active

10. Tachometer (RPM) and Counter (COUNT) mode icons

BASIC SPECIFICATIONS

Display type 5 digit backlit LCD

Low battery indication Replace batteries when symbol appears

RPM range 0 to 99,999 RPM

Counter range 0 to 99,999

Operating conditions 32 to 104℉(0 to 40℃); < 80% RH

Storage conditions -4 to 140℉(-20 to 60℃); < 80% RH

TWO-YEAR WARRANTY

FLIR Systems, Inc. warrants this Extech brand instrument to be free

of defects in parts and workmanship for two years from date of

shipment. View the full warranty at this link:

http://www.extech.com/support/warranties

#NAS100083; r. AA/78963/78963; en-US 4

CUSTOMER SUPPORT

Customer Support Telephone List:

https://support.flir.com/contact

Service e-mail:[email protected]

Technical Support:https://support.flir.com

#NAS100083; r. AA/78963/78963; en-US 5

last page

Publ. No.: NAS100083

Release: AA

Commit: 78963

Head: 78963

Language: en-US

Modified: 2021-08-26

Formatted: 2021-08-26

Website

http://www.flir.com

Customer support

http://support.flir.com

Disclaimer

Specifications subject to change without further notice. Models and accessories

subject to regional market considerations. License procedures may apply.

Products described herein may be subject to US Export Regulations. Please

refer to [email protected] with any questions.
